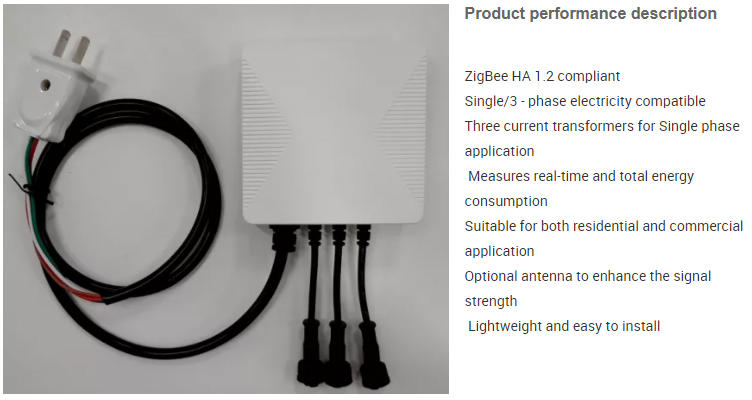

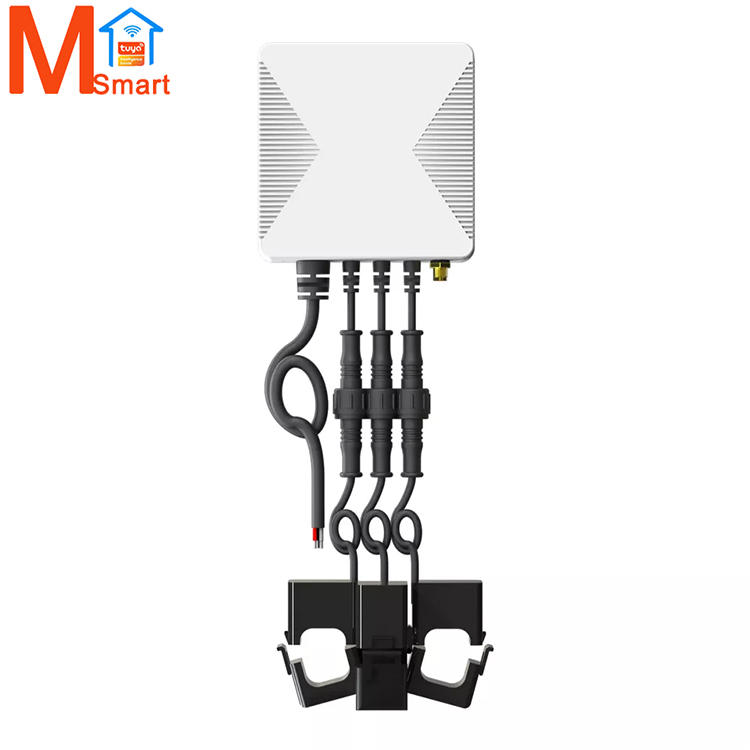

Tuya smart power clamp meter wifi smart energy meter 80A three-phase clamp meter equipment energy monitor
- $45.00 / 2 - 99 pieces
$37.00 / 100 - 499 pieces
$35.00 / 500 - 999 pieces
$32.00 / >=1000 pieces - 2 pieces
- Jinhua Moxiang Network Technology Co., Ltd.
- Zhejiang, China
- Mr Tim Zhou
PRODUCT DETAIL
Supply capacity: | 1000 pieces per month | Key words: | Tuya Energy Meter Switch |
color: | picture | Function: | Multifunctional Electrical Monitoring |
payment terms: | Western Union, D/P, D/A, T/T, MoneyGram | stage: | three phase |
model: | MS-PC321-80-W-TY | brand: | M.smart |
Material: | plastic | Wireless Model: | 2.4G Hz |
port: | Ningbo/Shanghai | Application Name: | Tuya/Smart Life Application |
Voltage: | 100-240V | Accuracy class: | 0.01 |
Measured electrical parameters: | Irms, Vrms, active power and energy, reactive power and energy | product name: | Three-phase clamp measuring equipment |
Packaging Details: | Tuya smart power clamp meter wifi smart energy meter 80A three-phase clamp meter equipment energy monitor standard packaging | place of origin; place of origin: | China |
current: | 80A/120A/200A/300A | Measuring energy range: | 1200imp/kWh |
Operating temperature: | 0~+55 |


product name | Energy Power Clamp |
Material | plastic |
Function | Measure real-time and total energy consumption |

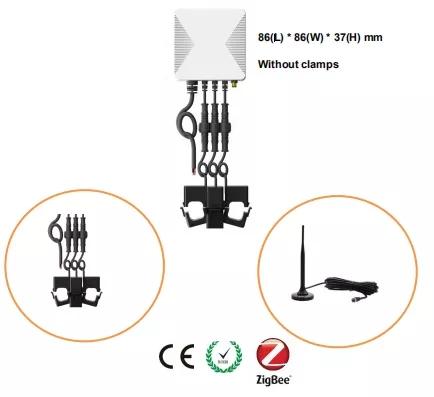

size | 86(L)*86(W)*37(H) mm |
weight | 586 grams |
operating frequency | 50/60 Hz |
Operating Voltage | 100-240 VAC |
installation type | wall mount |
operating environment | Temperature: -20°C to 50°C Relative Humidity: 10% to 90% RH |
outdoor/indoor range | 100m/30m |
Output Power | Up to +20dBm |
Range of measurement parameters | l Voltage: 0 to 240 Vac, between phase and neutral l Current: up to 250 amps |
