Din Rail Watt Meter AC 110V 220V 380V 100A Ammeter Voltmeter Volt Amp Active Power Factor Time Energy Voltage Current
- $14.00 / >=2 pieces
- 2 pieces
- Yueqing Tianen Electric Factory
- Zhejiang, China
- Mr Alan Xue
| Model Number: | AC 110V 220V 380V 100A; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Brand Name: | TIANEN; |
Din Rail Watt Meter AC 110V 220V 380V 100A Ammeter Voltmeter Volt Amp Active Power Factor Time Energy Voltage Current Montior
Note: when chose AC 250-450V, it is used in 2 wires of three phase, please don't use it in single phase.
User Guide
D52-2047 DIN-rail multi-function Digital meter can measure AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.
Technical Indicators
1. Accuracy: 1%±2 words
2.Display Mode: AC voltage and power factor use four red led of 0.31-inch
AC current and electric energy of cumulative time use five red led of 0.31-inch
Active power, electric energy use five green led of 0.31-inch
3.Range: AC voltage : AC 80.0-300.0V or AC 250-450V
AC Current : AC 0.0-100.0A Accuracy : 0.01A
Active power: 0.0-30000W or 0.0-45000W
Electric energy: 0.000-99999kwh
Electric energy of cumulative time: 0.00 - 999.59h
Power factor: 1.000-0.000
4.Speed: 2 times per second

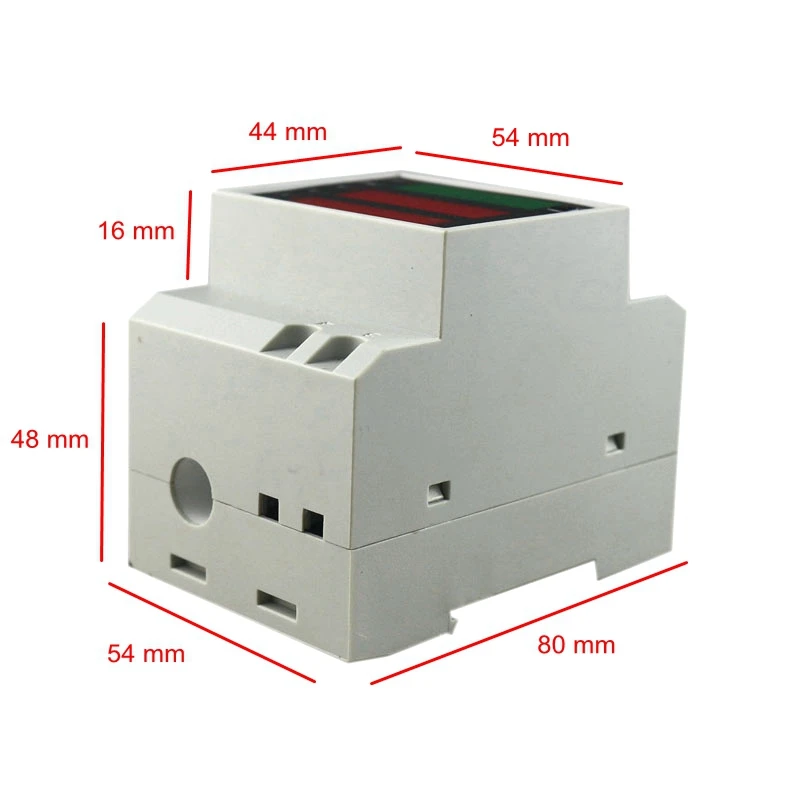

5.Size: 54*80*64mm
6.Installation: Din-Rail
Yueqing Tianen Electric Factory. is Established in 2005.Has variety of goods ,such as
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.
We are manufacturer and have ten years in Electrical industry.
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
