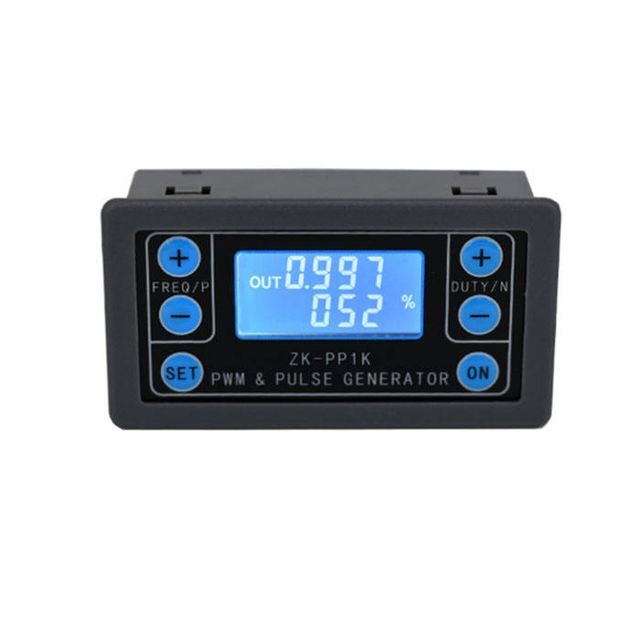

ZK-PP1K PWM Adjustable Module ZK-PP1K Pulse Frequency Adjustable Module Square Wave Signal Function Generator

1. PWM signal generator, square wave and rectangular wave signal generator

2. It is used to generate square wave and rectangular wave signal, which is provided to DC motor or stepper motor driver; stepper motor, servo motor, electric gripper, mechanical arm

3. Combined with the driver to achieve dimming, speed regulation, control solenoid valves, etc., but cannot directly drive loads such as lamps, motors, solenoid valves, etc.

1. Highlights:

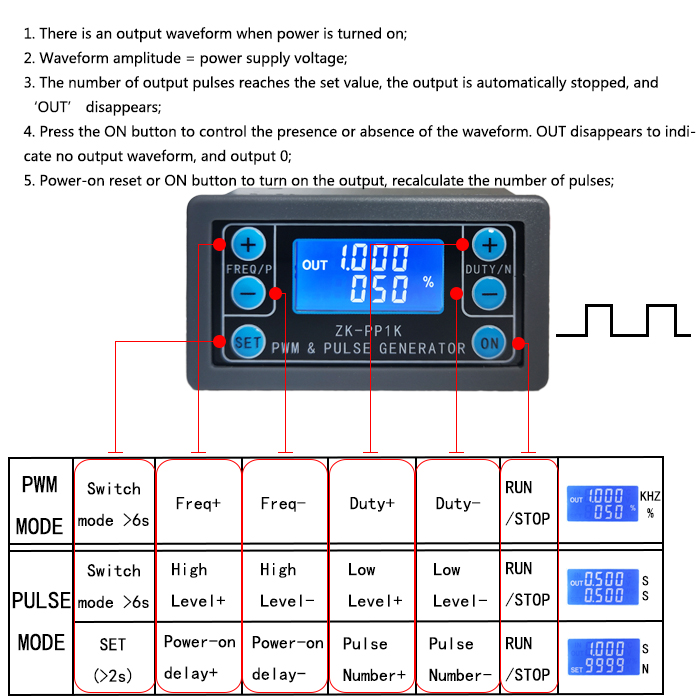

1.1 Two modes are available:

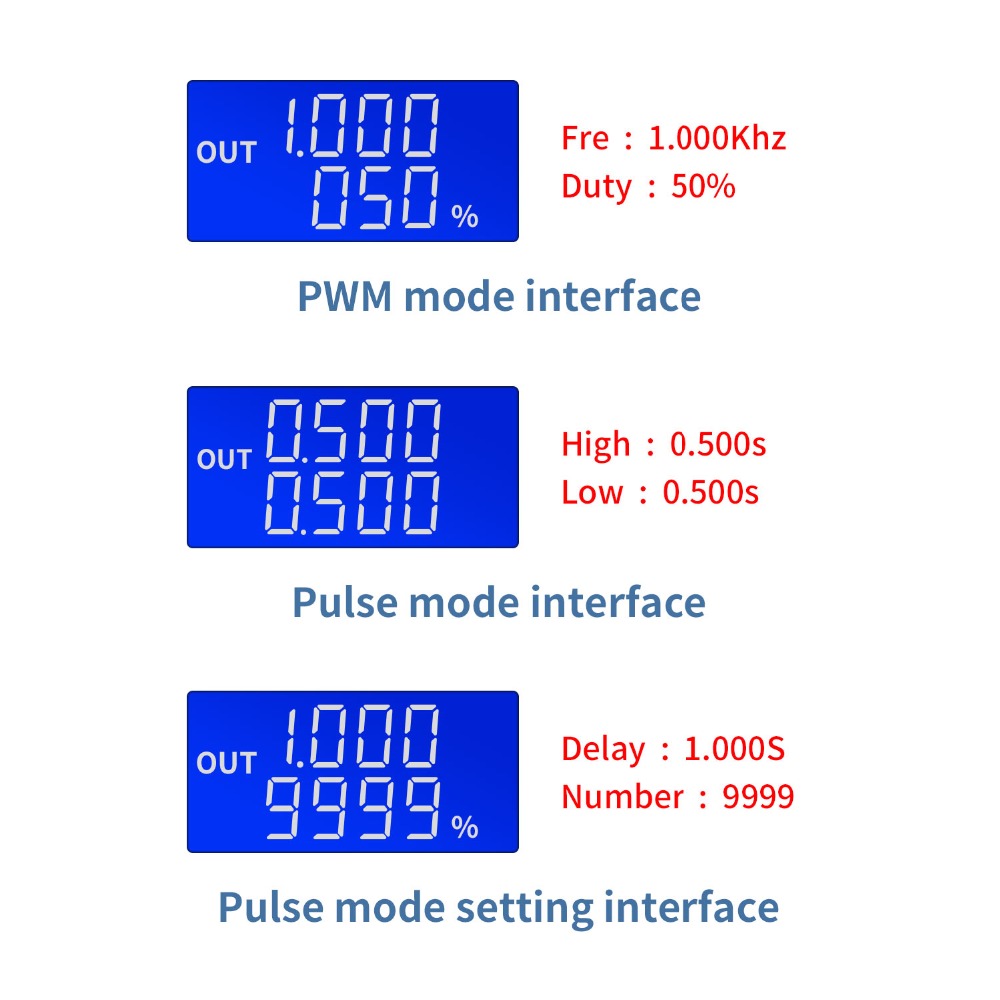

PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulses are sent out all the time;

PULSE mode——Positive pulse width time, negative pulse width time, delayed start time, and the number of pulses are adjustable.

1.2 With a start-stop button, an external switch can also be connected to control the output signal ON/OFF.

1.3 Wide voltage input 3.3-30V, with anti-reverse connection protection, 5.08mm terminal wiring

2. Technical parameters:

2.1 Working voltage: 3.3~30V, with anti-reverse connection protection

2.2 Frequency range: 1Hz~150KHz, accuracy about 1%

2.3 Duty cycle range: 0-100%, 1% step

2.4 Pulse number: 1-9999, or infinity (display '----' means infinity)

2.5 Delayed output time: 0.000s-9999s, the minimum can be set to 1ms

2.6 Positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms

2.7 Signal carrying capacity: less than 30mA

2.8 Output signal amplitude: the amplitude is equal to the power supply voltage

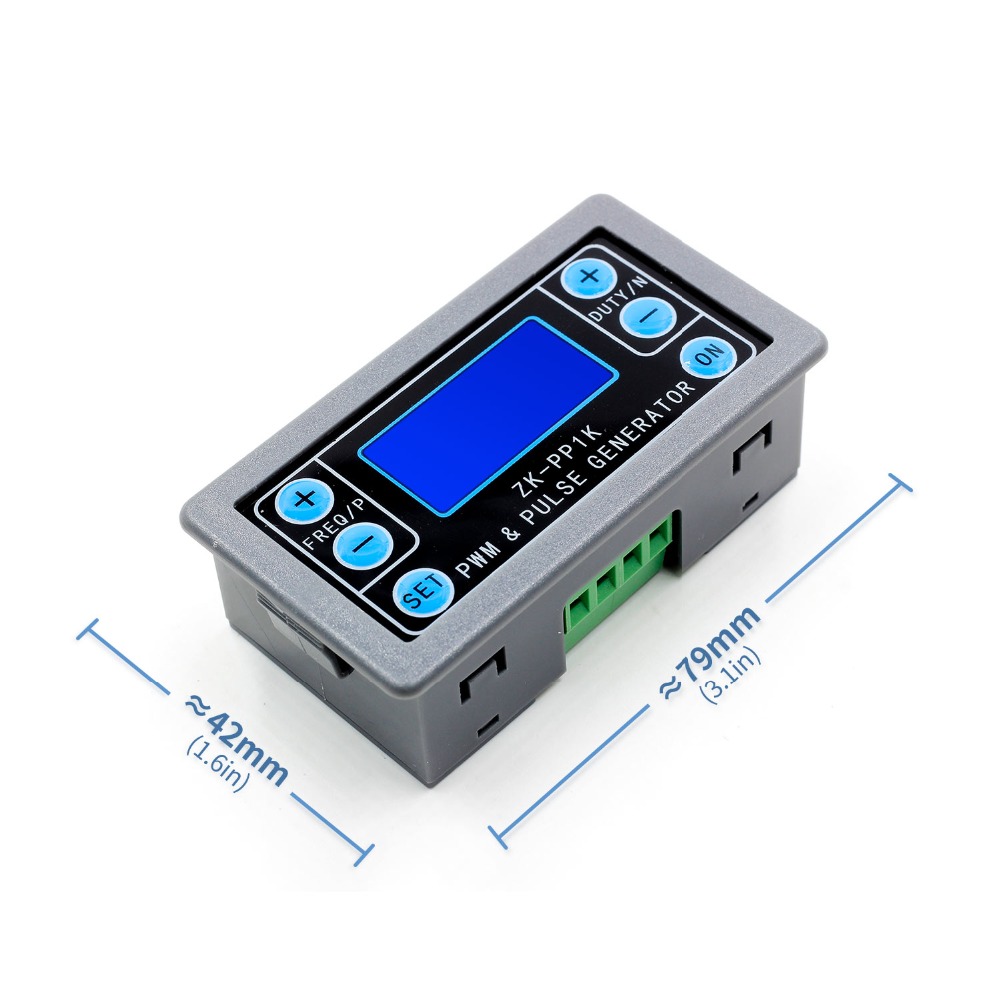

2.9 Product size: 79mm*42mm

2.10 Product weight: 40g

2.11 Packaging: anti-static bag
