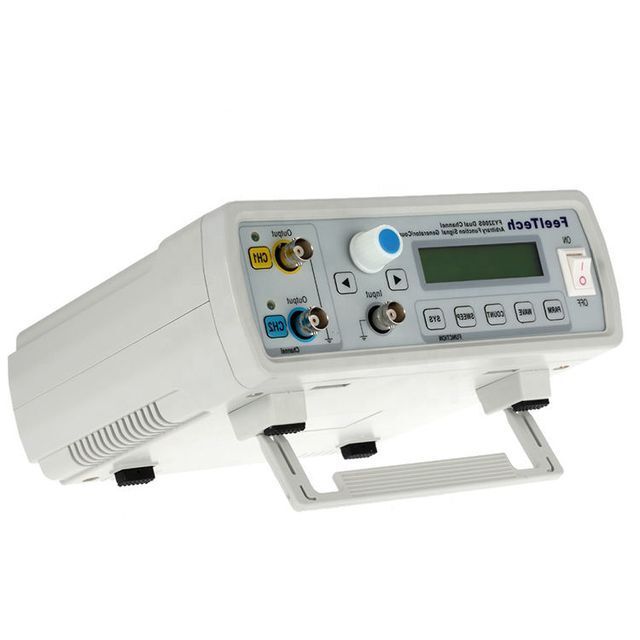

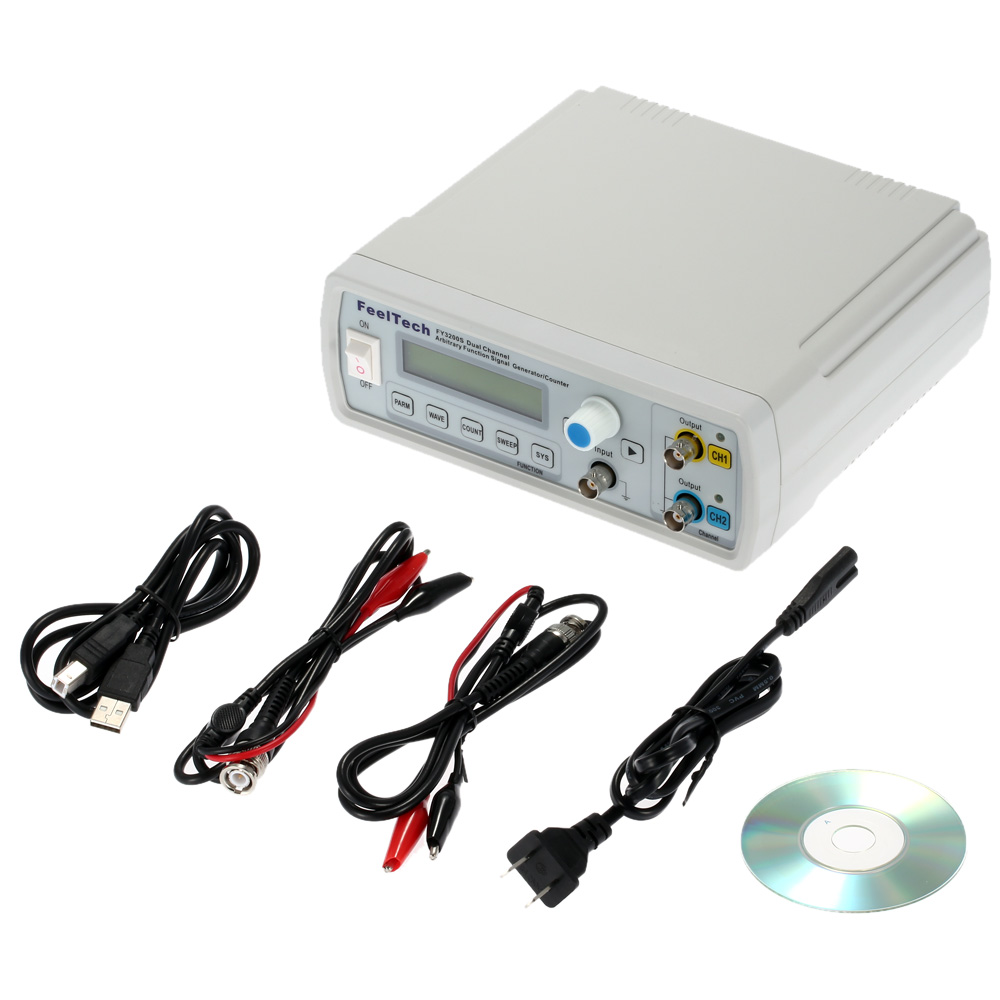

two channels frequency wifi generator signal 24MHz

Features:

Output signal frequency high accuracy, good stability.
Signal amplitude up to 20Vpp.
Instrument can realize the adjustment program of function parameters , easy to use.
Accompanying frequency meter, counter function, high cost.
The instrument can output sine, square, triangle, ramp, pulse, staircase, DC voltage waveform.
Pulse wave pulse width precision can be adjustable.

Function:

1. Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.
2. CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.
3. Supports user-defined waveforms, each arbitrary waveform memory depth 2048 x 12bits, 250MSa / s sampling rate.
4. Has burst burst output, selectable manual trigger, internal and external trigger CH2 trigger three trigger modes that allow the unit to any output 1 - 1048575 bursts.
5. Measurement functions: instrument comes with 100MHz frequency counter functions and pulse counter functions.
6. Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is reduced magnitude.
7. With full CNC functions, display and digital adjustment phase current amplitude of the output signal, offset, frequency, duty cycle, and the two signals.
8. After connecting the instrument to the computer, you can use the computer through the PC control signal generator functions and parameters, and can be edited on a computer to download arbitrary waveform output waveform to the instrument.
9. Communication: serial communication, protocol completely open, user-friendly secondary development.
10. High frequency accuracy: frequency accuracy up to 10-6 magnitude.
11. High frequency resolution: the full range of frequency resolution 10mHz.
12. Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.
13. Scanning features: a frequency linear sweep and logarithmic sweep function, scan start and end points can be set.
14. Storage feature: You can store 20 groups instrument state parameters set by the user, can be called up to Reproduce

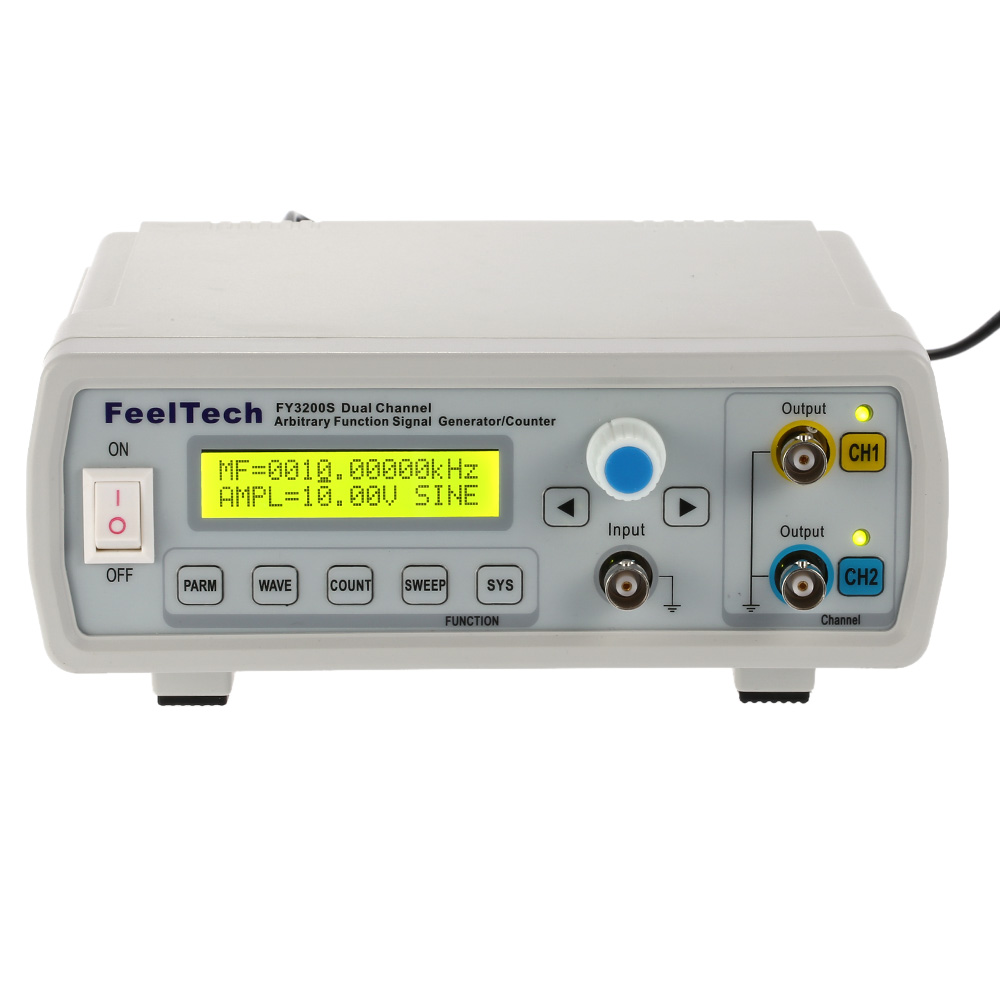

15. Operation: key operation, LCD1602 LCD display in English, direct digital setting parameters or continuous adjustment knob.

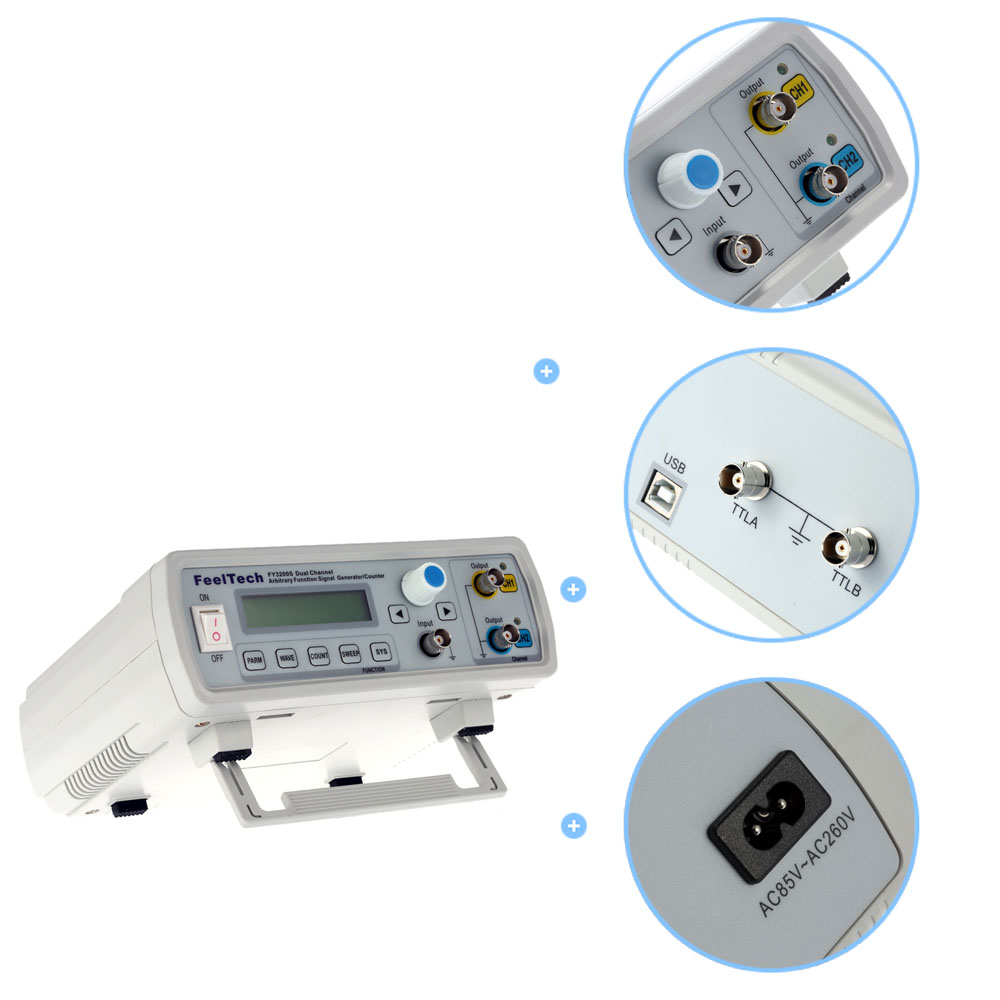

16. Input voltage protection: extended power input range AC85V to AC240V wide voltage.
17. Output short circuit protection: All signal outputs can operate at over load short circuit 60S.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.

3. By Sea: Delivery from the shenzhen sea port

1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing

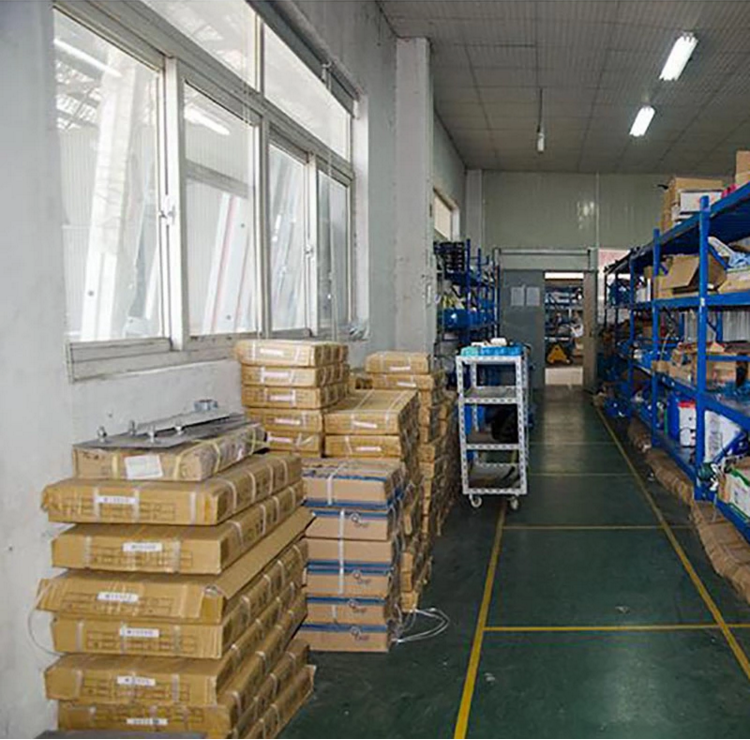

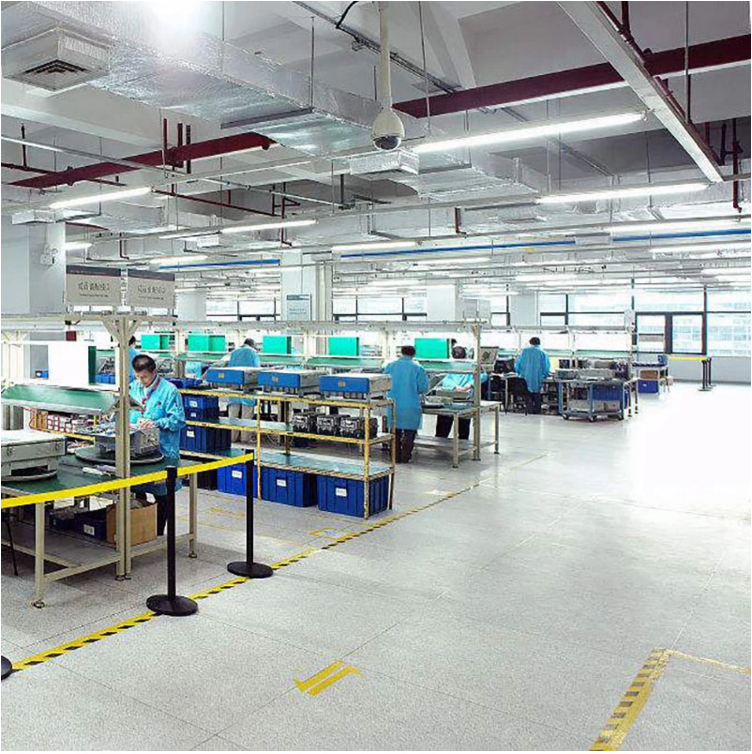

Shenzhen Yuanqi Trading Company Adhering to the exquisite product design and manufacturing process of European industrialized countries, we provide you with a complete range of products with complete specifications and reliable equipment matching combination. Our company has always regard quality as the paramount goal.We are make efforts in order to create a high-level environment, the introduction and absorption of advanced domestic technology and production equipment, the establishment of a scientific and standardized modern enterprise management system and quality system. We equipped with large-scale spot warehouses, sales and service network throughout the country.If you have any questions about the products and services, please feel free to contact us.
