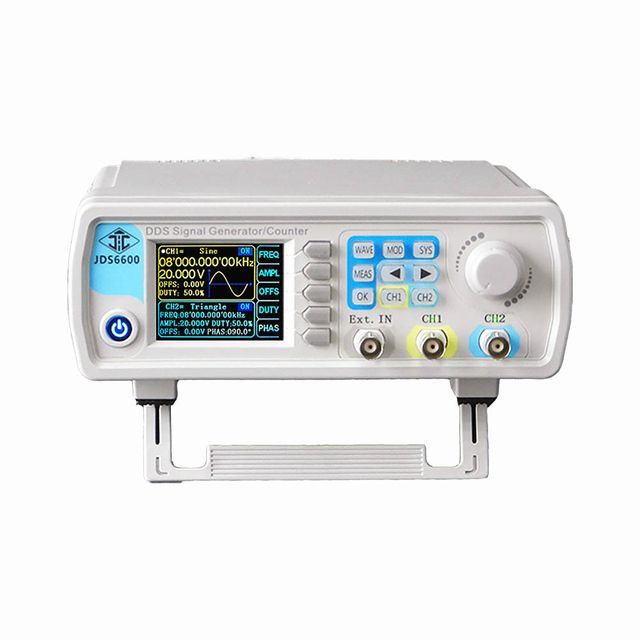

JDS6600 15MHZ series CNC dual-channel DDS function signal generator frequency meter arbitrary sine wave
- $75.00 / 1 - 198 pieces
$72.00 / 199 - 298 pieces
$68.00 / >=299 pieces - 1 piece
- Shenzhen Yuan Qi Trading Co., Ltd.
- Guangdong, China
- Ms Nancy Li
PRODUCT DETAIL
| Waveform vertical resolution: | 14 bits | Frequency Accuracy: | ±20ppm |
| Square rise time: | ≤25nS | Frequency Range: | 15MHZ |
| model: | JDS6600 | Gross weight per piece: | 2.000 kg |
| Sine frequency range: | 0~15MHz | Waveform sampling rate: | 266MSa/sec |
| Origin: | Guangdong, China | Frequency Stability: | ±1ppm/3h |
| Single package size: | 24X21X10 cm | Wave length: | 2048 points |
| Packaging Details: | carton | product name: | JDS6600 |
| Sales unit: | single product | Pulse Width Adjustment Range: | 150nS-4000S |
►320*240 2.4" TFT color LCD display, simultaneously display CH1 and CH2 parameters
► Mode capable of reproducing custom waveforms
►Using soft silicone buttons instead of traditional patch buttons, with high sensitivity and easy operation
►60 sets of arbitrary waveform storage function, each set of storage depth is 2048*14bits
►The duty cycle of each channel can be adjusted independently, and the adjustment resolution is 0.1%
► With digital signal output function, CMOS output range 0~10V
►The model sold in this link is JDS6600-60M, the maximum sine wave frequency is 15MHz, the maximum square wave is 25MHz, 266MSa/s sampling rate, 14bits vertical resolution
►Equivalent performance - 360° phase difference is continuously adjustable. Equivalent performance Dual channels can simultaneously output the same or different functional signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels can be continuously adjusted from 0 to 359.9°.
►Trigger function - four trigger modes. You can generate pulse trains using sine, square, ramp, or arbitrary waveforms. The number of pulse cycles is continuously adjustable between 0-1048575.
►Pulse width - precisely adjustable. Independent operation interface, the functions are clear at a glance; independent control switch, easy to control. Adjustment range: 25ns-4000s; Pulse offset is continuously adjustable between 0%-120%; Pulse amplitude can be continuously adjusted between 0-10V, accurate to 0.01V.
► Can draw arbitrary waveforms. PC software and communication protocol are provided free of charge, using the PC software to draw arbitrary waveforms; using the communication protocol for secondary development and programming; all functions of the instrument can be controlled by the PC software.
► Mode capable of reproducing custom waveforms
►Using soft silicone buttons instead of traditional patch buttons, with high sensitivity and easy operation
►60 sets of arbitrary waveform storage function, each set of storage depth is 2048*14bits
►The duty cycle of each channel can be adjusted independently, and the adjustment resolution is 0.1%
► With digital signal output function, CMOS output range 0~10V
►The model sold in this link is JDS6600-60M, the maximum sine wave frequency is 15MHz, the maximum square wave is 25MHz, 266MSa/s sampling rate, 14bits vertical resolution
►Equivalent performance - 360° phase difference is continuously adjustable. Equivalent performance Dual channels can simultaneously output the same or different functional signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels can be continuously adjusted from 0 to 359.9°.
►Trigger function - four trigger modes. You can generate pulse trains using sine, square, ramp, or arbitrary waveforms. The number of pulse cycles is continuously adjustable between 0-1048575.
►Pulse width - precisely adjustable. Independent operation interface, the functions are clear at a glance; independent control switch, easy to control. Adjustment range: 25ns-4000s; Pulse offset is continuously adjustable between 0%-120%; Pulse amplitude can be continuously adjusted between 0-10V, accurate to 0.01V.
► Can draw arbitrary waveforms. PC software and communication protocol are provided free of charge, using the PC software to draw arbitrary waveforms; using the communication protocol for secondary development and programming; all functions of the instrument can be controlled by the PC software.
Specification
product name | JDS6600 |
Frequency Range | 15MHZ |
Sine frequency range | 0~15MHz |
square rise time | ≤25nS |
Pulse Width Adjustment Range | 150nS-4000S |
Frequency Accuracy | ±20ppm |
frequency stability | ±1ppm/3h |
Waveform vertical resolution | 14 bits |
Waveform sampling rate | 266MSa/sec |
Wave length | 2048 points |
