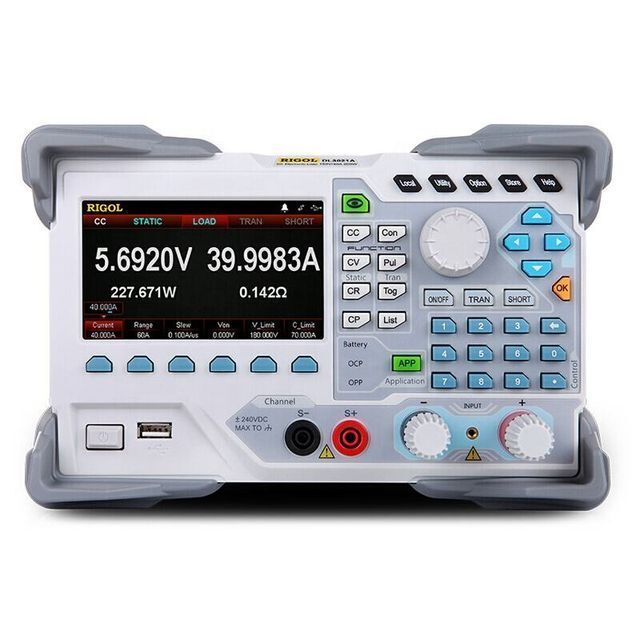

DL3021A Programmable DC Electronic Load Single Channel 150V/40A/30kHz 200W with High Resolution
- $649.00 / 1 - 48 pieces
$645.00 / 49 - 98 pieces
$639.00 / >=99 pieces - 1 piece
- Shenzhen Yuan Qi Trading Co., Ltd.
- Guangdong, China
- Ms Nancy Li
PRODUCT DETAIL
| Product name: | DL3021A; | Frequency: | 30khz; |
| Single gross weight: | 11.500 KG; | Power: | 200w; |
| Packaging Detail: | carton box; | voltage: | 150v; |
| Place of Origin: | Guangdong, China; | Single package size: | 28X37X55 cm; |
| current: | 40a; | Brand Name: | RIGOL; |
| Selling Units: | Single item; | Model Number: | DL3021A; |
DL3021A Programmable DC Electronic Load Single Channel 150V/40A/30kHz 200W with High Resolution
Programmable DC Electronic Load DL3000 Series
DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.Features
* Single output, 150 V/40 A/30 kHz, total power up to 200 W
* Dynamic mode: up to 30 kHz
* Adjustable current rising speed: 0.001 A/μs to 5 A/μs
* Min. readback resolution: 0.1 mV,0.1 mA
* 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
* Over-voltage/over-current/overpower/over-temperature/reverse voltage protection
* 4 static modes: CC, CV, CR, CP
* 3 dynamic modes: continuous, pulsed, toggled
* List function supports editing as many as 512 steps
* Battery test function, OCP test, OPP test, factory test function, etc.
* Short-circuit test function
* Power-off memory function
* Built-in RS232/USB/LAN communication interface
* USB-GPIB module (optional)
Typical Applications
* General-purpose testing in the R&D lab
* DC power supply industry, such as regulated power supply, constant current power supply, switching mode power supply (SMPS), module power supply, power adapter, etc.
* Battery industry, such as various batteries and cell batteries
* Charger industry, such as battery charger and cell phone charger
* Power electronic device industry, such as MOSFET, IGBT, capacitor, and ballast resistor
* Teaching experiment
Specification
Brand Name | RIGOL |
Model Number | DL3021A |
Power | 200w |
voltage | 150v |
current | 40a |
Frequency | 30khz |
