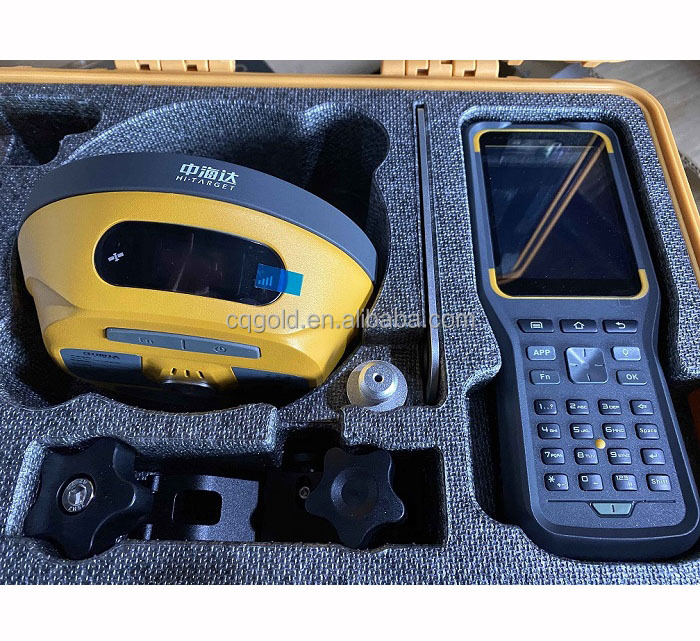

V96H GNSS GPS RTK Receiver Measuring Instrument RTK System
- $200.00 /set
- 1 set
- Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
- Chongqing, China
- Ms Michelle Li
PRODUCT DETAIL
channel: | 220 | operating system: | Linux operating system |
Customization support: | OEM, ODM, OBM | screen size: | 3.7 inches |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | aspect: | 16.4cm*8.35cm |
model: | V96H | main application: | surveying and mapping |
port: | Chongqing to delivery V96H GNSS GPS RTK receiver measuring instrument RTK system | Packaging Details: | V96H GNSS GPS RTK receiver measuring instrument RTK system packing wooden box |
Supply capacity: | 1000 sets per month | Origin: | Chongqing, China |
Satellite support: | GLONASS, GPS, Sbas | Warranty: | 1 year |
Initialization time: | <10 seconds | weight: | 1.25 kg |
brand: | Zhong Haida | Initialize reliability: | >99.99% |
waterproof: | IP67 level |
V96H GNSS GPS RTK Receiver Measuring Instrument RTK System
This GNSS RTK GPS is widely used in engineering construction, geological surveying and mapping and other fields. Because of its good quality, favorable price, high precision and light weight, it is very popular in the market.
*Technical parameters of Geodetic V96H GNSS receiver:
Measurement |
220 channels | |
Advanced Pacific Crest Maxwell 6 custom survey GNSS technology | ||
High Accuracy Multiple Correlator for GNSS Pseudo-Range | ||
Unfiltered, low noise, low multipath error, low temporal correlation | ||
Very low noise GNSS carrier phase measurements with <1 mm (1 Hz) accuracy | ||
Signal-to-noise ratio expressed in dB-Ha | ||
Proven Pacific Crest low-altitude travel technology | ||
track satellite signal | GPS: L1C/A, L2C, L2E, L5 | |
simultaneously | GLONASS: L1C/A, L1P, L2C/A (GLONASS M only), l2p | |
SBAS: L1 C/A, L5 | ||
Galileo: L1 BOC, E5A, E5B, E5ALtBOC | ||
Beidou/BeiDou: B1, B2 | ||
QZSS: L1 C/A, L1 SAIF, L2C, L5 | ||
position Performance |
static and fast static | Level: l2.5mm+0.5ppm RMS |
GNSS measurements | Vertical: l5mm+0.5ppm RMS | |
post-processing kinematics | Level: 1cm+1ppm RMS | |
(PPK/stop and go) GNSS measurements |
Vertical: 2.5cm+1ppm RMS | |
Initialization time: generally 10 minutes | ||
5 minutes for base, 5 minutes for rover | ||
Initialization reliability: typically >99.9% | ||
Real-time Kinematics (RTK) Measurement |
Horizontal.8mm+1ppm RMS | |
Vertical.15mm+1ppm RMS | ||
Initialization time typically < 8 seconds | ||
Initialize reliability. Usually > 99.9% | ||
Code Differential GNSS position |
Horizontal.25cm+1ppm RMS | |
Vertical.50cm+1ppm RMS | ||
SABS: horizontal 0.50m, vertical 0.85m | ||
hardware | physical | Dimensions (W x H): 18.20 cm x 9.80 cm (7.17 inches x 3.86 inches) |
Weight: 1.25 kg (2.76 lbs) without internal battery | ||
Operating: -45°C to +65°C (-49°F to +149°F) | ||
Storage Temperature: -55°C to +85°C (-67°F to +185°F) | ||
Humidity: 100%, considering | ||
Waterproof and dustproof. IP67 dustproof, protected from | ||
Temporary immersion to a depth of 1 m (3.28ft) | ||
shock and vibration. designed to survive | ||
3m (9.84ft) natural drop. | ||
electric | Power supply 6V to 28V DC external power input | |
Power consumption≤3.5w | ||
Automatic switching between internal power supply and external power supply | ||
Rechargeable, removable 7.4V, 5000mAh Li-ion battery | ||
Batteries are located in the internal battery compartment | ||
Internal battery life | Static 13-15 hours | |
RTK mobile station (UHF/GPRS/3G) 10-12 hours | ||
RTK base 8-10 hours | ||
Input and output interface | 1×Bluetooth | |
1×standard USB2.0 interface | ||
1×TNC UHF connector | ||
2×RS232 serial port | ||
2 x DC power input (8-pin and 5-pin) | ||
1×Micro SD card interface | ||
communicate & data storage |
3G communication | Fully integrated, fully sealed internal 3G, |
Compatible with GPRS | ||
Network RTK (via CORS) range 20-50 km | ||
HI-TRAGERT interior UHF radio (standard) |
Frequency: 450~470MHz 116 channels | |
Transmission power: 1W, 2W, 5W, adjustable | ||
Transmission speed: 9.6Kbps, 19.2Kbps | ||
Working range: 5km typical, 8-10km optimal | ||
Pacific Crown XDL Micro Built-in UHF radio |
Frequency: 403-473MHz | |
Transmission power: 0.5W, 2W adjustable | ||
Transmission speed: up to 19.2Kbps | ||
Working range: typical 3-5 kilometers, optimal 8-10 kilometers | ||
Hi-Target external UHF radio (standard) |
Frequency: 460MHz, 116 channels | |
Transmission power: 5W, 10W, 20W, 30W adjustable | ||
Transmission speed: up to 19.2Kbps | ||
Working range: typical 8-10 kilometers, optimal 15-20 kilometers | ||
Pacific Crest ADL Advantages Pro External UHF Radio |
Frequency: 390-430MHz or 430-470MHz | |
Transmitting power: adjustable from 4W to 35W | ||
Transmission speed: up to 19.2Kbps | ||
Working range: typical 8-10 kilometers, optimal 15-20 kilometers | ||
Support other external communication equipment |
For example, an external GSM modem. | |
Data Format | CMR: sCMRx, CMR, CMR+ input and output | |
RTCM: RTCM2.1 2.2 2.3 3.0 3.1 3.2 I/O | ||
Navigation output ASCII: NMEA-0183 | ||
Navigation Output Binary: GSOF | ||
1 pulse output per second |
* Features of Geodetic RTK GPS Base Station and Rover:
Linux operating system
ARM 9G20 400MHz CPU, embedded Linux operating system, supports faster data transmission.
Smart operation
*Equipped with smart speaker guidance throughout the process. Voice assistance can help you quickly master the operation of V60. Language can be customized.
* There is an industrial LED display on the front control panel, which can display all information and working status.
* Numerous one-click operations make your work easy. Set the base with one click, and automatically select the base coordinates from the base list.
* Automatic system logging to make receiver diagnostics easy.
RINEX Storage
Static data can be saved directly in RINEX format. The V60 is fully compatible with other brands of receivers.
quick upgrade
Simply copy the updated firmware to the V60 and reboot to complete the upgrade in seconds.
Multi-constellation tracking
*220 tracking channels.
*Support GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS approved antenna.
High Power Transceiver UHF Radio
* Transceiver UHF radio can switch working mode between base station and rover.
*Optional with 5W (max) HI-TARGET built-in UHF radio and 2W (max) Pacific Crest micro XDL built-in UHF radio
*Pacific Crest TrimTalk© built-in UHF radio compatible with other RTKs.
CORS system works seamlessly
*Built-in GPRS/GSM/3G module makes V60 perfectly cooperate with network RTK positioning.
long life battery
*Powered by 5000mAh Li-ion battery.
*Static working time 13-15 hours
*RTK rover (UHF/GPRS/3G) working time 10 - 12 hours
*RTK benchmark working time 8-10 hours
Rugged design, IP67
*IP67 Dust/Waterproof.
* Withstands a 3 meter natural drop onto concrete.
* Fast tracking and perfect avoidance or reduction of obstacles and multipath effects, ensuring excellent positioning capabilities.
