Shaker Modal (20N) JZK-2 tests dynamic response, resonant frequency and modal mechanical resistance vibrator
- $400.00 / 1 - 5 sets
$360.00 / >=6 sets - 1 set
- Sinocera Piezotronics Inc.
- Jiangsu, China
- Ms SINOCERA PIEZOTRONICS INC
| Brand Name: | Sinocera; | Certificate: | ISO9001; |
| Packaging Details: | 1pc cardboard box in one package; | Model number: | JZK-2; |
| Country of origin: | Jiangsu, China; |
Characteristics:
·Small size, light weight
·For measuring environmental vibrations and fatigue of small and medium-sized parts and instruments
·Applies to dynamic response testing, resonance frequency and mechanical strength of small and medium structure
·wide frequency range, high output efficiencyofency
·Reasonable structure, high reliability
|
Production evaluation(peak) NLike us/of chance |
20N |
|
Maximum amplitude |
± 3 mm |
|
MaxorACCELERATING |
5 g |
|
MaxInput current |
≤2 wings |
|
Frequency range |
20 Hz -6K |
|
resonancesFrequency |
40 Hz |
|
DC mobile coil resistance |
1.7Ω |
|
ForceConstant (N / A) |
8 |
|
Mesha eMoving parts |
0.1 kg |
|
Dimensions (mm) |
Φ78×112 |
|
Mounting hole dimensions (mm) |
80×80/ 4-Φ7 |
|
Weight |
2.9kg |
|
Producemethods |
Mandrili |
|
CONNECTIonic method |
M5 |
|
flexibleSupporting stiffness (N/ mm) |
3 |
|
Main resonant frequency |
> 12000Hz |
|
Strong wind cooling |
no |
|
Non-linearity |
≤3% (Maximum shaking force) |
|
Operating temperature |
-300C-700C |
|
Storage temperature |
-550C-850C |
|
Humidity |
95% RH(maximum) |
|
Inputmethods |
Plug with four pins |
|
Connection pole |
A |
|
Recommended power amplifier |
YE5871A |

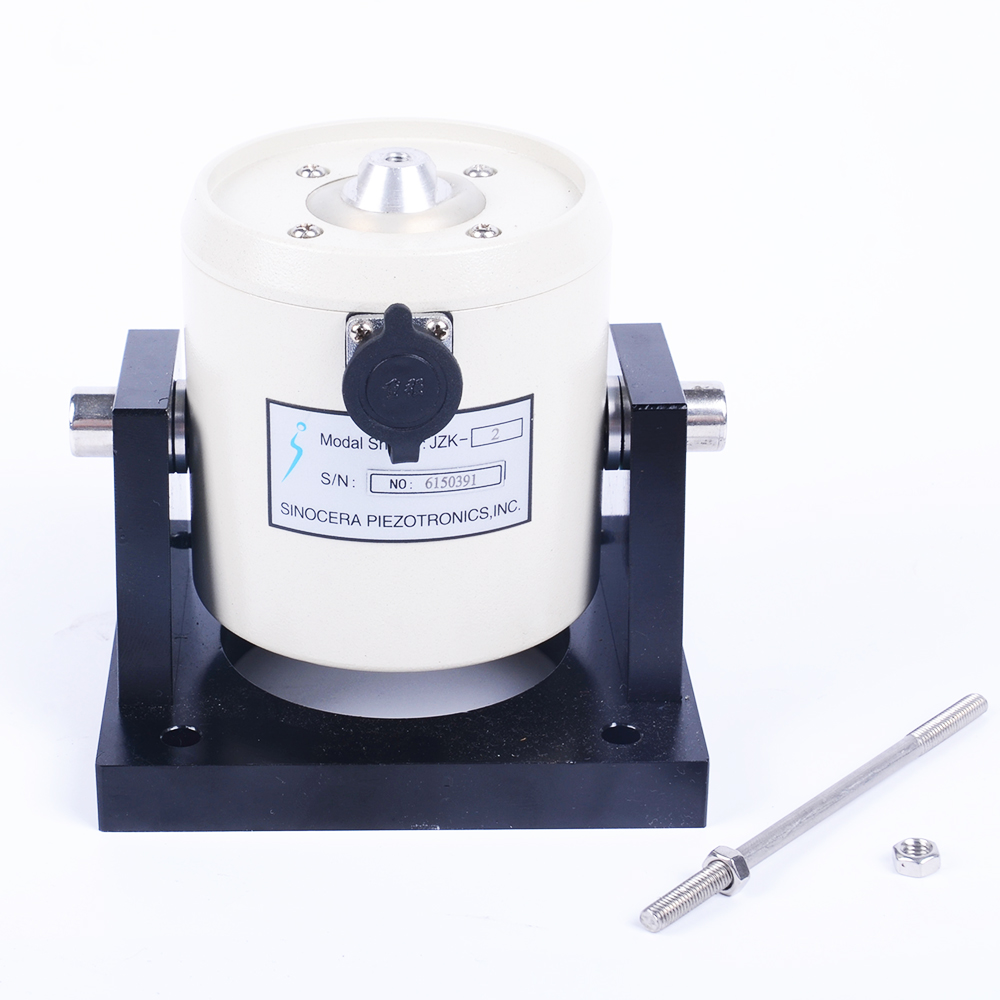

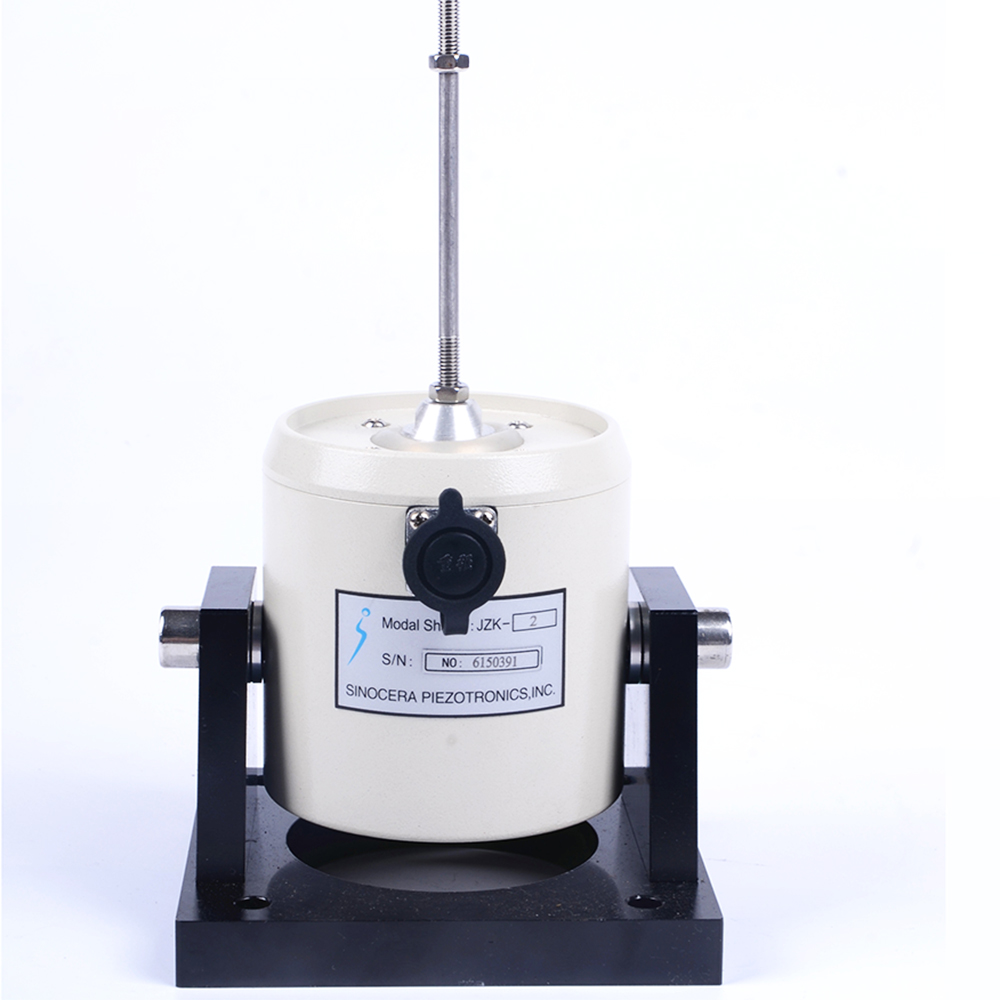

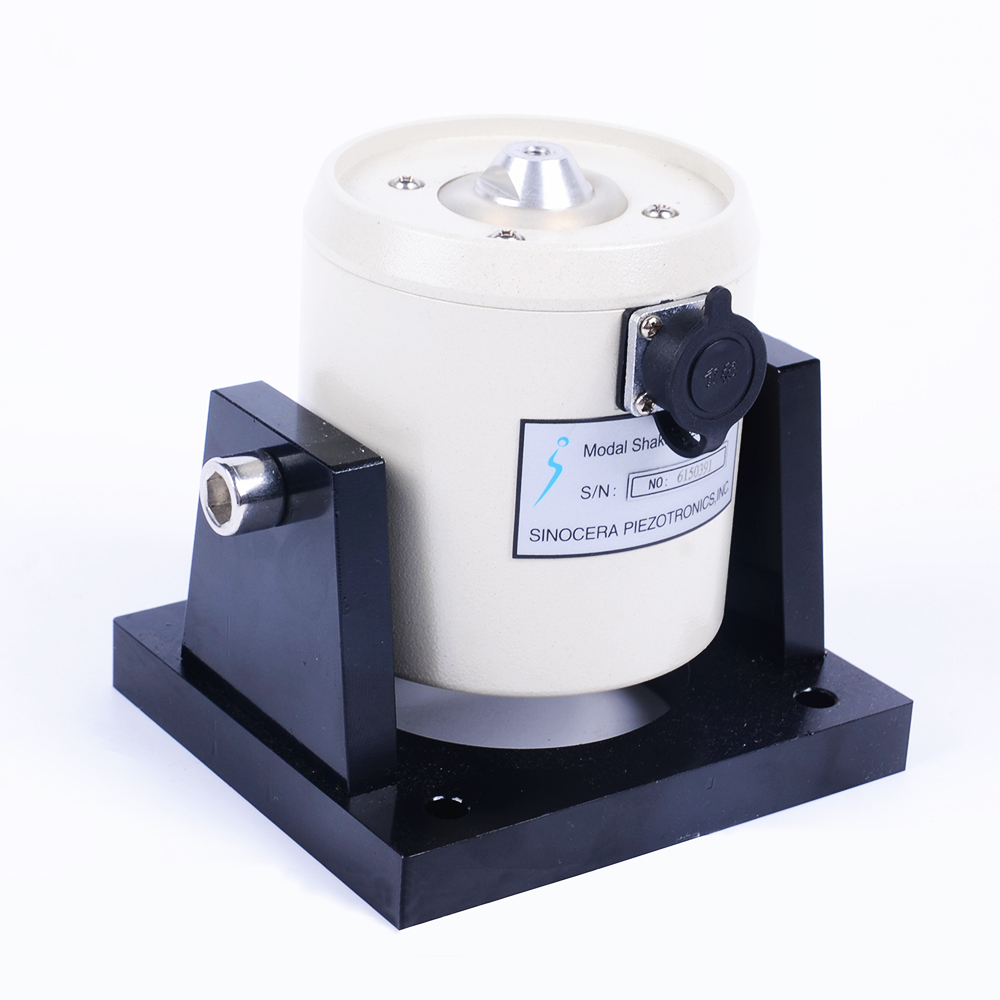

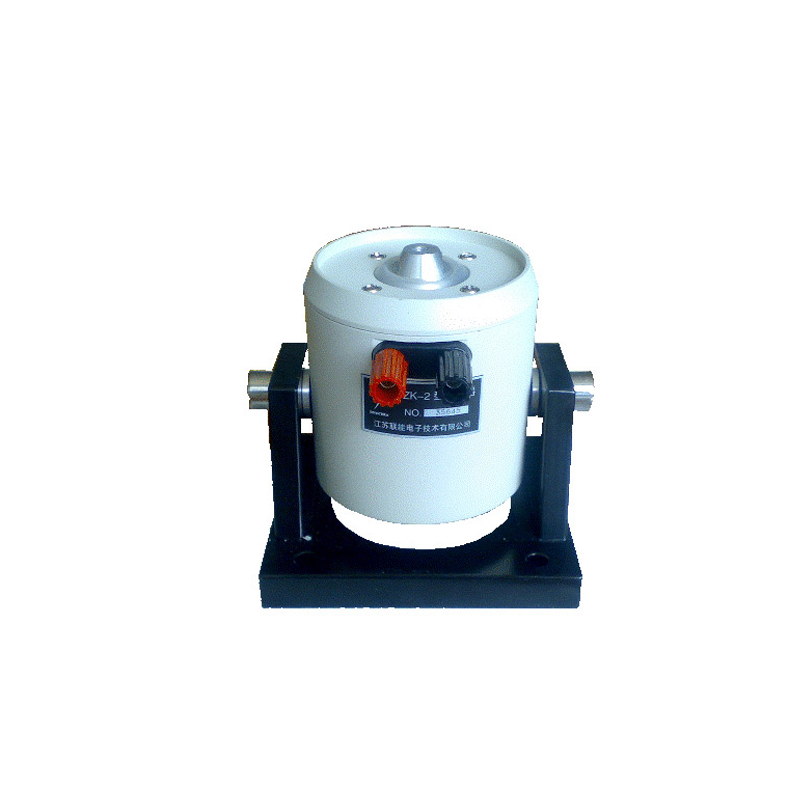

Photos
Our company was established in 2001. We are the largest manufacturer of vibration sensors and dynamic and static testing system in China. We are also few in number of high and new technology enterprises. We have piezoelectric ceramic materials with sensitive function, includes testing, research, development and production of its respective components.
Our products are divided into four categories, which include sixteen series. They are sensors, instruments, ceramic piezoelectric and flat fan. The quantity of our products is more than three hundred.
We can offer you good quality products, good price and best service.
CE Certificate
Company view
