UNI-T UTG932 UTG962 Arbitrage Function of Waveform Generator Dual Channel Signal Source 200MS / s 14bit Frequency 30Mhz 60Mhz
- $80.00 / 1 - 9 pieces
$76.00 / 10 - 99 pieces
$66.00 / 100 - 999 pieces
$52.00 / >=1000 pieces - 1 piece
- Uni-Trend Technology (China) Co., Ltd.
- Guangdong, China
- Ms Estella Wong
PRODUCT DETAIL
| Warranty: | one year | place of origin; place of origin: | Guangdong, China |
| Sampling Rate: | 200 ms/sec | Amplitude Resolution: | 1mV |
| Vertical Resolution: | 14 bits | strength: | 100~240VAC, 50Hz/60Hz |
| Packaging Details: | standard packaging | payment terms: | L/C,Western Union,T/T |
| DC offset range (AC+DC): | ±5V (50Ω); ±10V (high impedance) | Custom Support: | OEM, ODM |
| brand: | unit | impedance: | 50Ω/high impedance |
| Sweep mode: | logarithmic, linear | Amplitude range: | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high resistance) |
| Packaging Preview: | port: | Shenzhen Port | |
| Supply capacity: | 5000 pieces per month | Waveform: | Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary |
| Product Size: | 172mm x 90mm x 68mm | Certification: | EMC, LVD, cETLus, ROHS |
| type: | Waveform function generator | model: | UTG932 UTG962 |
Product parameters

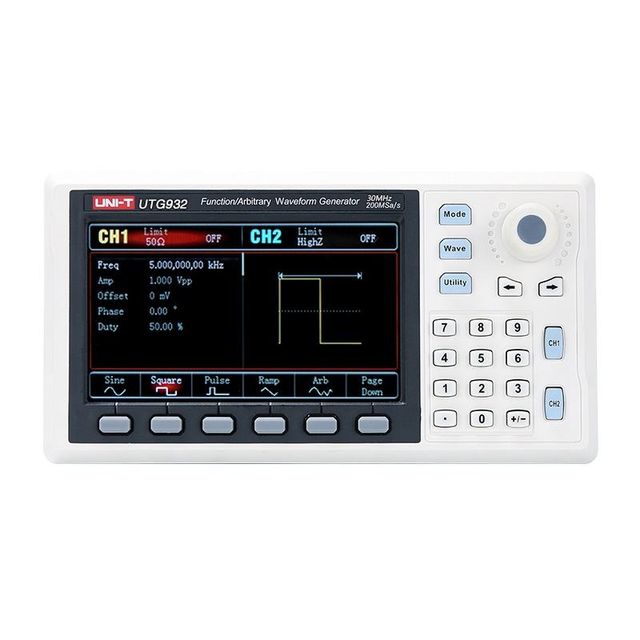

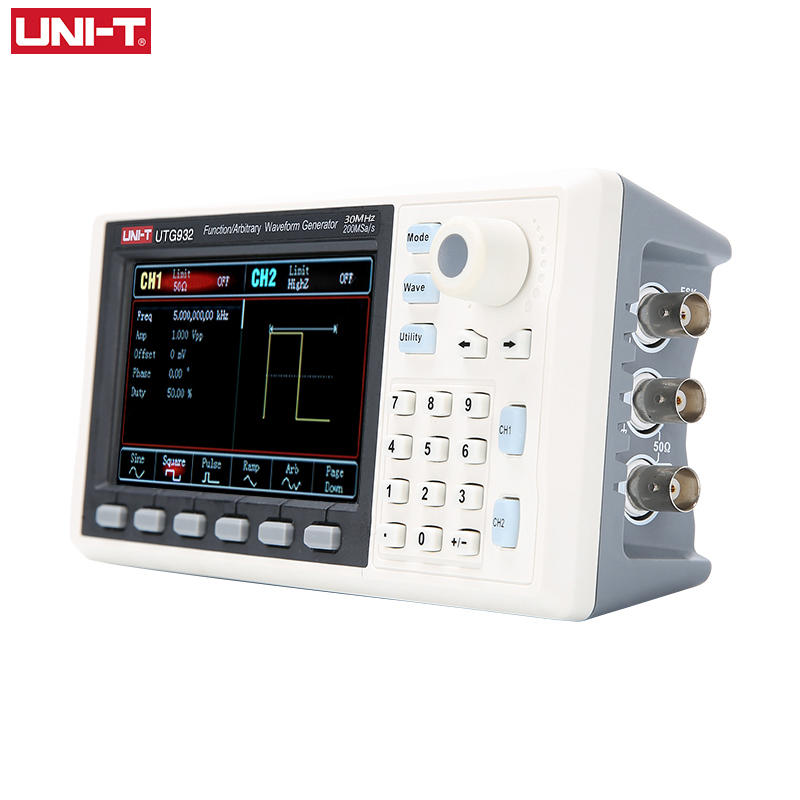

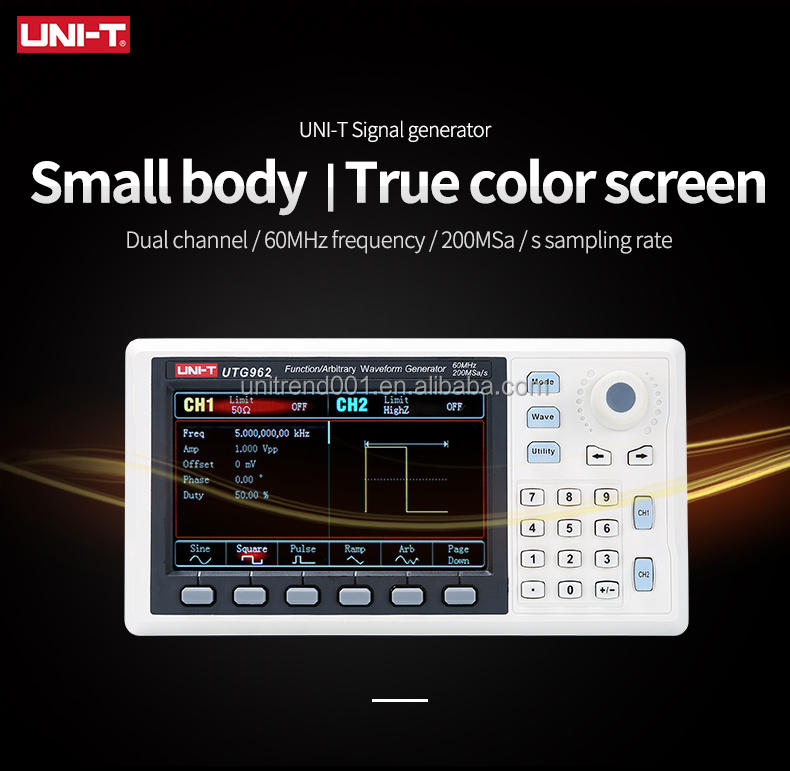

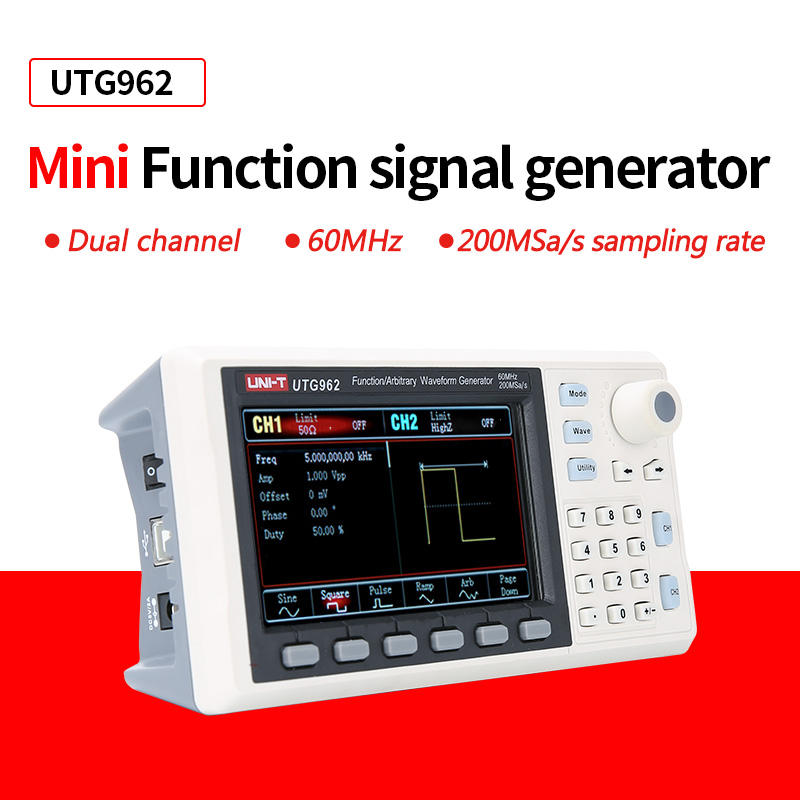

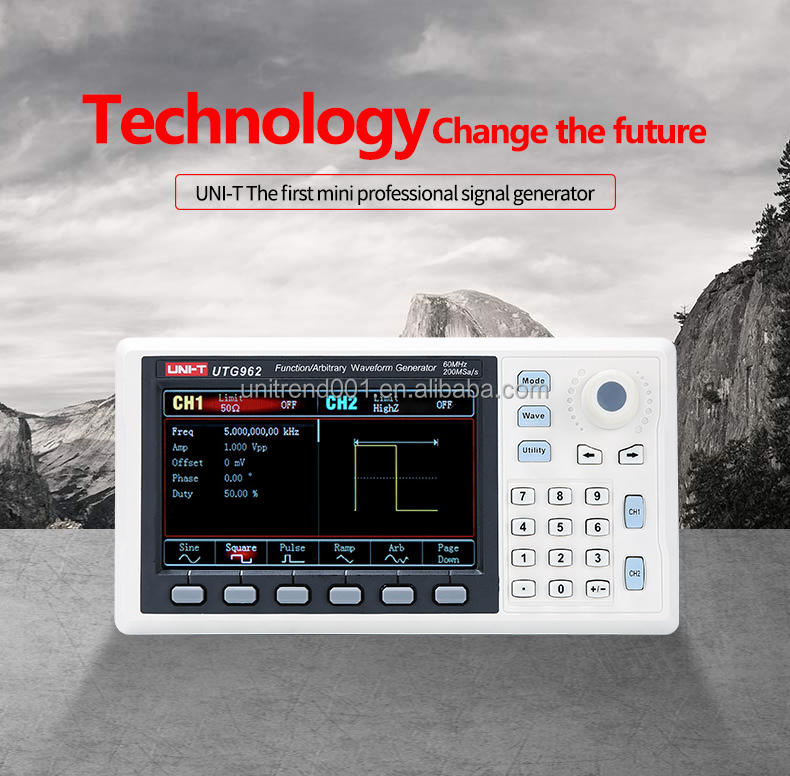

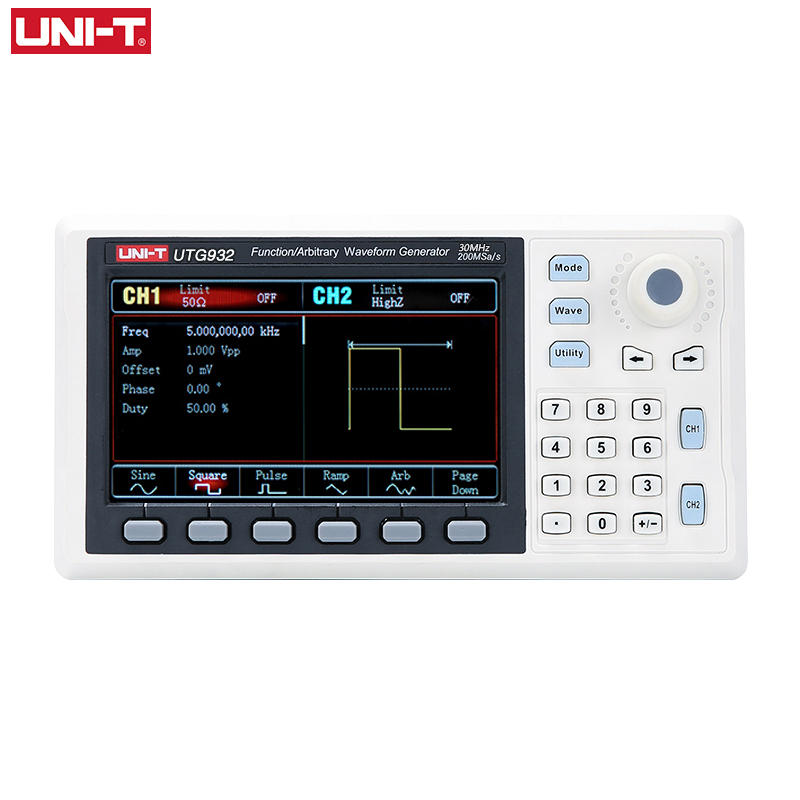

UTG932/UTG962 Function/Arbitrary Waveform Generator
● Output waveform: sine wave, square wave, pulse, sawtooth wave, noise, DC, arbitrary waveform ● Output frequency range: 1μHz-30MHz/60MHz
● High precision, wideband 6-bit frequency counter, range: 100mHz~100MHz
● Two equivalent performance channels
● 4.3-inch TFT LCD screen
● High precision, wideband 6-bit frequency counter, range: 100mHz~100MHz
● Two equivalent performance channels
● 4.3-inch TFT LCD screen
Specification | ||||
Model | UTG932 | UTG962 | ||
channel | 2 | |||
maximum frequency | 30MHz | 60MHz | ||
Sampling Rate | 200 ms/sec | |||
vertical resolution | 14 bits | |||
waveform | Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary | |||
scan mode | logarithmic, linear | |||
Frequency characteristics | ||||
sine wave | 1μHz~30MHz | 1μHz~60MHz | ||
square | 1μHz~15MHz | 1μHz~20MHz | ||
slope | 1μHz~400kHz | 1μHz~400kHz | ||
pulse | 1μHz~15MHz | 1μHz~20MHz | ||
casual | 1μHz~10MHz | 1μHz~10MHz | ||
Resolution | 1μHz | |||
accuracy | ± 50ppm within 90 days | |||
±100ppm within 1 year | ||||
18℃~28℃ | ||||
Output characteristics | ||||
impedance | 50Ω/high impedance | |||
Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high resistance) | |||
DC Bias Range (AC+DC) | ±5V (50Ω); ±10V (high impedance) | |||
Amplitude resolution | 1mV | |||
General characteristics | ||||
strength | 100~240VAC, 50Hz/60Hz | |||
exhibit | 4.3" TFT LCD screen (480×272) | |||
Product color | white and grey | |||
Product Weight | 0.33kg | |||

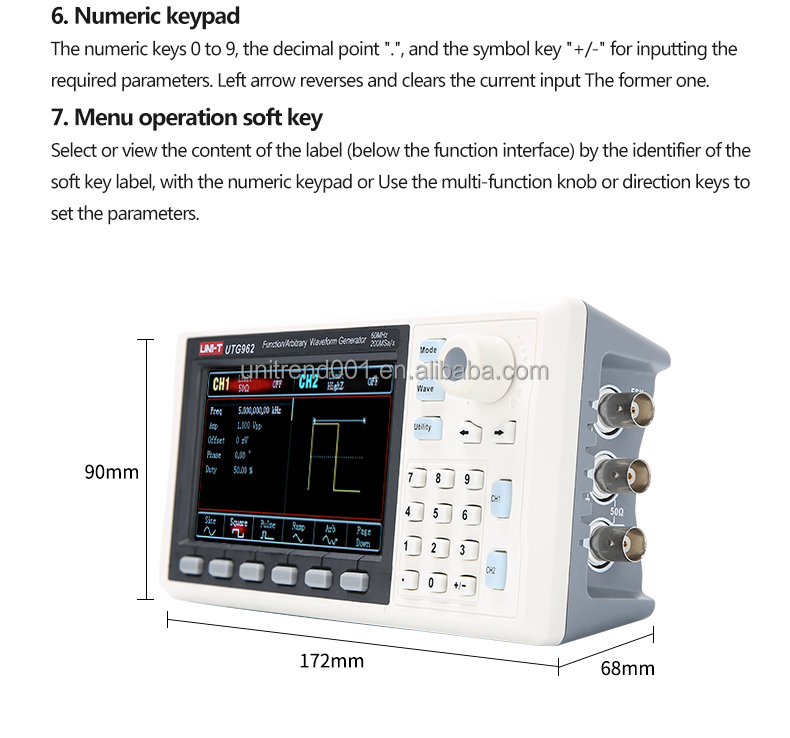

Product Size | 172mm x 90mm x 68mm | |||
Standard accessories | USB interface cable, power cable, alligator clip BNC cable | |||
Standard individual packaging | carton | |||
Standard quantity per carton | 4 | |||
Standard carton measurement | 435mm x 360mm x 125mm | |||
Standard carton gross weight | 3.8kg | |||
aboutunit
Yutong Technology (China) Co., Ltd. is one of the well-known test and measurement solution providers in Asia. Uni-Trend is an ISO9001 and ISO14001 certified company, and its T&M products comply with CE, ETL, UL, GS and other certifications.
With R&D centers in Chengdu and Dongguan, Uni-Trend manufactures innovative, reliable, safe to use and user-friendly T&M products. Uni-Trend has established product distribution and service relationships with partners in more than 80 countries. With products that meet industry standards, Uni-Trend is able to fully meet product needs from around the world.
MOQ is sold in one piece, overseas warehouse delivery time is faster, and there is no need to pay customs duties!
unitWarehouses have been set up in the US, Russia and Spain for fast global sales. Order models from these overseas warehouses and enjoy fast shipping with no additional taxes. Of course there will be a small shipping fee. Please note that the above warehouse stocks are currently limited. Therefore, for small batch purchases, i.e. sales samples, we guarantee direct shipment from overseas warehouses. For bulk purchases, please contact our customer service in advance so that we can arrange early shipment directly from the UNI-T China Manufacturing Center. Looking forward to more cooperation.
unitha establecido almacenes en EE. UU., Russia y España para una venta global rápida. Solicite modelos de estos almacenes en el extranjero y disfrute de un envío rápido SIN impuestos adicionales. Por supuesto, habrá una pequeña cantidad para el envío. Tenga en cuenta que en la actualidad hay existencias limitadas en los almacenes anteriores. Por lo tanto, para compras en pequeñas cantidades, es decir, muestras de ventas, garantizamos el envío directo desde el almacén en el extranjero. Si necesita una compra a granel, comuníquese con nuestro servicio de atención al cliente con anticipación para que podamos organizar un envío temprano directamente desde el centro de fabricación de UNI-T en China. Esperanto más cooperaciones.
unitmontou armazéns nos EUA, Rússia e Espanha para uma venda global rápida. Encomende modelos nestes armazéns no estrangeiro e desfrute de um envio rápido e SEM taxas adicionais. Haverá uma pequena quantia para envio, é claro. Observe que, no momento, existem estoques limitados nos depósitos acima. Assim, para compras em pequenas quantidades, ou seja, amostras de vendas, garantimos o envio direto do armazém no exterior. Se você precisar de uma compra a granel, entre em contato com nosso serviço de atendimento ao cliente com antecedência para que possamos providenciar o envio antecipado diretamente do centro de manufatura UNI-T na China. Esperanto mais cooperações.
unitоткрыла склады в США, России и Испании для быстрых продаж по всему миру. Заказывайте модели с этих зарубежных складов и наслаждайтесь быстрой доставкой без дополнительных налого. Конечно, будет небольшая сумма для доставки. Обращаем ваше внимание на то, что в настоящее время запасы на указанных складах ограничены. Таким образом, для покупок небольшими партиями, то есть образцов для продажи, мы гарантируем прямую с аграи. Оптовая оптовая нужна покупка пожалуйста, пожалуйста, свяжитесь с нашей службой поддержки заранее заранее заранее заранее заранее заранее заранее заранее мы могли организовать раннюю доставку центра центра центра центра центра в в китае китае ожидаем ожидаем большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего большего ожидаем большего ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем ожидаем если если если
