Product Description

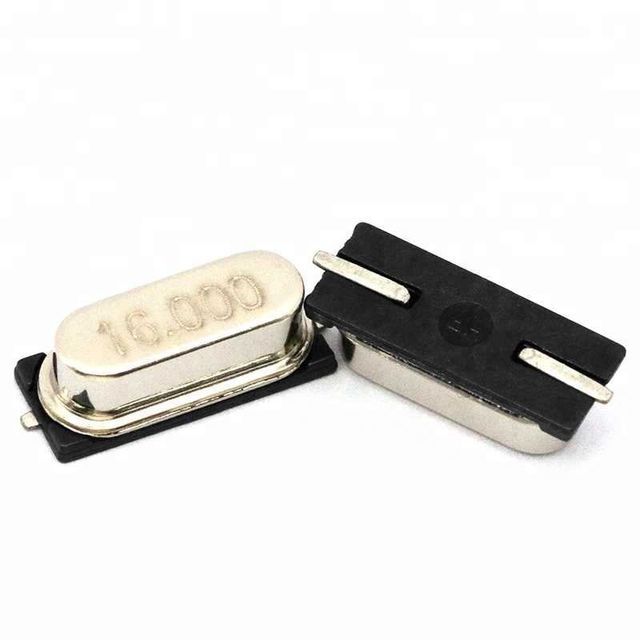

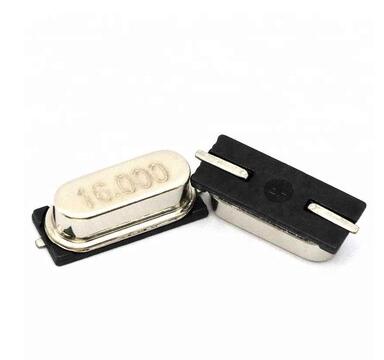

 SMD crystal oscillator 16M 2-pin 16MHZ 49SMD quartz crystal oscillator passive crystal oscillator

Nominal frequency: 3.579545MHz-64MHz
Adjust frequency difference: ±20PPM (at-20°C-+70°C)
Temperature and frequency difference: ±20PPM (at-20°C-+70°C)
Working temperature: -20℃-70℃
Oscillation mode: FUNDMENTAL base frequency
Static capacitance: 7pf Max
Excitation power: 50UW
Load capacitance: 20PF
Aging rate: 3ppm
Resonant resistance: 409MAX
Insulation resistance: 500MS Min/DC100V

Mechanical and Environmental Properties:
1. Free fall (impact): Free fall from 75CM to 30MM thick hardwood board, falling 3 times, in line with technical specifications.
2. Sealing: immerse the resonator in alcohol at 5Kg/cm2 and pressurize for 5 minutes, take out the insulation between the test needle and the base>500MQ (DC100V)
3. Solderability: 2~2.5MM from the end of the pin to the bottom, put it into a solder bath at 235°C±5°C for 2±0.5 seconds, and the tin surface is >90%
4. Vibration resistance: Vibration frequency 10-55Hz, amplitude 1.5MM, test after 2 hours of vibration test in X, Y, and Z directions:

1. Test conditions: the test temperature is 25±3%
2. Test equipment: KH-1200 network analyzer
