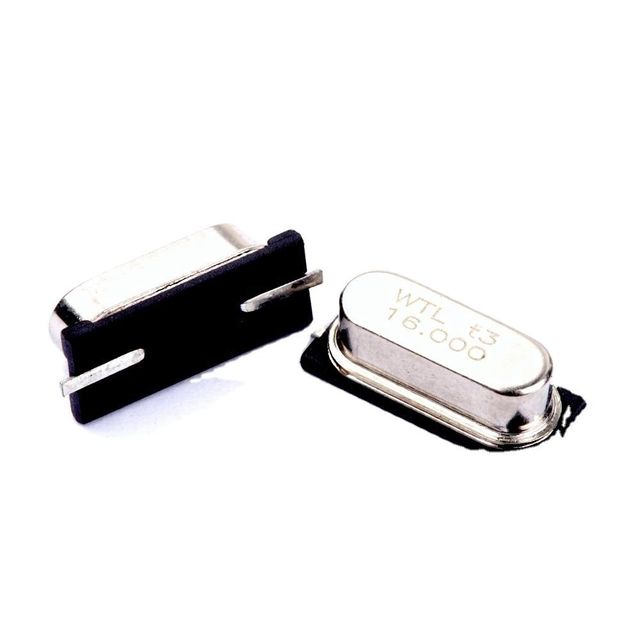

WTL HC-49S SMD Quartz Crystal 3.2 MHz-100 MHz Quartz Resonator HC-49S SMD
- $0.12 / 10 - 9999 pieces
$0.11 / 10000 - 99999 pieces
$0.10 / >=100000 pieces - 10 pieces
- WTL International Limited
- Guangdong, China
- Mr Official WTL
PRODUCT DETAIL
| sample: | support | Warranty: | Worldwide 180-day returns |
| Packaging Details: | Tape and Reel, 1000 pcs/reel WTL HC-49S SMD 3.2 MHz-100 MHz Quartz Resonator HC-49S SMD | frequency: | 13.575MHz, 13.575MHz |
| Operating temperature: | -40°C ~ +85°C | Supplier Type: | original manufacturer |
| type of packaging: | patch | Card: | Quartz Resonator |
| OEM/ODM: | support | DC: | WX7 |
| Frequency tolerance: | ±30ppm,±30ppm | brand: | WTL |
| transportation: | DHL, UPS, Fedex, EMS, China Post | Cross reference: | ABLS2, SMU2 SMU4, HCM49 |
| model: | HC-49S/SMD | impedance: | not any |
| place of origin; place of origin: | China | port: | Shenzhen |
| Certificate: | ISO9001, ISO14001, RoHS | thing: | Quartz Resonator |
| payment terms: | Letter of Credit, Western Union, T/T, Credit Card and Paypal | type: | Quartz Resonator |
| Frequency Stability: | ±30ppm | Built-in Load Capacitor: | 7pF |
| Frequency Range: | 3.2MHz-100MHz | Supply capacity: | 1,000,000 pieces per month |
| pack: | Tape and Reel | about us: | 20 years experience |
Product Description
Resistance Soldering HC-49/S Surface Mount Package | ||
thing | Specification | |
Frequency Range | 3.579545 to 100.000 MHz | |
Load capacitance (CL) | series, 16pF, 18pF, 20pF, 30pF, or specified | |
Frequency Tolerance (at 25°C) | ±30ppm at 25±2°C (standard) or specified | |
Operating frequency stability temperature range | ± 30ppm (typ), or specify | |
range of working temperature | -10°C--+60°C, -20°C--+70°C, -40°C--85°C, or as specified | |
Storage temperature range | -40°C--+85°C | |
Parallel capacitor (C0) | 7pF max | |
Driver level (typical) | 100µW typical | |
Aging (25°C) | ± 5ppm/year maximum | |
Aging (25°C) | ± 5ppm/year maximum | |
12.7×4.8×3.8mm
feature
●Surface mount crystal unit.
● A large number of standard frequencies.
●The usable frequency is higher, and the equivalent series resistance is lower.
●Low cost and high mass production capacity.
● RoHS Compliant / Lead Free
