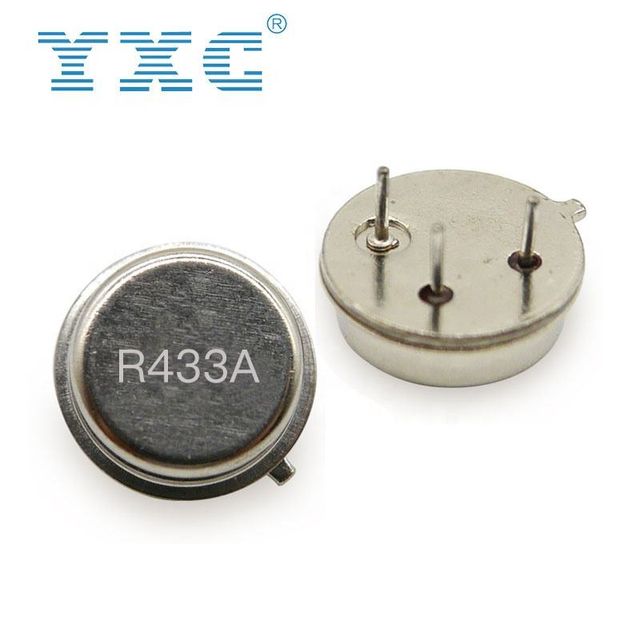

TO-39 R433A SAW resonator 43392 MHz 433.92 MHz quartz crystal
- $0.12 / 100 - 999 pieces
$0.10 / 1000 - 2999 pieces
$0.09 / 3000 - 8999 pieces
$0.08 / >=9000 pieces - 100 pieces
- Shenzhen Yangxing Technology Co., Ltd.
- Guangdong, China
- Ms Seal Xu
PRODUCT DETAIL
| Certificate: | ISO9001, REACH, RoHS | stock available: | stock available |
| transportation: | DHL, UPS, TNT, FedEx, EMS | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal |
| Custom frequency: | accept | frequency: | 433.920MHz |
| Factory Manufacturer: | Yes | Operating temperature: | -40°C ~ 85°C |
| brand: | YXC | Frequency tolerance: | ±75kHz |
| Packaging Details: | 500 pcs/bag | model: | R433 TO-39 |
| type of packaging: | dip | place of origin; place of origin: | Zhejiang, China |
| Frequency Range: | 433.92MHz | Warranty: | Worldwide 180-day returns |
| type: | crystal | Aged (25'C): | ±3ppm/year |
| Supply capacity: | 200,000 pieces per month | port: | Shenzhen |
| Supplier Type: | original manufacturer |
Specification

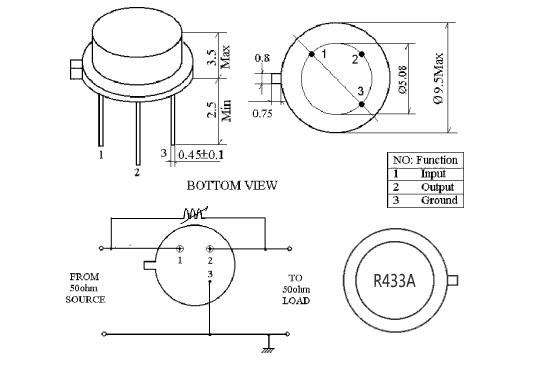

Dimensions
Electrical Specifications
thing | Unite | at the lowest limit | typical | maximum | ||
Center frequency | megahertz | 433.845 | 433.920 | 433.995 | ||
Insertion loss | D b | 1.6 | 2.2 | |||
Quality factor unloading Q | 8300 | 12000 | ||||
50Ω Load Q | 850 | 1500 | ||||
temperature stability | Turnover temperature | °C | 10 | 25 | 40 | |
frequency temperature coefficient | ppm/℃2 | 0.032 | ||||
frequency aging | ppm/year | <±10 | ||||
DC insulation resistance | megohm | 1.0 | ||||
RF Equivalent RLC model | Movement resistance R1 | Ω | 18 | 26 | ||
Motion inductor L1 | μH | 79.28 | ||||
Motion Capacitor C1 | fF | 1.685 | ||||
Sensor Static Capacitance | pF | 2.3 | ||||
Comment:Specifications are subject to change without notice. Please confirm the PDF file with our sales engineer.
Packaging and Shipping
Shipping:
We have no shipping restrictions, you can specify the shipping method with your shipping account, or use our express account. us
Provide products to customers around the world and provide technical support for customers to use our parts more
convenient.
Provide products to customers around the world and provide technical support for customers to use our parts more
convenient.
