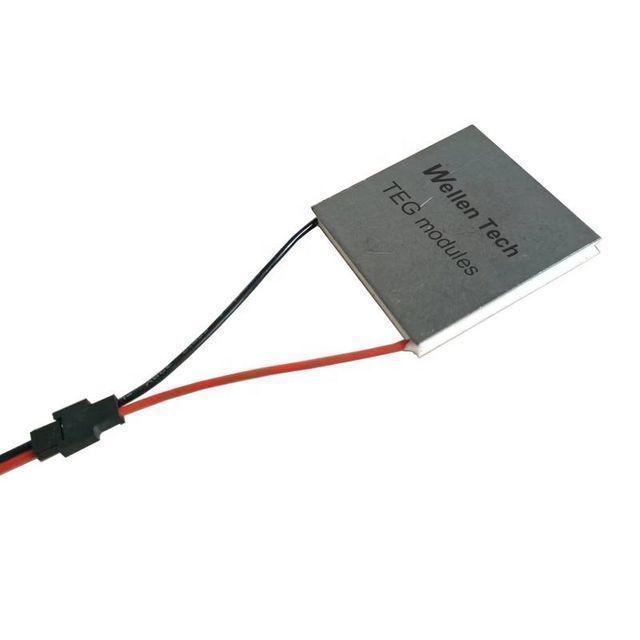

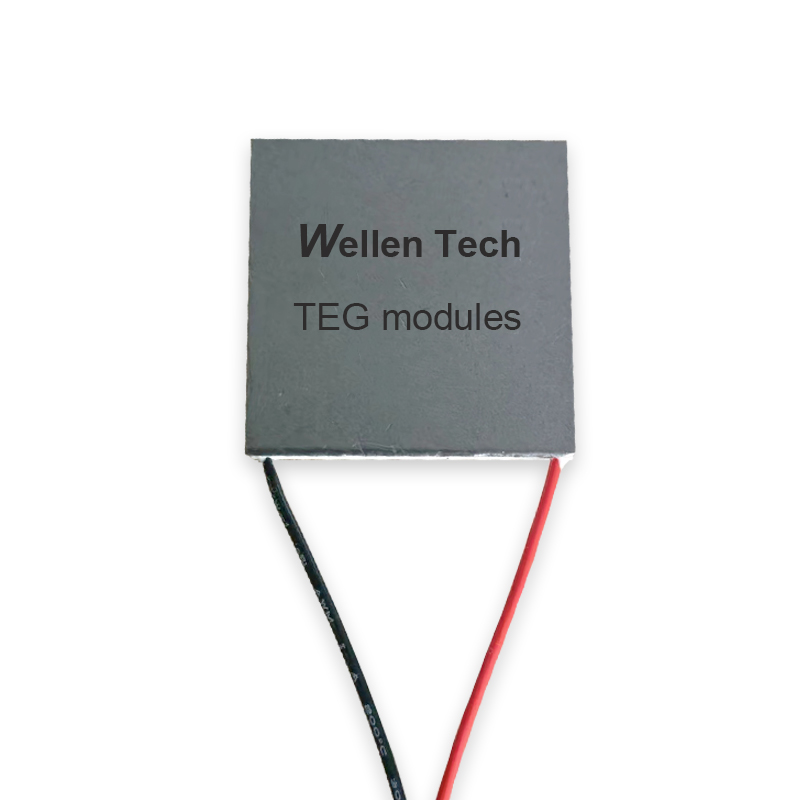

The power generation module of the generator with the thermoelectric Sebeck effect

  • $4.20 / 10 - 999 pieces
    $3.90 / >=1000 pieces
  • 10 pieces
  • Wellen Technology Co., Ltd.
  • Guangdong, China
  • Ms Mingyu Liao
PRODUCT DETAIL
product name:thermoelectric generatorSupply capacity:300000 pieces per month
Packaging Details:foam box, cartonMatched load output current:1.5A
Warranty:1 yearMatched load output voltage:4.2 volts
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramsize:40*40*3.9mm
Matching load output power:6.1WOpen circuit voltage:8.4V
brand:Weilun Technologyport:Shenzhen
Types of:thermoelectric generatorMatching Load Resistance:2.9 ohms
place of origin; place of origin:Guangdong, Chinaapplication:stove fan
delivery time:10-14 daysPackage preview:
model:TEG-10-4006
Related Products
Specification

parameter

open circuit voltage
8.4 volts
Matched Load Resistance
2.88 ohms
Match output voltage
4.2 volts
RoHS Compliant
Match output current
1.46 amps
Ceramic material: Al2O3 96%
Output Power
6.13W
Soldering temperature: 238 degrees
AC resistance at 27°C
2.4 ohms
Flatness/Parallelism: +/-0.05

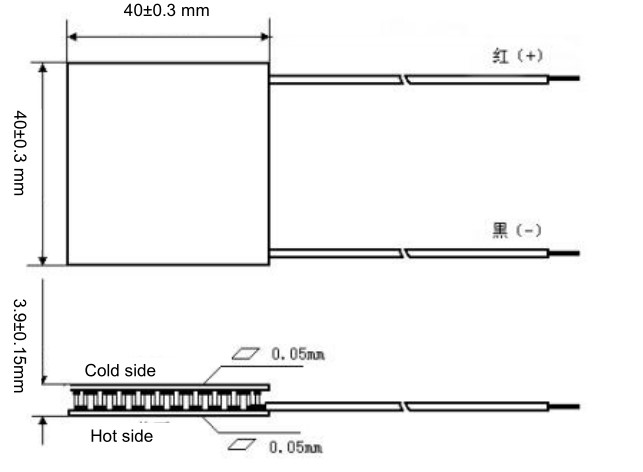

size

performance curve

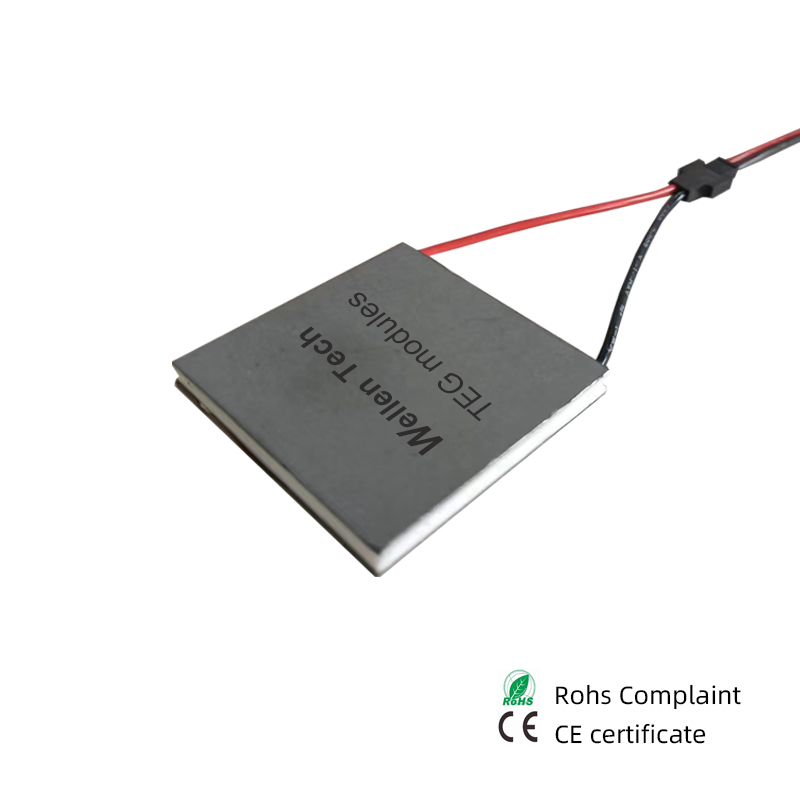

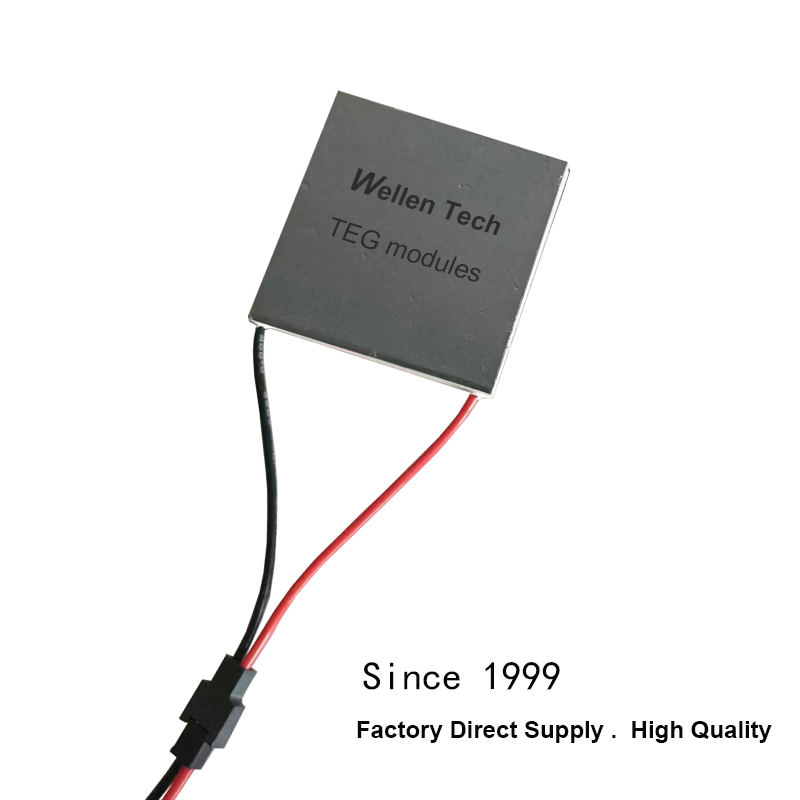

product display
Weilun Technology Co., Ltd.
Specializing in the production of thermoelectric modules for more than 20 years
thermoelectric generator
TEG-10-4006

The power module is designed and manufactured with Wellentech's unique technology, which directly converts the heat source into electrical energy. The module is a Bi-Te based thermoelectric module that can work continuously at a heat source temperature up to 200°C. A thermoelectric module generates direct current whenever there is a temperature difference across the module. When the temperature difference across the module becomes larger, more power will be produced.

Customized designs are acceptable. (Wellen Tech www.wellentech.com) All products are RoHS and REACH compliant, certified by SGS ISO9001.

Product List
Part Number
cold junction temperature
hot end temperature
open circuit voltage
Matched Load Resistance
Matching load output voltage
Matched load output current
Matching load output power
AC resistance
TEG-10-3003
27
200
8.4
5.3
4.2
0.8
3.3
3.9
TEG-10-3004
27
200
8.4
4.0
4.2
1.0
4.4
3.0
TEG-10-3005
27
200
8.4
3.2
4.2
1.3
5.5
2.5
TEG-10-4004
27
200
8.4
4.0
4.2
1.1
4.4
3.0
TEG-10-4006
27
200
8.4
2.9
4.2
1.5
6.1
2.1
TEG-10-4008
27
200
8.4
2.2
4.2
1.9
8.2
1.6
TEG-10-4010
27
200
8.4
1.7
4.2
2.4
10.2
1.3
TEG-10-5015
27
200
8.4
1.2
4.2
3.6
15.3
0.9
TEG-10-5018
27
200
8.4
1.0
4.2
4.4
18.4
0.7
TEG-10-6226
27
200
8.4
0.7
4.2
6.3
26.5
0.5
TEG-10-6230
27
200
8.4
0.6
4.2
7.3
30.6
0.4
TEG-08-4004
27
200
10.7
5.5
5.3
1.0
5.2
4.1
TEG-08-4006
27
200
10.7
3.7
5.3
1.5
7.8
2.7
TEG-08-4008
27
200
10.7
2.7
5.3
2.0
10.4
2.0
TEG-19-4003
27
200
13.2
9.0
6.6
0.7
4.8
6.7
TEG-19-4006
27
200
13.2
4.5
6.6
1.5
9.7
3.4
TEG-19-5008
27
200
13.2
3.4
6.6
2.0
12.9
2.5
TEG-19-4008
27
200
13.2
3.4
6.6
2.0
12.9
2.5
TEG-19-4010
27
200
13.2
2.7
6.6
2.4
16.1
2.0
TEG-07-4004
27
200
16.0
8.2
8.0
1.0
7.8
6.1
TEG-07-4006
27
200
16.0
5.5
8.0
1.5
11.7
4.1
TEG-07-5007
27
200
16.0
4.7
8.0
1.7
13.6
3.5
TEG-07-5507
27
200
16.0
4.7
8.0
1.7
13.6
3.5
TEG-07-5508
27
200
16.0
4.1
8.0
2.0
15.6
3.0
TEG-07-5510
27
200
16.0
3.3
8.0
2.4
19.5
2.4
TEG-07-5515
27
200
16.0
2.2
8.0
3.7
29.2
1.6
TEG-11-5008
27
200
17.5
4.5
8.7
2.0
17.0
3.3
TEG-17-5004
27
200
19.1
9.8
9.5
1.0
9.3
7.3
Applications
military establishment
beauty industry
laser communication
