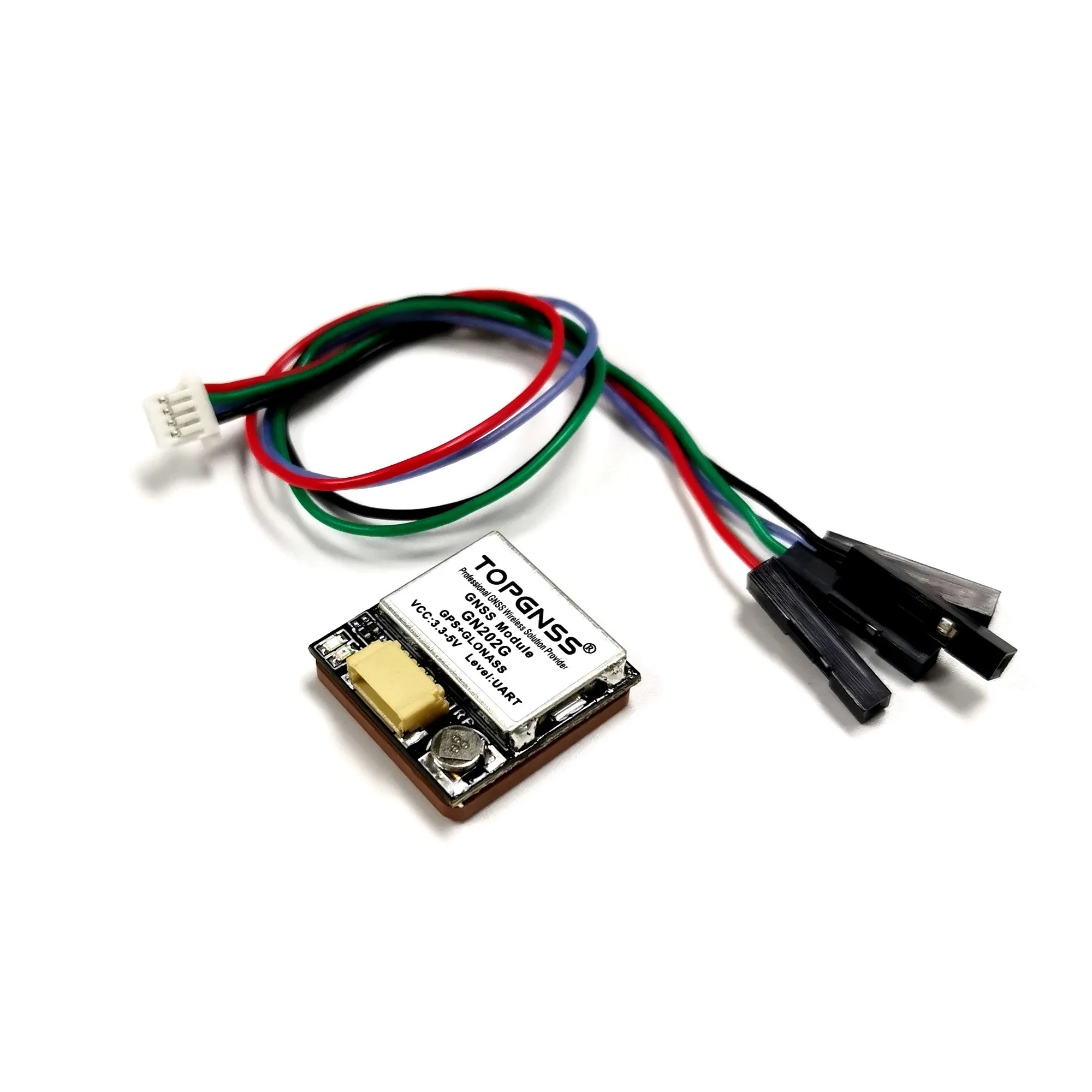

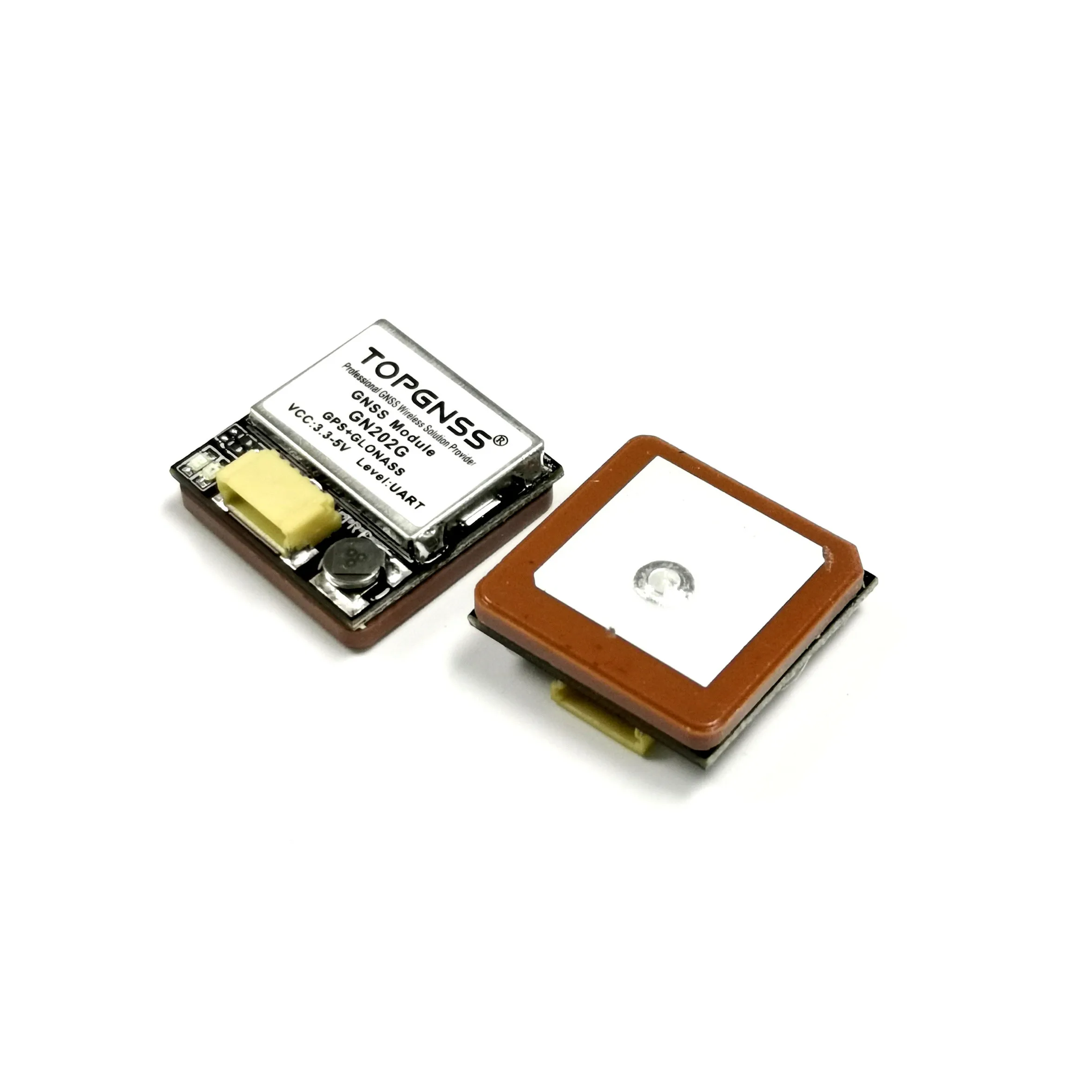

Uart TTL Small volume UAV GPS module Smart gnss module GPS GLONASS dual GN-202G TOPGNSS

PRODUCT DETAIL
Chipset:m-8030-kt;Supply Voltage:DC 3.3-5.0V;
Model Number:GN-202G;1PPS:Default Cycle;
Selling Units:Single item;Type:GNSS Module;
Single package size:1.8X1.8X0.6 cm;Application:GNSS;
Connector:1.25 5PIN;Single gross weight:0.120 KG;
Data Level:TTL Level;Country of Origin:CHINA;
NMEA Message:GGA,RMC,VTG,;Brand:TOPGNSS;
Frequency:GPS GLONASS;Tracking Sensitivity:165dBm;
Size:18*18*6MM;



TOPGNSS GNSS Module GN-202G Performance

GNSS CHIP

UBX-M8030-KT

frequency

L1, 1575.42MHz

protocol

NMEA 0183 v2.3,4.x GPS/QZSS L1 C/A,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,

EGNOS,MSAS , Support Galileo E1B/C. Default GPS+GLONASS mode
Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT binary and NMEA Command

Available baud rate

(Default 9600) Can be set 1200,4800,19200,38400,57600,115200 bps

  Receiving channel

72

Sensitivity

Tracking sensitivity:-160Dbm Capture sensitivity:-157dBm

Cold start

29s average

Warm start time

28s average

Hot start time

1s average

Precision

HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns

maximum height

18000  Meter

Maximum speed

515 m/s

Maximum acceleration

4G

Update frequency

1-10Hz(default1HZ

A-GPS

AssistNow on-line and off-line

Working output level

output level

Output TTL level

Physical characteristics

PIN

5 pin 1.0 pitch

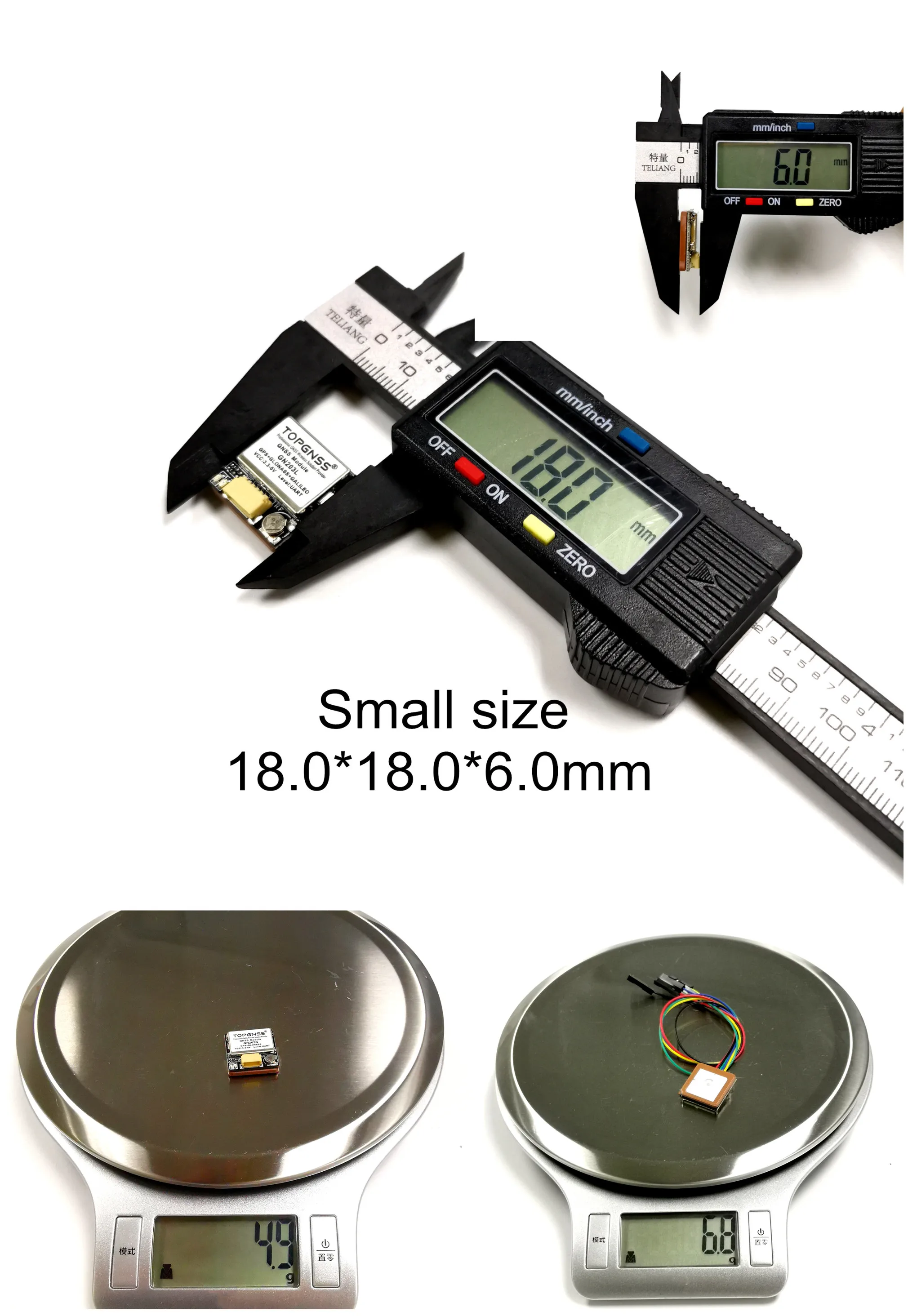

Dimensions

18mm * 18 mm * 6.0mm

Operating Voltage

3.3V-5.0VDC ±5%

weight

5g

Connector form

1.0 5 PIN

Cable length:

15 CM

Operating temperature

-40 to 85

Storage temperature

-40 to 85

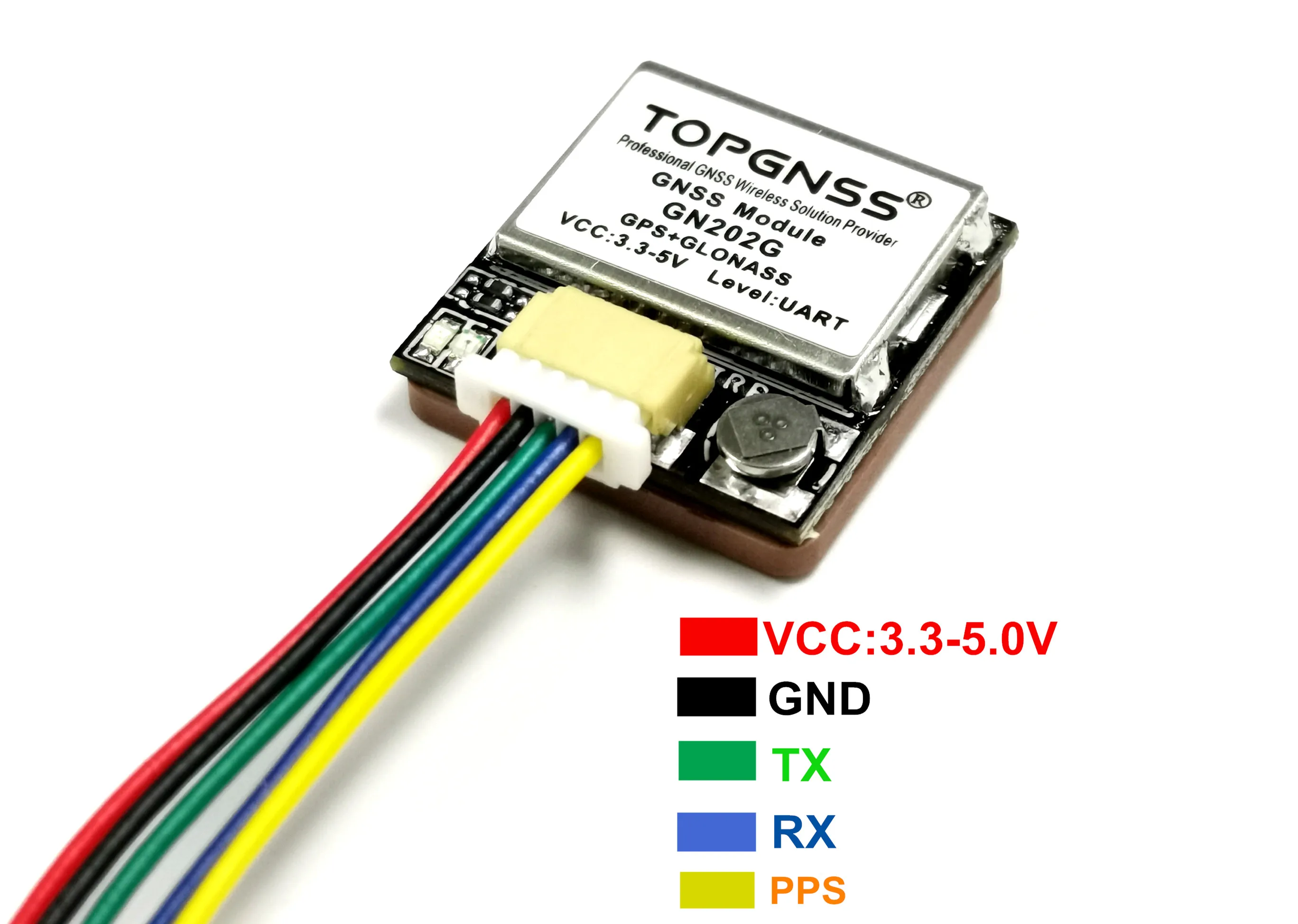

GN-202G PIN function description

+

NMEA

Description

VCC

Main power supply of the system, the power supply voltage is +3.3V~+5V, and the current consumption is about 55 mA during operation.

GND

GND

TXDA

UART/TTL

RXDA

UART/TTL

PPS

Time standard pulse output
