Walmart thank you plastic pe ldpe hdpe automatic double line degradable shopping bag bag making machine
- $6500.00 /set
- 1 set
- Shantou Longhua Packing Machinery Co., Ltd.
- Guangdong, China
- Ms Alice Xie
| Mechanical test report: | not available | Material: | plastic |
| Function: | T-shirt bag making machine | port: | Shantou |
| OEM service: | supply | Computerized: | yes |
| Marketing Type: | New Products 2020 | State of health: | new |
| feature: | Inverter and back screen photonic sensor | product name: | One-layer two-line heat-sealing hot-cut vest bag bag making machine |
| place of origin; place of origin: | Guangdong, China | Applicable industries: | Manufacturing plants, food and beverage plants, retail |
| Voltage: | Three-phase 380V | Conveyor assembly: | Conveyor assembly |
| Type of machine: | Making Machine | Supply capacity: | 400 sets per year |
| Package type: | vest bag | Main selling points: | high productivity |
| Video shipment inspection: | if | servo motor: | Japan |
| After-sales service: | 1 year warranty | Core component warranty: | 1 year |
| Package preview: | Warranty: | one year | |
| Packaging Details: | Wooden pallets, wooden boxes. | Showroom location: | not any |
| options: | Air shaft, magnetic powder tension, EPC, punch | brand: | Longhua Machinery |
| Core components: | Motors, pressure vessels, PLCs, servo motors and drives | weight: | 750 kg |
| application: | Cold Cut Bottom Seal Bag - Shirt Bag | model: | SDB-BG |
| Dimensions (L*W*H): | 3.0x1.5x1.4m | Maximum speed: | 320 pieces/min |
| Package width: | 120-880mm | payment terms: | L/C, T/T |

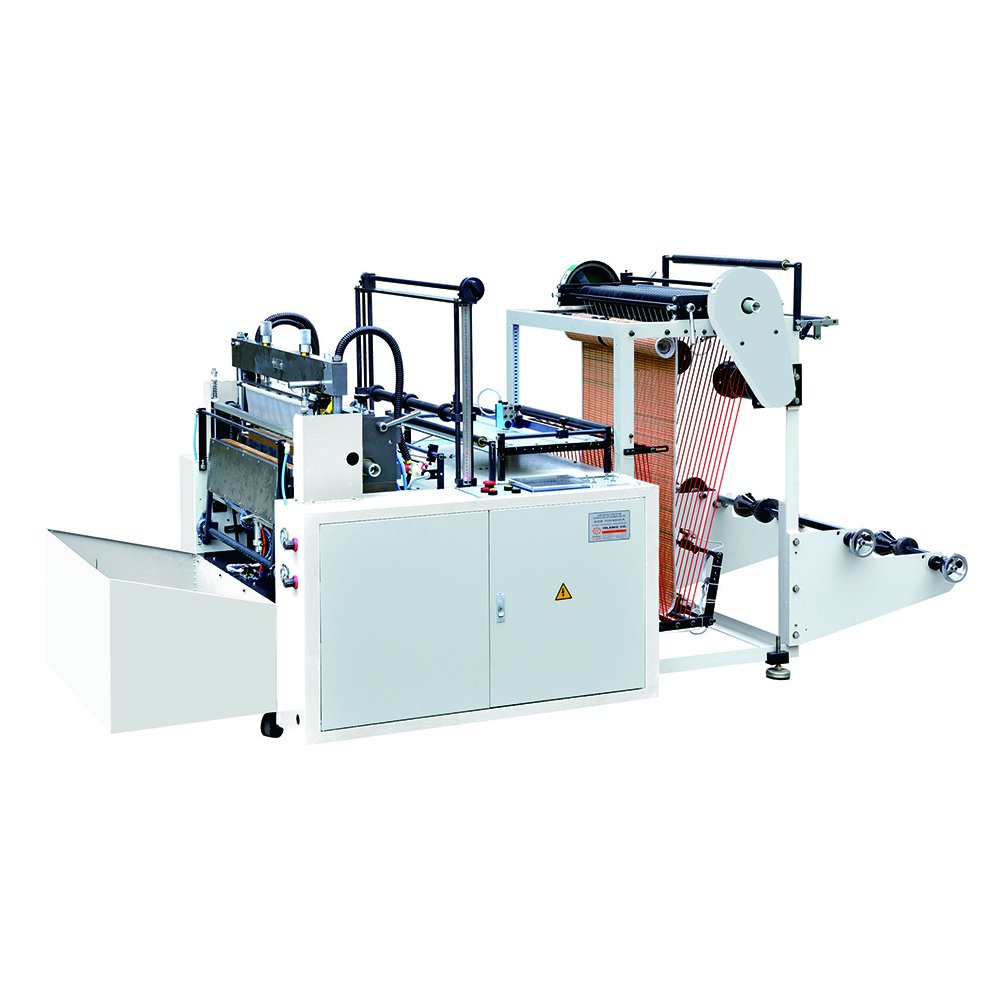

One-layer two-line heat-sealing hot-cut vest bag bag making machine SDB-BG
1. Used to make 1-layer 2-line heat-sealed hot-cut HDPE/LDPE vest bag.
2. This machine adopts Ormon PLC and touch screen, with clear display and convenient operation.
3. The rear feeding adopts AC motor with 2 wires and photoelectric automatic control, which can automatically adapt to the production speed.
4. Newly designed seal structure, turn the seal upside down for easy cleaning. This new structure is safer and more reliable.
5. It has the functions of paper jam detection, feeding error detection, printing mark detection, automatic stop and alarm.
options:
1. Gas well
2. Magnetic particle tension
3. EPC Contracting
4. Hole punch
|
Specification |
SDB-B-500G |
SDB-B-700G |
SDB-B-900G |
|
bag width |
120-480mm |
130-680mm | 150-880mm |
|
bag length |
250-800mm | 300-800mm | 300-1000mm |
|
machine speed |
50-160 pcs/min | 50-150 pcs/min | 50-140 pcs/min |
|
bag thickness |
0.025-0.12mm | 0.025-0.12mm | 0.025-0.12mm |
| Feeding speed | 50m/min | 50m/min | 50m/min |
| required power | 6.5kw | 8 kW | 10 kW |
| northwest |
750 kg |
900 kg |
1050 kg |
| Machine size |
3.0x1.1x1.4 meters |
3.0x1.3x1.4 meters |
3.0x1.3x1.4 meters |
|
main feature |
brand |
nation |
|
touch screen |
surface |
Japan |
|
Programmable Controllers |
Omron | Japan |
|
servo motor |
Panasonic/Yaskawa | Japan |
|
engine
|
seam | Germany |
| dawn | Taiwan | |
|
inverter |
Fuji/Mitsubishi | Japan |
|
marker sensor |
sick | Germany |
| data logic | Italy | |
|
solid state relay |
Qantas | United States |
|
Pneumatic Components |
Festo | Germany |
| SMC | Japan |
