High-speed (400-600 pcs/min) automatic four-row plastic shopping bag vest bag making machine

PRODUCT DETAIL
brand:Ruixinapplication:T-shirt bag / vest bag / shopping bag
Material:plasticprogrammable logic controller:Yes
product name:Making MachineWarranty:1 year
Processing type:Heat sealing and cold cuttingstrength:1.5KW
Health status:newComputerized:Yes
place of origin; place of origin:Zhejiang, Chinapayment terms:D/A,T/T,Western Union
Certification:Chief ExecutiveDimensions (L*W*H):3.2X1.1X1.6M
servo motor:YesPackaging Details:Film packaging or wooden case
Bag length:400-1000mmusage:T-shirt bag making
Voltage:220VType of machine:Making Machine
model:GBDE-700Bag width (max):100-600mm
port:Ningbo, Shanghai, Guangdongweight:1500kg
speed:400-600 pieces/minSupply capacity:50 sets per month
line:four linesBag Type:T-shirt bag
After-sales service provided:Engineers can repair machinery overseas

High Speed ​​(400-600 pcs/min) Automatic Four Lines Plastic Shopping Bag T-Shirt Bag Making Machine:



This plastic T-shirt shopping bag making machine is suitable for producing HDPE and LDPE plastic bags. Using stepper motor (servo motor) high-speed unwinding, photoelectric tracking cutting, one-time punching "U"-shaped bag. And has the characteristics of simple operation, high efficiency and high yield.



Siemens Motor

Delta inverter

touch screen changer

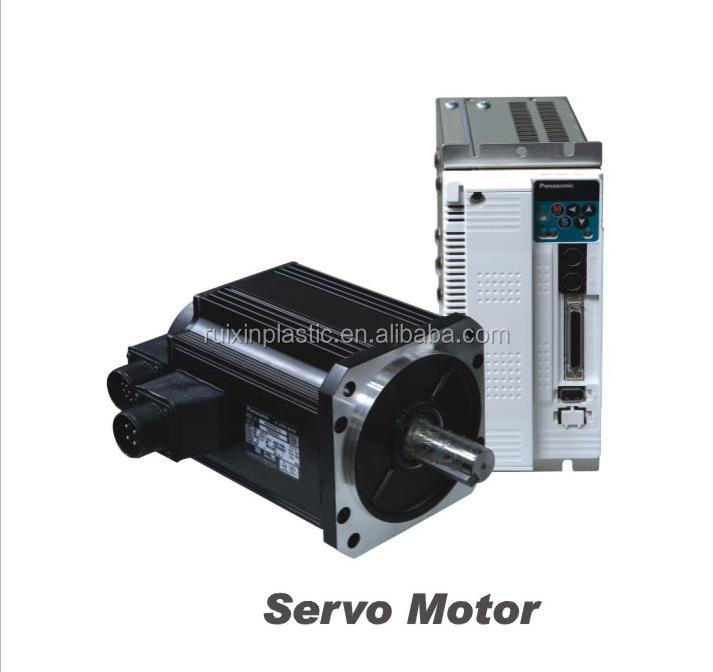

Yaskawa Servo Motor

Panasonic Photocell

omron electrical parts

technical parameter:

type

GBDE-700

GBDE-900

Sealing and cutting width

150-600mm

180-800mm

Sealing and cutting length

300-650mm

300-650mm

Sealing thickness

0.001-0.04mm

0.015-0.04mm

bag making speed

(5-150)×4pcs/min

(5-150)×4pcs/min

Motor Power

1.5kW

2kW

machine weight

≈1500kg

≈2000kg

Dimensions (L×W×H) mm

3200×1100×1600mm

5200×1300×1800mm

air compression

5kg/cm2

5kg/cm2



1) It adopts computer control and frequency conversion motor speed regulation, which has the advantages of upper stop, stable function and accurate positioning.

2) 1 automatic photoelectric feeding system and 1 tracking photoelectric cell. Automatic temperature control system, static elimination system, automatic counting system and alarm system.

3) With automatic conveying system, conveying sealed and cut bags.

4) Heat sealing and cold cutting. The heat seal has too many sides. One for flat bag closures and one for T-shirt bag closures.

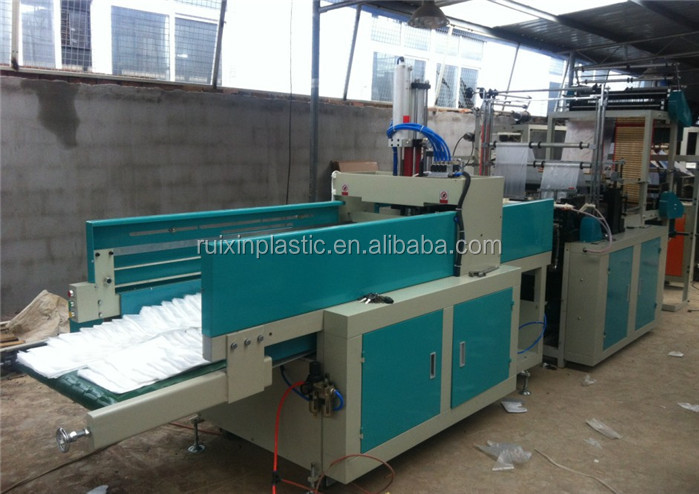

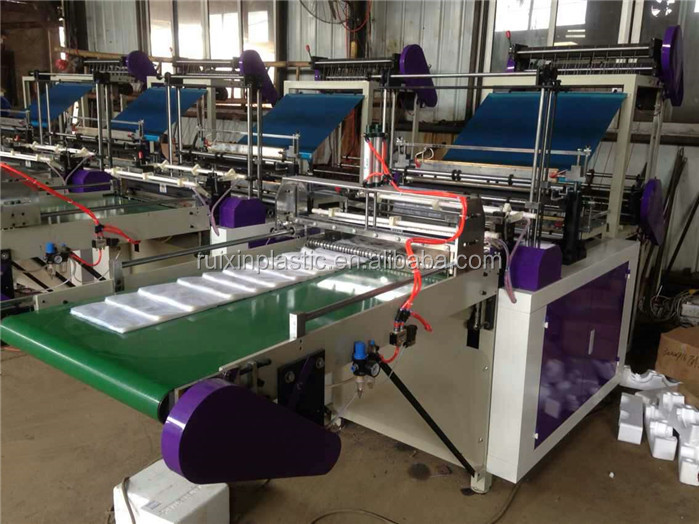

Picture of plastic vest bag making machine:

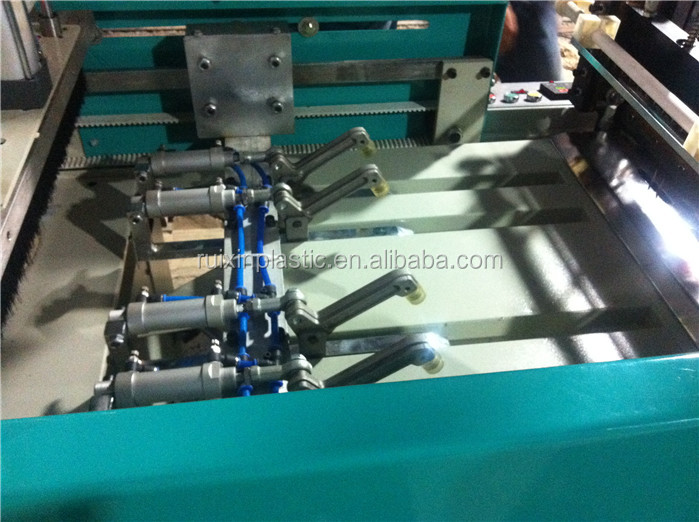

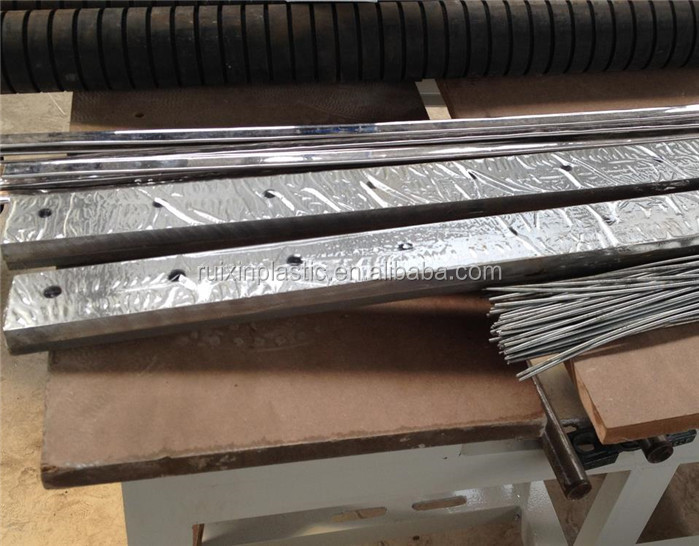

Bag sealing knife:

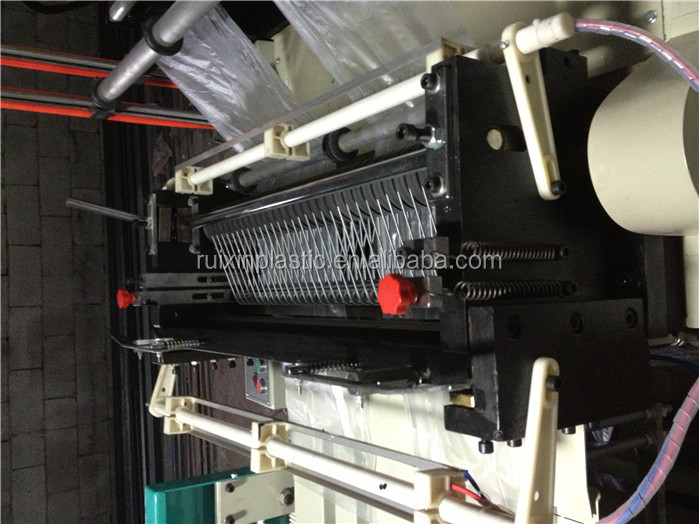

Cutter:

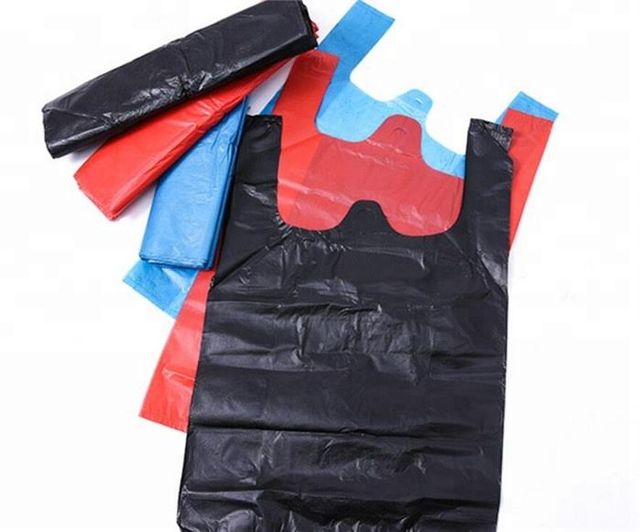

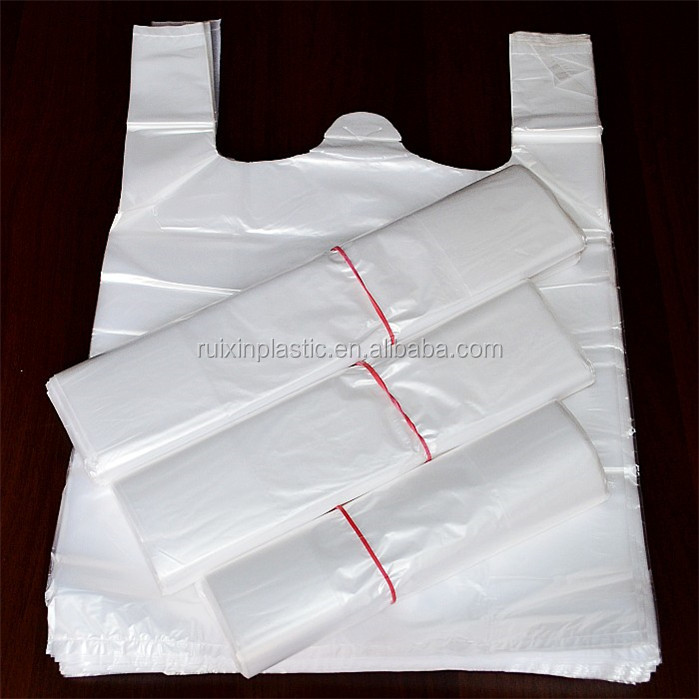

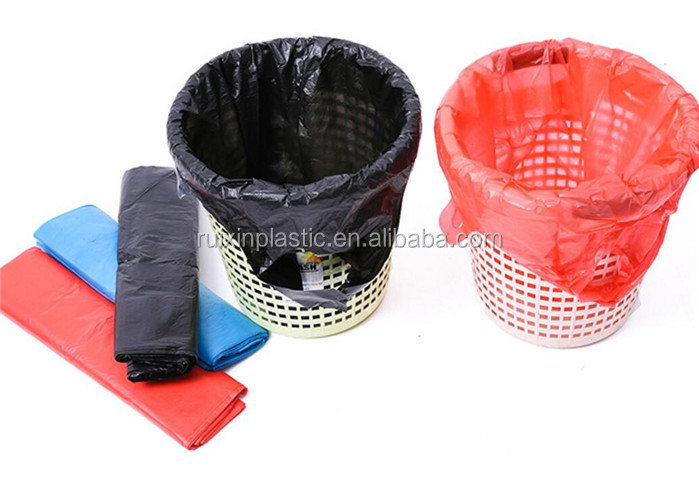

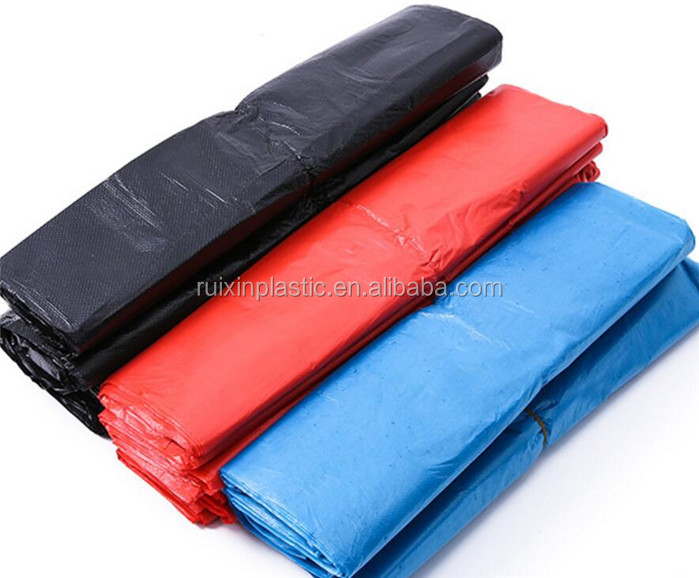

Product sample:

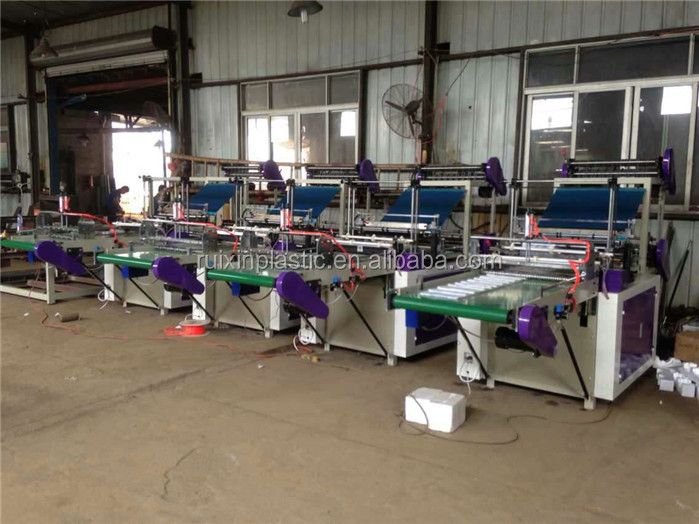

Our factory:







Packaging and Shipping:

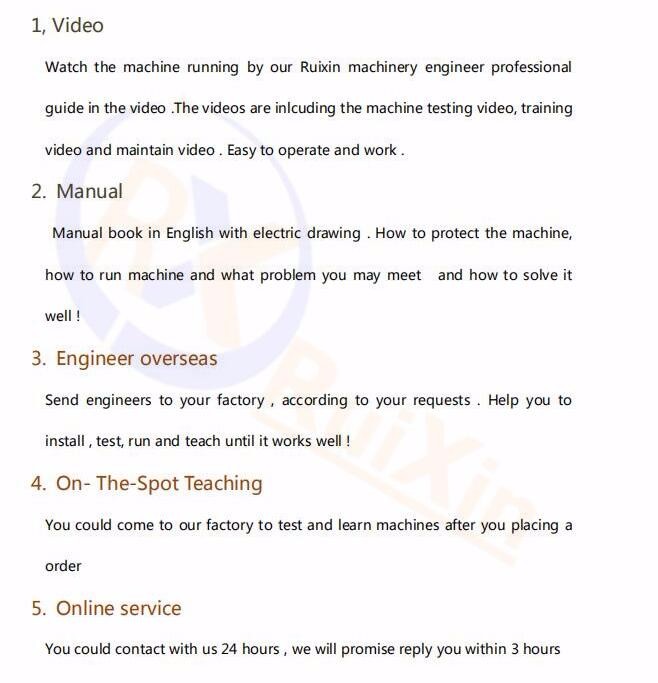

our service:

Welcome to contact us:
