HDPE LDPE LLDPE Plastic Bag Blown Film Machine

PRODUCT DETAIL
place of origin; place of origin:Zhejiang, Chinapayment terms:L/C, T/T, Western Union
Inverter:Delta brandPackaging Details:Wooden box packing or plastic packing film packing
brand:Ruixincompressor:1.5kw
Warranty:1 yearport:Ningbo
Electrical components:CHINT brandDimensions (L*W*H):5.5x2.8x4 meters
Blow molding type:extrusion blow moldingPlastic processing:polyethylene
weight:1500 kgcolor:blue and white
Raw materials:High Density Polyethylene Low Density Polyethylene Linear Low Density PolyethyleneScrew aspect ratio:28:1
Main motor:Siemens brandstrength:25 kW
State of health:newAfter-sales service provided:Engineers available to service machinery overseas
application:Movieautomatic:yes
Certification:International Organization for StandardizationSupply capacity:30 sets per month
Wind ring type:Double air port/single air portScrew material:38 CrMoAlA bimetal/SCM645
Voltage:220V/380VDie head:45 steel, Taiwan design

HDPE LDPE LLDPE plastic bag blowing machine:





Machine introduction:

The extruder, barrel, and screw are all made of high-quality alloy steel that has been notarized

in a precise way. Therefore it is hard and resistant to corrosion. The specially designed screw has good plasticizing quality, which is beneficial to increase production capacity. Suitable for blown plastic film, etc.

Low Density Polygenic (LDPE), High Density Polygenic (HDPE) and Linear Low Density Polygenic (LLDPE).

Widely used in the production of food, clothing, garbage bags, vest bags and other packaging bags.





Model

RSJ45-700

RSJ55-900

RSJ60-1100

RSJ65-1350

Screw diameter(mm)

Φ45

Φ55

Φ60

Φ65

Screw length(L/D)

28:1

28:1

28:1

28:1

Film width (mm)

100-600

200-800

300-1000

400-1200

Film thickness (mm)

0.008-0.10

0.008-0.10

0.008-0.10

0.008-0.10

Maximum extrusion capacity (kg/h)

50

65

70

75

Cylinder cooling (Kw)

0.25

0.25

0.25*2

0.25*3

Drive motor(kw)

11

15

18.5

twenty two

temperature control

3

4

5

5

Average power consumption (kw)

14

twenty two

26

37

Die size(mm)

Φ70/100

Φ80/120

Φ100/150

Φ100/200

Winding speed(m/min)

10-80

10-80

10-80

10-80

Take-up motor (kw)

0.75

1.1

1.5

2.2

Machine weight(kg)

1800

2200

2800

3400

Cover size (m)

5.0*2.1*3.8

5.0*2.3*4.2

5.5*3.3*4.8

5.8*3.6*5.4

Machine advantages:



1. The fuselage adopts stronger steel plate to make the machine more stable

2. Nitriding treatment for screw and barrel for 72 hours. 38 chrome material, very hard.Plagiarized from Taiwan

3. The hard surface gearbox has a service life of more than 5 years.

4. The motor conforms to the CE standard, and the service life is more than 10 years.Siemens brand.

5, The electrical part is CHINT, the best supplier in China.

6. The operation is simple, one worker can run 3 machines

7. Temperature controller:omron brand

8. Inverter:deltabrand

9. Heater:Heats up faster and holds longer

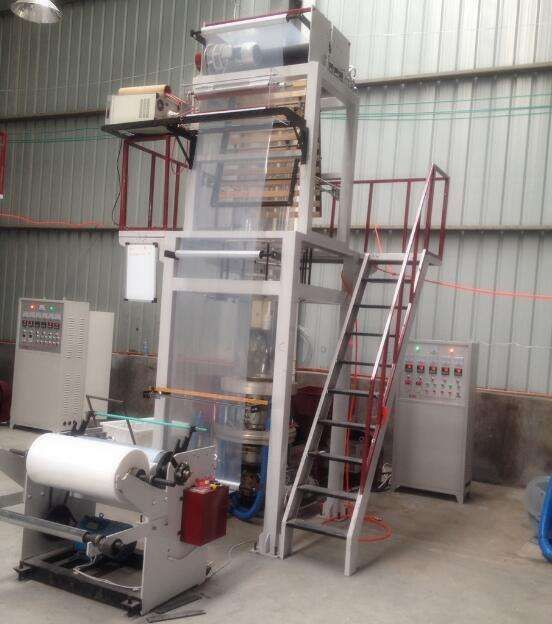

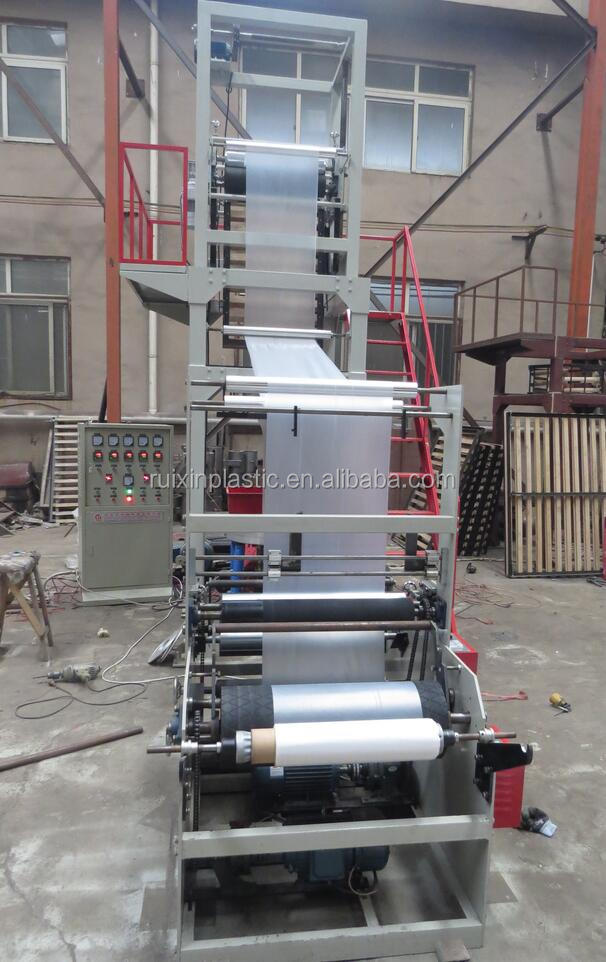

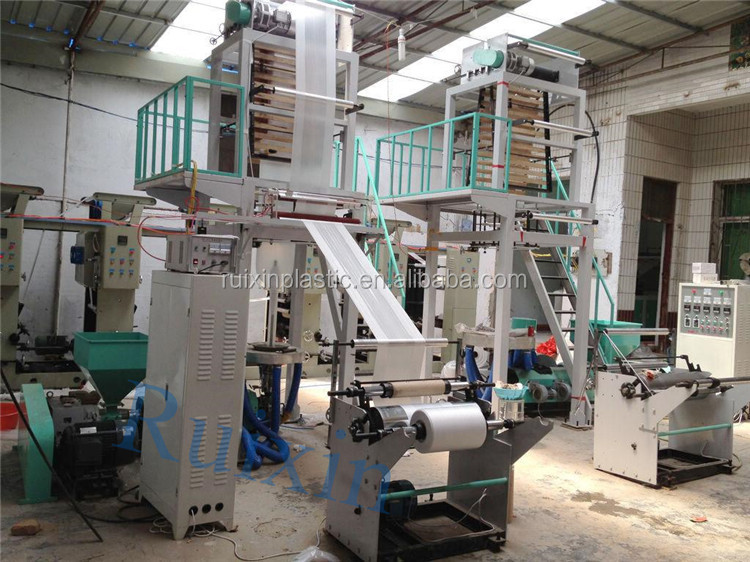

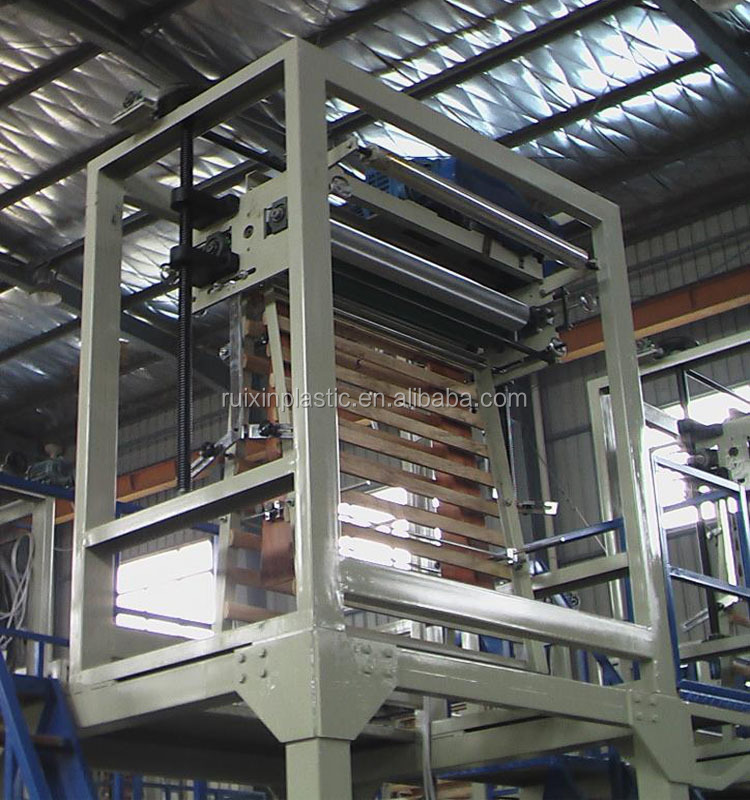

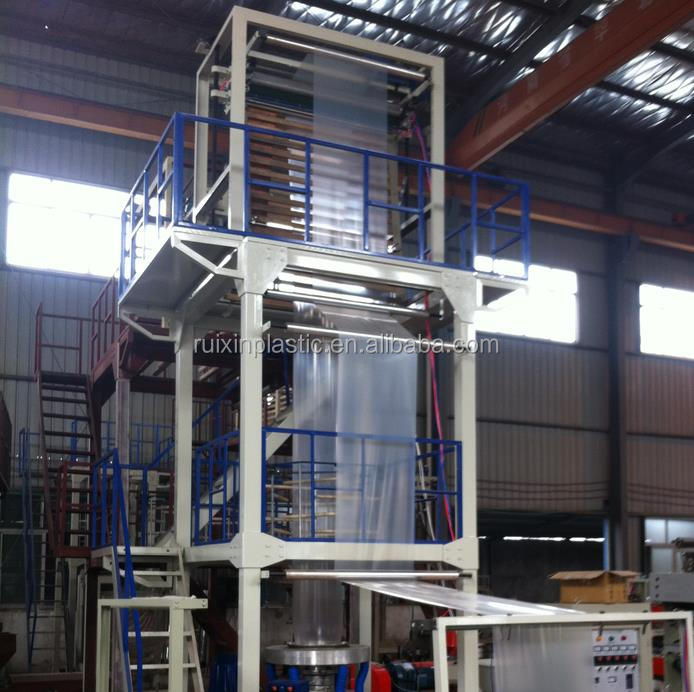

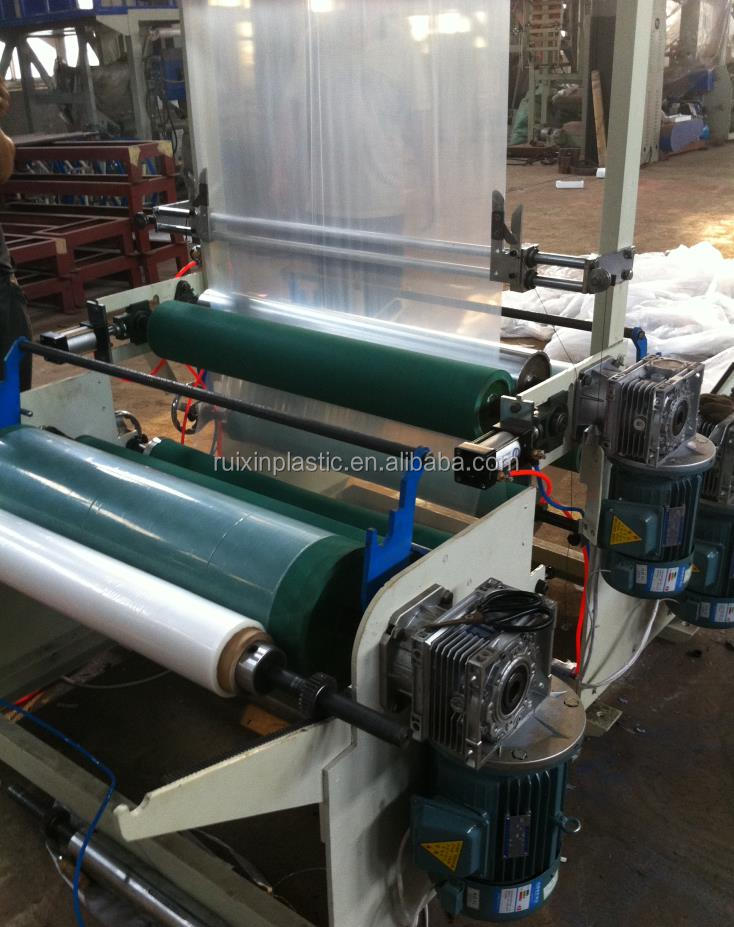

Machine detail pictures:















Our packaging and shipping:



Our certifications:

our service:

our company:
