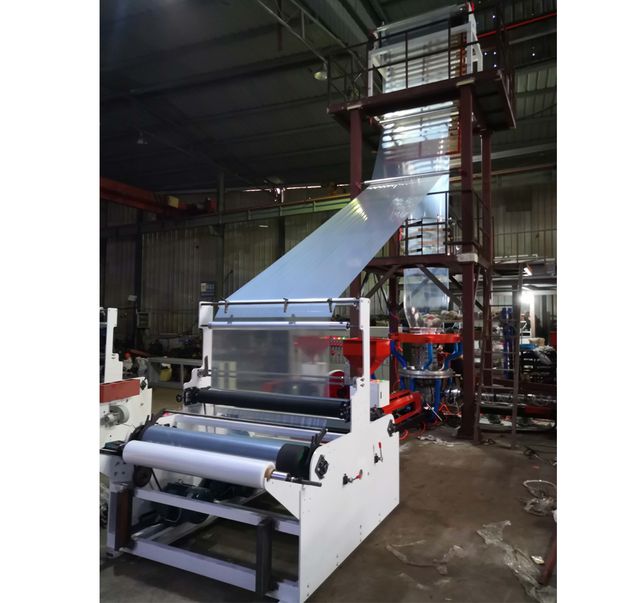

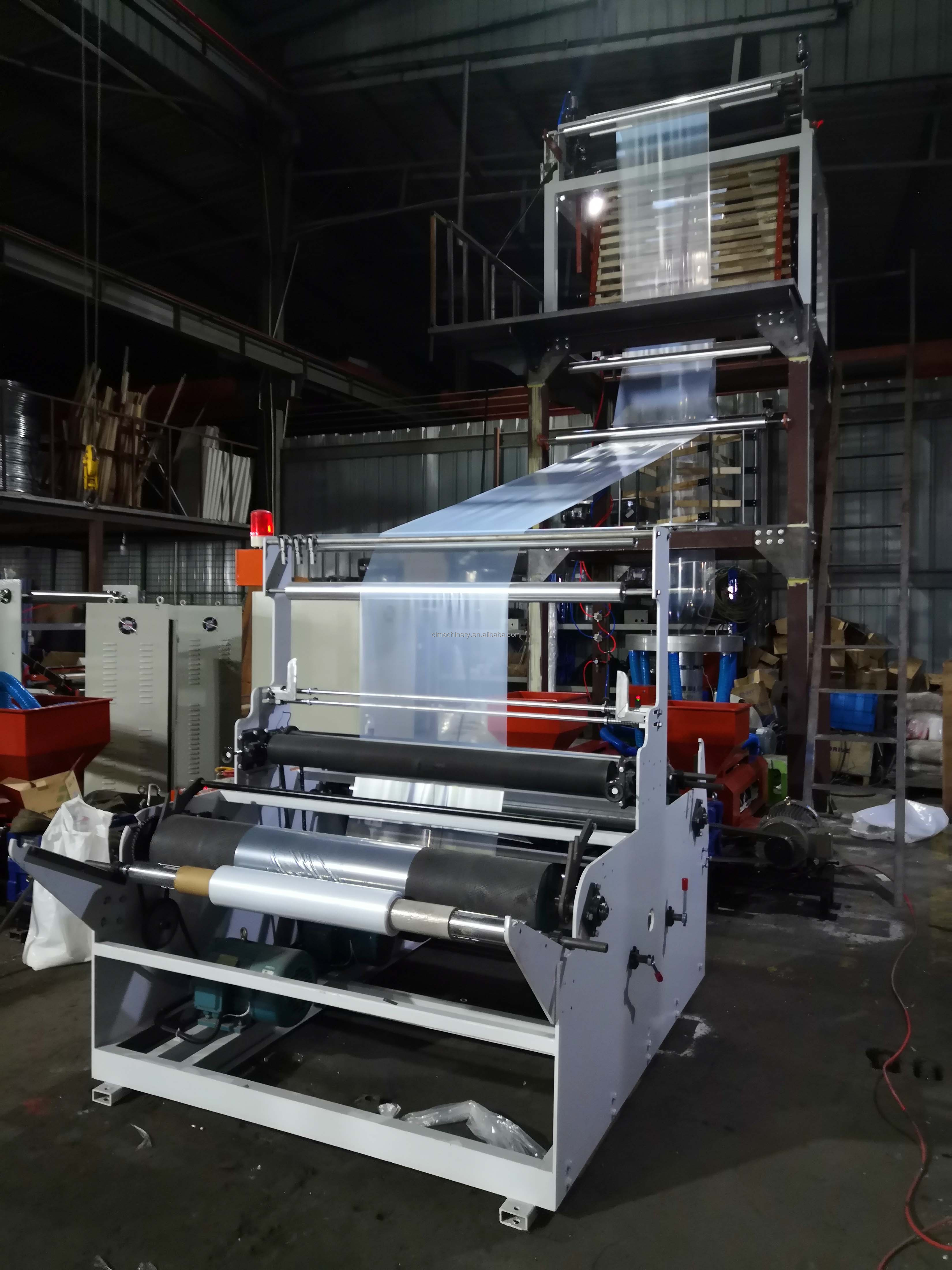

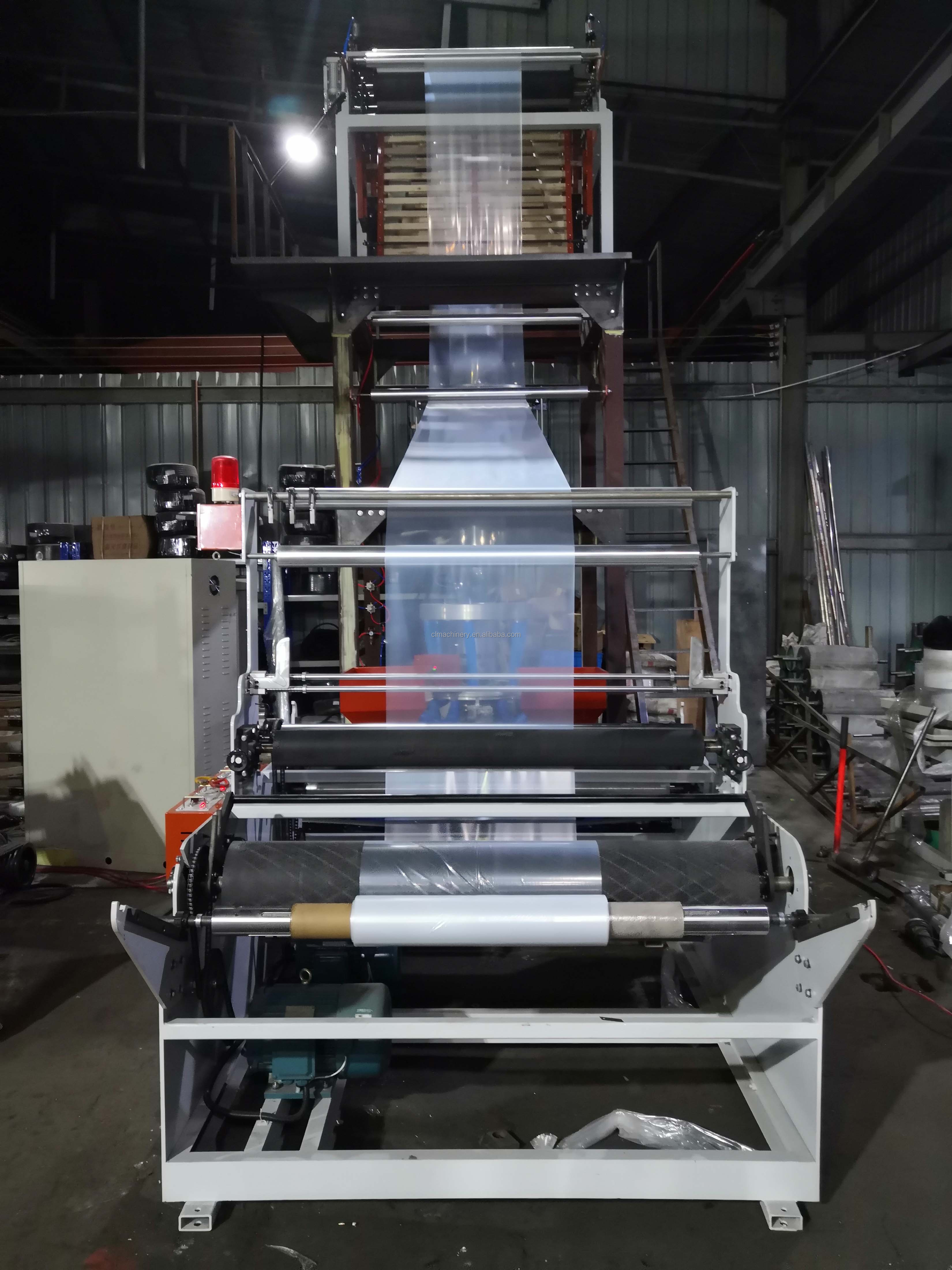

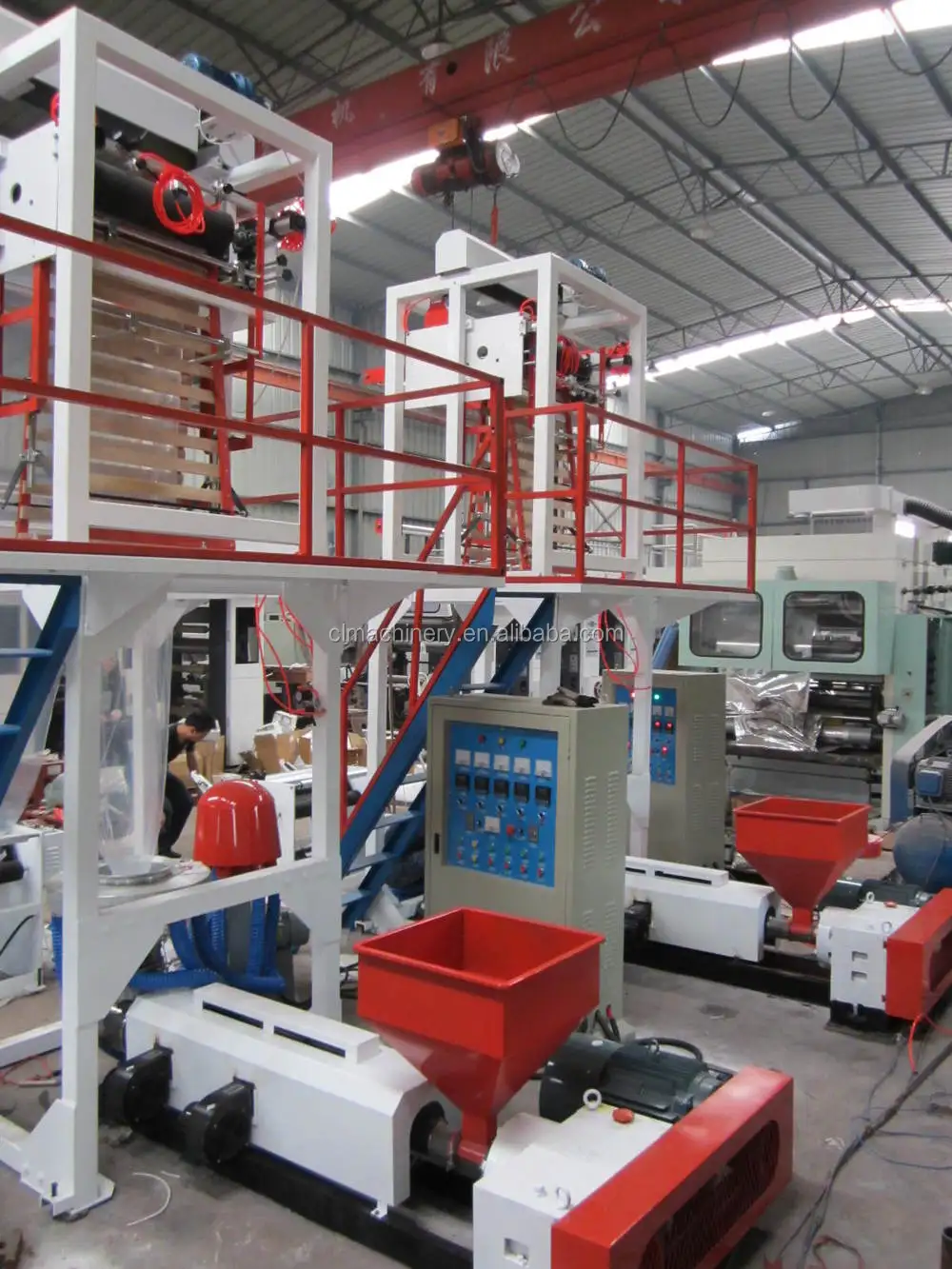

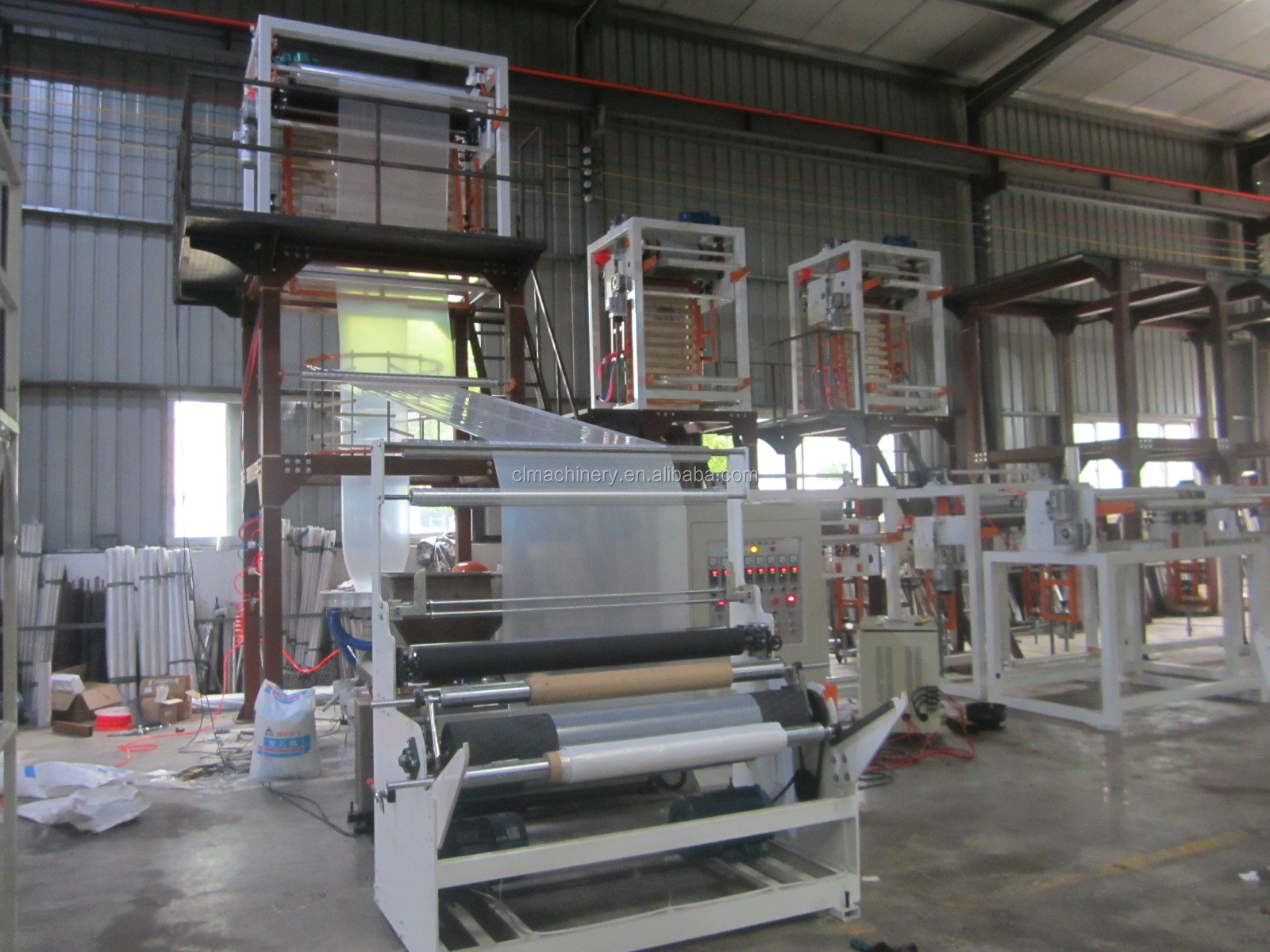

High-speed film blowing machine
- $6000.00 /set
- 1 set
- Ruian Chuangli Machinery Factory
- Zhejiang, China
- Mr Jacky Liu
| automatic: | Yes | width: | 800mm |
| Plastic Processing: | Polyethylene, High Density Polyethylene, Low Density Polyethylene, Low Density Polyethylene | Material: | HDPE LDPE LLDPE |
| Packaging Preview: | Packaging Details: | in a wooden box | |
| Layers: | single layer | Applicable industries: | Mechanical Repair Shops, Advertising Agencies, Food and Beverage Stores, Farms, Printing Shops, Home |
| After-sales service provided: | Engineers can repair machinery overseas | Supply capacity: | 30 sets per month |
| Dimensions (L*W*H): | 5500mm*2300mm*4000mm | Output (kg/hour): | 60 - 80 |
| port: | Wenzhou or Ningbo | Health status: | new |
| capacity: | 45 kg/h | payment terms: | L/C,Western Union,T/T,MoneyGram |
| Voltage: | 380V | Weight (kg): | 3500 |
| color: | blue and white | Mechanical test report: | if |
| Main selling point: | easy to operate | Screw diameter (mm): | 55 |
| Blow molding type: | Blown film | model: | sj-h55 |
| Power (W): | 18.5kW | application: | Movie |
| Core Components Warranty: | 3 years | Showroom location: | Pakistan, Mexico, Russia, Thailand, Morocco, Argentina, Algeria, South Africa, Ukraine, Nigeria, Uzbekistan, Malaysia |
| Warranty: | 1 year | weight: | 2800kg |
| Marketing Type: | normal product | Core components: | Engine, gearbox, motor |
| Video external inspection: | if | brand: | creativity |
| place of origin; place of origin: | Zhejiang, China |
PE film blowing machine is used to produce low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE) and metallocene linear low density packaging of food, clothing and other civil and industrial products plastic film , touch, daily necessities, etc.
|
/Model |
SJ-45 |
SJ-50 |
SJ-55 |
|
|
feature |
raw materials |
HDPE, LDPE, LLDPE; Virgin and Recycled |
||
|
Film width |
400mm |
600mm |
800mm |
|
|
output |
25kg |
35kg |
45kg |
|
|
Film thickness |
0.008mm-0.15mm |
|||
|
power supply |
380V, three-phase, 50Hz |
|||
|
weight |
1300kg |
1400kg |
1600kg |
|
|
aspect |
5×2.3×4M |
5×2.3×4M |
5×2.5×4.5M |
|
|

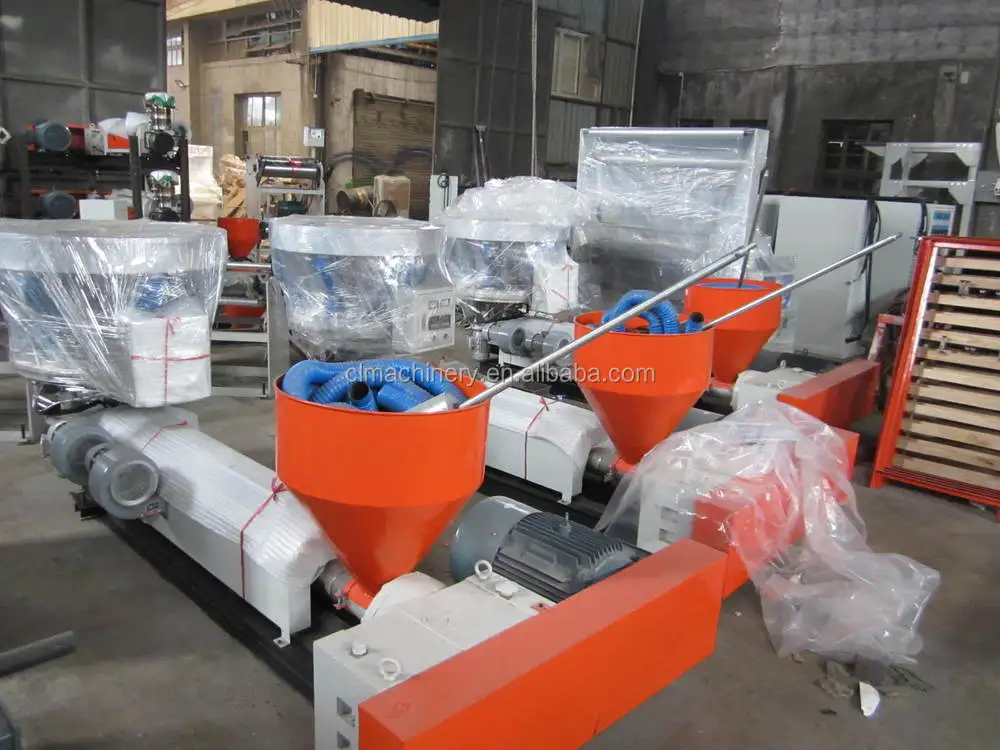

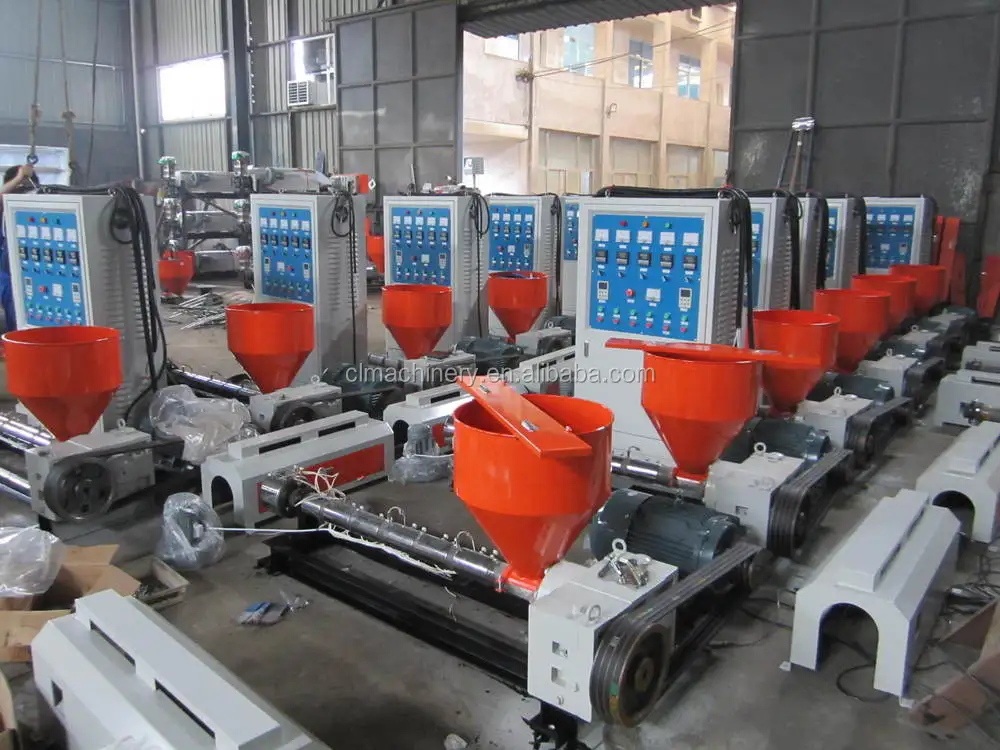

Extrusion unit |
Screw barrel diameter |
45mm |
50mm |
55mm |
|
screw barrel length to diameter ratio |
28:1; 30:1 or 32:1 |
|||
|

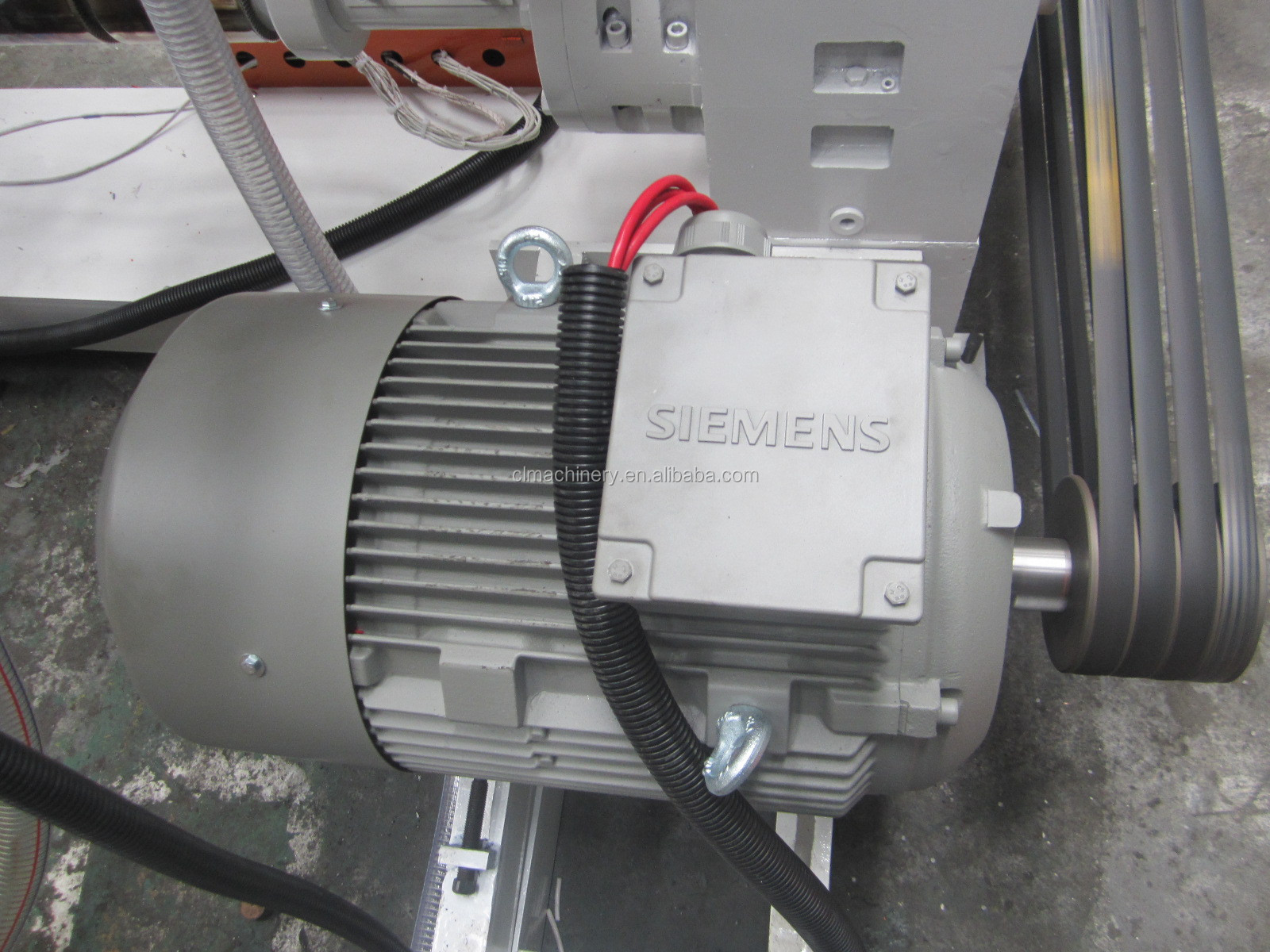

motor |
11KW |
11KW |
15KW |
|
|
gearbox |
133 |
133 |
146 |
|
|

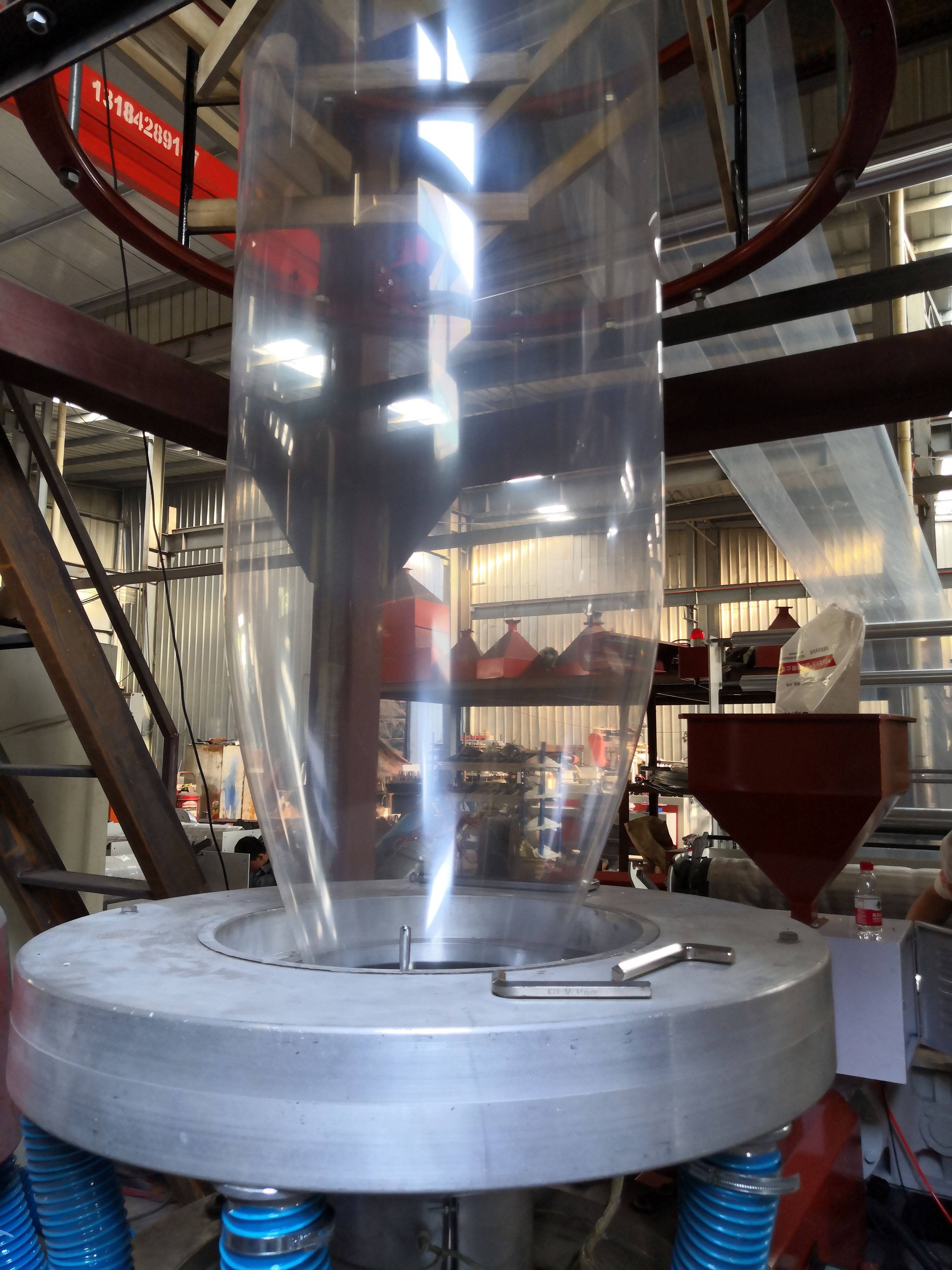

Die Type |
Fixed die |
|||
|
Die size |
50/80 |
60/100 |
120/160 |
|
|
heating |
11KW |
11KW |
13KW |
|
|
blower |
2.2KW |
|||
|
Movie take-up tower |
upper tower |
rise and fall |
||
|
drum length |
700mm |
700mm |
900mm |
|
|
How the drum works |
Cylinder opening and tightening |
|||
|
coiling motor |
1.5KW |
|||
|
winding station |
Winding machine type |
Single winding station |
||
|
roller |
700mm |
700mm |
900mm |
|
|
torque motor |
5N/M |
|||
|
maximum. Winding diameter |
600mm |
|||
|

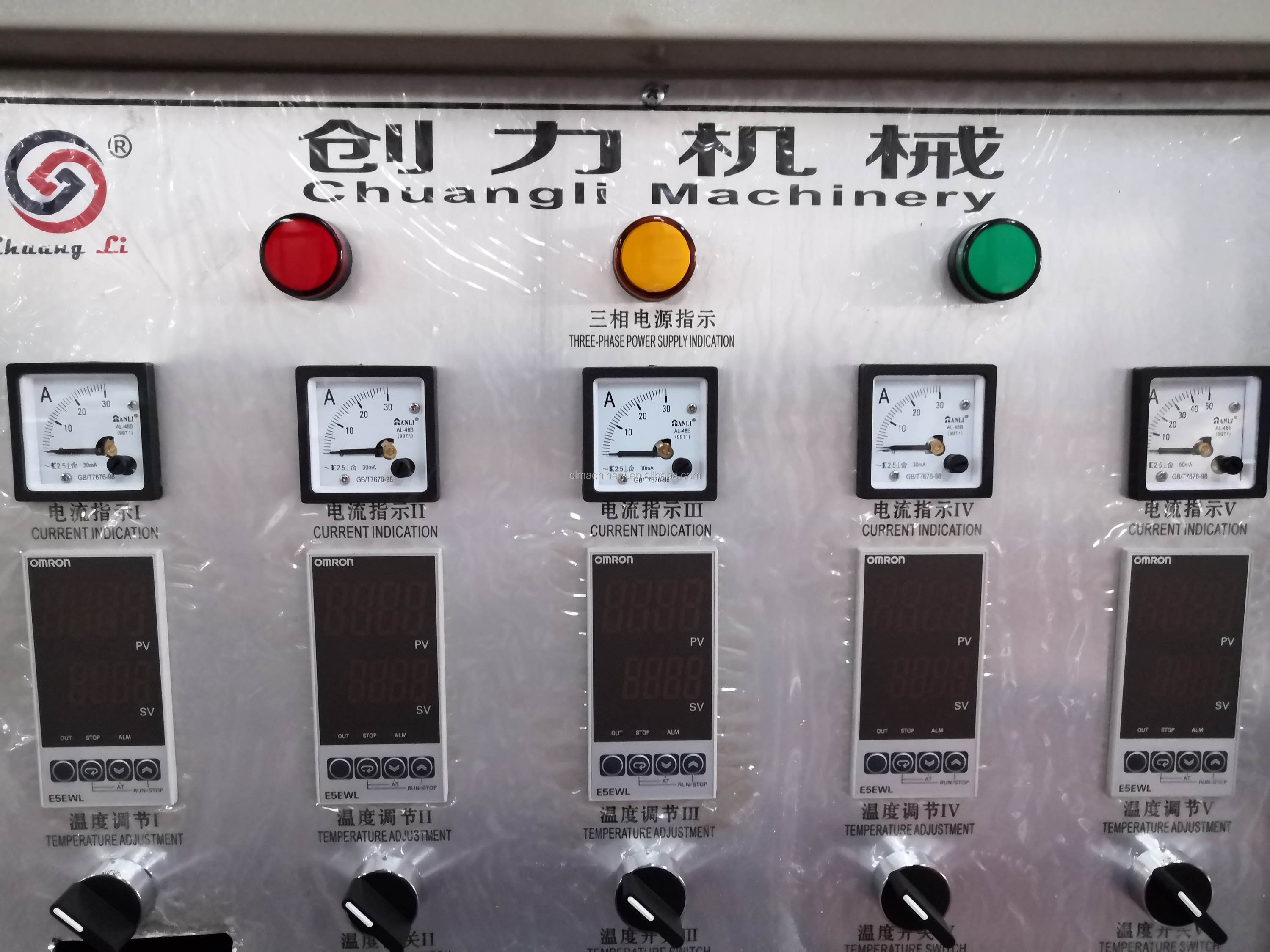

control panel |
temperature control |
District 5 |
||
|
electronic product |
China's top brands |
|||
|
Inverter capacity |
11KW/1.5KW |
11KW/1.5KW |
15KW/1.5KW |
|
|
optional equipment |
Hopper Loader, Corona |
|||
|
/Model |
SJ-45 |
SJ-50 |
SJ-55 |
|
|
feature |
raw materials |
HDPE, LDPE, LLDPE; Virgin and Recycled |
||
|
Film width |
400mm |
600mm |
800mm |
|
|
output |
25kg |
35kg |
45kg |
|
|
Film thickness |
0.008mm-0.15mm |
|||
|
power supply |
380V, three-phase, 50Hz |
|||
|
weight |
1300kg |
1400kg |
1600kg |
|
|
aspect |
5×2.3×4M |
5×2.3×4M |
5×2.5×4.5M |
|
|
Extrusion unit |
Screw barrel diameter |
45mm |
50mm |
55mm |
|
screw barrel length to diameter ratio |
|
|||
|
motor |
11KW |
11KW |
15KW |
|
|
gearbox |
133 |
133 |
146 |
|
|
Die Type |
Fixed die |
|||
|
Die size |
50/80 |
60/100 |
120/160 |
|
|
heating |
11KW |
11KW |
13KW |
|
|
blower |
2.2KW |
|||
|
Movie take-up tower |
upper tower |
rise and fall |
||
|
drum length |
700mm |
700mm |
900mm |
|
|
How the drum works |
Cylinder opening and tightening |
|||
|
coiling motor |
1.5KW |
|||
|
winding station |
Winding machine type |
Single winding station |
||
|
roller |
700mm |
700mm |
900mm |
|
|
torque motor |
5N/M |
|||
|
maximum. Winding diameter |
600mm |
|||
|
control panel |
temperature control |
District 5 |
||
|
electronic product |
China's top brands |
|||
|
Inverter capacity |
11KW/1.5KW |
11KW/1.5KW |
15KW/1.5KW |
|
|
optional equipment |
Hopper Loader |
|||
