2018 new factory direct selling low price fully automatic plastic PE mini film blowing machine
- $4000.00 /set
- 1 set
- Wenzhou Ruixin Plastic Machinery Trading Co., Ltd.
- Zhejiang, China
- Ms Rita Yuan
| Tighten: | 50 mm | Plastic processing: | polyvinyl alcohol |
| Power (watts): | 11 kW | automatic: | Yes |
| application: | Movie | Film Width (mm): | 50 - 600 |
| Warranty: | 1 year | Film Thickness (mm): | 0.008 - 0.12 |
| Output (kg/h): | 30 - 40 | Machine name: | Mini blown film machine |
| Applicable industries: | Hotels, restaurants, machine repair shops, manufacturing plants, building materials stores, food and beverage factories, food stores, advertising agencies, clothing stores, food and beverage stores, construction projects, farms, printing shops, home use | model: | RSJ |
| Screw aspect ratio: | 28:1 | Year: | 2019-8-1 |
| raw material: | PE/HDPE/LDPE/LLDPE | Main motor: | 11 kW |
| Screw diameter: | 50 mm | Origin: | Zhejiang, China |
| brand: | Ruixin | Screw diameter (mm): | 50 |
| Voltage: | 380V or customized | Layers: | single layer |
| Certification: | EU CE certification | Dimensions (L*W*H): | 2300X1500X2550mm |
| Health status: | new | port: | Ningbo, Shanghai Port, Guangdong |
| Supply capacity: | 50 sets per month | payment terms: | D/P, T/T, Western Union |
| suitable: | Production of plastic film and vest bag | Packaging Details: | Stretch film or wooden case |

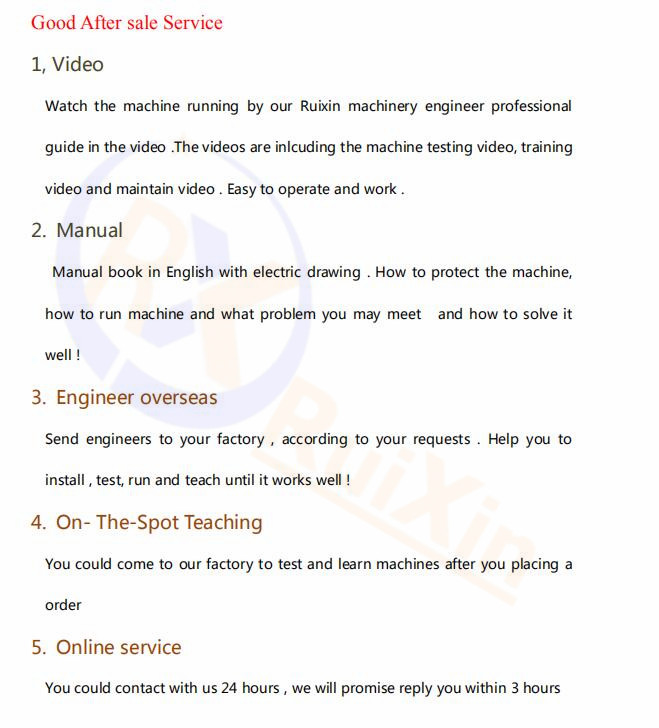

| After-sales service provided: | On-site installation, commissioning and training, free spare parts, video technical support, online support | Main selling points: | energy saving |
| weight: | 1500 kg |
2018 new factory direct selling low price fully automatic plastic PE mini film blowing machine
The barrel and screw of the extruder are made of high-quality alloy steel, which has been nitrided and precision-processed to have the best hardness and strong corrosion resistance. The specially designed screw is conducive to production capacity and plasticization. It is suitable for blowing plastic films such as LDPE. Linear low density polyethylene. Widely used in the production of food, cloth, garbage, vests and other packaging bags.
The main parameters of the machine:
Model | RSJ-45 | RSJ-55 |
Screw diameter | 45 mm | 55 mm |
Screw ratio | Long diameter/diameter 28:1 | Long diameter/diameter 28:1 |
Screw speed | 10-100 rpm | 10-100 rpm |
main motor power | 7.5-11 kW | 11-15 kW |
maximum. Extrusion output | 35kg/hour | 50kg/hour |
maximum. Film folding width | 600mm | 800 mm |
Unilateral membrane thickness | 0.006-0.10mm | 0.006-0.10mm |
total power | 22 kW | 25 kW |
machine weight | 1400 kg | 1600 kg |
Dimensions (L*W*H) | 2300X1500X2550mm | 2710X1500X2650mm |
Optional equipment for PE mini blow molding machine:
1. Automatic feeding machine 300/500KG/hour 2. Corona treatment

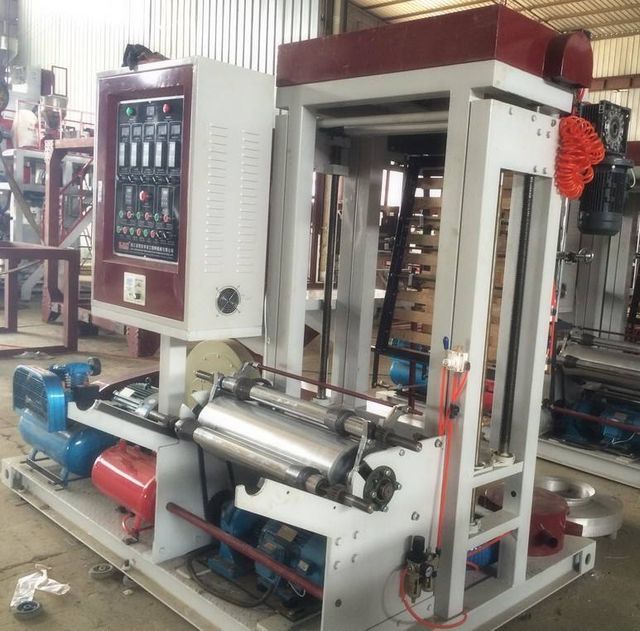

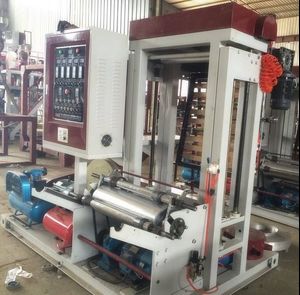

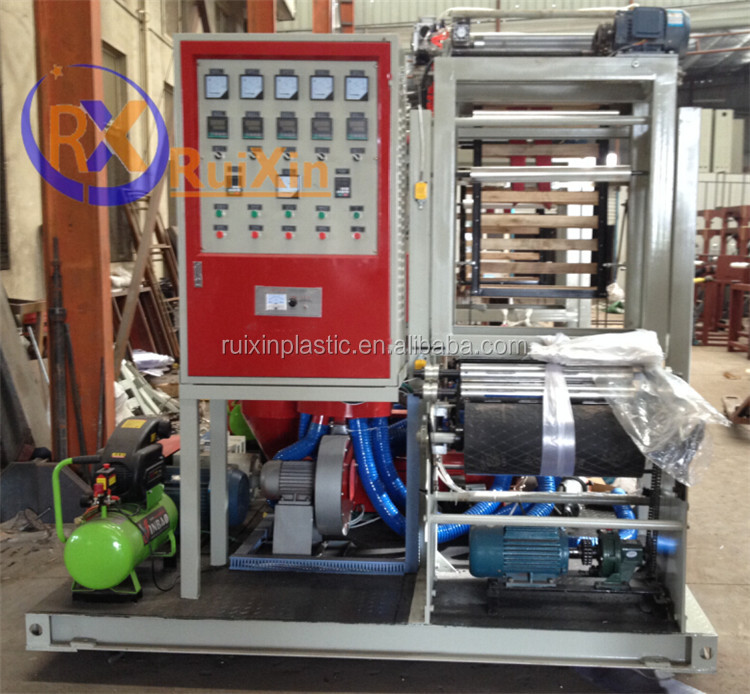

Machine picture:

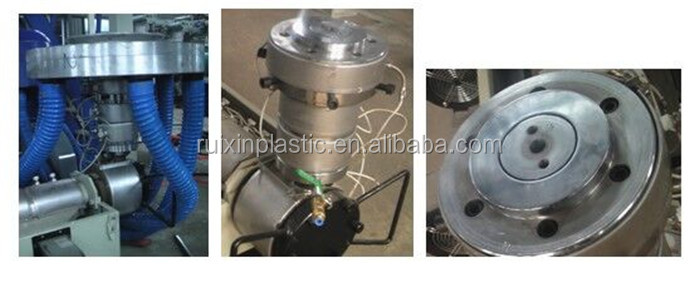

Extruder unit:
The PE plastic film blowing machine can be used in plastic vest bags, continuous roll garbage bags, packaging films, table films and other film fields. If you need other related machines, you can let us know for free.
product sample

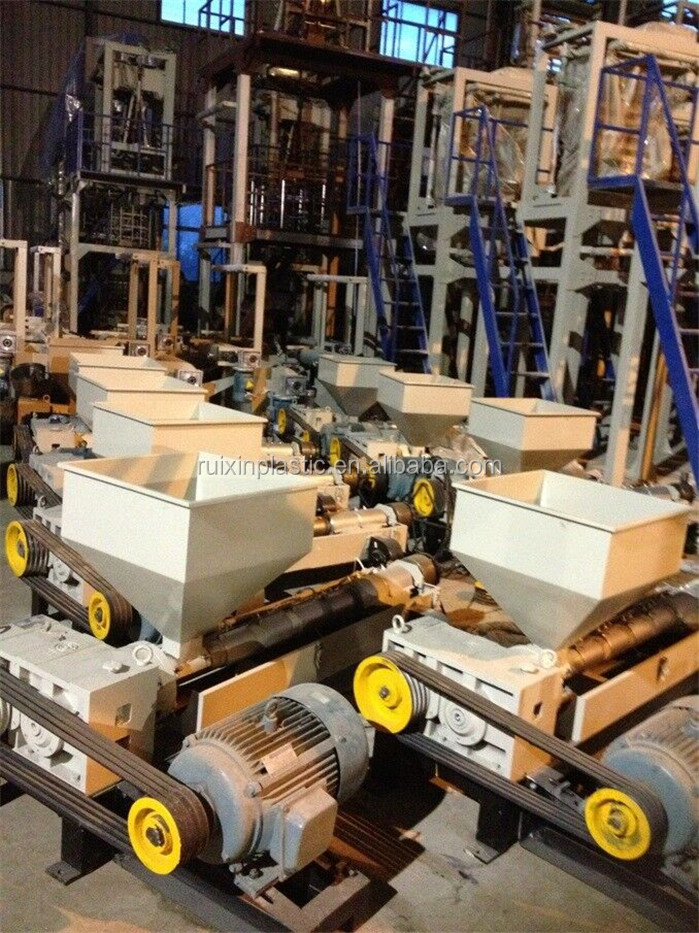

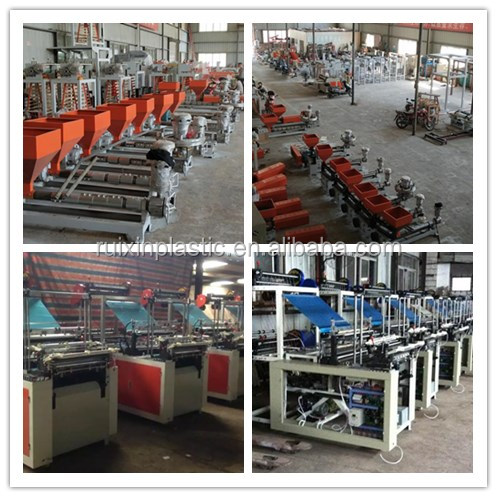

workshop
Package
