Screw and barrel for PE film extruder

Price:$350.00 /set
Min. Order:1 set
Supplier:Wenzhou Ruixin Plastic Machinery Trading Co., Ltd.
Region:Zhejiang, China
Contact:Ms Rita Yuan

PRODUCT DETAIL

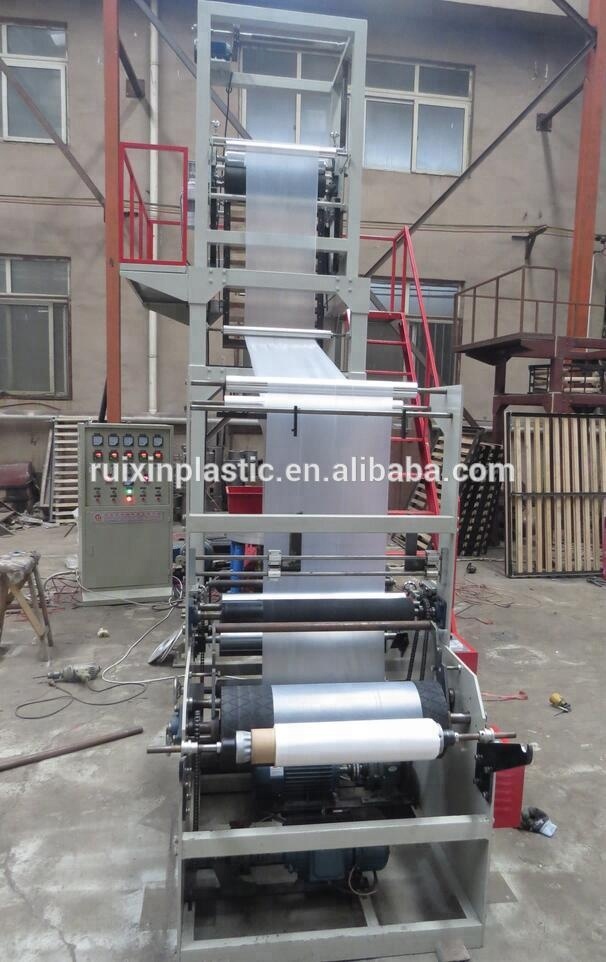

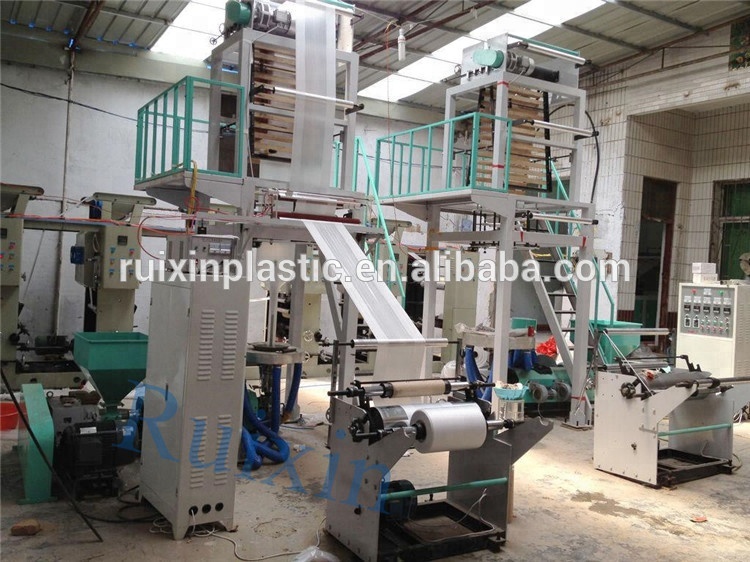

Application machine:	PE film blowing machine/film extruder	Main selling point:	competitive price
Warranty:	6 months	stock available:	Yes
Packaging Preview:		brand:	Ruixin
Marketing Type:	Hot Products 2022	Applicable industries:	Plastic Blown Film Extruder
Video external inspection:	if	Spare Parts Type:	tighten
Weight (kg):	50	Minimum order quantity:	1 set
Showroom location:	Russia, Nigeria	place of origin; place of origin:	Zhejiang, China
Mechanical test report:	if	Health status:	new
Screw Design:	Single screw, twin screw	Surface treatment:	Nitriding treatment
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Screw diameter:	40,45,50,55,65,60.....
Aspect ratio:	28:1/ 30:1/ 32:1 ......	Material:	38CrMoAlA,,HDPE
port:	Ningbo or Shanghai or Guangzhou	Packaging Details:	wooden box
Supply capacity:	200 sets per month	For what machine:	Thin film machine

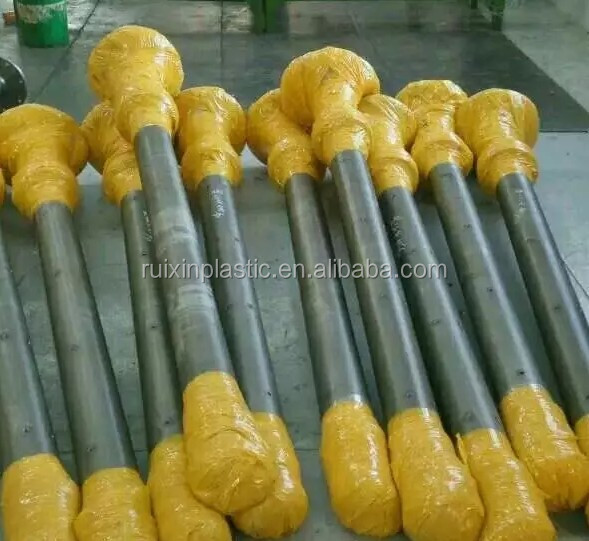

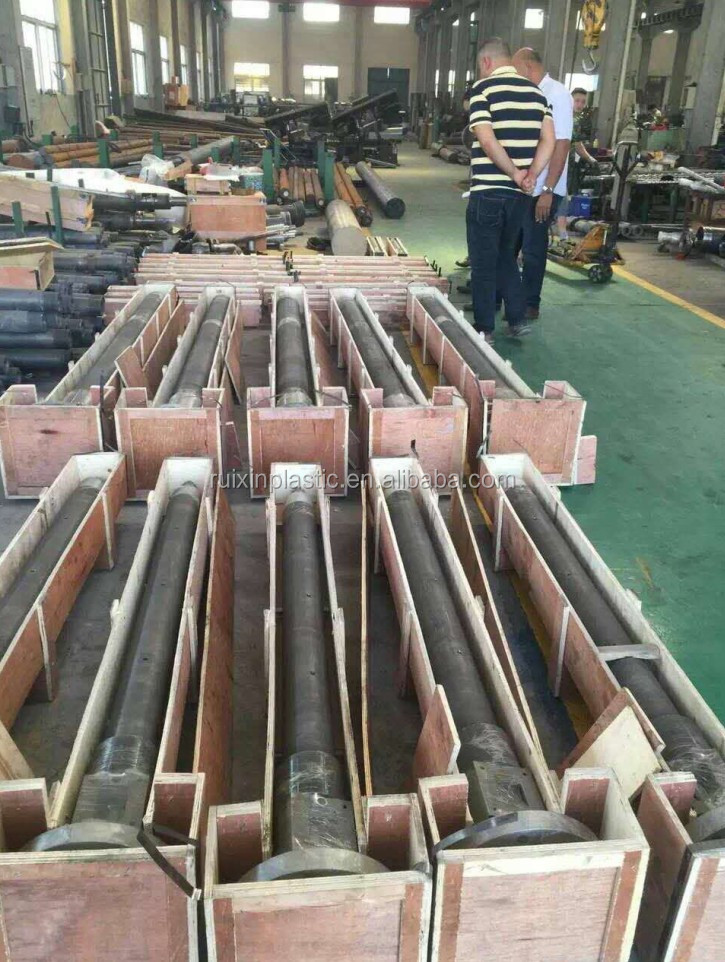

Bale:	wooden box

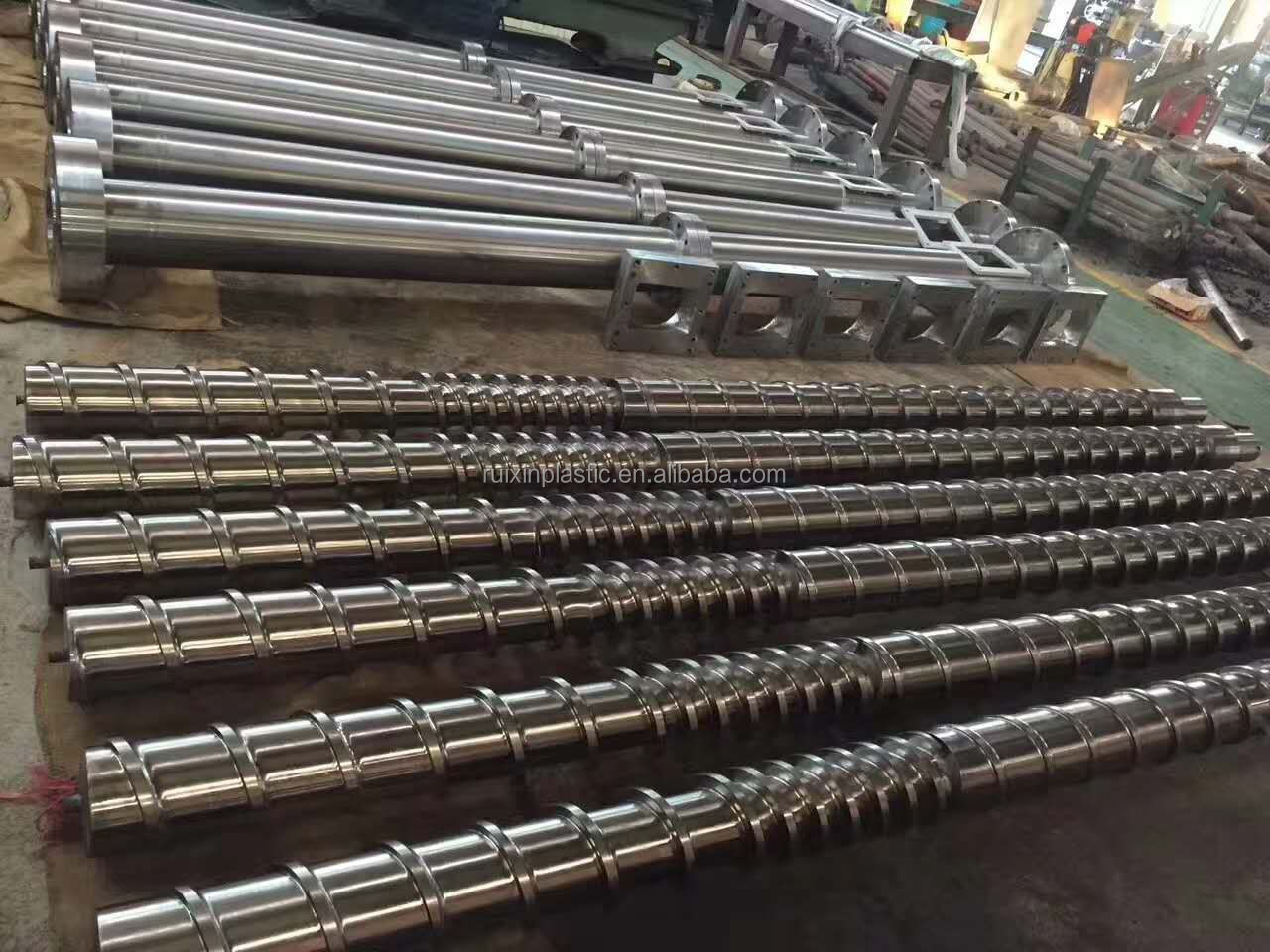

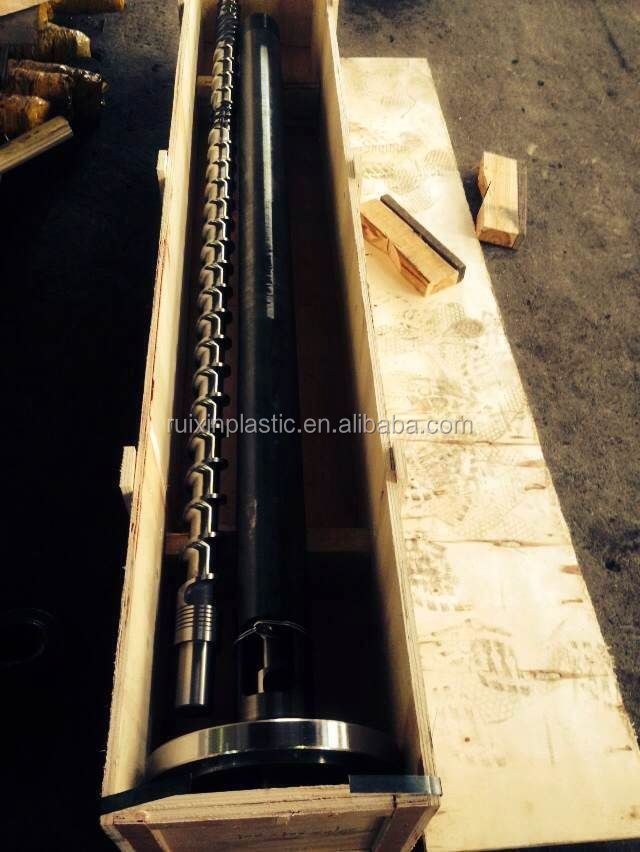

38CrMoAlA PE film blowing machine screw and barrel:

Tontechnicalphosphorusparameter:

Diameter: Ø40-Ø300

Aspect ratio: 28-32

or others as required, we have rich experience in production and design!

product	Extruder single screw barrel
Material	38CrMoAlA (JIS SACM645);
Nitriding hardness	HV900°~1000°
Hardness after tempering	HB260°
Nitriding depth	0.5~0.7mm
Nitriding brittleness	Level 2 and above
Surface roughness	Ra0.4
Screw straightness	0.015mm
Hardness of chrome plating after nitriding	High voltage≥950HV
Chrome depth	0.05~0.10mm
Alloy depth	0.8~3.0mm
Alloy hardness	HRC56°~65°
Alloy (bi-metal)	Iron, Nickel, Tungsten, Molybdenum

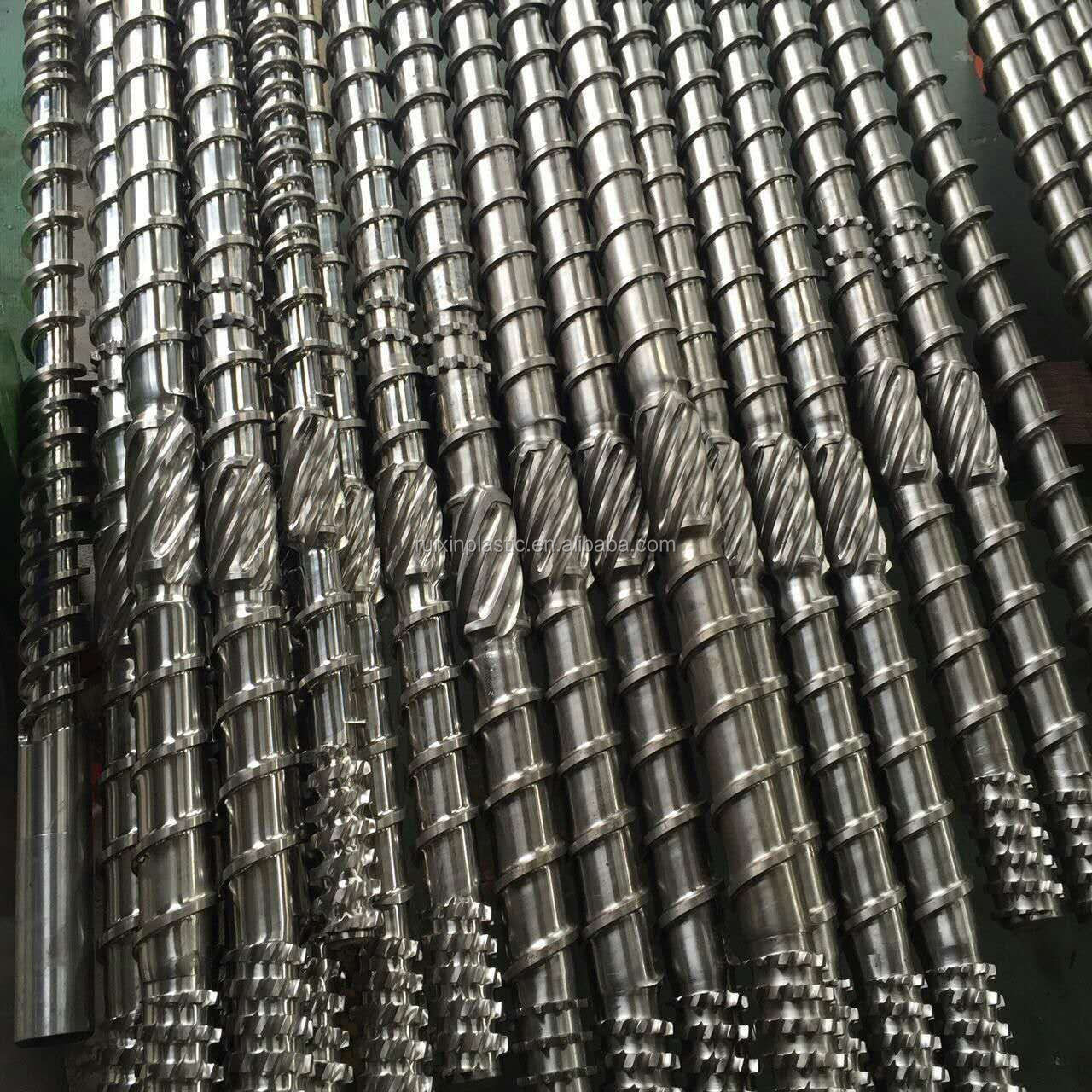

Types of screw barrels	Gradient type, mutation type, wave type, barrier type, double screen type, split type, separation type, exhaust type, pin type, hybrid type, double head type, triple head type, multi head type, etc.

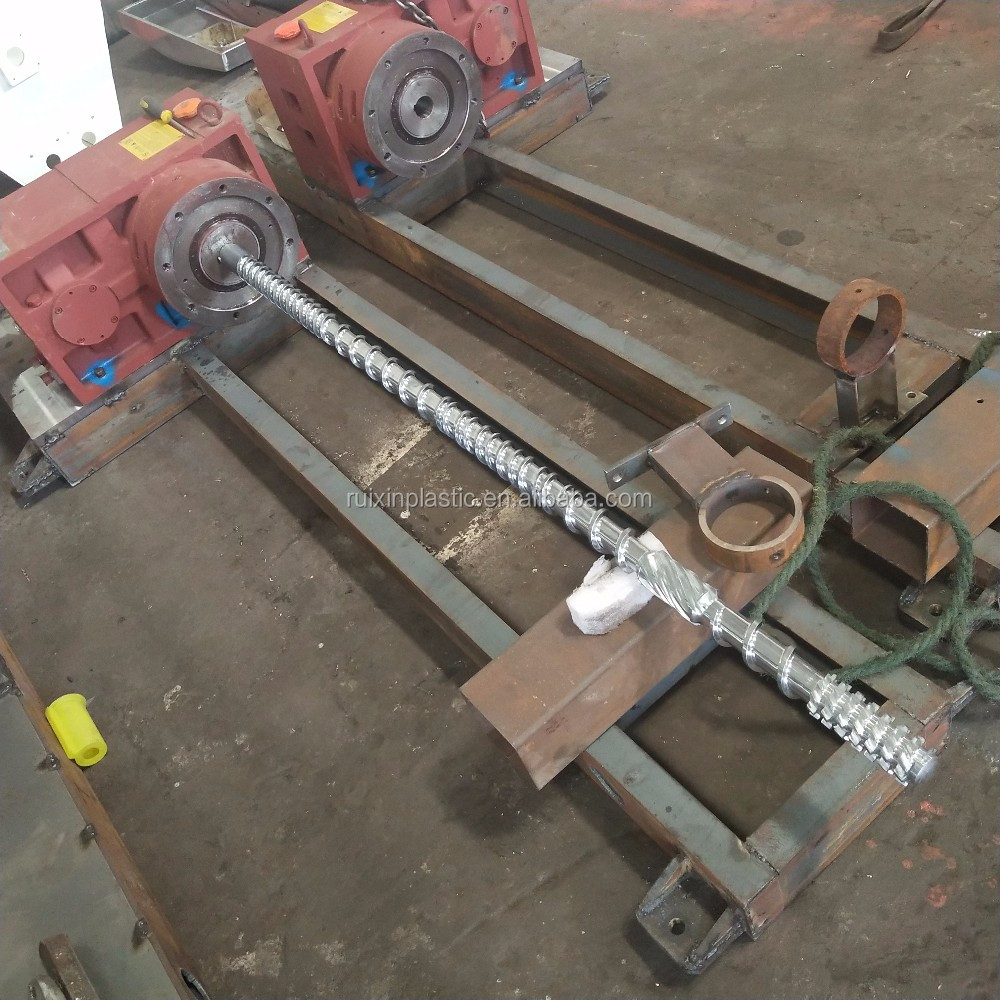

Details of screw and barrel of film blowing machine:

In order to obtain a good plasticizing effect, we provide different designs of screw and barrel for extruder or injection molding machine to meet the needs of customers. Our factory is made of high-quality materials, using the method of quenching, tempering and nitriding, which has the characteristics of long service life, wear resistance and corrosion resistance. In addition, the working surface of the screw can be sprayed with cemented carbide or chrome-plated, so that it has a better use effect.
