HDPE LDPE LLDPE ABA High Speed Blow Film Machine Plastic Extruder
- $5000.00 /set
- 1 set
- Wenzhou Ruixin Plastic Machinery Trading Co., Ltd.
- Zhejiang, China
- Ms Rita Yuan
Output (kg/hour): | 30 - 60 | Packaging Details: | Wrap it in wood/plastic wrap |
Warranty: | 1 | Film width (mm): | 100 - 600 |
model: | RSJ | Rewinding method: | Friction winder |
brand: | Ruixin | Layers: | single layer |
Main selling point: | energy saving | port: | Ningbo |
Electrical components: | Chint China Best Brand | Plastic Processing: | HDPE, LDPE, LDPE, PLA |
Film Thickness (mm): | 0.001 - 0.12 | year: | 20190921 |
Screw speed: | 10-120m/min | motor: | China Siemens brand |
Heating ring: | Cast aluminum heating coil | Certification: | CE, SGS, ISO, BV |
Dimensions (L*W*H): | 3200*1700*3900 | payment terms: | Wire Transfer, Western Union, Cash |
Packaging Preview: | energy consumption: | About 15-20KW/H | |
Supply capacity: | 30 sets per month | place of origin; place of origin: | Zhejiang, China |
Voltage: | 380V/220V/415V | Die head material: | 40Cr |
Name type: | Film blowing machine plastic extruder | After-sales service provided: | Free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services, video technical support |
Health status: | new | color: | blue and white |
Applicable industries: | Energy & Mining, Mechanical Repair Shops, Manufacturing Plants, Food Stores, Clothing Stores, Food & Beverage Stores, Construction Works, Farms, Printing Stores, Home Use | application: | Movie |
Material: | physical education | Screw diameter (mm): | 50 |

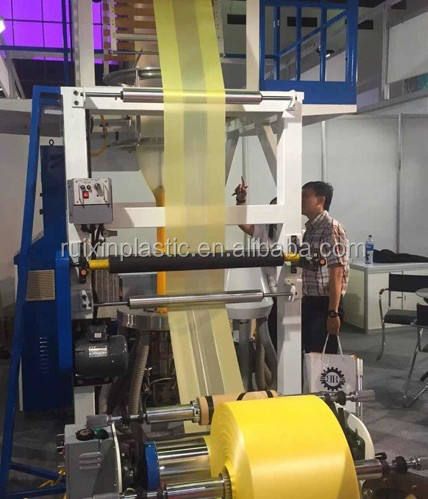

High Speed HDPE LDPE LLDPE ABA Blown Film Machine Plastic Extruder :
1. TheFilm blowing machine plastic extruderSuitable for blowing low density polyethylene (LDPE) high density polyethylene (HDPE) linear low density polyethylene (LLDPE) and biodegradable corn starch, widely used in food, clothing, garbage bags, vest bags and other civil and industrial packaging .

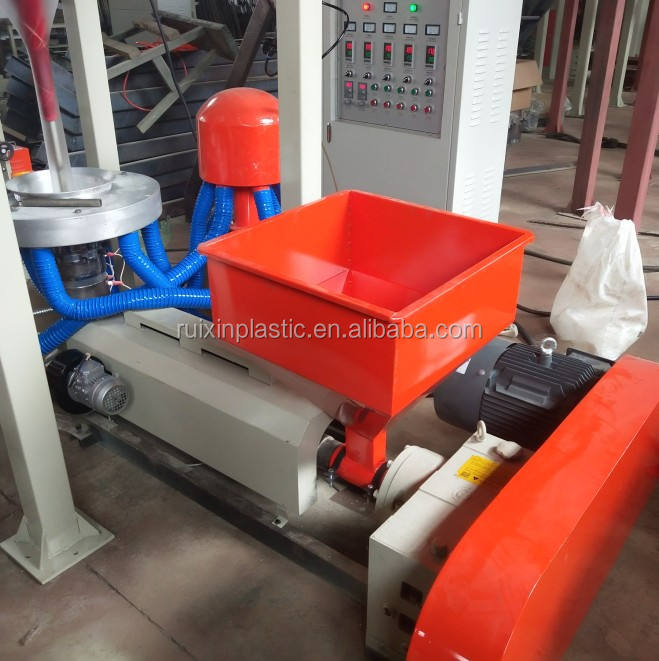

2. The extruder barrel and screw are all made of high-quality alloy steel, compacted and precisely processed, with the best hardness and corrosion resistance. The specially designed screw has high output and good plasticization.
3. The winding power adopts torque motor, which can maintain the proper tension, and the winding is neat and easy to change.
Model | RSJ-50-700 | RSJ-55-900 | RSJ-60-1100 | ||
Roller width(mm) | 700 | 900 | 1100 | ||
Maximum paving width (mm) | 600 | 800 | 1000 | ||
Thickness(mm) | 0.008-0.12 | 0.008-0.12 | 0.008-0.12 | ||
Maximum output (kg/h) | 30-40 | 40-50 | 50-70 | ||
raw materials | HDPE LDPE LLDPE MLLDPE / Biodegradable Materials | ||||
Screw diameter | 50mm | 55mm | 60mm | ||
Screw material | SACM-645 /38CrMoAlA Nitriding polishing | ||||
Screw L/D | 30:1 | 30:1 | 30:1 | ||
Main power (kw) | 11 | 15 | 18.5 | ||
Blower (Kw) | 1.5 | 1.5 | 2.2 | ||
Compressor (kW) | 1.5 | 1.5 | 2.2 | ||
takeoff speed | 10-80m/min | 10-80m/min | 10-80m/min | ||
Take-off motor(Kw) | 1.5 | 1.5 | 2.2 | ||
Total power (kw) | ≈15 | ≈18 | ≈22 | ||
Dimensions (L×W×H) M | 3.2×2.5×3.9 | 4.2×3×4.2 | 4.8×3.8×5 | ||
Weight (T) | ≈1.5 | ≈2 | ≈3.5 |
detailedpicture

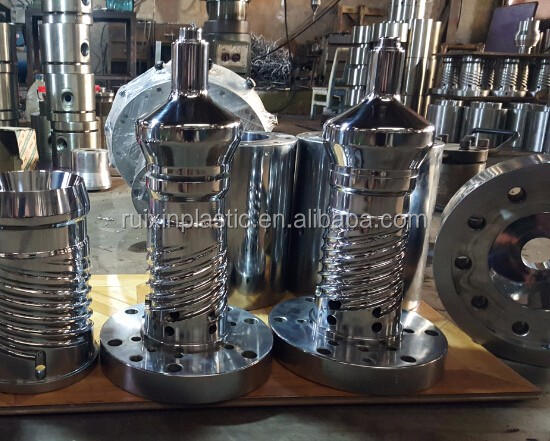

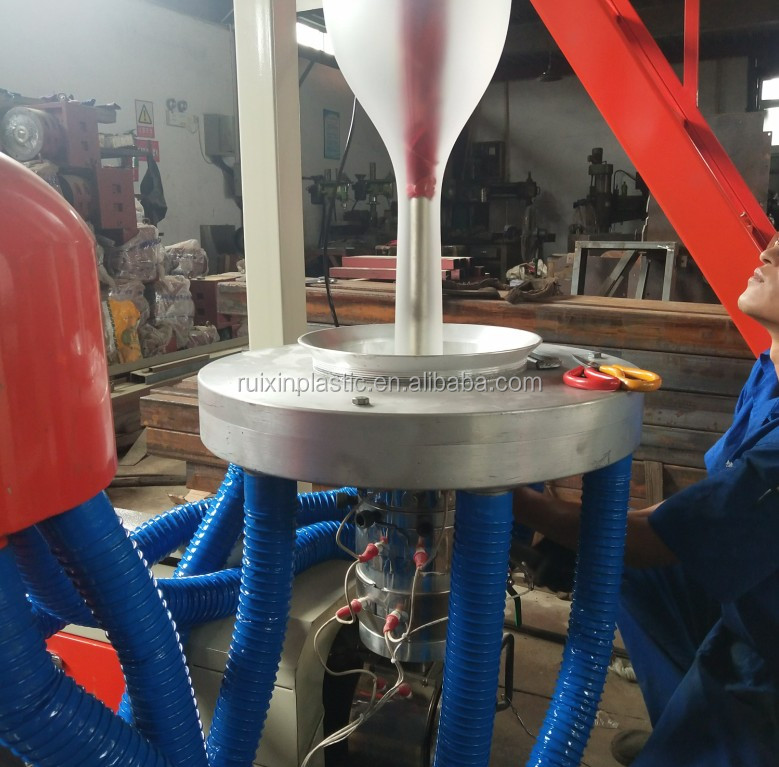

The internal runner and external hard chrome plating of the mold increase the wear resistance and corrosion resistance of the mold, and then polished,

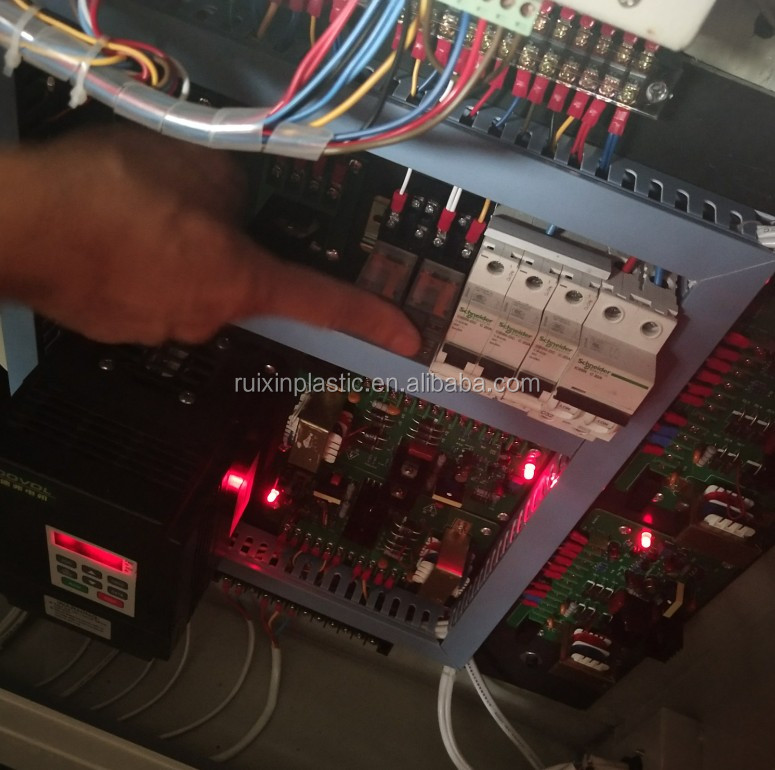

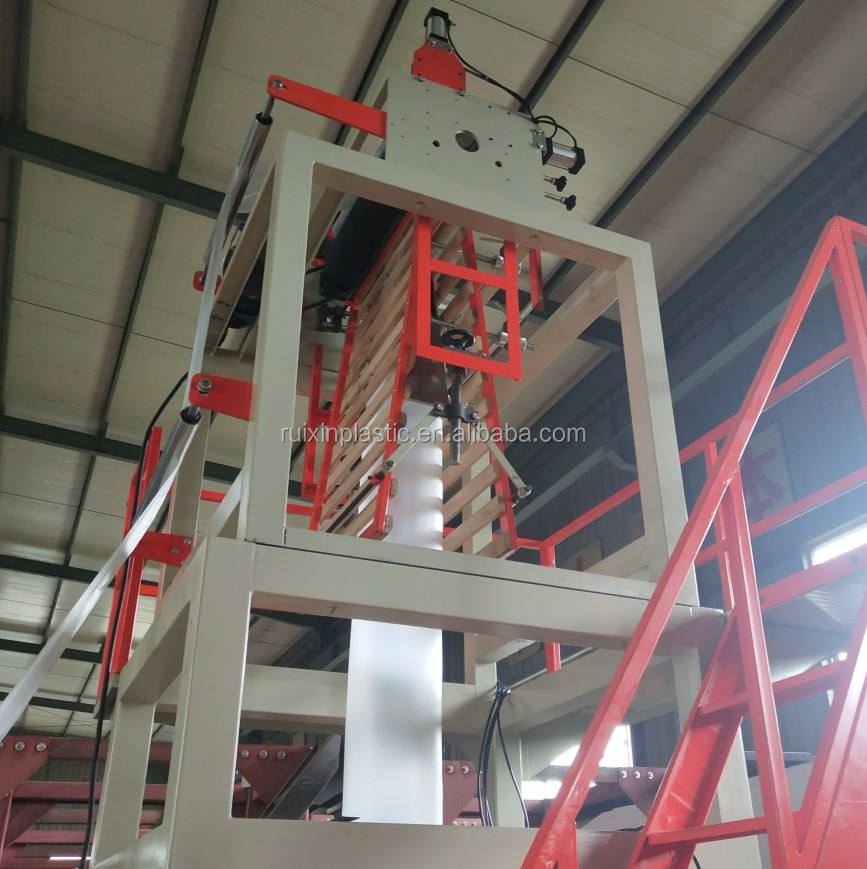

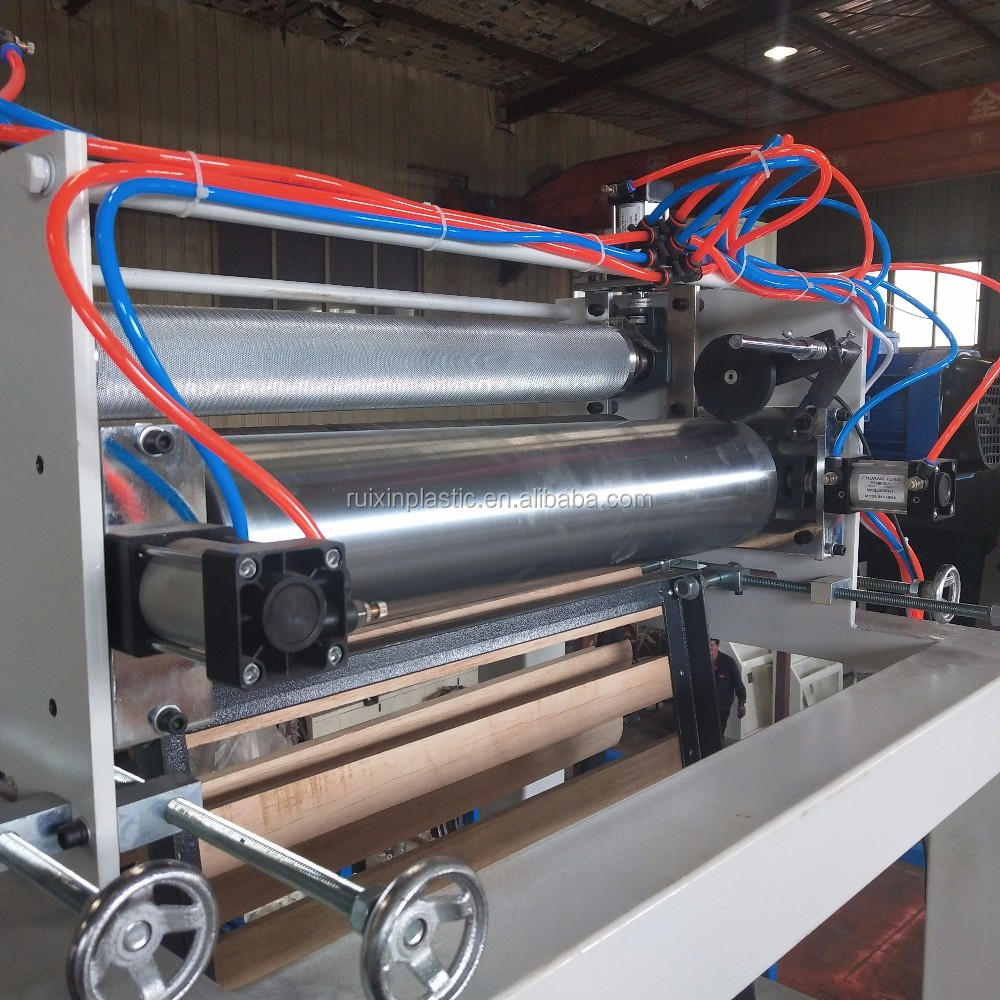

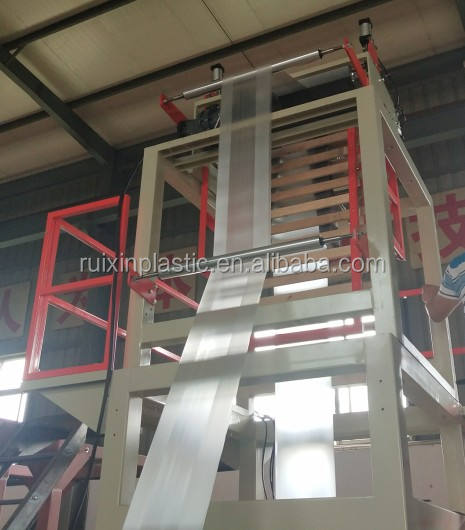

The reclaiming adopts frequency conversion speed regulation to keep stable, and the cylinder pressing roller is confirmed to be tighter to avoid injury to workers.

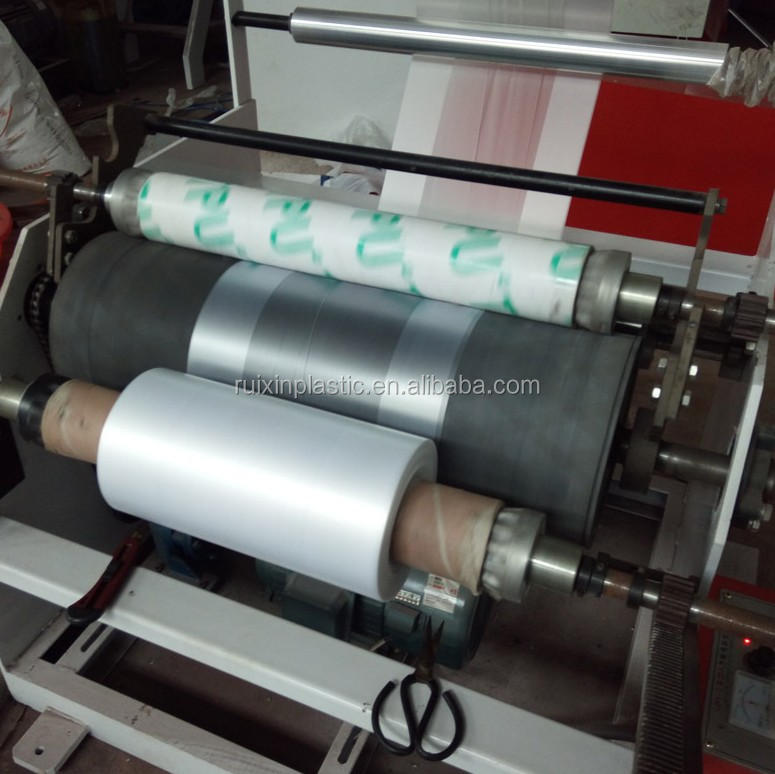

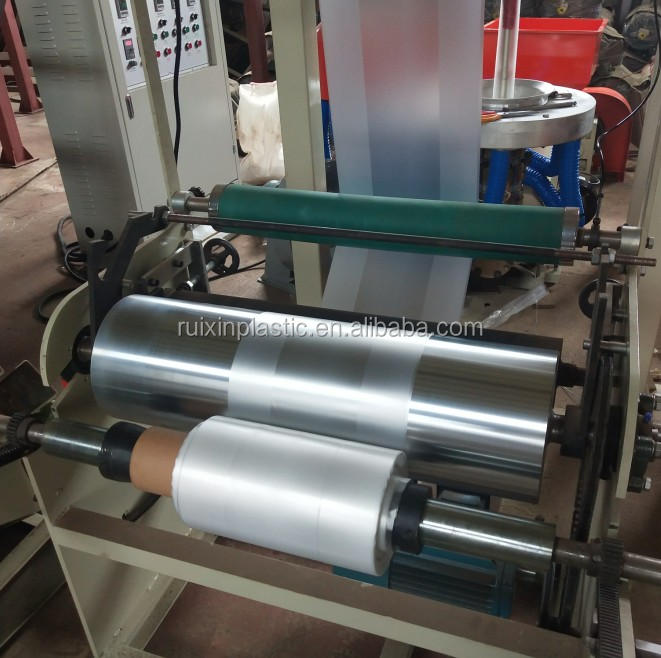

The winder adopts a torque motor to adjust the tension to make the film flat and wrinkle-free

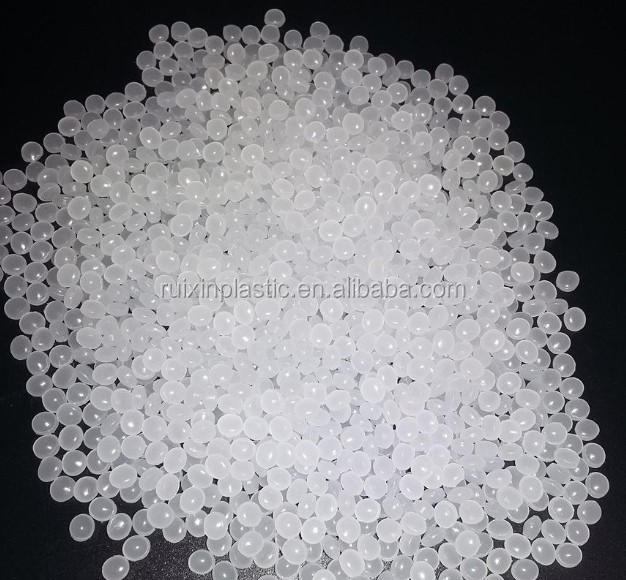

Our machines can use HDPE ,LDPE , LLDPE
Our T-Shirt Bag Roller
Degradable plastic bag, degradable plastic bag, degradable plastic roll film
→Professional since 2006
1) 1500 square meters warehouse
2) The monthly export volume exceeds 30 units,
3) The market is South America, Middle East
Africa, Asia

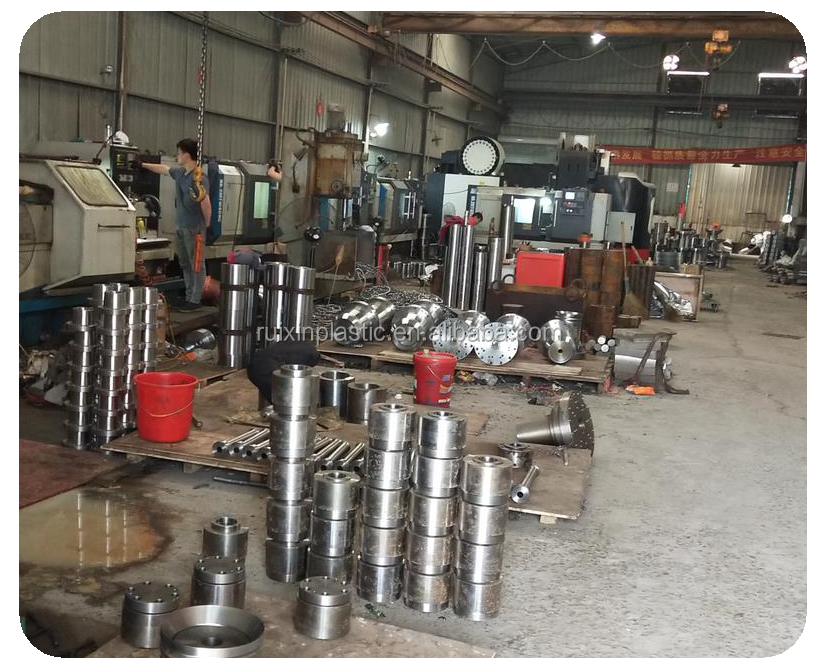

→ Siemens CNC machining parts
1) Precise machining, reject mistakes
2) Experienced professional team
3) The machine has a longer life and does not rust
→24 hours online service
1) On-time online service
2) Delivery in a short time
3) Free drawings and instructions
4) Professional export team
