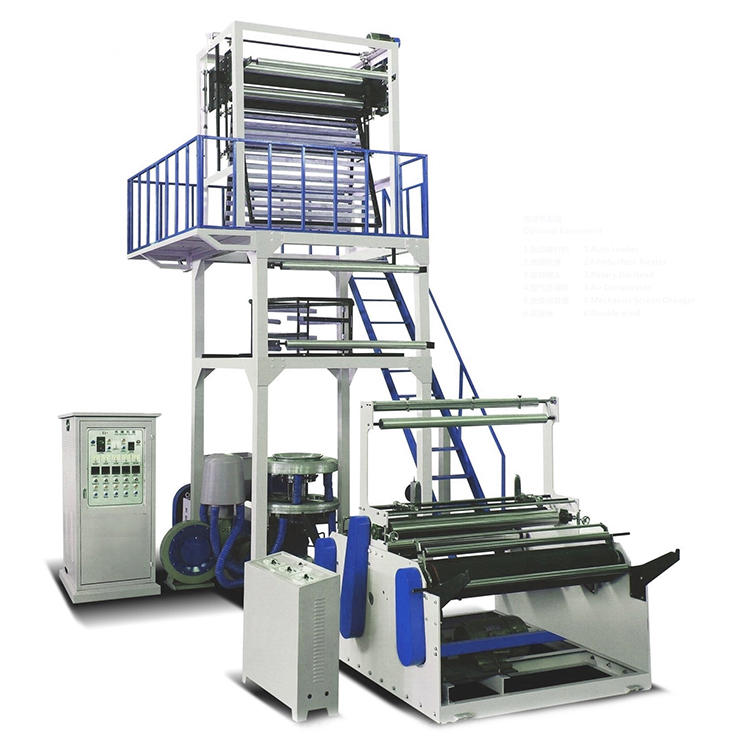

High Speed HDPE Ldpe Plastic Film Garbage Bag Dual Die Blown Film Extrusion Machine
- $5900.00 /set
- 1 set
- Rui'an Zhonglong Plastic Machinery Co., Ltd.
- Zhejiang, China
- Mr James Lee
PRODUCT DETAIL
| Plastic processing: | Polyethylene, High Density Polyethylene, Low Density Polyethylene, Polyethylene | Weight (kg): | 2500 |
| Voltage: | 380V (220V, 440v optional) | Main selling points: | Motor, gearbox, die head |
| Package preview: | port: | Ningbo Port | |
| product name: | PE film blowing machine | Core component warranty: | 1 year |
| After-sales service provided: | Engineers available to service machinery overseas | Output (kg/h): | 35 - 50 |
| Marketing Type: | New Products 2021 | Warranty: | one year |
| application: | Movie | place of origin; place of origin: | Zhejiang, China |
| Packaging Details: | Wooden case or soft package depends on your request and delivery method | Mechanical test report: | if |
| Dimensions (L*W*H): | 4600x1800x3600mm | Blow molding type: | extrusion blow molding |
| Core components: | Motor, screw, die head | Supply capacity: | 1000 sets per year |
| model: | SJ series | State of health: | new |
| automatic: | yes | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Showroom location: | not any | Applicable industries: | Food and Beverage Factory, Farm |
| Video shipment inspection: | if | brand: | Zhonglong |
| Layers: | single layer |
Top High Speed ABA 3 2 Layers Mini Stretch HDPE LDPE Film Extrusion Machine PE Plastic Blown Film Machine
product information
usage
Blowing PE (HDPE, LDPE, LLDPE), plastic film blowing machine for film; etc.
Which films are widely used in the packaging of liquids, industrial products, clothing and textiles; used to make plastic bags, such as T-shirt bags, flat bags, garbage bags, etc.
feature
1. The frequency converter controls the main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl-A after nitriding treatment.
3. Gear box: hard tooth surface gear, cast alloy piston, high precision grinding, long life.
4. Mold material: alloy steel, hard chrome plated, mirror channel steel.
5. Die head double digital display temperature controller.
6. The whole machine has passed CE certification, our factory has passed ISO certification, and the quality is guaranteed.
Elective
1. Rotary die head
2. Double station winder
3. Lifting traction
4. PLC automatic film changing winding machine
5. Automatic feeding
6. Corona treatment
7. Filter replacement system
Blowing PE (HDPE, LDPE, LLDPE), plastic film blowing machine for film; etc.
Which films are widely used in the packaging of liquids, industrial products, clothing and textiles; used to make plastic bags, such as T-shirt bags, flat bags, garbage bags, etc.
feature
1. The frequency converter controls the main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl-A after nitriding treatment.
3. Gear box: hard tooth surface gear, cast alloy piston, high precision grinding, long life.
4. Mold material: alloy steel, hard chrome plated, mirror channel steel.
5. Die head double digital display temperature controller.
6. The whole machine has passed CE certification, our factory has passed ISO certification, and the quality is guaranteed.
Elective
1. Rotary die head
2. Double station winder
3. Lifting traction
4. PLC automatic film changing winding machine
5. Automatic feeding
6. Corona treatment
7. Filter replacement system
scope | |||||||||||
Model | SJ-50 | SJ-55 | SJ-60 | SJ-65 | SJ-75 | SJ-100 | |||||
maximum. Film folding width | 600mm | 800mm | 1000mm | 1200mm | 1500mm | 2000mm | |||||
main output | 35 kg | 35-50 kg | 55-65 kg | 55-70 kg | 70-80 kg | 200-220kg | |||||
main motor power | 7.5-11kw | 11-15kw | 15-18.5kw | 18.5-22kw | 30-37kw | 55 kW | |||||
Screw diameter | 50mm | 55mm | 60mm | 65mm | 75mm | 100mm | |||||
Screw aspect ratio | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 | |||||
Screw speed | 10-100 rpm | 10-100 rpm | 10-100 rpm | 10-100 rpm | 10-100 rpm | 10-100 rpm | |||||
membrane thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | |||||
Die | 60-120mm | 100-170mm | 100-170mm | 120-220mm | 150-300mm | 500mm | |||||
machine weight | 2000 kg | 2500 kg | 3600 kg | 4200 kg | 6000 kg | 7500 kg | |||||
Dimensions [L*W*H] | 4.5*1.8*3.5m | 5.5*2.0*3.8m | 6.0*2.2*4.2m | 6.0*2.4*4.3m | 7.0*2.7*5.8m | 8.0*3.2*8.2m | |||||
