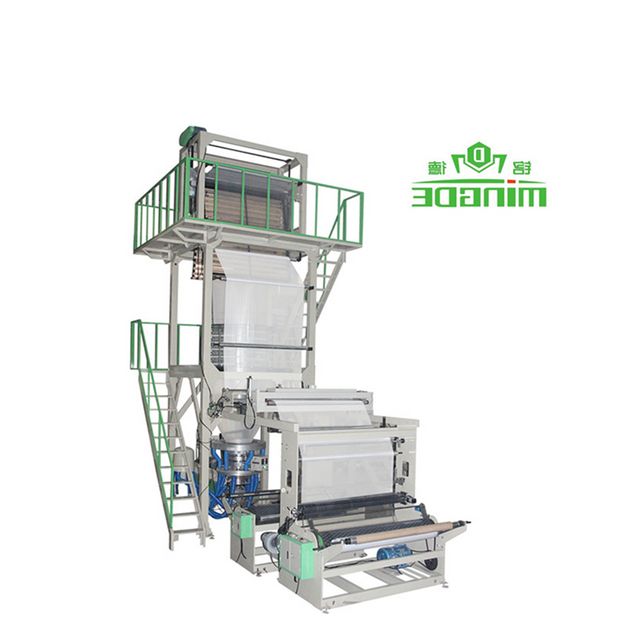

LLDPE HDPE cling film packaging extruder plastic aba film blowing machine film blowing machine set and after-sales service
- $8000.00 /set
- 1 set
- Ruian Mingde Machinery Co., Ltd.
- Zhejiang, China
- Ms Eileen Zheng
PRODUCT DETAIL
| Supply capacity: | 30 sets per month | Warranty: | one year |
| Certification: | CE certification | Main selling point: | Blown film is wider |
| Plastic Processing: | PE,HDPE,LDPE,LLDPE | Layers: | single layer |
| place of origin; place of origin: | Zhejiang, China, Zhejiang, China | Output (kg/hour): | 800 - 1500 |
| Gearbox: | 200 | Core Components Warranty: | 1 year |
| Packaging Details: | Standard export packaging | Health status: | new |
| After-sales service provided: | Engineers can repair machinery overseas | port: | Ningbo Port |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Winding speed: | 5-60m/min |
| Screw diameter (mm): | 75 | brand: | Matilda |
| year: | 2019 | Thickness LD: | 0.015-0.15mm |
| application: | Movie | Showroom location: | Saudi Arabia, Thailand, South Korea, Sri Lanka, Ukraine, Malaysia |
| Name: | Ldpe film blowing unit | Winding roll width: | 1600mm |
| Mechanical test report: | if | Video external inspection: | if |
| Local service location: | Egypt, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Thailand, Malaysia, Argentina, South Korea, Colombia, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan | Dimensions (L*W*H): | 6.8x2.6x6.5m |
| Marketing Type: | Hot Products of 2019 | Core components: | Engines, Bearings, Gearboxes, Motors, Gears |
| Die size (mm): | 350 - 400 mm | output: | 150 kg/h |
| Voltage: | 380V/3PH/50HZ | Applicable industries: | Energy and Mining, Hotels, Restaurants, Mechanical Repair Shops, Manufacturing Plants, Building Materials Stores, Retail, Food and Beverage Plants, Food Stores, Advertising Agencies, Clothing Stores, Food and Beverage Stores, Construction Works, Farms, Printing Stores, Home Use |
| model: | MD-L75 | Blow molding type: | Extrusion blow molding |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
Factory sale cling film packaging extruder plastic LLDPE HDPE aba film blowing machine film blowing machine set
Product Description
| Model | MD-L75 | MD-L90 | MD-L100 |
| suitable Material |
Low Density Polyethylene High Density Polyethylene LLDPE | Low density polyethylene LLDPE | Low density polyethylene LLDPE |
| Maximum film width (mm) | 800-1500 | 1000-2000 | 1500-2500 |
| Film thickness (mm) | LD: 0.015-0.15 | LD: 0.015-0.15 | LD: 0.015-0.15 |
| Maximum extrusion volume | 150 kg/h | 200kg/hour | 280 kg/h |
| Gearbox | 200 | 225 | 250 |
| Screw diameter (mm) | φ75 | φ90 | φ100 |
| Screw material | 38 grams Mora | 38 grams Mora | 38 grams Mora |
| barrel material | 38 grams Mora | 38 grams Mora | 38 grams Mora |
| Cooling fan for barrel | 370W*3 | 550W*3 | 550W*4 |
| Temperature control (zone) | 4 | 5 | 5 |
| Drive motor (kw) | 45 | 55 | 75 |
| Die size(mm) | LD: φ350/400 | LD: φ400/500 | LD: φ500/600 |
| Rotary die | 360° continuous rotation | ||
| Temperature control (zone) | 3 | 4 | 4 |
| air ring | 1 | 1 | 1 |
| Cooling fan(kw) | 5.5 | 7.5 | 11 |
| Roller width(mm) | φ165*1600 | φ190*2100 | φ220*2600 |
| Take-up motor(kw) | 1.5 | 2.2 | 2.2 |
| Take-up speed (M/min) | 5-60 | 5-60 | 5-50 |
| Winding machine type | Surface friction double winder | ||
| Roller width(mm) | 1600 | 2100 | 2600 |
| Winding Motor(KW) | 16N.M | 1.5KW | 2.2KW |
| Winding speed (M/min) | 5-60 | 5-60 | 5-60 |
| Voltage | 380V/50HZ/3 phase | 380V/50HZ/3 phase | 380V/50HZ/3 phase |
| Cover size (m) | 6.8*2.6*6.5 | 7.5*3.2*7.5 | 9.4.2*9 |
