Y3150 gear hobbing machine large module hobbing machine for sale
- $7300.00 / 1 - 9 sets
$6500.00 / >=10 sets - 1 set
- Henan Wadley CNC Machinery Co., Ltd.
- Henan, China
- Ms Wadley Li
PRODUCT DETAIL
Core components: | gear | Voltage: | 380V |
Core Components Warranty: | 1 year | Applicable industries: | retail |
Dimensions (L*W*H): | 2440x1270x1920mm | place of origin; place of origin: | Henan, China |
Gear capacity: | spur gear | Marketing Type: | normal product |
Main selling point: | competitive price | product name: | Modular gear hobbing machine |
Gear Material: | cast iron/steel | Model: | Y3150/Y3180 |
Max module: | 5/6MM | Health status: | new |
Showroom location: | not any | Power (kW): | 5.5KW |
Mechanical test report: | if | Video external inspection: | if |
Packaging Details: | Y3150 gear hobbing machine large module gear hobbing machine standard export packaging for sale | Warranty: | 1 year |
Type of machine: | Hobbing machine | maximum. Workpiece diameter: | 500mm |
Packaging Preview: | payment terms: | L/C,T/T,Gear hobbing machine | |
Gear Accuracy: | High | Weight (kg): | 2800 |
brand: | wadley machine | Supply capacity: | 1000 sets per month |
color: | White and green | type: | Hobbing machine |
Key words: | Gear hobbing machine Y3150 | port: | Qingdao, gear hobbing machine |
CNC or not: | normal |
Product Description

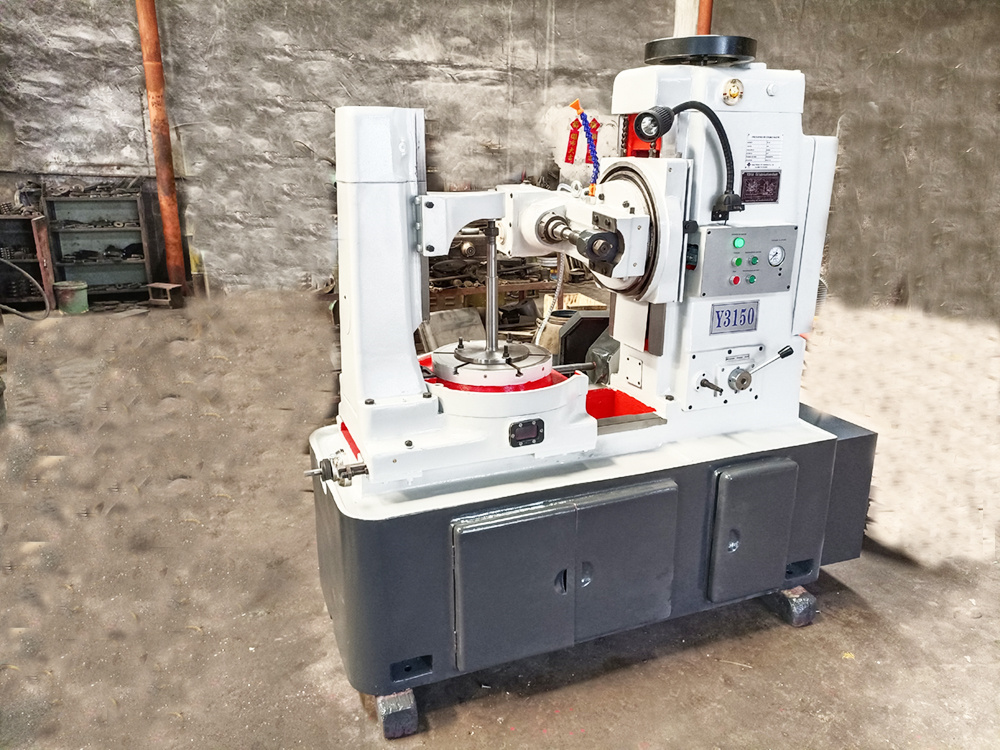

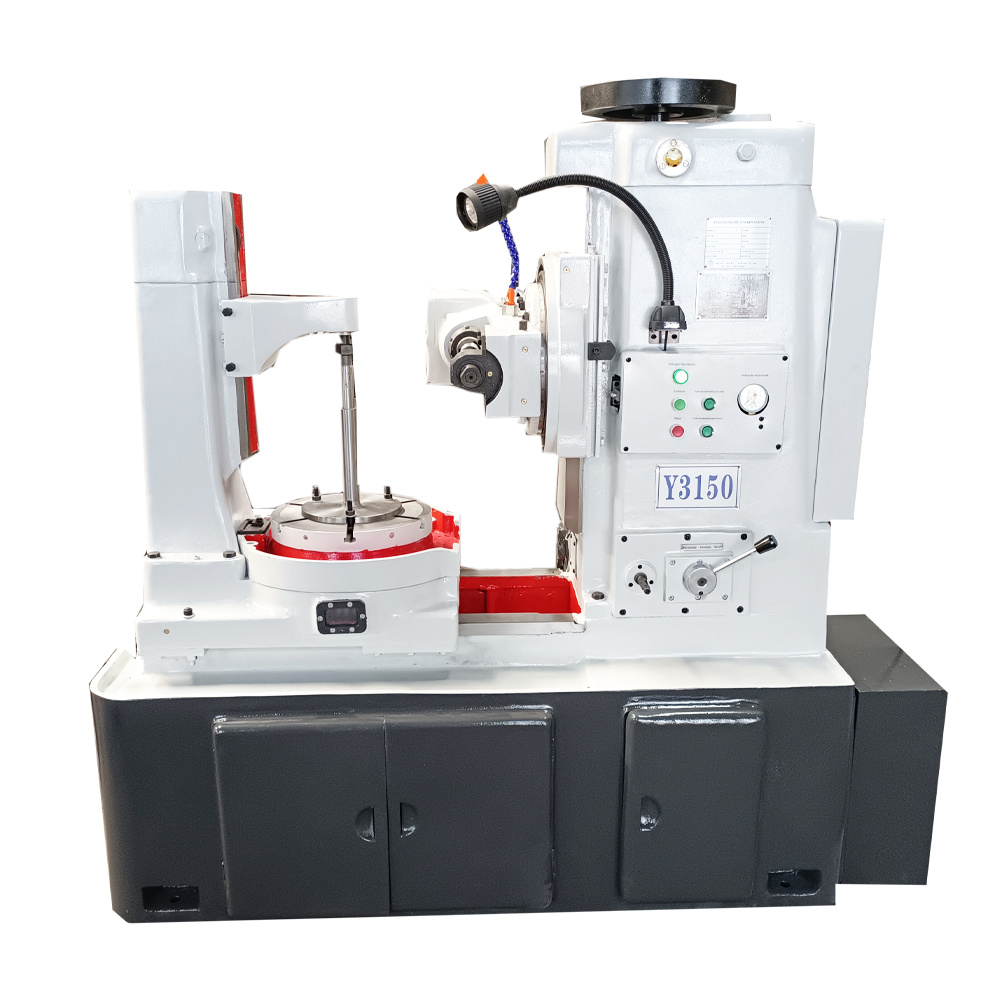

Y3150 Gear Hobbing Machine.
1. Easy to operate and maintain.
2. The machine has the characteristics of good rigidity, high working precision, convenient operation and maintenance, etc. 3. The machine tool can not only cut forward and reverse, but also feed axially or radially.
4. This machine is suitable for large-scale single-piece production of cylindrical straight, helical gears, worm gears and sprockets. 5. According to the special needs of users, the tool can be raised or lengthened to expand the precision range of the machine tool.
Product parameters
Model | Y3150 | YK3150 | Y3180 | YK3180 |
Maximum workpiece diameter (mm) | 350/500 | 350/500 | 550/800 | 550/800 |
control method | Mechanical | KND/GSK | hydraulic | KND/GSK |
Maximum modulus (mm) | 5/6 | 5/6 | 8/10 | 8/10 |
Maximum processing width (mm) | 250 | 250 | 300 | 300 |
Hob diameter (mm) | 160 | 160 | 180 | 180 |
Hob hole diameter (mm) | Φ22, Φ27, Φ32 | Φ22, Φ27, Φ32 | Φ22, Φ27, Φ32, Φ40 | Φ22, Φ27, Φ32, Φ40 |
Maximum hob diameter X length (mm) | 160*160 | 160*160 | 160*160 | 180*180 |
Table diameter (mm) | 520 | 520 | 650 | 650 |
Main motor power (kw) | 4 | 4 | 5.5 | 5.5 |
Net weight/GW(kg) | 2500 | 2700 | 5500 | 5700 |

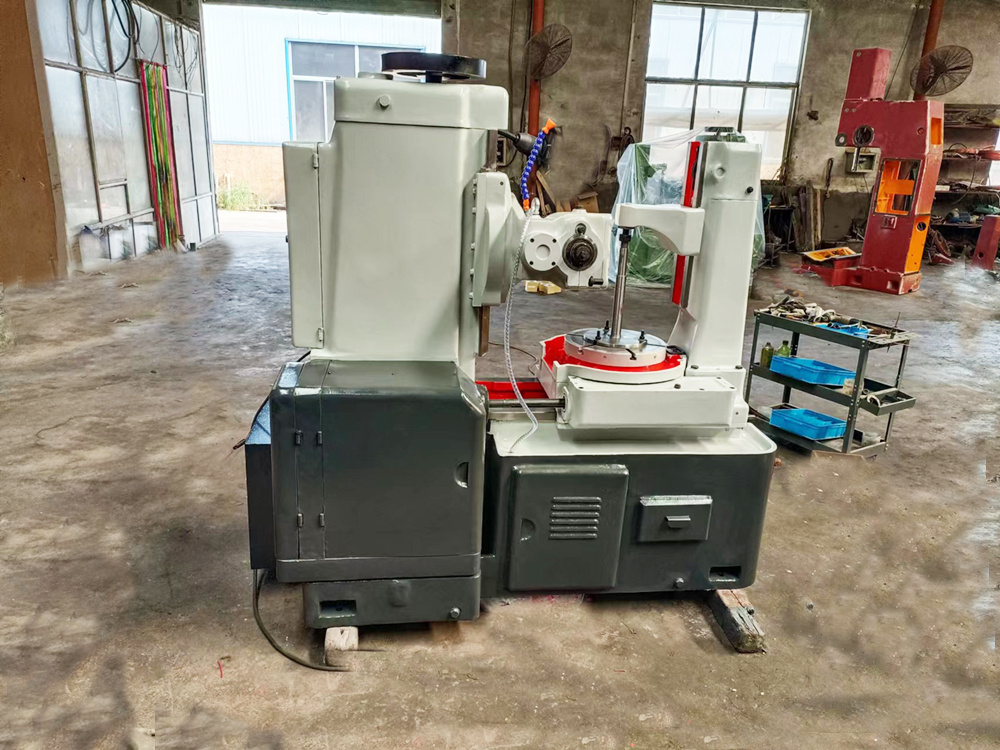

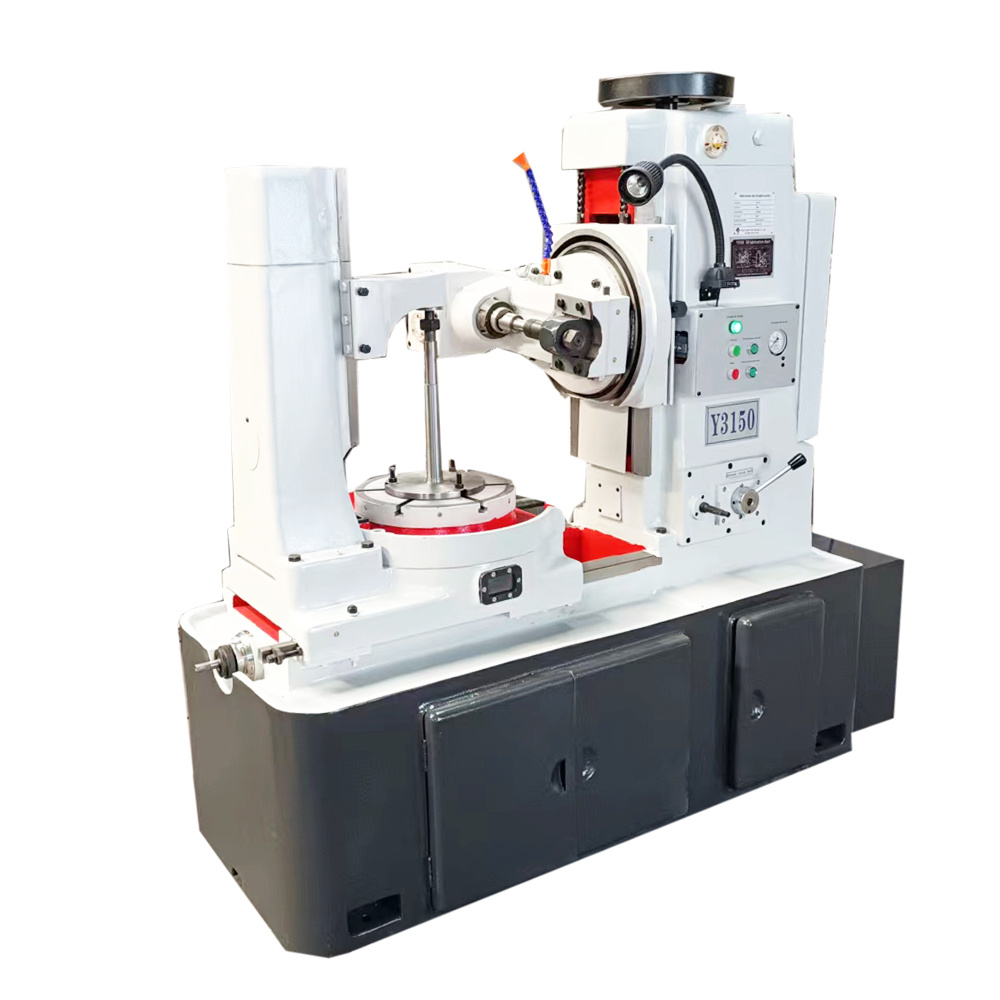

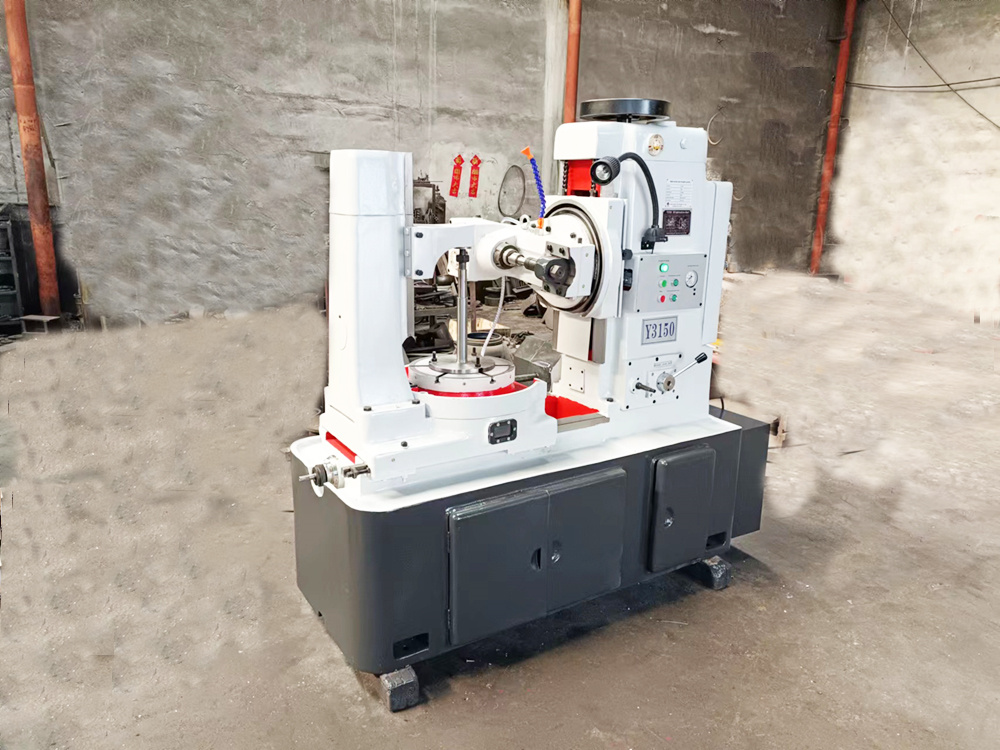

Yes3150 gear hobbing machine
(1) This machine tool is suitable for batch, small batch and individual production of cylindrical gears and worm gears, and is suitable for hobbing spline shafts within a certain parameter range.
(2) The rigidity of the machine tool is good, the thermal deformation is extremely small, high-speed cutting and load cutting can be realized, and the production efficiency is extremely high.
(3) The machine tool is easy to adjust, with automatic shutdown mechanism, reliable safety mechanism and automatic lubrication system.
(2) The rigidity of the machine tool is good, the thermal deformation is extremely small, high-speed cutting and load cutting can be realized, and the production efficiency is extremely high.
(3) The machine tool is easy to adjust, with automatic shutdown mechanism, reliable safety mechanism and automatic lubrication system.
Four types to choose from

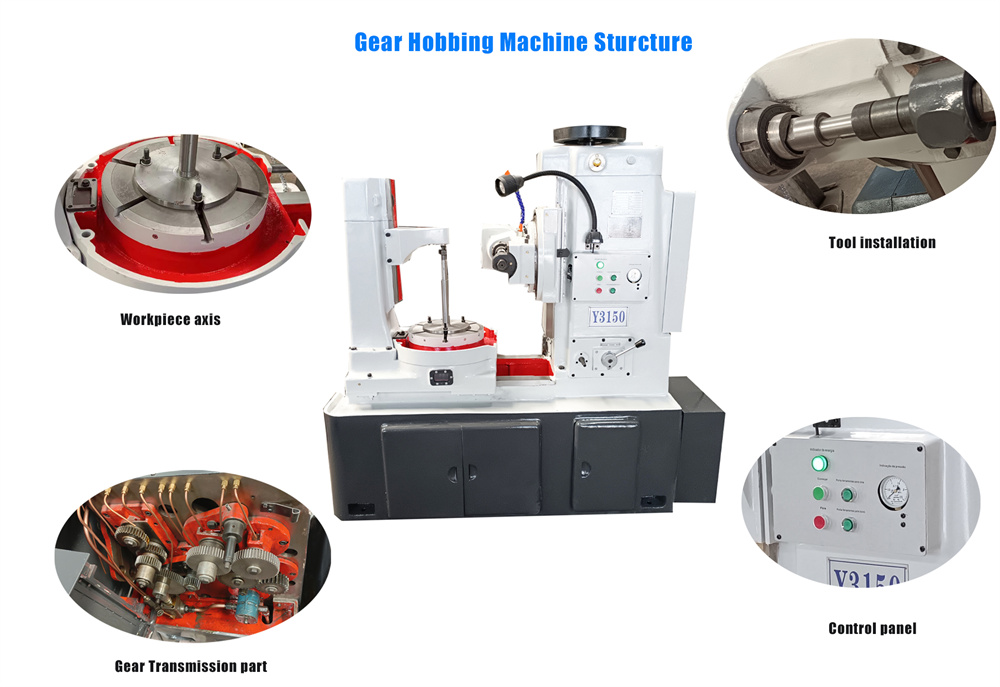

Details display
control box.
(1) One-button operation, fast and practical, without strict operation skills. (2) The design is simple, safe and practical, and the voltage can be customized. (3) Mechanical control and intelligent control, two options of Y3150 and yk3150.Roulette.

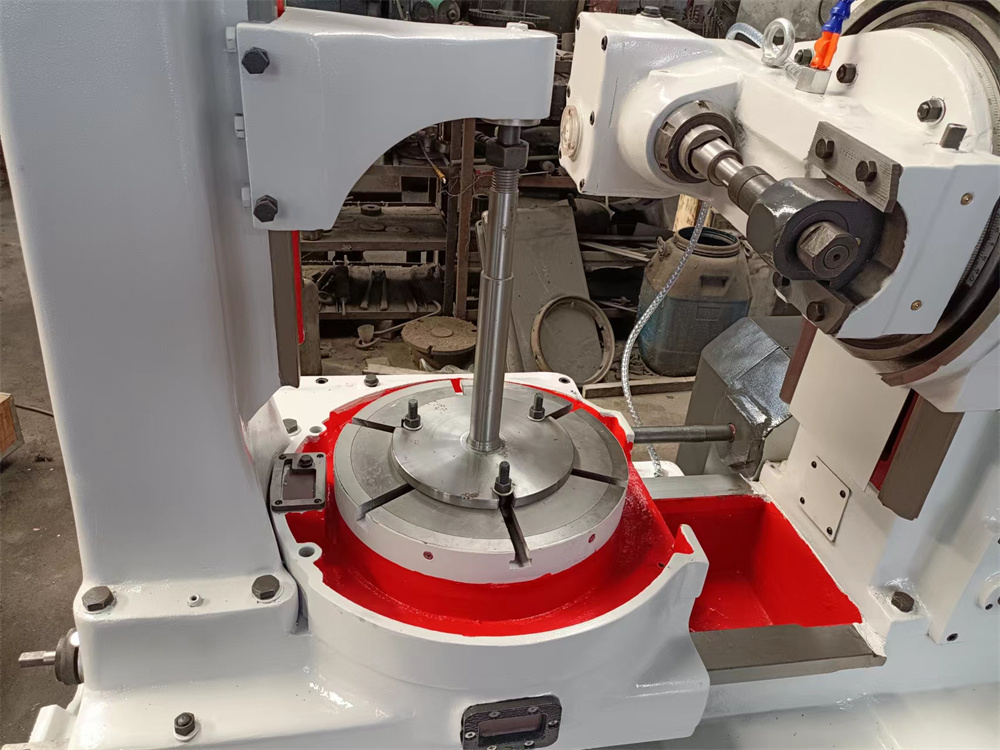

(1) High-frequency quenching table. (2) High hardness, no deformation, sturdy and durable. (3) When rotating, the processing progress of the gear can be observed at any time.

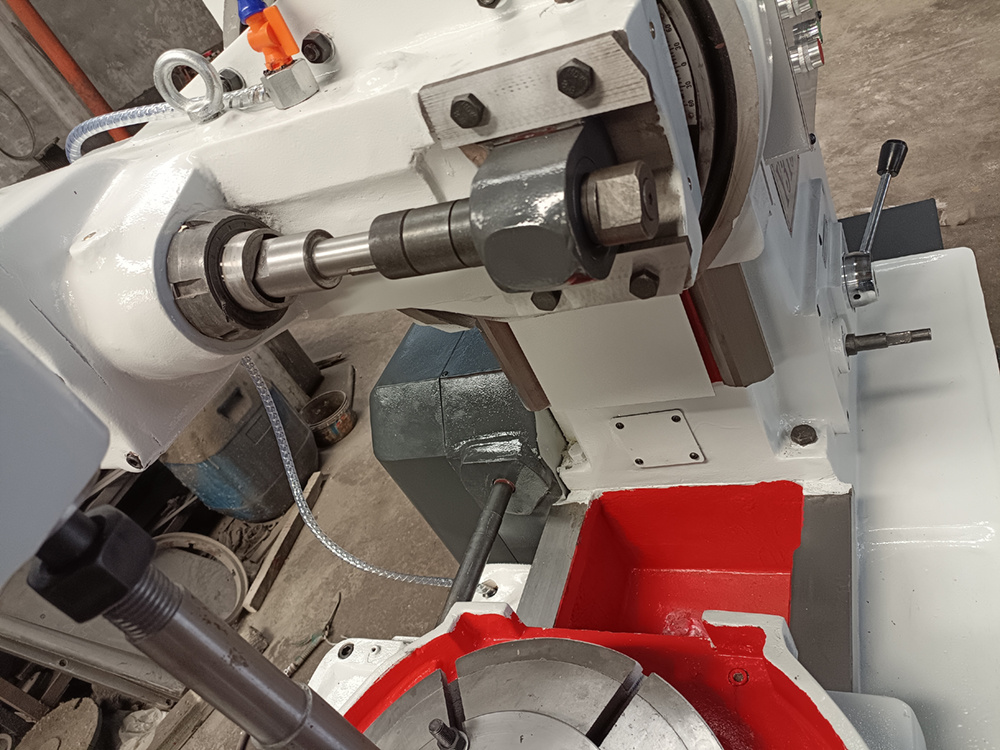

hob shaft.
(1) High hardness and low loss at room temperature and high temperature. (2) High strength and toughness, remarkable processing effect. (3) High wear resistance, good thermal conductivity and heat resistance.Hob Knife.
(1) According to the application, it can be divided into gear hob, worm gear hob, fixed hob, etc. (2) It rotates at a fixed speed ratio and cuts the tooth profile of each adjacent position in turn. (3) Special hob can process splines, sprockets and other workpieces with different tooth shapes

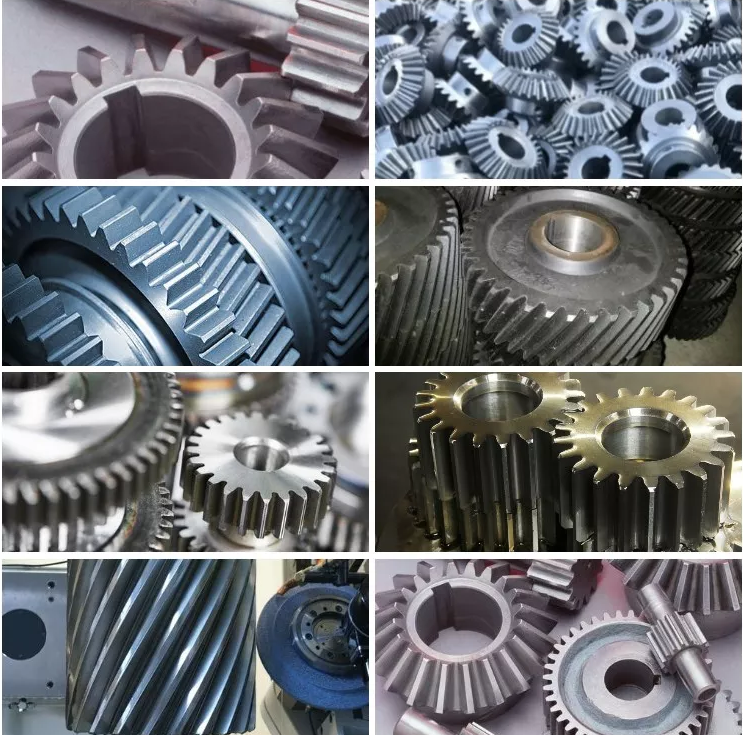

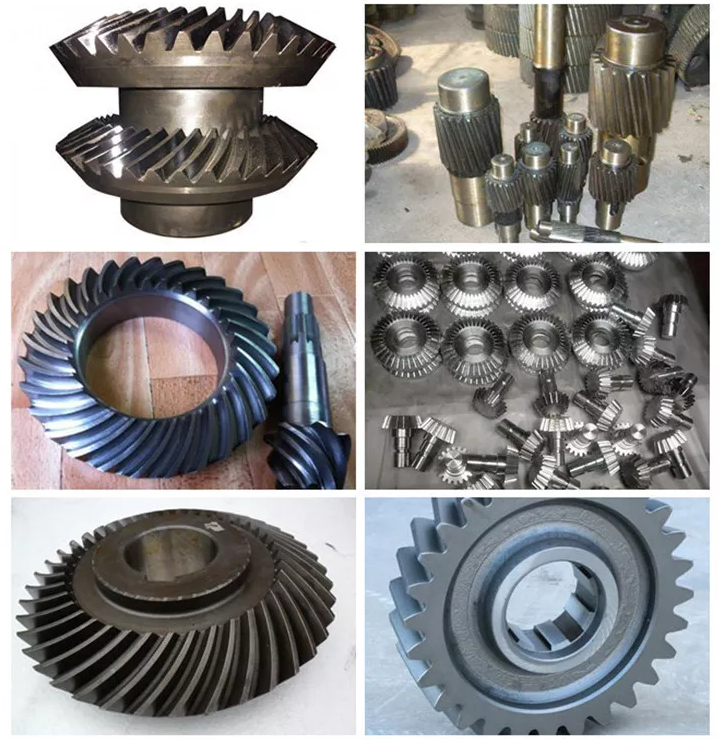

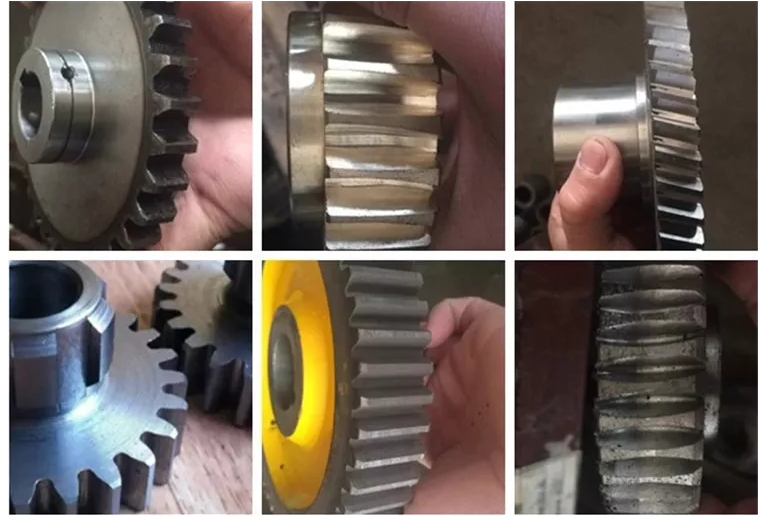

Show results

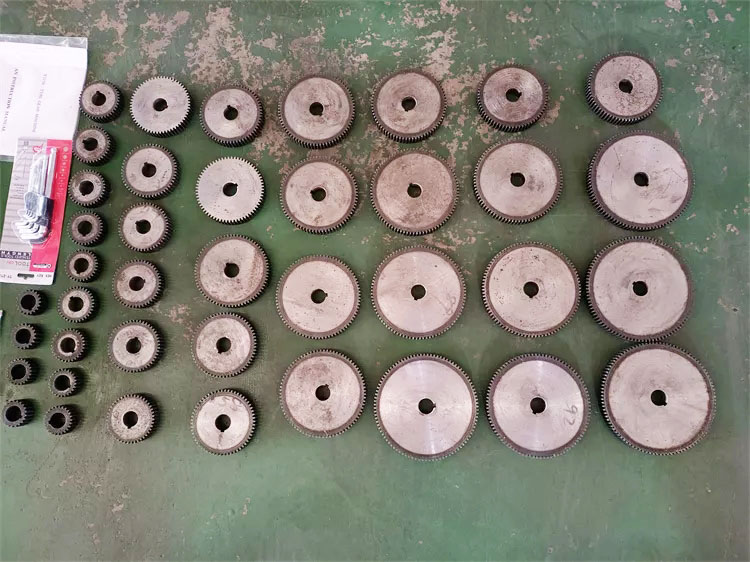

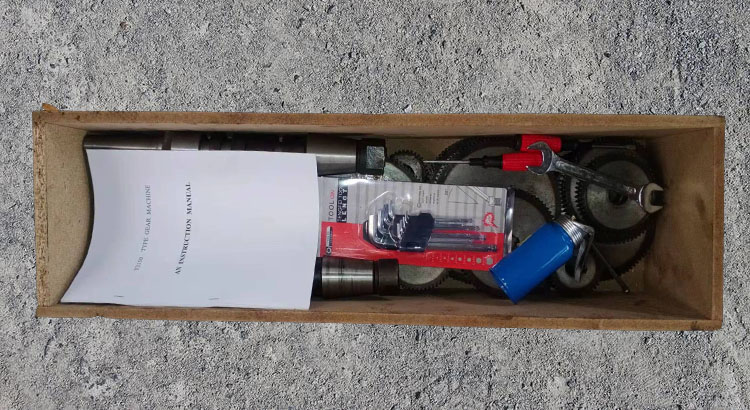

machine accessories
We will provide all kinds of spare parts and product manuals required for your gear hobbing machine for your safe use.

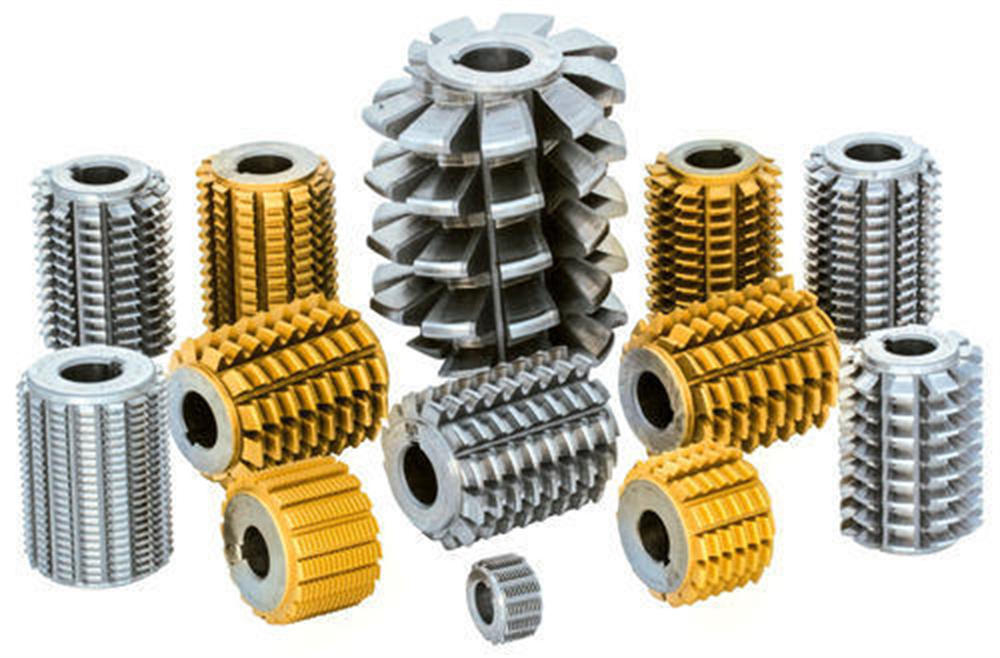

Hobbing cutter (optional)

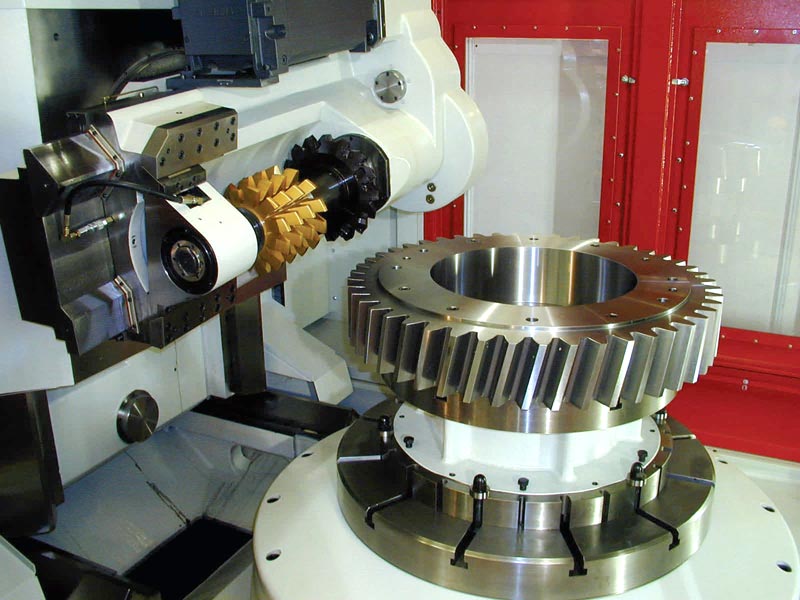

Hob usage scenarios
Accessories and Packaging
