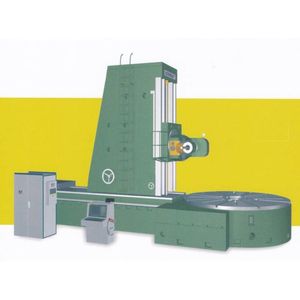

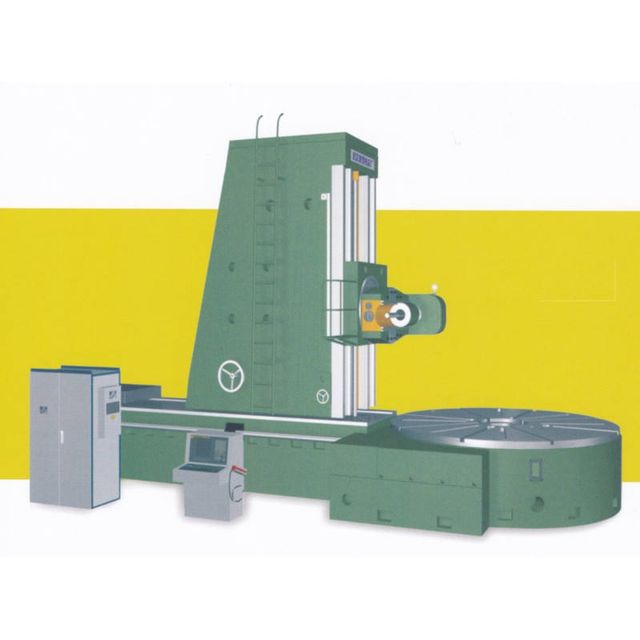

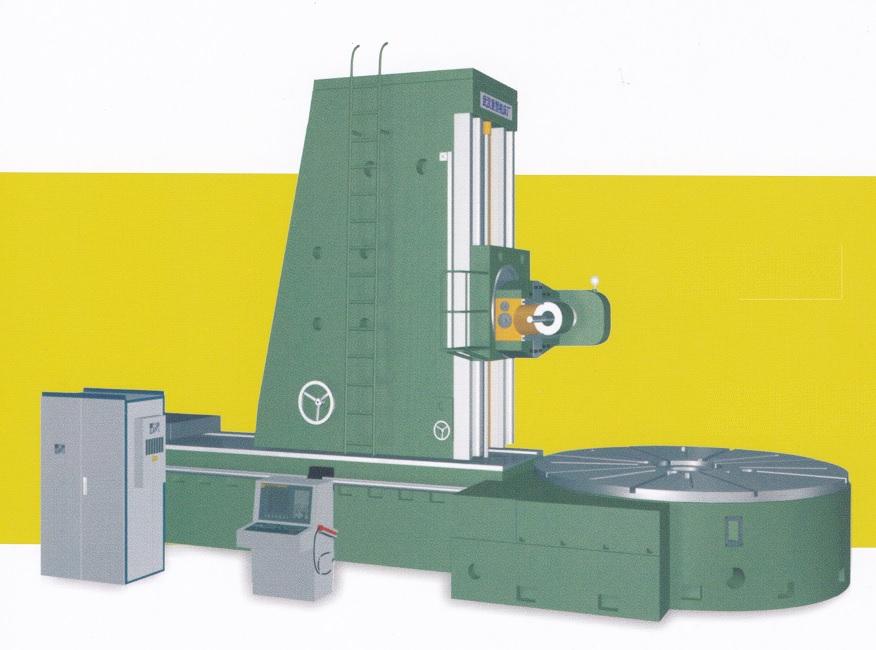

Y31 CNC vertical gear cutting machine

Price:$1000.00 /piece
Min. Order:1 piece
Supplier:Junzhiwei (dalian) Trading Co., Ltd.
Region:Liaoning, China
Contact:Mr luis liu

PRODUCT DETAIL

Local service location:	not any	type:	Hobbing machine
Marketing Type:	New Products 2020	Health status:	new
CNC or not:	CNC	Core components:	PLC, engine, pressure vessel
Weight (kg):	1000	Core parts warranty:	1 year
Main selling point:	easy to operate	Warranty:	1 year
Applicable industries:	other	place of origin; place of origin:	Liaoning, China
Mechanical test report:	if	Video external inspection:	if
payment terms:	L/C,D/P,D/A,T/T	After Warranty Service:	Video technical support, online support
Showroom location:	not any	After-sales service provided:	Online support, video technical support

Specification

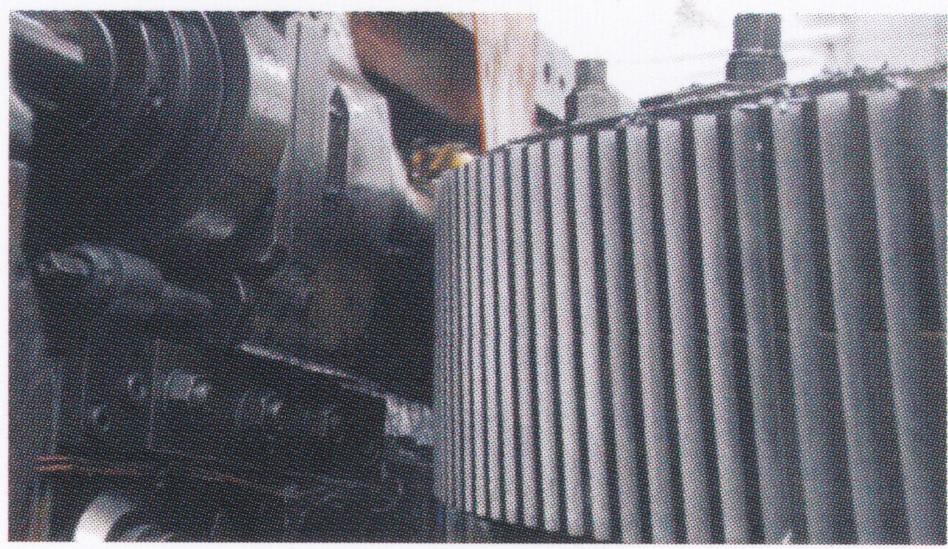

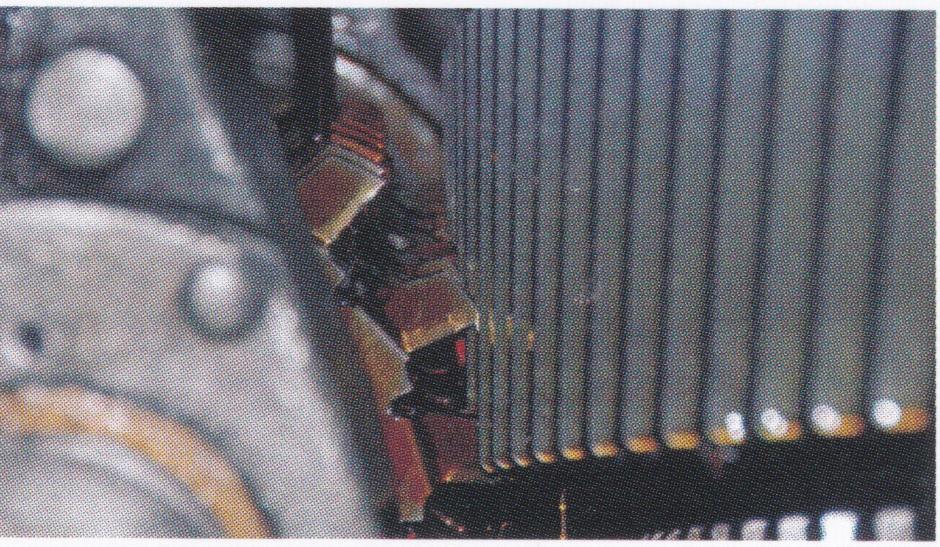

Gear hobbing machine Y31
In the case of single indexing, cyclic machining can be realized automatically by end mills and disc cutters. Individual single-tooth indexing can also be manually controlled;
The hobbing accuracy is not lower than grade 7, and the indexing accuracy of single tooth is not lower than grade 8;
The table is concentrated by hydrostatic bearings. The pressure oil is supplied through the gear oil distributor;
Adopt double pitch worm. No radial adjustment is required, ensuring good engagement. The diameter of the worktable is more than 8m, and the high-precision worm pair is used for transmission;
The main motor adopts DC motor and British CT speed control system; the machine control adopts programmable controller; the control of the whole automatic cycle process is flexible and reliable.
Optional accessories: tangential cutter head, inner end milling head, end milling head, inner disc milling guide head and rear column.
