China vertical metal cnc metal plate slotting machine for promotion machinery equipment

Price:$1000.00 /piece
Min. Order:1 piece
Supplier:Junzhiwei (dalian) Trading Co., Ltd.
Region:Liaoning, China
Contact:Mr luis liu

PRODUCT DETAIL

Core component warranty:	1 year	Core components:	Bearings, engines, gears, gearboxes, motors, PLCs, pressure vessels, pumps
Video outbound inspection:	if	After-sales service provided:	Online support, video technical support
Local service locations:	not any	Weight (kg):	3500
Mechanical test report:	if	Origin:	Liaoning, China
Health status:	new	Main selling points:	high productivity
payment terms:	L/C, D/P, D/A, T/T	Warranty:	1 year
Power (kW):	4	Marketing Type:	2020 New Products
Applicable industries:	other	After Warranty Service:	Video technical support, online support
Showroom location:	not any

Specification

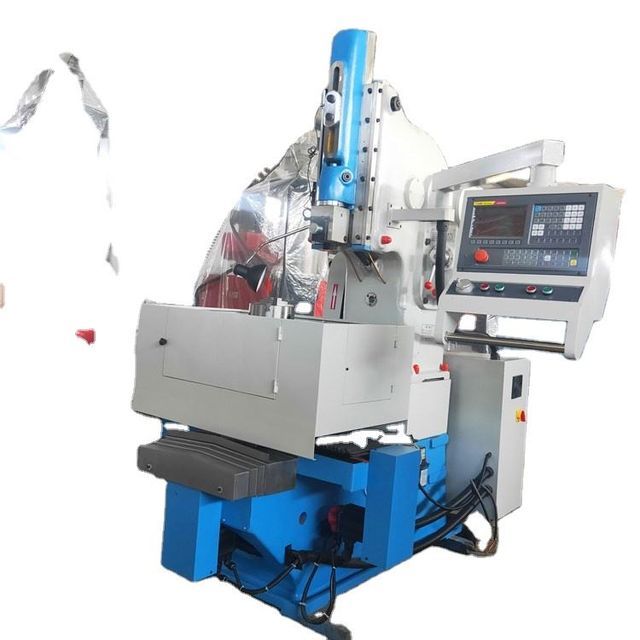

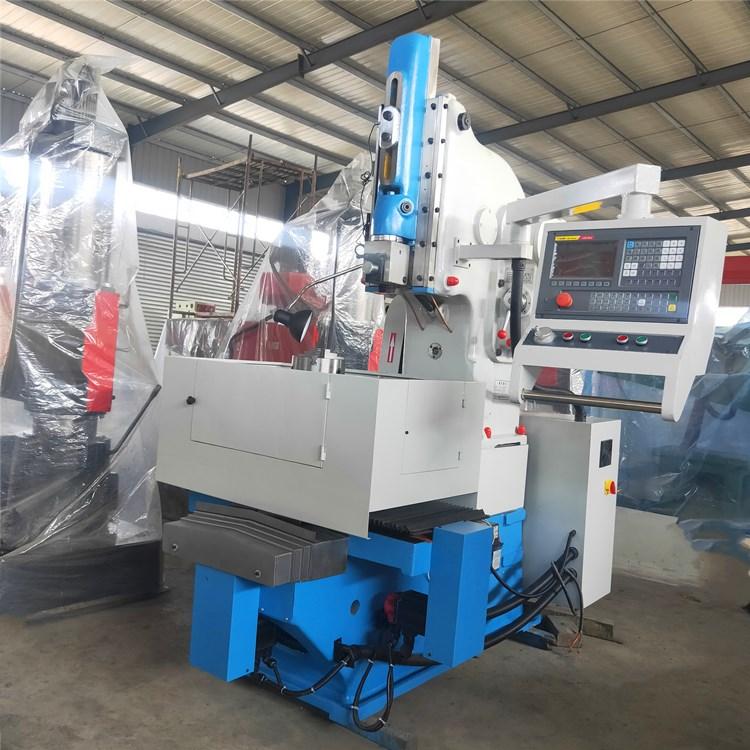

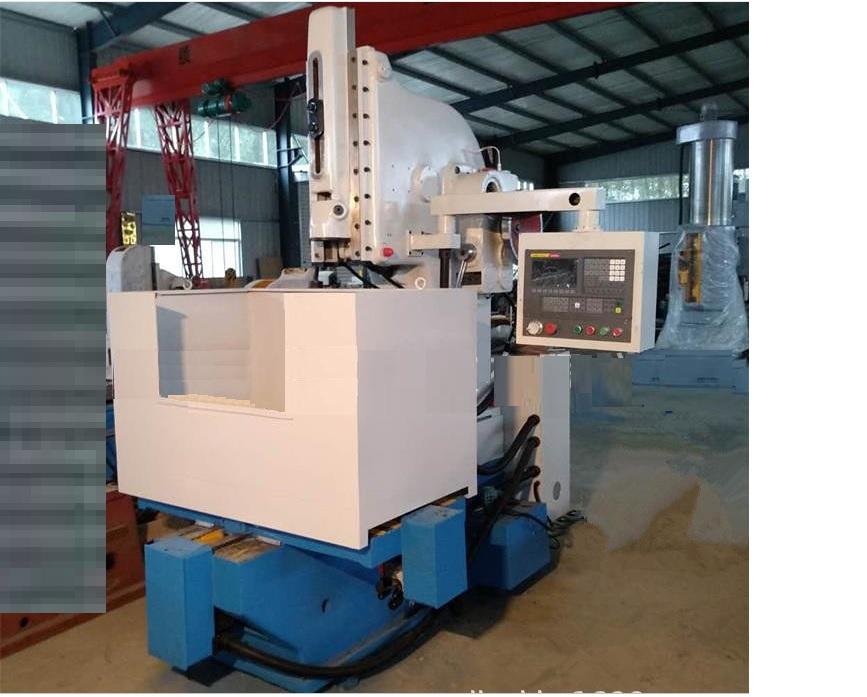

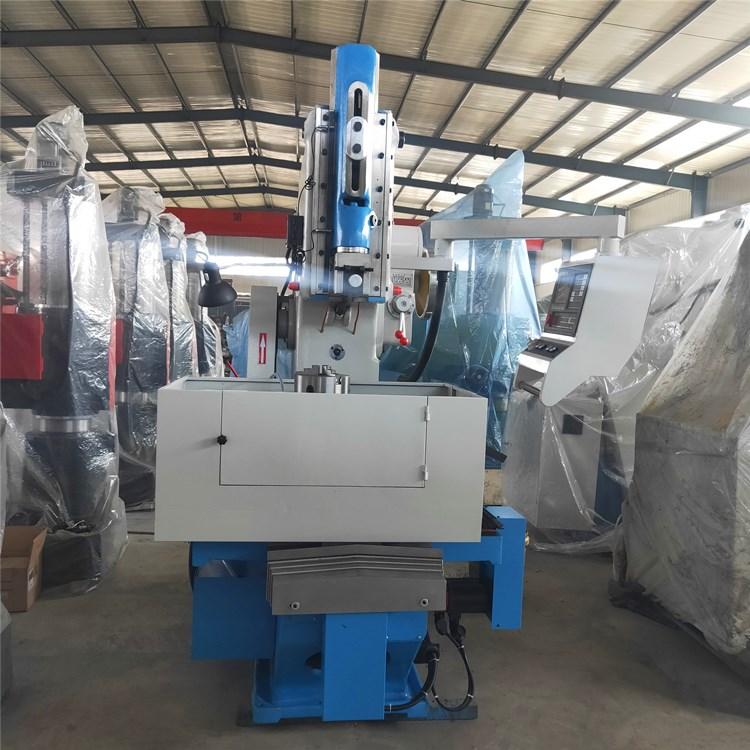

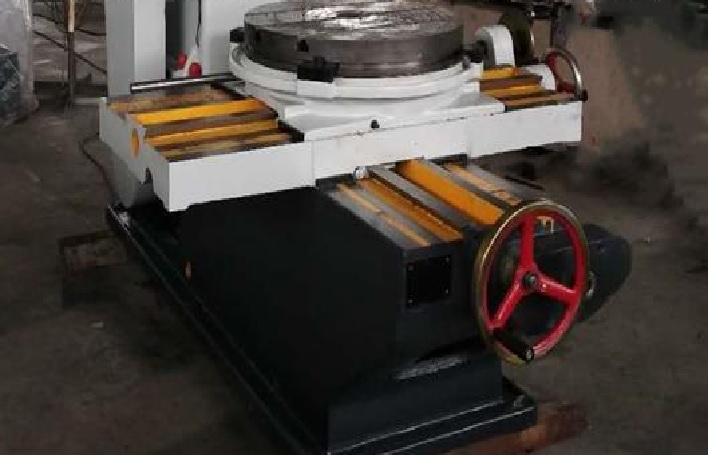

Bk5032 slotting machine parameters
Project Company Specifications
Ram maximum stroke mm 340
RAM maximum pin length mm 320
Number of ram movements Reciprocating times/minute 20.32.50.80
Ram tilt angle 0-8 degrees
Table diameter mm 630
Ram vertical adjustment distance mm 315
The distance from the supporting surface of the cutter head to the front wall of the bed is mm 600
The distance from the working table to the lower end of the carriage mm 490
Maximum longitudinal movement distance mm 600
Maximum lateral movement distance mm 600
The maximum rotation angle is 360 degrees
Table vertical and horizontal movement feed range (servo control, CVT) mm/RAM each reciprocating stepless
Table rotation feed range (servo control 360 degree CVT)
degree/RAM stepless per reciprocation
Motor power Kw. 4
Net weight of the machine tool (approx.) kg. 3200/3500
Machine tool dimensions (length*width*height mm 2461*1695*2345

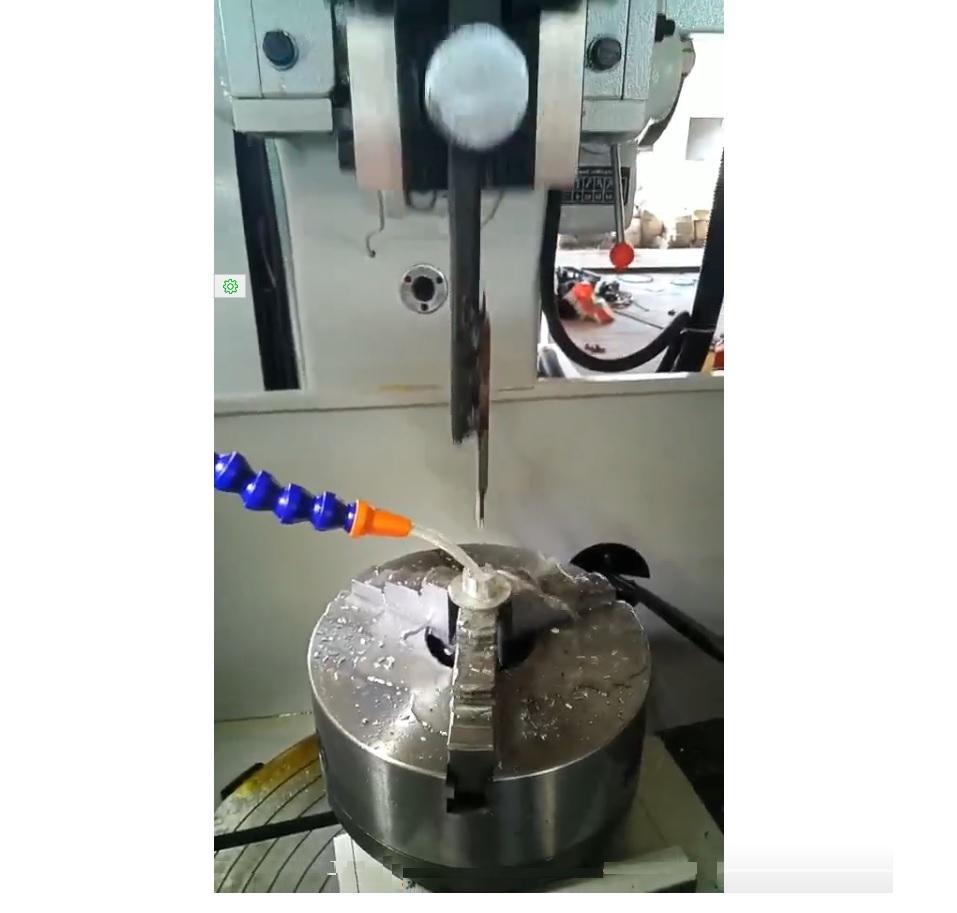

The working characteristics of CNC slotting machine: when working, the slotting cutter slides back and forth along the vertical direction with the ram, and the gap movement of the workpiece along the longitudinal, transverse and circumferential directions is the feed movement.
1. The CNC slotting machine is made of castings over 250ᦇ through quenching and tempering treatment: wear-resistant and pressure-resistant.

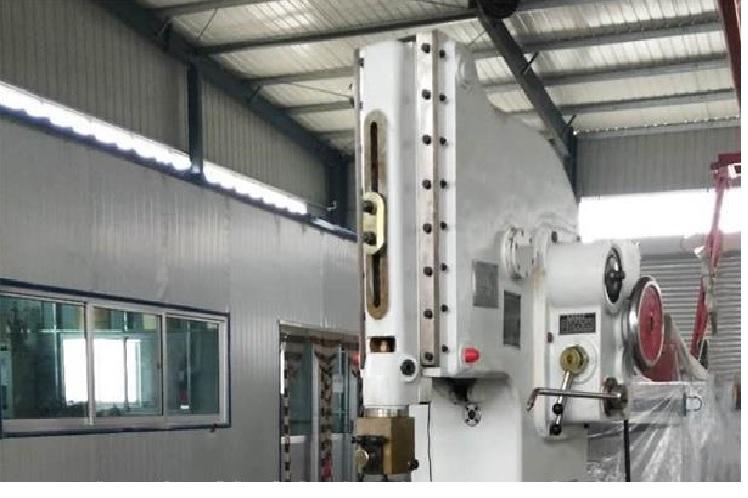

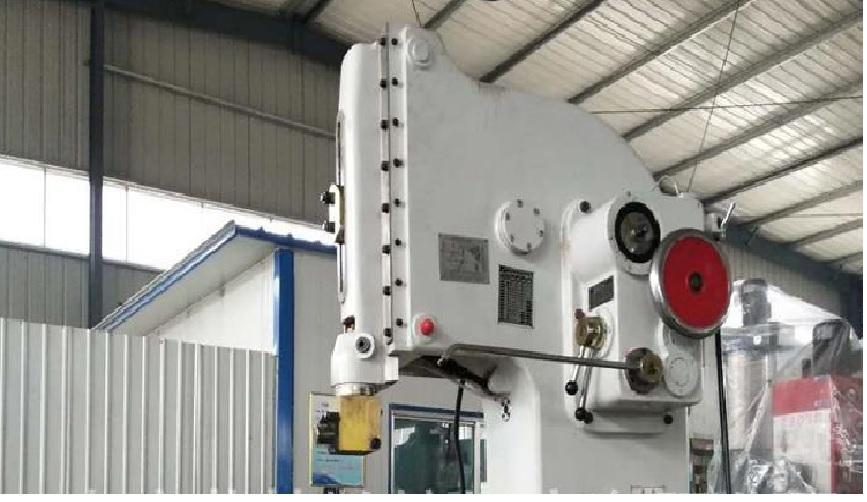

2. The machine tool consists of a base, a large slider, a worktable, a bed, a slide plate, a lever, a main arm,
auxiliary arm.
3. The clutch adopts advanced electromagnetic clutch, which can be separated and retracted freely, quickly and accurately.
4. The brake adopts electromagnetic brake.
5. When measuring the workpiece, let the tool stop at a certain distance above the workpiece, and the system signal controls the upper and lower dimensions.
6. The square hole of the plug shaft is (25*25/25*30)mm. The fastening method of the cutter head is through the nut on the back of the cutter bar. The left and right verticality of the knife bar is adjusted by the left and right support screws at the front and upper part of the knife bar. Fore-aft verticality is adjusted by three nuts at the bottom of the ram and at the end of the bed.
7. The xy axis of the disc table is equipped with a ball screw servo motor, and the disc indexing is driven by the servo motor through the turbine rolling rod, and works according to the instructions issued by the numerical control system. The indexing can be rotated freely by 360°, and the multi-keyway can work freely. The z axis is sensed by the system.
8. The lubricating oil circuit adopts gear internal lubrication and external electronic lubrication, and has self-adjusting function.

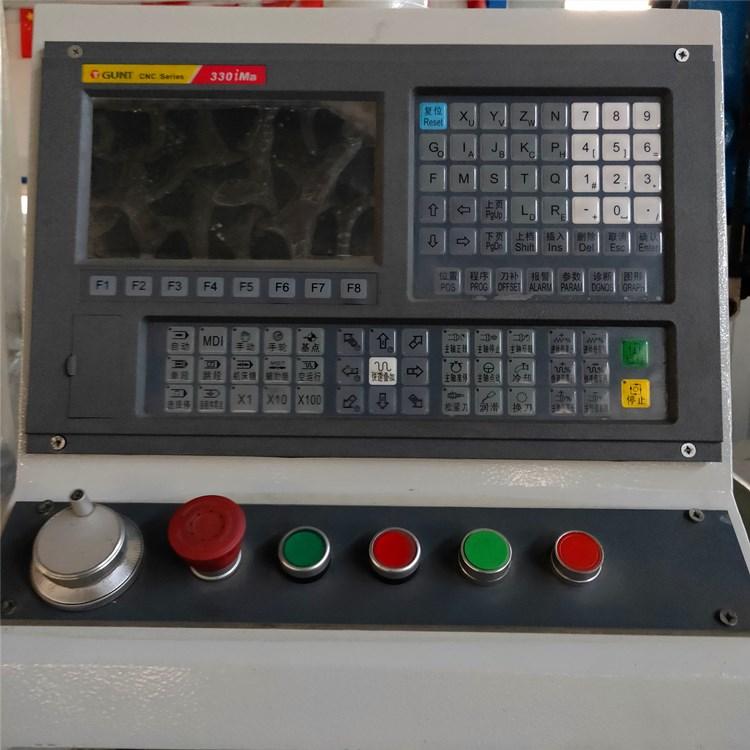

9. The system adopts Guangtai system produced in Chengdu.
10. Two servo motors and one function motor work. The origin of electrical appliances is Zhejiang Tianzheng.
11. After the workpiece programming is completed, start the machine to complete automatically, and automatically stop after cutting.
12. Semi-protective, easy to operate.
