Line Industrial Hot Selling Sheet Metal Stainless Steel V-Grooving Machine, CNC V-Grooving Machine
- $6500.00 / 1 - 1 sets
$6000.00 / >=2 sets - 1 set
- Anhui Harting Machinery Technology Co., Ltd.
- Anhui, China
- Ms Kitty Gui
PRODUCT DETAIL
Package preview: | Warranty: | 1 year | |
Health status: | new | port: | Shanghai |
Place of origin: | Anhui, China | Applicable industries: | Energy and Mining, Food and Beverage Stores, Food and Beverage Factories, Retail, Construction Engineering, Others, Building Materials Stores, Advertising Agencies, Machinery Repair Shops |
brand: | Mihatin | Showroom location: | not any |
Mechanical test report: | if | Marketing type: | New products for 2021 |
Supply capacity: | 15 sets per month | Main selling points: | High security level |
Packaging details: | wooden box | Core component warranty: | 1 year |
Core components: | engine | Weight (kg): | 7200 |
Voltage: | 220V/380V | Dimensions (length*width*height): | 7500x2300x1680mm |
Power (kW): | 5.5 | Video outbound inspection: | if |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Year: | 2021 |
Product Description

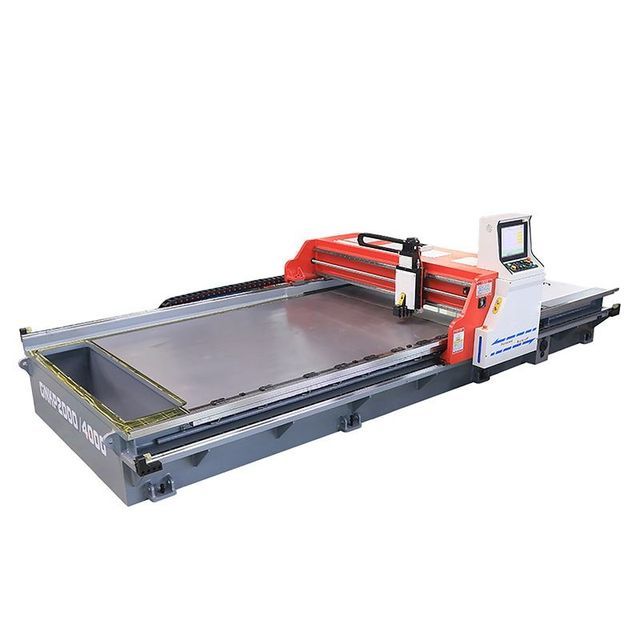

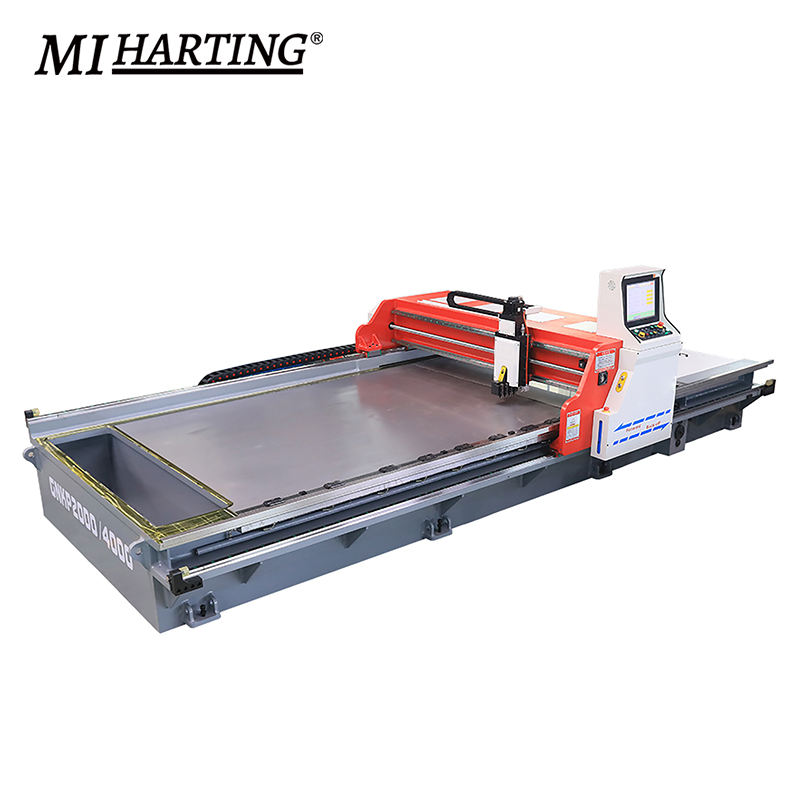

This equipment is a CNC gantry planer. This machine adopts advanced CNC system and has novel design. It has the characteristics of high processing precision, simple operation, no noise and no vibration. This machine tool is used to process V-shaped grooves, U-shaped grooves and other irregular grooves on sheet metal parts (stainless steel, aluminum, aluminum-plastic, copper, iron, bakelite, acrylic and other special plates).
detailed picture
Specification
Model | maximum. Groove thickness(mm) | minute. Groove thickness (mm) | Grooving speed (m/min) | Knife LR resolution (mm) | Knife UD resolution (mm) | Position accuracy (mm) | pneumatic pressure (Public Affairs Administration) | aspect (length x width x height) (mm) |
1220x2500 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 4650x2300x1680 |
1220x3200 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 5500x2300x1680 |
1220x4000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2300x1680 |
1220x5000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 7500x2300x1680 |
1220x6000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2300x1680 |
1500x4000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2550x1700 |
1500x6000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2550x1700 |
