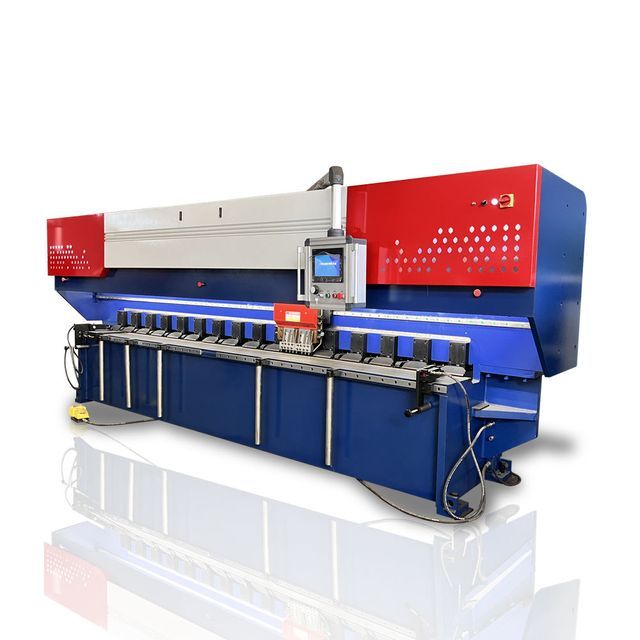

Nanjing ALDM CNC sheet metal slotting machine SS V type slotting machine is cheap
- $5000.00 / 1 - 4 sets
$4800.00 / >=5 sets - 1 set
- Nanjing Langdun Machine Tool Manufacturing Co., Ltd.
- Jiangsu, China
- Mr jackie rui
PRODUCT DETAIL
Certification: | EU CE certification | Power (kW): | 5.5 |
Main selling points: | competitive price | Applicable industries: | Construction works, machine repair shops, manufacturing plants |
Supply capacity: | 2 sets per month | control: | CNC system |
Video outbound inspection: | if | Core component warranty: | 2 years |
Origin: | Jiangsu, China | brand: | ALDM |
application: | Steel plate slotting | port: | Shanghai |
Health status: | new | Cutting Thickness: | 0.5-6mm |
usage: | Shape Grooving | Showroom location: | not any |
Key words: | Gantry Metal Grooving | Cutting material: | metal stainless steel carbon steel |
payment terms: | L/C, Western Union, D/P, D/A, T/T | Marketing Type: | 2020 New Products |
Mechanical test report: | if | Core components: | Engines, motors, gears |
product name: | Gantry slotting machine | Warranty: | 2 years |
Weight (kg): | 11000 | V-groove milling cutter: | CNC V-shaped cutting machine |
Product Description

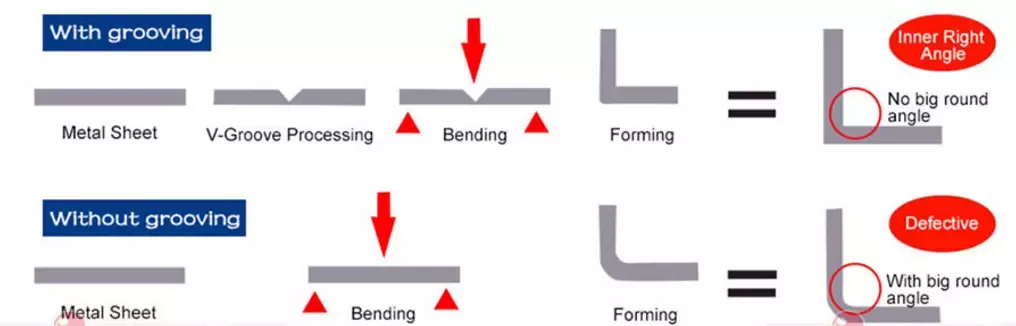

The equipment is a full CNC metal plate V-grooving machine. Adopting advanced numerical control system and innovative design, it has the advantages of high processing precision, simple operation, no noise and no vibration. It is widely used in the processing of irregular grooves such as V-shaped grooves and U-shaped grooves of metal plates (including stainless steel, aluminum plates, aluminum plates, copper, iron, plastics, wood, acrylic plates and other special plates). It is suitable for V-groove processing before plate bending.
Model | maximum. Groove thickness (mm) | minute. groove thickness (mm) | Grooving speed (m/min) | Knife LR resolution (mm) | Knife UD resolution (mm) | Position accuracy (mm) | Pneumatic pressure (Public Affairs Administration) | aspect (length x width x height) (mm) |
1220x2500 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 4650x2300x1680 |
1220x3200 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 5500x2300x1680 |
1220x4000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2300x1680 |
1220x5000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 7500x2300x1680 |
1220x6000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2300x1680 |
1500x4000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2550x1700 |
1500x6000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2550x1700 |
Our advantage
- The machine body is all-steel welded structure, with tempering aging and small deformation;
- Using numerical control (CNC) device, automatic processing;
- Using air pressure device, fully automatic clamping and loosening;
- The bottom surface of the planer can be adjusted after wear to improve the service life of the whole machine;
- Using five planers to work together, the planing efficiency is high;
- There is a detachable bracket in front of the workbench to facilitate the processing of long workpieces;
- Full servo motor, accurate positioning and high precision;
- All operating systems of the machine are precisely combined with electropneumatics, which is convenient and flexible to operate
High operating efficiency, low noise, no environmental pollution.
- Using numerical control (CNC) device, automatic processing;
- Using air pressure device, fully automatic clamping and loosening;
- The bottom surface of the planer can be adjusted after wear to improve the service life of the whole machine;
- Using five planers to work together, the planing efficiency is high;
- There is a detachable bracket in front of the workbench to facilitate the processing of long workpieces;
- Full servo motor, accurate positioning and high precision;
- All operating systems of the machine are precisely combined with electropneumatics, which is convenient and flexible to operate
High operating efficiency, low noise, no environmental pollution.
detailed picture

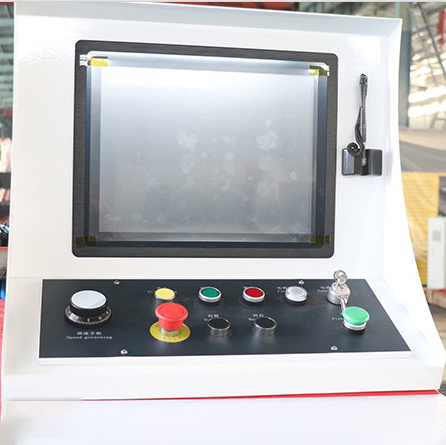

CNC controller
Controlling machines is simpler, more convenient and more efficient
Hydraulic system
High pressure, reliable fastening force, low noise, low energy consumption
server Driver
Accurate position accuracy, short dynamic response time of motor deceleration, strong anti-overload capability, low heat generation and low noise
Front presser foot
The seal has been specially treated to double the pressure it can withstand, preventing the seal from being damaged by the gouging wire and prolonging the service life of the front presser foot cylinder
Linear Guides
The positioning accuracy is high, the wear is low, and the accuracy can be maintained for a long time. Suitable for high-speed movement, greatly reducing the driving horsepower required by the machine, while bearing up, down, left, and right loads.
Application industry
ALWD has accumulated thousands of customers in 20 years of development. We insist on surviving by quality, and never lose any customers because of quality problems
