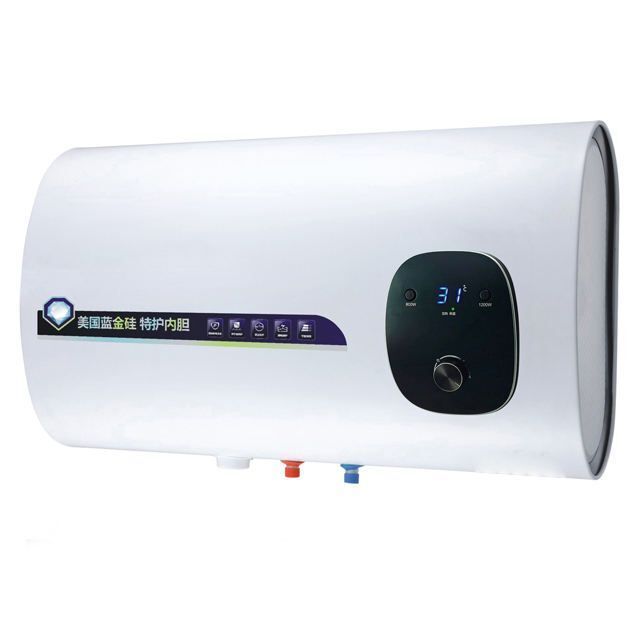

dual elements 50 liters horizontal steel shell bathroom electric water heater with safety valve
- $43.00 / 300 - 499 pieces
$42.00 / 500 - 999 pieces
$41.00 / >=1000 pieces - 300 pieces
- Dingxin Import And Export (Zhongshan) Co., Ltd.
- Guangdong, China
- Ms May Leung
| Temperature range(℃): | (35-75)±5; | Installation: | Wall Mounted; |
| Power (W): | 1500; | Model Number: | DSZF-C09; |
| Voltage (V): | 220; | Tank: | Crystal enameled tank; |
| Warranty: | 3 years,3 years; | Rated Pressure(MPa): | 0.8Mpa; |
| Storage / Tankless: | Storage; | Style: | Horizontal series; |
| Packaging Detail: | Standard export carton; | Payment Terms: | T/T; |
| Place of Origin: | Guangdong, China; | Water poof degree: | IPX4; |
| Application: | Household; | Power Source: | Electric; |
| Brand Name: | Dingxin; | Temperature control: | Mechanical control; |
| Temperature display: | Digital or Scale indicator; | After-sales Service Provided: | None; |
| Housing Material: | Metal; | Capacity: | 30L/50L/80L/100L; |
| Product name: | water heater; |
Description of machine
1: 3 years quality guarantee for tank;
2: Metal housing with fashional and stylish design
3: 316L stainless steel heating element: Quality heating elements with seamless welding technology, achieves more effective prevention of crevice corrosion and long life,
4: Enameled inner tank: Electric water heater tank is a pressure vessel, with thickening of the high manganese steel materials, electrostatic dry powder enamel plasma welding process, anti-rust, corrosion, pressure.
5: Insulation: ultra-thick insulation and ultrafine microcellular foaming technology with CFC-free polyurethane foam ensures energy saving.
6: Multiple security protection: anti-dry heating protection, over pressure safety valve;
7: Water temperature displayer, Power indicater;
8: Enamel coating on water inlet / outlet
Technical Date-Overall Dimensions
|
Capacity |
30L |
50L |
80L |
100L |
|
H.S code. |
HS:851610 |
HS:851610 |
HS:851610 |
HS:851610 |
|
Inner Tank |
Crystal enameled tank |
Crystal enameled tank |
Crystal enameled tank |
Crystal enameled tank |
|
Body housing shell |
Metal |
Metal |
Metal | Metal |
|
Foam insulation |
polyurethane |
polyurethane |
polyurethane |
polyurethane |
|
Temperature control |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
|
Temperature display |
Digital or Scale indicator |
Digital or Scale indicator |
Digital or Scale indicator |
Digital or Scale indicator |
|
Color |
white |
white |
white |
white |
|
Rated Power Consumption(W) |
1500W |
1500W |
1500W |
1500W |
|
Power Supply(V/Hz) |
220-240V/50Hz |
220-240V/50Hz |
220-240V/50Hz |
220-240V/50Hz |
|
Rated Pressure(MPa) |
0.80mpa |
0.80mpa |
0.80mpa |
0.80mpa |
|
Temperature range(℃) |
(35-75)±5 |
(35-75)±5 |
(35-75)±5 |
(35-75)±5 |
|
Water-poof degree |
IP×4 |
IP×4 |
IP×4 |
IP×4 |
|
Net weight(kg) |
17KG |
19KG |
24KG |
26.5KG |
|
Gross weight(kg) |
19KG |
21KG |
26.5KG |
29KG |
|
packing |
Standard export carton |
Standard export carton |
Standard export carton |
Standard export carton |
|
product size |
Φ340×620mm |
Φ340×820mm |
Φ410×970mm |
Φ410×1170mm |
|
packing size(mm) |
405*405*675mm |
405*405*875mm |
450*450*1040mm |
450*450*1240mm |
|
Qty/40'HQ |
616 |
435 |
317 |
270 |
Application scenario
FAQ
Q1:How long does the order take?
A:Sample order will be finished within 10 days and normal order will be finished within 30 days after receiving payment
Q2: How long is the warranty
A: We offer 3 years warranty for water tank, 1 year warranty for accessories.
Q3:Do you accept OEM or ODM orders?
A:Yes, Our R&D team will offer one stop service for you from original idea to finished product.
Q4:What’s the MOQ?
A: 500pcs(trial order's quantity is negotiable)
Q5: Do you provide samples? Is it free or extra?
A: Sample is available, sample fee will be returned when order is given
Q6: What payment terms?
A: T/T 30% deposit, balance paid before shipment.
