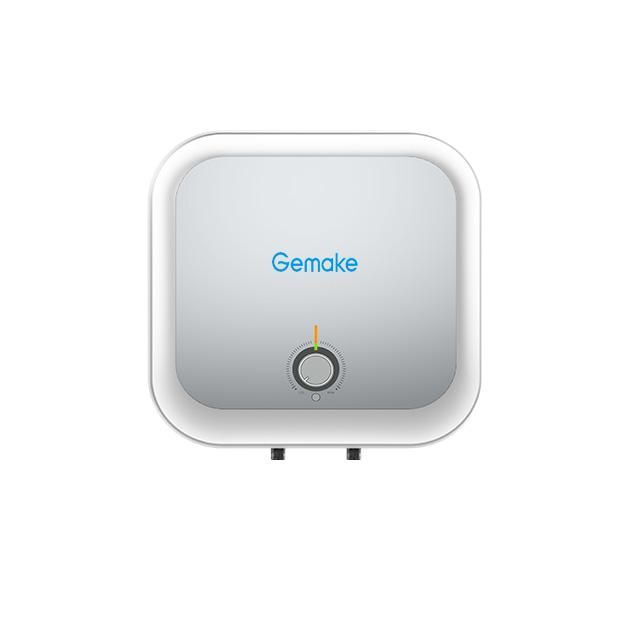

water heater BIS certified New product of kitchen series water heater,can be used for RV

PRODUCT DETAIL
Payment Terms:L/C,T/T;Frequency:50/60 HZ;
Power (W):500;Warranty:1 Year;
After-sales Service Provided:Overseas Call Centers;Power Source:Electric;
Application:Hotel,Garage,Household;Color:Optional;
Adjustable water temperature:Ambient to 75'C;Capacity:6~30L;
Model Number:CZ/KC;Housing Material:ABS;
Storage / Tankless:Storage;Voltage (V):120;
Rated pressure:0.8MPa;App-Controlled:No;
Port:Xiaolan;Place of Origin:Guangdong, China;
Packaging Detail:customized;Brand Name:Gemake/OEM/ODM;

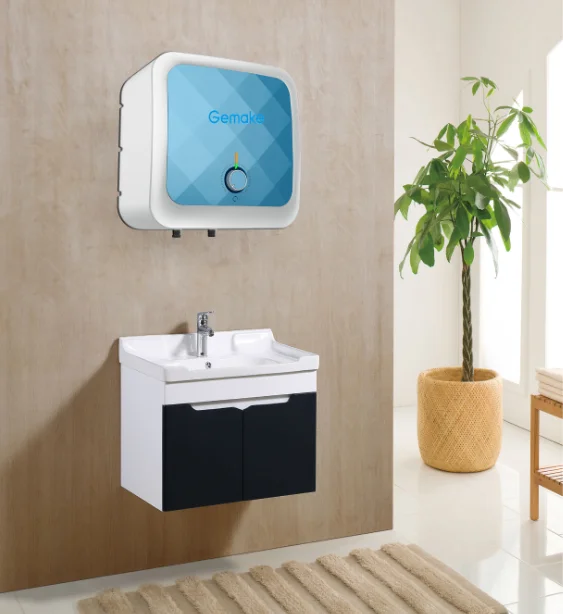

Installation:Wall Mounted;Water proof:IPX4;
Tank Warranty:5Years;Supply Ability:1500000 Pieces per Year;
Certification:NOM CB CE;

















Features

1.Top energy saving with 5-star BEE standard.

2.Resistor Mg anode.

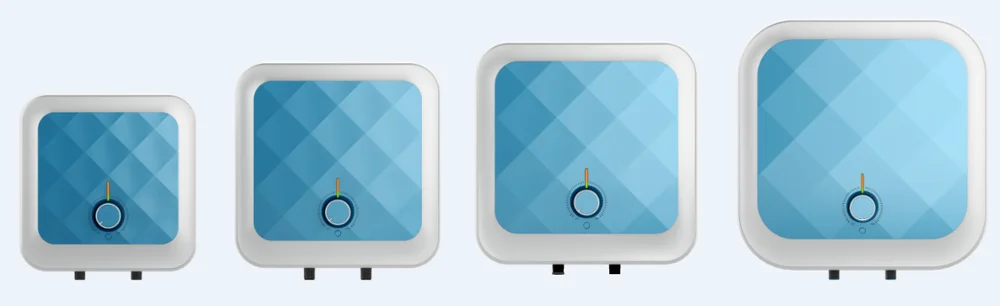

3.Multiple colour options for outer shell and service panel.

4.Thermal cutout.

5.H/R Light available.

6.New generation material with more energy saving and better environmental protection performance.

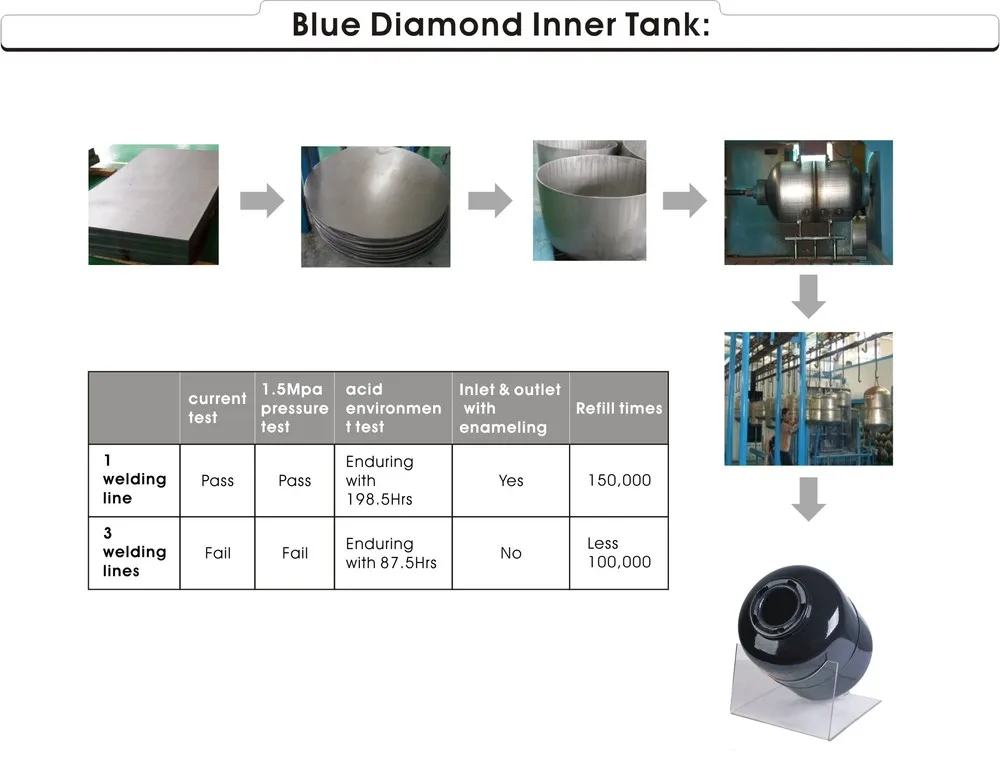

7.Quadro-layer enameled SPCC tank with longer product life.

8.BIS certified










Technical Data

Model No. capacity(L) Product Size
L*W*H(mm)
Packing Dimensions
L*W*H(mm)
N.W
(kg)
G.W
(kg)
Loading Quantity(Unit)
20'GP 40'GP 40'HQ
DSZFXX-LJ/6CZ 6 315*315*278 370*360*345 6.5 7.5 576 1224 1428
DSZFXX-LJ/10CZ 10 365*365*293 430*420*355 8 9.5 460 942 1110
DSZFXX-LJ/15CZ 15 395*395*338 455*445*395 10 11.5 350 725 855
DSZFXX-LJ/25CZ 25 445*445*383 510*495*420 12.5 14.5 271 559 659
DSZFXX-LJ/30CZ 30 445*445*383 510*495*420 11.6 15.7 271 559 659
DSZFXX-LJ/6KC 6 315*315*278 370*360*345 6.5 7.5 576 1224 1428
DSZFXX-LJ/10KC 10 365*365*293 430*420*355 8 9.5 460 942 1110
DSZFXX-LJ/15KC 15 395*395*338 455*445*395 10 11.5 350 725 855
DSZFXX-LJ/25KC 25 445*445*383 510*495*420 12.5 14.5 271 559 659
DSZFXX-LJ/30KC 30 445*445*383 510*495*420 11.6 15.7 271 559 659

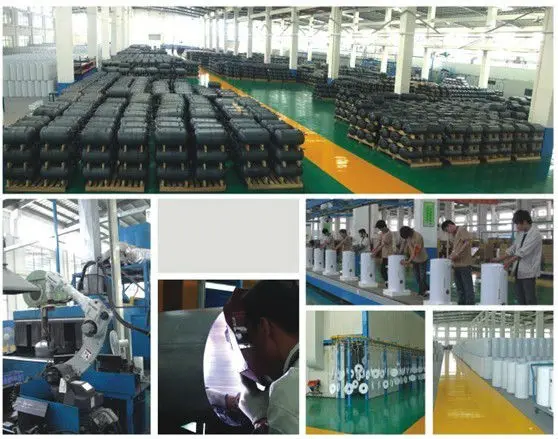

Our Factory





The Conton Fair





Contact us for more information!
