1-12 channel analog digital weight transmitter & junction box
- $20.00 /piece
- 1 piece
- Manyyear Technology Company Limited
- Guangdong, China
- Mr CH Hu
PRODUCT DETAIL
| Max signal range: | ±10mV ~±5V; | Sampling speed: | 3.125~100Hz;; |
| Measure speed: | 100Hz50Hz25Hz12.5Hz6.25Hz3.125Hz2Hz1Hz(option); | Warranty: | 1 year; |
| Model Number: | MEP-ADS; | Apply to: | weighing digital measure; |
| Payment Terms: | L/C,T/T,Paypal; | Package Preview: | ; |
| A/D Resolution: | 1000000; | Brand Name: | MANYYEAR; |
| Certification: | Reach,CE,ROHS; | Place of Origin: | Guangdong, China; |
| Supply Ability: | 1000 Pieces per Month; | Measure channel: | 1-2-4-6-8-10CH; |
| Port: | Any port of China; | Max resolving power: | 20/mV(12.5Hz); |
| Packaging Detail: | Individually carton packaging; | Customized support: | OEM,ODM,OBM; |
| Type: | Digital weight transmitter; | Power supply: | 6.5V12V DC; |
| Baud rate: | 1200~38400bps;; |
Product Description

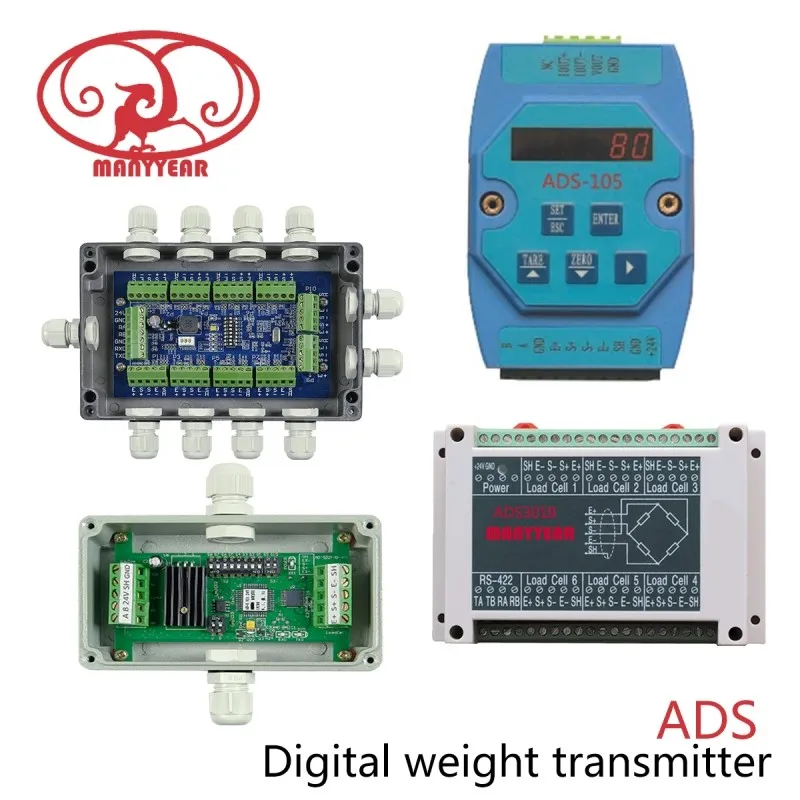

1-12 channel analog digital weight transmitter & junction box
Feature:
Category: A/D weight transmitter
Input signal: -40mv to +40mv
Signal output: mv 0-5vdc, 0-10vdc, 4-20mA, RS232/485/422. RTU
Measure channel:1-2-4-6-8-10CH
Sampling rate: 3HZ ~200HZ~400HZ ~1000HZ
Measuring range: ±15mV
A/D Resolution:1000000
Temperature coefficient:≤5ppm/℃(typical)
Hardware Interface: RS-485/RS232/RS422/MODBUS/WIRELESS
Software Protocol:Rectangle,Freeport,Modbus RTU protocol
Dimensions(mm): Refer to the product specifications
Base function: A/D conversion AD, digital calibration, tare , zero setting /tracking , switch-on zero setting , anti-dithering ;
SW set
AD address: 0-31 Module addresses are available from 0 to 31.
Baud rate: 1200~38400bps;
Digital filtering : standard filtering or LPF;
Sampling speed : 3.125~100Hz;
Storage of the parameters with protection against power failure ;
Operating Voltage : 9V DC(6.5V~12V); Operating Current :≤40mA;
Complete protection: wrong wiring protection , overvoltage protection,transient voltage suppression;
Operating temperature range : -40℃~+70℃;
Storage temperature range: -60℃~+90℃
Category: A/D weight transmitter
Input signal: -40mv to +40mv
Signal output: mv 0-5vdc, 0-10vdc, 4-20mA, RS232/485/422. RTU
Measure channel:1-2-4-6-8-10CH
Sampling rate: 3HZ ~200HZ~400HZ ~1000HZ
Measuring range: ±15mV
A/D Resolution:1000000
Temperature coefficient:≤5ppm/℃(typical)
Hardware Interface: RS-485/RS232/RS422/MODBUS/WIRELESS
Software Protocol:Rectangle,Freeport,Modbus RTU protocol
Dimensions(mm): Refer to the product specifications
Base function: A/D conversion AD, digital calibration, tare , zero setting /tracking , switch-on zero setting , anti-dithering ;
SW set
AD address: 0-31 Module addresses are available from 0 to 31.
Baud rate: 1200~38400bps;
Digital filtering : standard filtering or LPF;
Sampling speed : 3.125~100Hz;
Storage of the parameters with protection against power failure ;
Operating Voltage : 9V DC(6.5V~12V); Operating Current :≤40mA;
Complete protection: wrong wiring protection , overvoltage protection,transient voltage suppression;
Operating temperature range : -40℃~+70℃;
Storage temperature range: -60℃~+90℃
Product Index
Below spec is only for customer design reference. we can provide ODM product.
No. | Model | Channel | Analogy Output | Digital output | Application |
1 | AAS-A/2/4/6/8/10 | 2-10 channel option | mv | NA | Multi channel weighing system. Belt scale, Compression test, Crane scale, Elevator overload, Feeding scale, Floor scale, Hopper scale, Packing scale, Platform scale, Shaft scale, Tank scale, Tension test, Truck Scale, Warehouse scale, Weighbridge |
2 | AAS-B/2/4/6/8/10 | 2-10 channel option | 0-5vdc, 0-10vdc, 4-20mA | NA | Multi channel weighing system Automobile inspect, Compression test, Elevator overload, Force test, Tension test, |

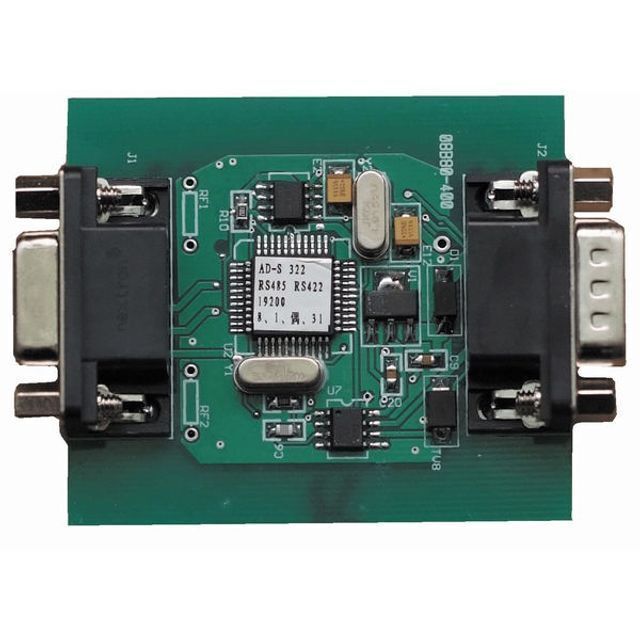

3 | ADS421 | 1channel | NA | RS232 wireless | Digital load cell, digital static weighing system |
4 | ADS321/322 | 1channel | NA | RE232 wireless | digital static weighing system |
5 | ADS112 | 1channel | NA | RE485 | digital dynamic weighing system; high speed weighing system |
6 | ADS105 | 1channel | NA | RS485 RTU wireless | Digital weighing system; Weighing instrument |
7 | ADS105I | 1channel | 4-20mA | RS485 RTU wireless | Digital weighing system;Weighing instrument; Weight controller |
8 | ADS105UI | 1channel | 0-5vdc, 0-10vdc, 4-20mA | RS485 RTU wireless | Digital weighing system;Weighing instrument; Weight controller |
9 | ADS105U | 1channel | 0-5vdc, 0-10vdc | RS485 RTU wireless | Digital weighing system;Weighing instrument Weight controller |
10 | ADS301/201 | 2-8channel option | NA | RS485 RTU wireless | Multi channel digital weighing system |
Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.
Product Application

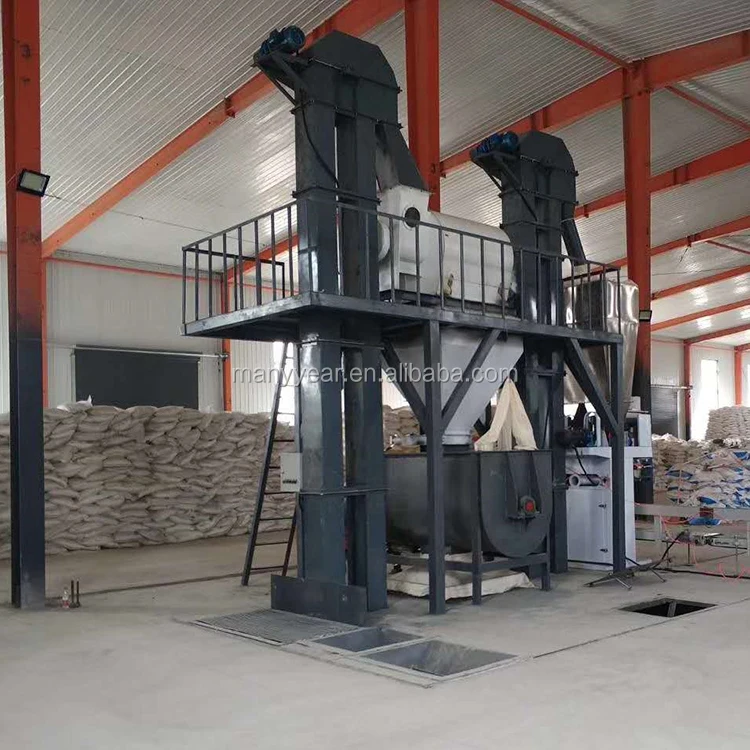

this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
