10-100 t/h portable mobile tug type diesel engine stone jaw crusher crushing and screening station factory

PRODUCT DETAIL
payment terms:Wire transfer, MoneyGramHealth status:new
Maximum feed size:25mmSupply capacity:10 sets per week
Capacity (tons/hour):20-30Core components:gear
Showroom location:not anyAfter-sales service provided:1 year
place of origin; place of origin:Henan, China (Mainland)Machine classification:Quartz sand equipment
Applicable industries:Construction Engineering, Energy and MiningMotor Type:AC motor
application:gold miningVideo external inspection:if
Warranty:1 yearDimensions (L*W*H):4600x1700x2200mm
brand:AscendMain selling point:easy to operate
product name:Diesel Jaw Crusherstrength:22-110KW
Name:Mobile Diesel Crusher Jaw CrusherCore Components Warranty:1 year
Output size:3-10mmtype:Jaw Crusher
Key words:fine stone jaw crusherport:Qingdao, Shanghai
Packaging Details:Waterproof and rustproof wooden box or containerMarketing Type:Hot Products of 2021
Mechanical test report:ifweight:2000kg

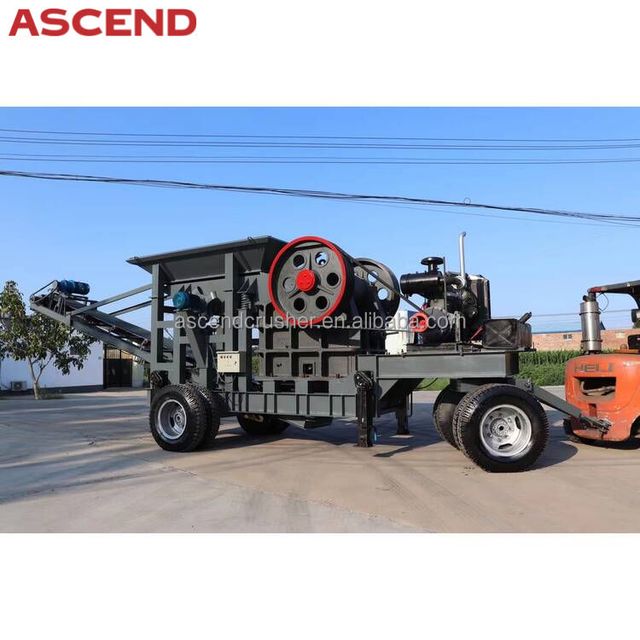

Mobile Portable Diesel Engine Rock Stone Small Jaw Crusher Crushing Station

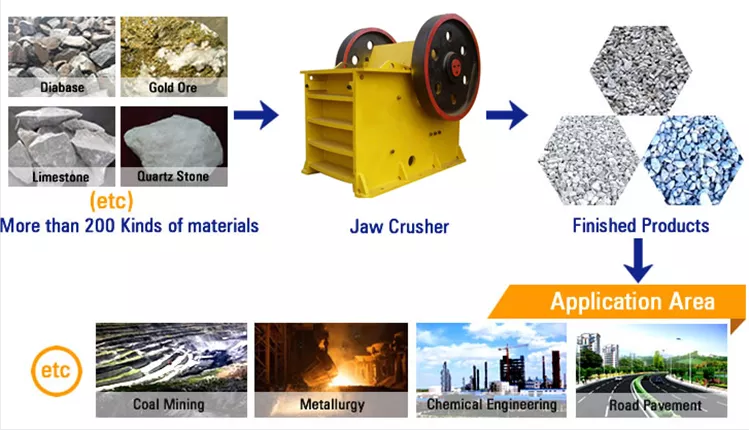

Diesel mobile jaw crusher is widely used to crush various materials, such as stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, limestone, quartzite , alloys, etc. The application of tires makes the machine more convenient to move and adapt to various applications, especially when your place lacks power or needs to move the machine frequently.

working principle

The motor drives the belt and pulley through the eccentric shaft to make the movable jaw move back and forth, up and down. When the movable jaw plate moves to the fixed jaw together with the movable jaw, the raw material is crushed or split. When the movable jaw and the movable jaw plate return under the action of the eccentric shaft and the spring, the crushed or split raw materials are discharged from the bottom outlet under the jaw plate.

Specification



SC jaw crusher SC600 SC750 SC900 SC1060 SC1200 SC1300PEX
transport dimension
Length (mm) 8600 9600 11097 13300 15800 9460
Width (mm) 2520 2520 3759 2900 2900 2743
Height (mm) 3770 3500 3500 4440 4500 3988
Weight (kg) 15240 22000 32270 57880 98000 25220
Axle load(kg) 10121 14500 21380 38430 64000 14730
Traction pin load (kg) 5118 7500 10890 19450 34000 10490
Jaw Crusher
Model PE400X600 PE500X750 PE600X900 PE750X1060 PE900X1200 PEX300X1300
Inlet size (mm) 400X600 500X750 600X900 750X1060 900X1200 300X1300
Discharge port adjustment range (mm) 40-100 50-100 65-180 80-180 95-225 20-90
Capacity (m³/h) 10-35 25-60 30-85 70-150 100-240 10-65
vibrating feeder
Hopper volume (m³) 3 4 7 10 10 3
Hopper width(mm) 2200 2500 3000 3000 3000 2200
Model GZT0724 GZT0724 GZT0932Y ZSW490X110 ZSW600X130 GZT0724
Belt conveyors
Model B650X6 B800X7 B1000X8

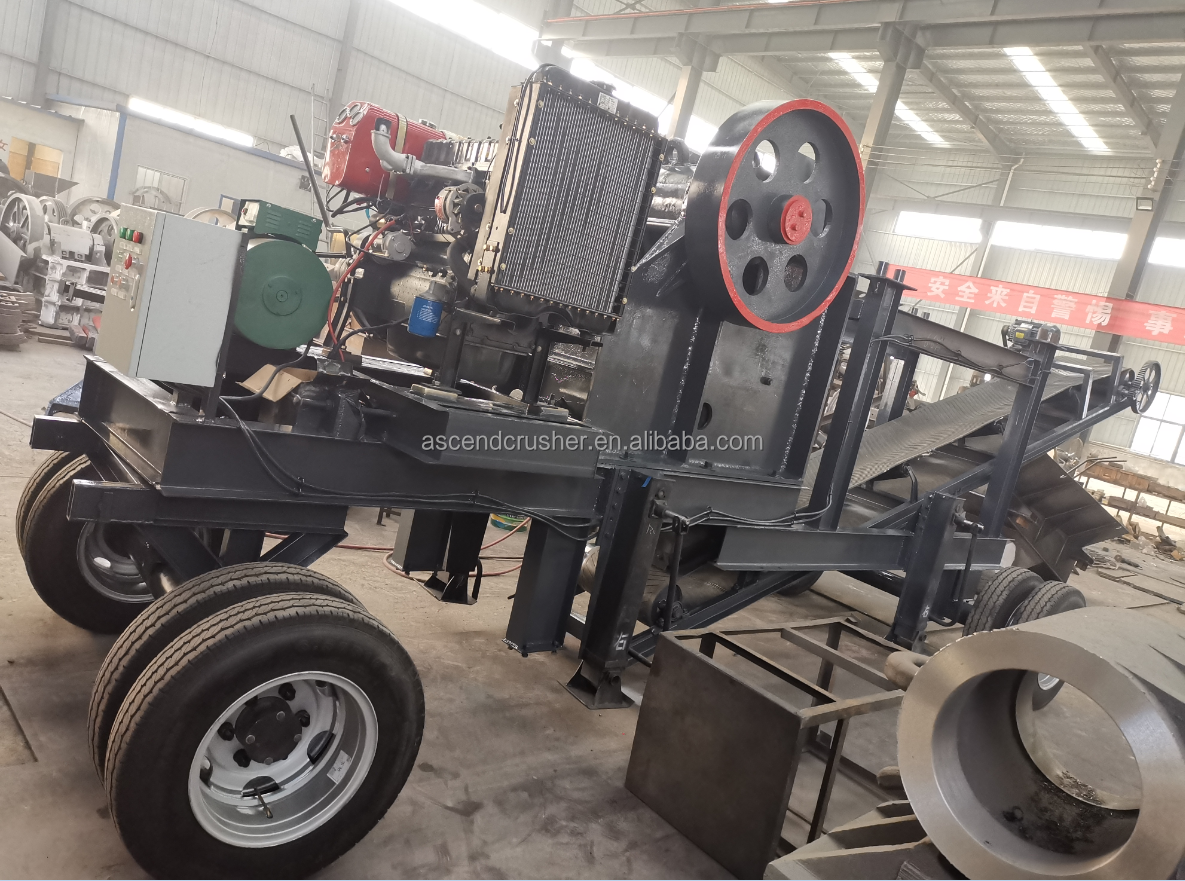

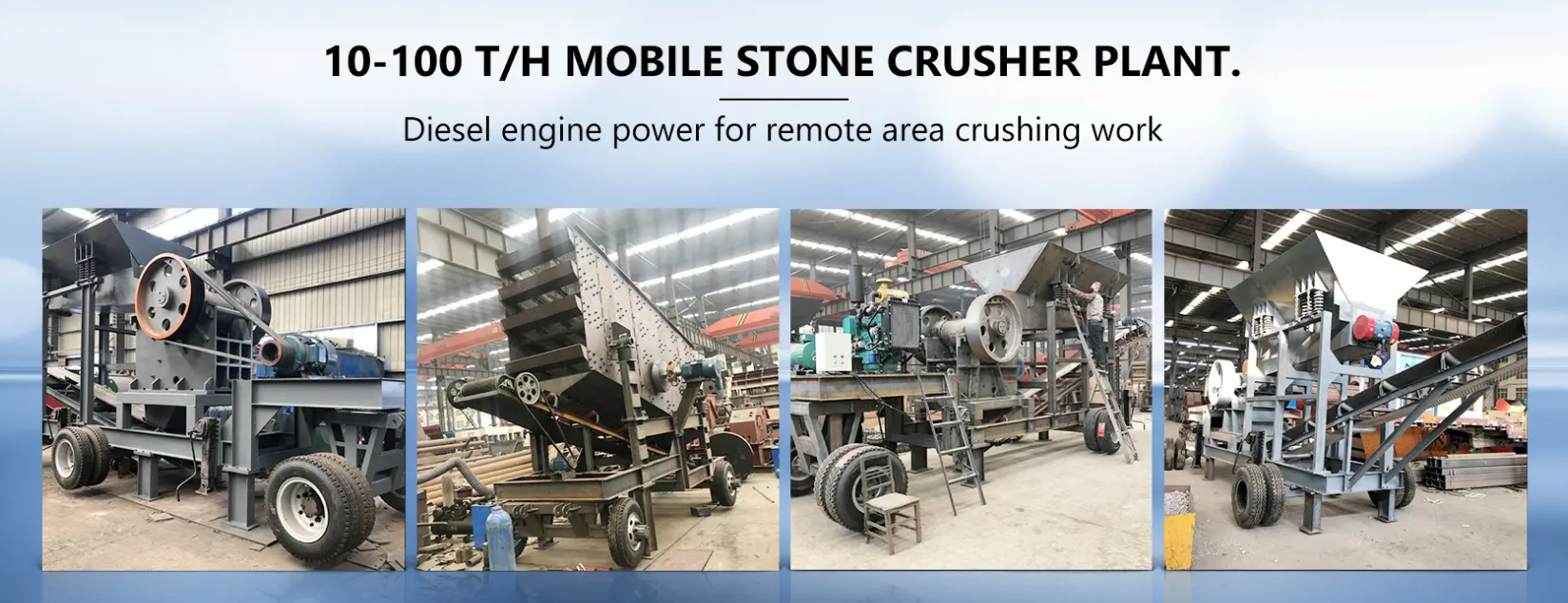

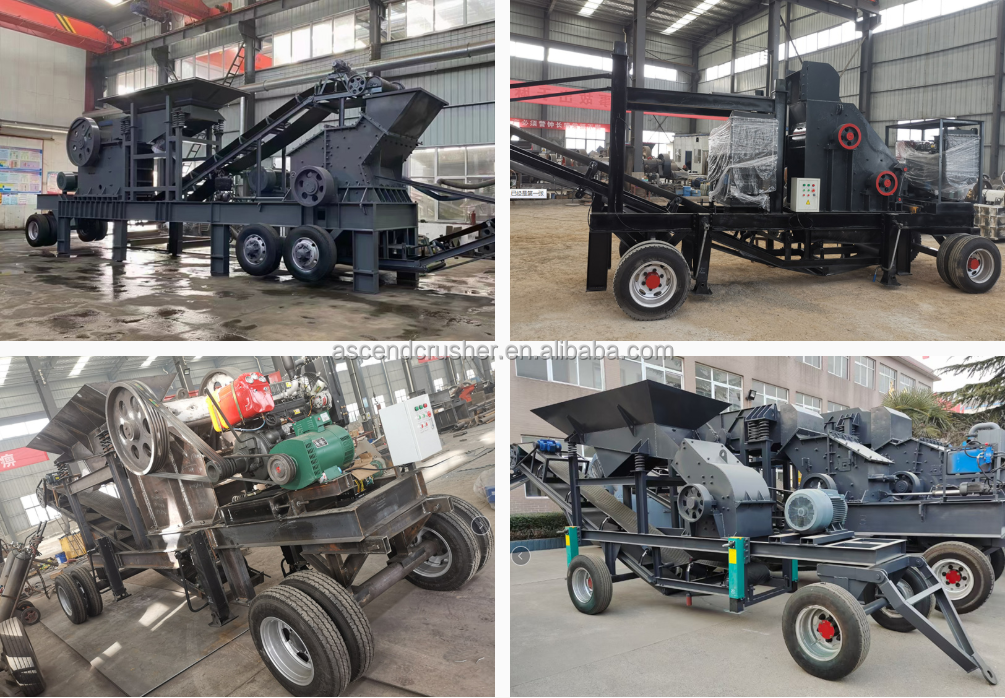

Product Image



Advantages of Mobile Crusher Pants.

1. Movable, powered by diesel engine in case of limited work site

2. Deep crushing cavity, no dead zone, increase feeding capacity and output

3. Large crushing ratio and uniform product size

4. Pad-type nested population adjustment device, easy to adjust the range

5. Simple and reliable structure, low operating cost

6. The output granularity of jaw crusher can be adjusted to meet the requirements of different users

7. Low noise and less dust

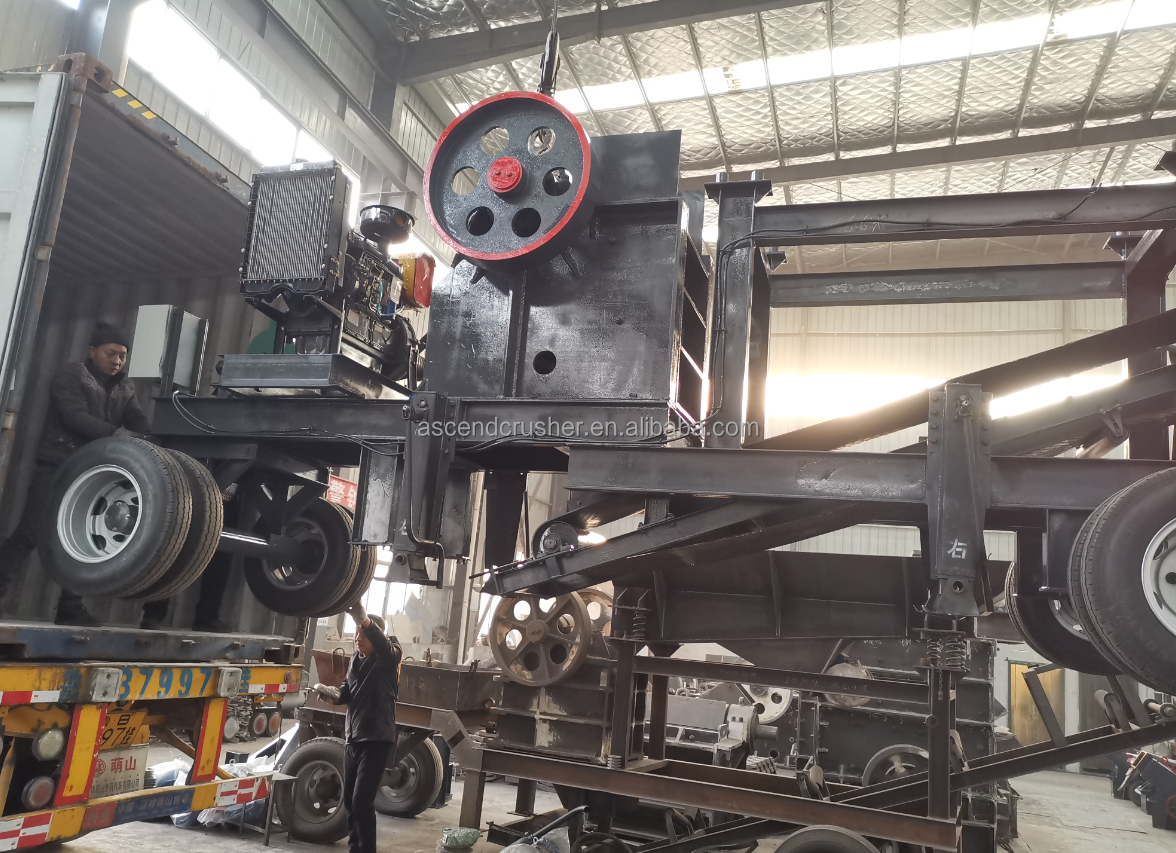

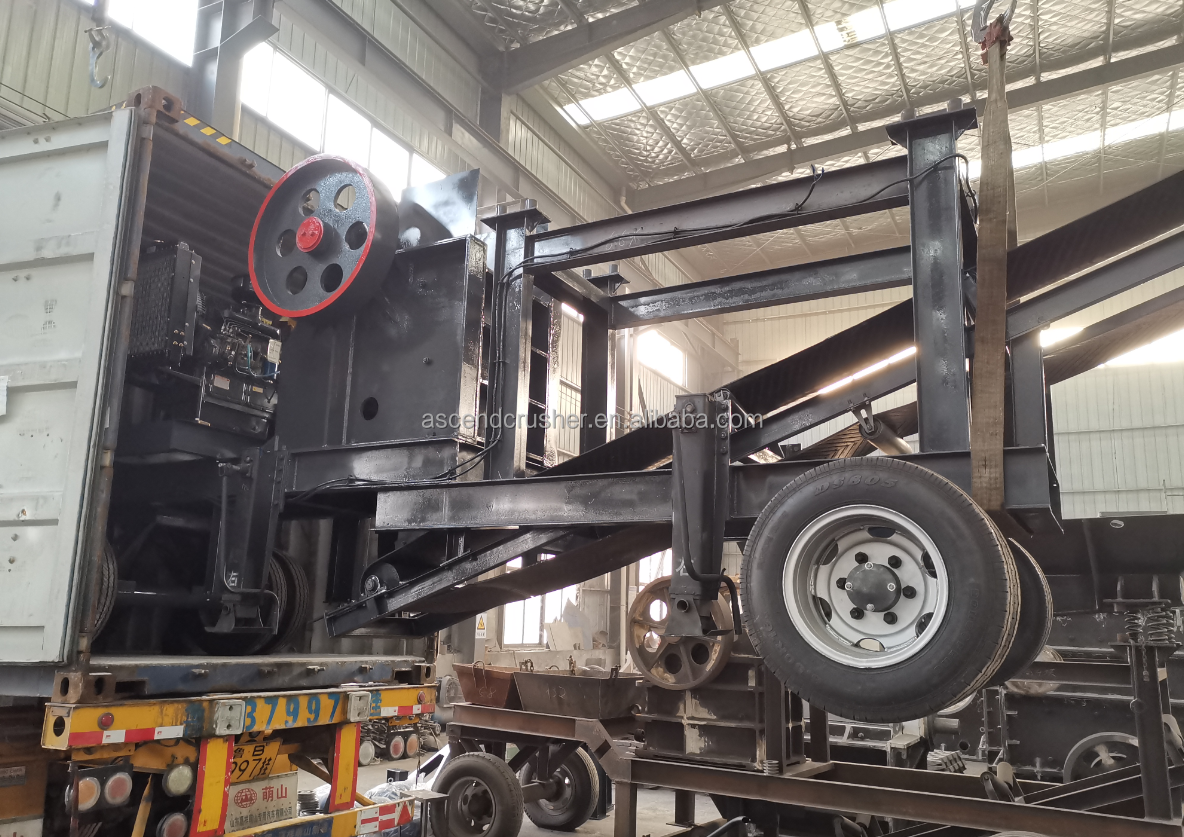

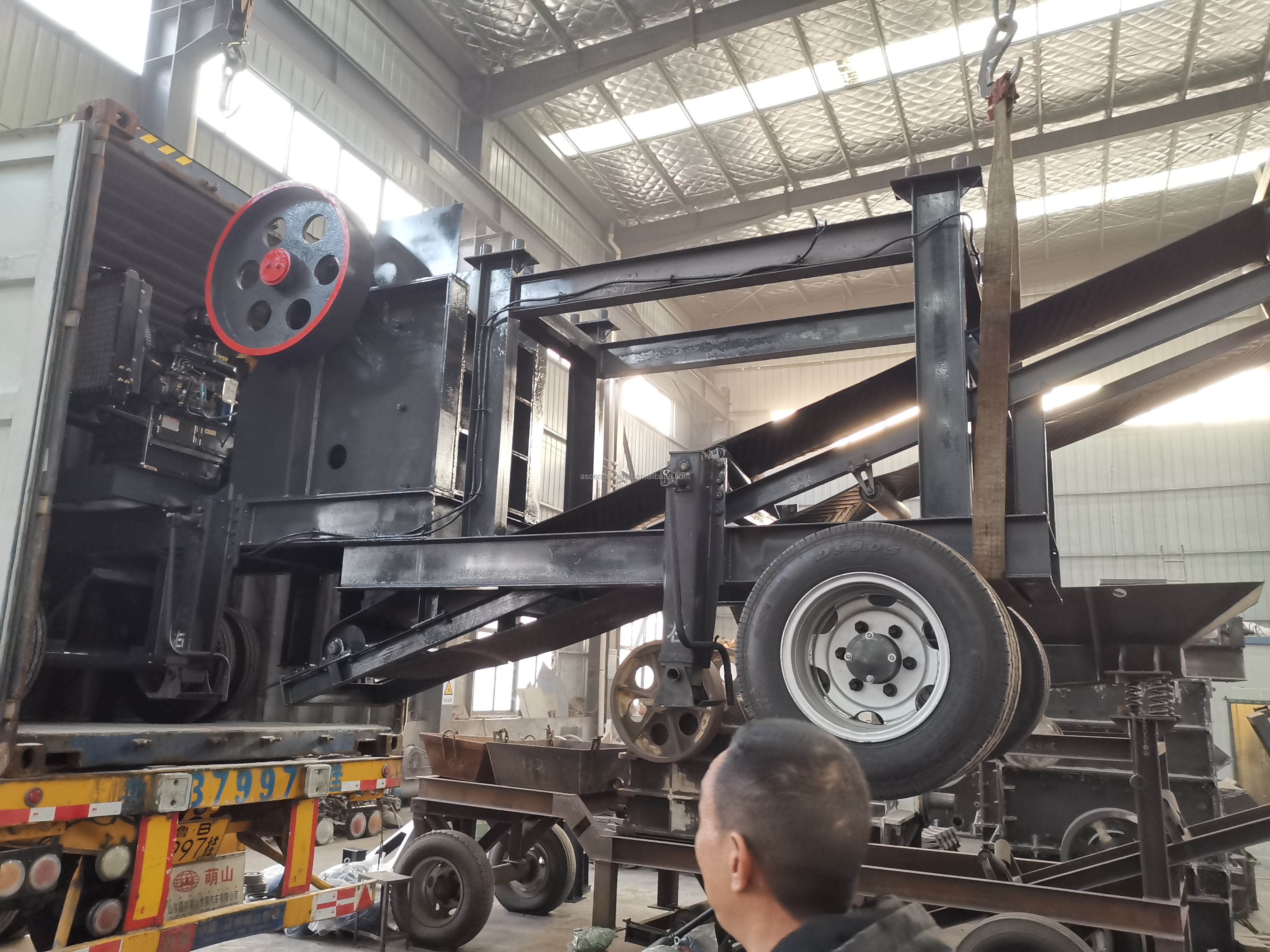

Packaging and Shipping

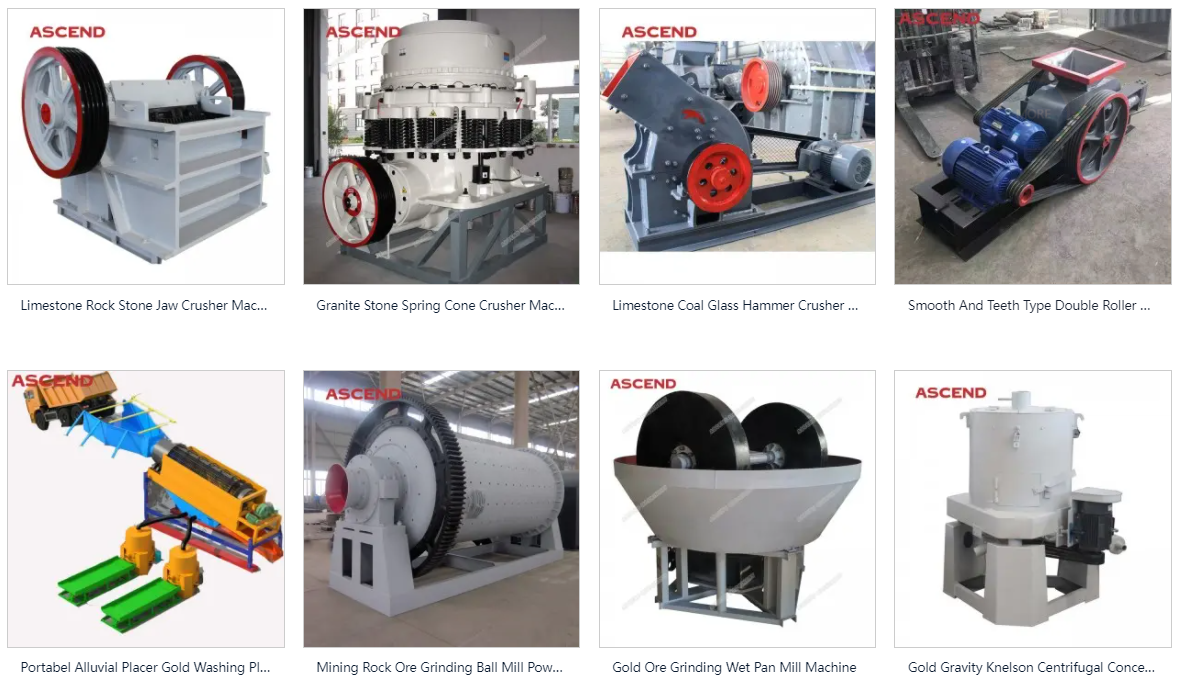

Machines we supply

1. Crushing equipment:Jaw crusher, impact crusher, cone crusher, hammer crusher, roller crusher, fine crusher, compound crusher, stone crushing production line, etc.

2. Mobile crushing station:Mobile jaw crusher, mobile impact crusher, mobile cone crusher, mobile VSI sand making equipment, etc.

3. Grinding equipment:Ball mill, rod mill, Raymond mill,Wet Disc Grinding, ETC.

4. Sand and gravel equipment:Sand making machine, VSI sand making equipment, bucket sand washing machine, spiral sand washing machine, etc.

5. Gold mine projects and solutions:Mobile trommel screen, tank leaching, heap leaching, gold ore gravity separation line, CIL/CIP, etc.

6. Mineral processing equipment:Spiral classifier, spiral chute, vibrating table, jig, centrifugal gold separator, leaching tank, magnetic separator, flotation machine, etc.
