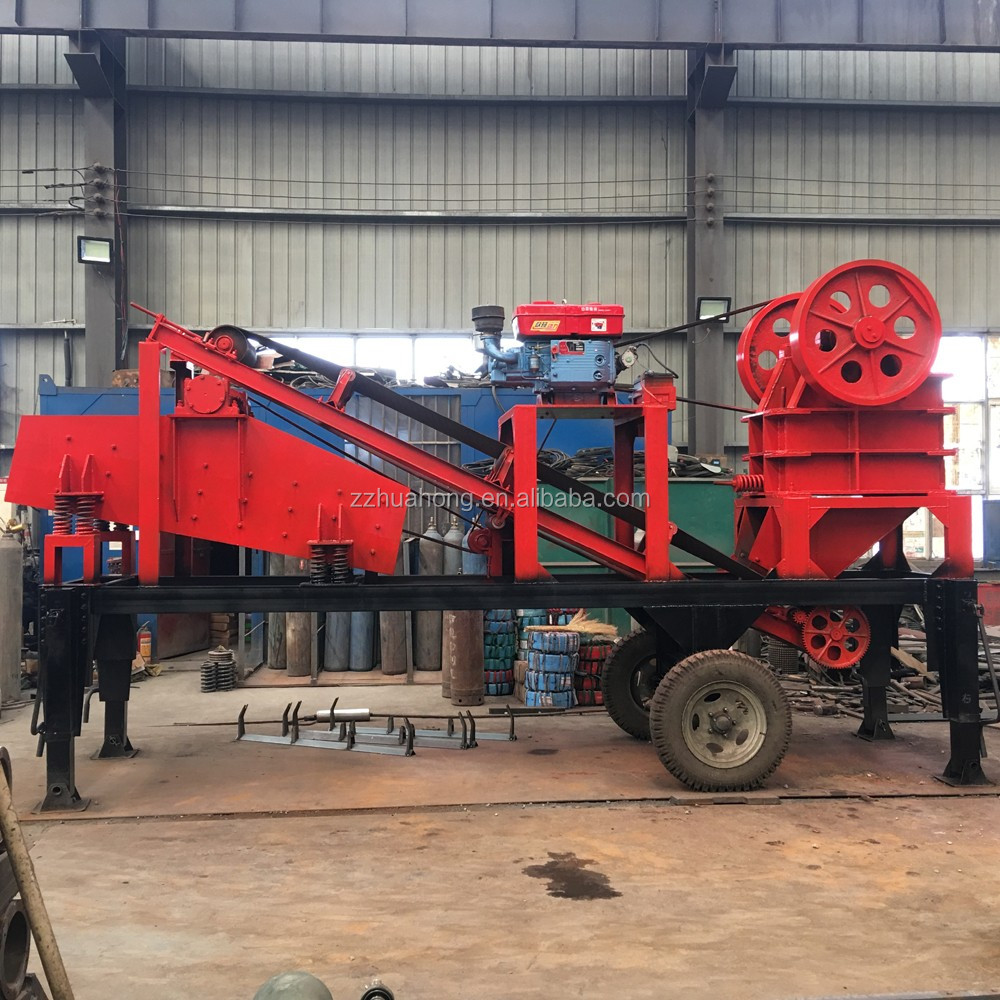

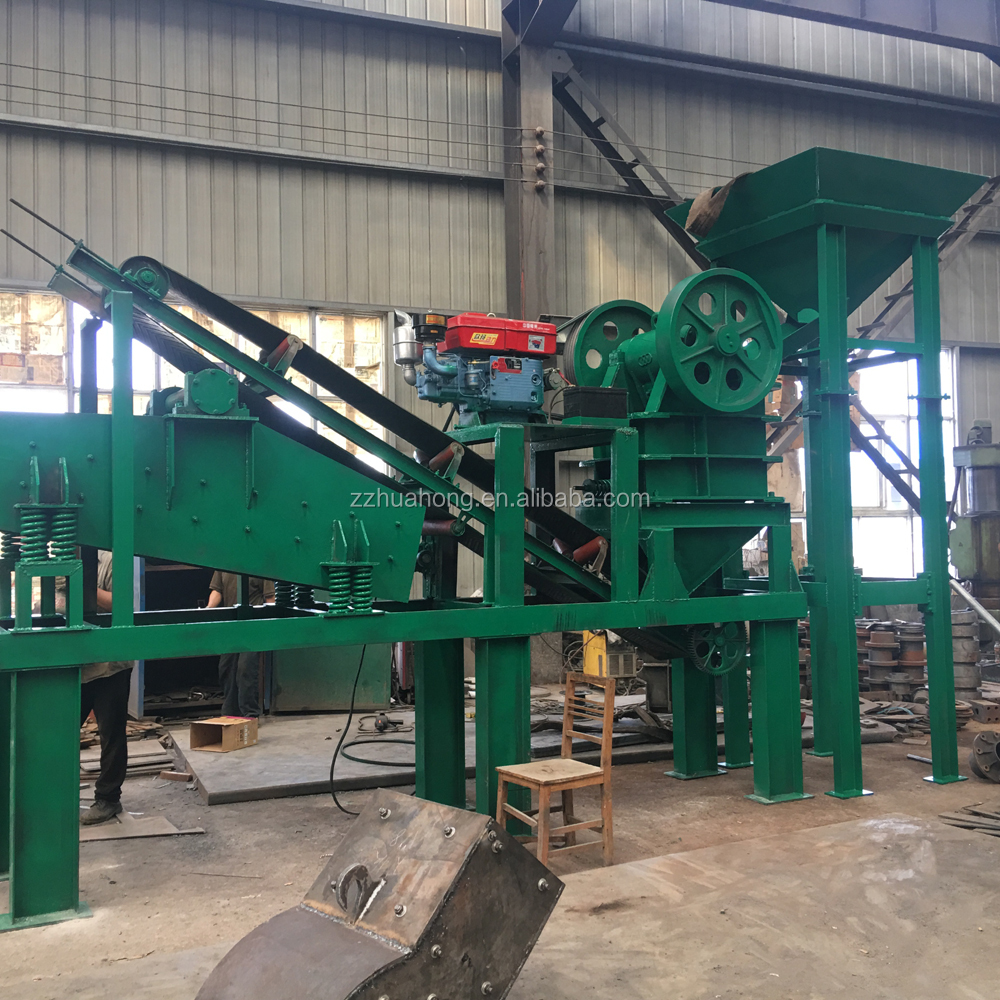

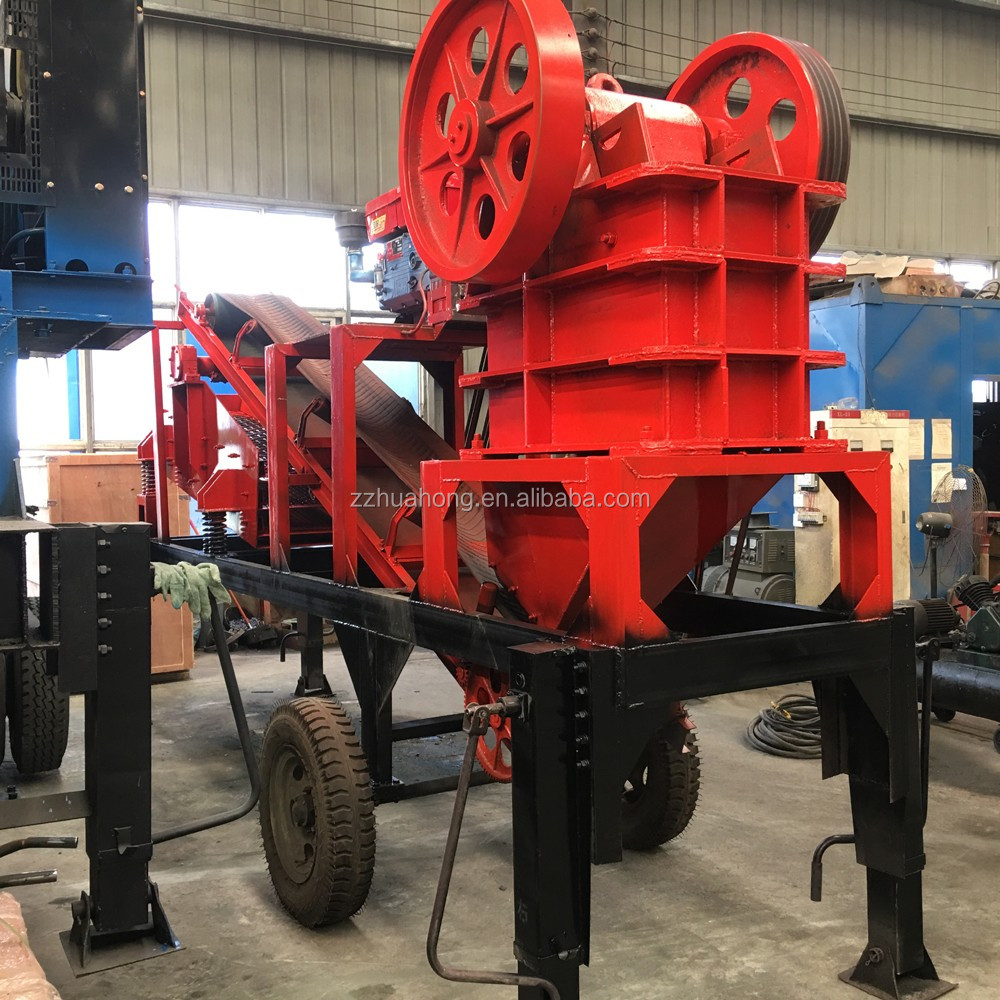

Jaw Crusher, Mobile Stone Crushing Plant, Stone Jaw Crusher
- $5000.00 /set
- 1 set
- Zhengzhou Huahong Machinery Equipment Co., Ltd.
- Henan, China
- Mr hong hua
| Showroom location: | not any | After-sales service provided: | Engineers available to service machinery overseas |
| Motor type: | AC motor | Mechanical test report: | if |
| Core component warranty: | 1 year | Capacity(t/h): | 5-20 |
| Certification: | International Organization for Standardization | application: | stone, ore, rock |
| Core components: | motor | Warranty: | one year |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash | Video shipment inspection: | if |
| visit the factory: | supply | place of origin; place of origin: | Henan, China |
| Marketing Type: | New Products 2020 | Packaging Details: | Wooden packing |
| Package preview: | Local service location: | not any | |
| port: | Shanghai Tianjin Qingdao | Dimensions (L*W*H): | 1300*1090*1270 |
| weight: | 2.8 tons | State of health: | new |
| Main selling points: | high productivity | Supply capacity: | 100 sets per month |
| brand: | Hua Hong | Types of: | Jaw Crusher |
| Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops, farms, home use, retail, construction, energy and mining |

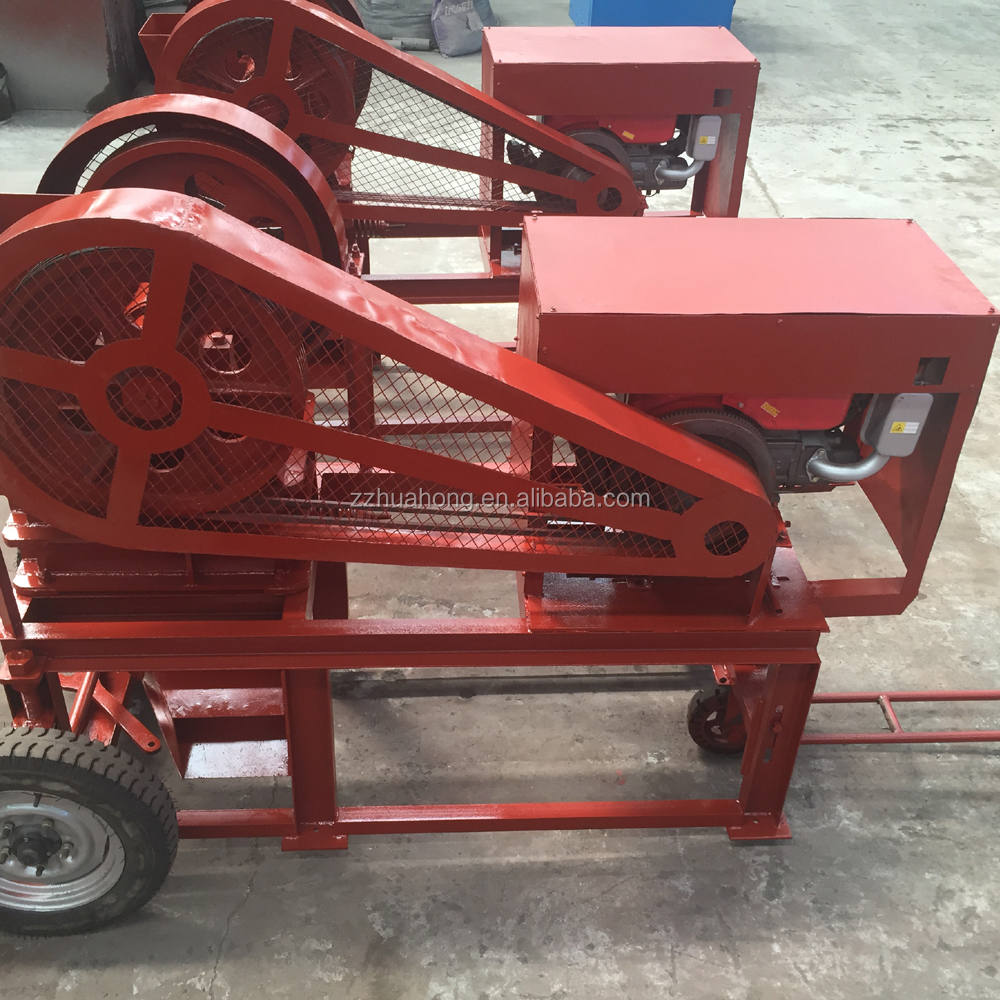

Jaw Crusher Diesel Engine, Stone Jaw Crusher, Jaw Crusher Structure

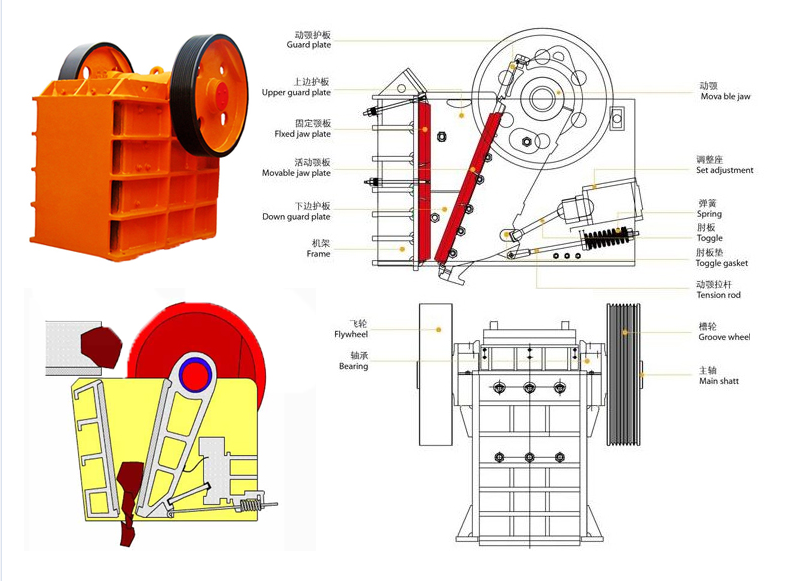

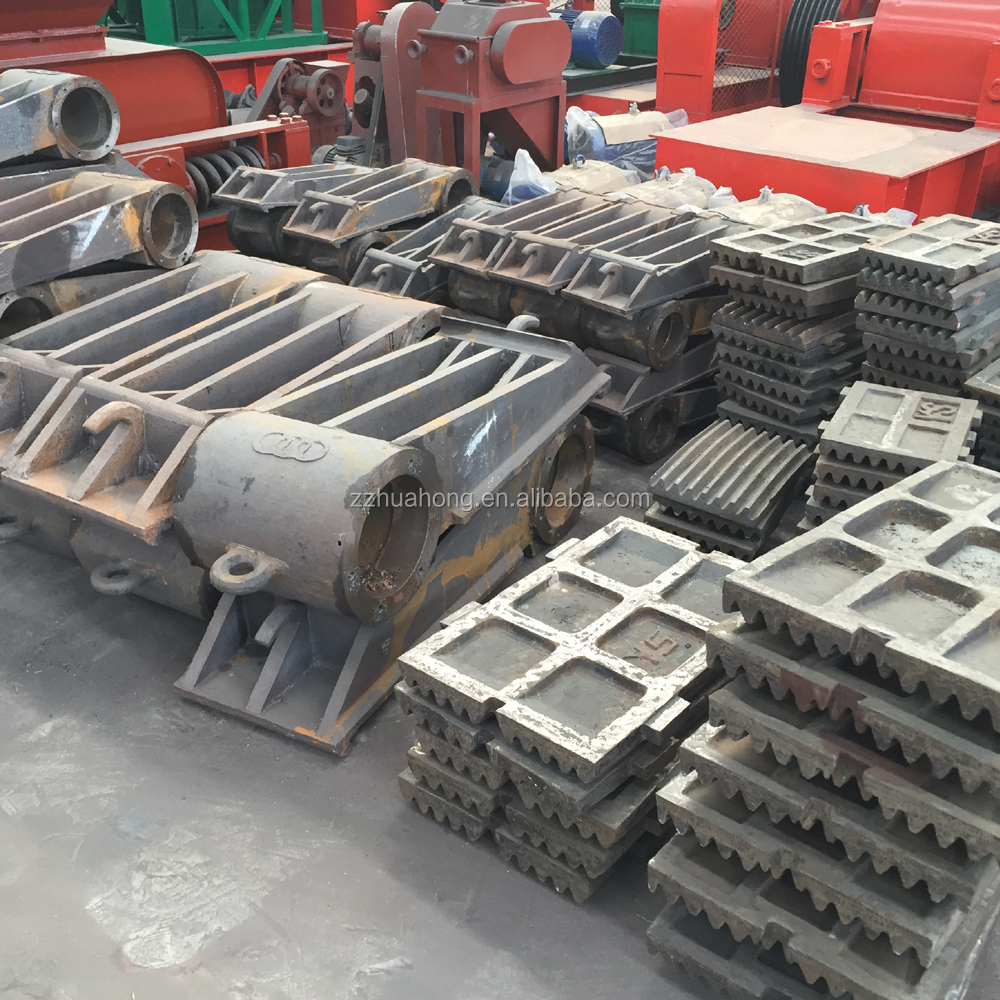

The small jaw crusher consists of a grooved wheel, a jaw plate, a frame, an eccentric shaft, a toggle plate, and a hydraulic adjustment system. Please look at the picture below, you can clearly see the structure of the jaw crusher.
Working Principle of Diesel Engine Jaw Crusher
The motor drives the V-belt and the pulley, and the movable jaw moves periodically through the eccentric shaft. When the angle between the toggle plate and the movable jaw increases, the movable jaw moves upward to the fixed jaw, and the materials are crushed during this process.
When the angle between the toggle plate and the movable jaw decreases, the movable jaw moves downward from the fixed jaw under the action of the pull rod and spring, and finally the crushed material is discharged from the discharge port. The movable jaw moves periodically with the movement of the eccentric shaft to continuously crush and discharge the materials entering the crushing cavity.
Advantages of diesel engine jaw crusher
1. Large reduction ratio
2. Uniform particle size
3. Simple structure
4. Reliable working conditions
5. Easy maintenance and economical operation
6. Widely used in mining, smelting, building materials, roads, railways, water conservancy projects
7. Chemicals and materials whose compressive strength does not exceed 320Mpa.
product date
| Model | Inlet size (mm) |
maximum feed Dimensions (mm) |
adjustable scope (mm) |
capacity (t/h) |
Eccentric shaft Rotating speed (rev/min) |
motor strength (kilowatt) |
total weight (t) |
Dimensions (L*W*H)(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 years old | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 years old | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 years old | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
