Factory Hot Selling Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

  • $149200.00 / 1 - 1 sets
    $148000.00 / >=2 sets
  • 1 set
  • Shanghai ZENITH mineral Co., Ltd.
  • Shanghai, China
  • Mr International Trade department
PRODUCT DETAIL
Warranty:1 yearpayment terms:L/C,D/P,T/T,MoneyGram,Cash
Main selling point:easy to operatearea:countries
Packaging Preview:Supply capacity:100 mobile jaw crushers per month 80t/h mobile diesel stone crusher
port:Shanghai PortVideo external inspection:if
Showroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australiatype:mobile crusher
Applicable industries:Building Materials Stores, Manufacturing Plants, Construction Engineering, Energy & Miningapplication:Mining, Metallurgy, Crushed Stone
Machine classification:100 ton mobile limestone crusher cost in ChinaMotor Type:AC motor
Dimensions (L*W*H):13800mmx3000mmx4500mmcolor:Iron gray
weight:25kgMaximum feed size:150-300mm
place of origin; place of origin:China ShanghaiMarketing Type:normal product
After-sales service provided:Engineers can repair machinery overseasPackaging Details:Mobile Jaw Crusher 80t/h Mobile Diesel Stone Crusher 1. Packaging requirements: Standard container 2. Inner packaging: PP-Bubble packaged product 3. Outer packaging: loading container, spare parts in wooden box 4. Storage requirements: waterproof , put on a flat ground
After-sale service:the whole timeCore Components Warranty:1 year
Health status:newOther keywords:China famous brand mobile diesel jaw crusher with screen
price:freeProject cases:free
brand:zenithCore components:PLC, pressure vessel, gear, motor, engine, bearing, gearbox, pump
Serve:24 hoursCapacity (tons/hour):Max.850t/h
Mechanical test report:if

Mobile Jaw Crusher 80t/h Mobile Diesel Crusher



Welcome to Shanghai Genelec Mining Co., Ltd.



Zenith is headquartered in Shanghai, China

Now we have two manufacturing bases as our strong support.

One is about 450,000 square meters in Shanghai,

The other is about 600,000 square meters in Qidong City.



        As a well-known manufacturer, ZENITH overseas markets cover 120 countries and regions.

The advantages of mobile crushers make them very popular:

Easy to move; Wide range of applications;

Reliable performance and easy maintenance;

Customized production, flexible configuration;



Product Description

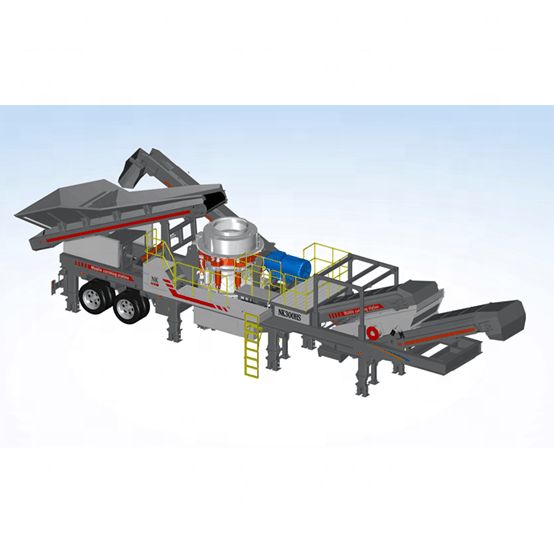

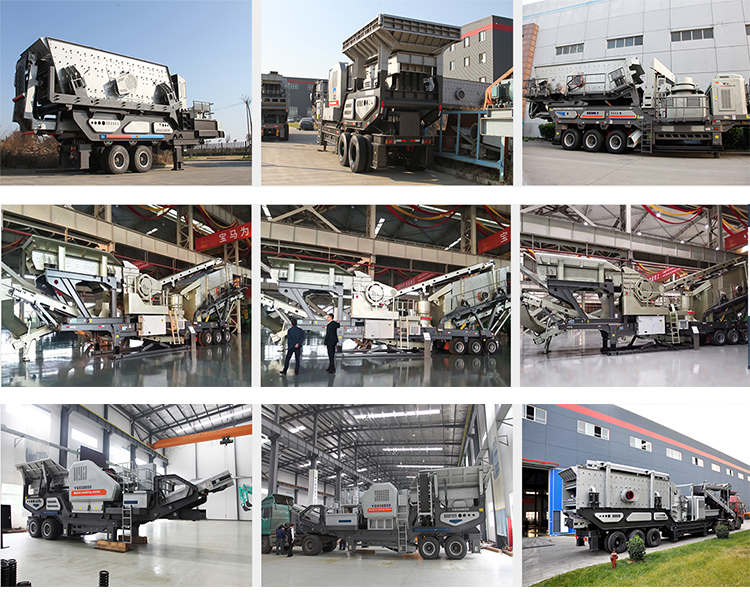

Introduction of mobile stone crusher

Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

  • Crusher Type: Mobile Crusher
  • Body: Two-axle and three-axle
  • Including machines: vibrating feeder, crusher, vibrating screen and belt conveyor. (customizable)
  • Application areas: contractors, quarry operators, recycling and mining applications, etc.
  • Processing Stage: Overall
  • Crushed materials: construction waste, various stones and ores such as stone, basalt, granite, marble, limestone, quartz, pebbles, iron ore, copper ore, and some other minerals and rocks.
  • Capacity: 1-1000t/h (can be customized mobile jaw crusher 80t/h mobile diesel stone crusher







We can providewhole mobile crushing plant,



  • Mobile jaw crusher equipment is equipped with vibrating feeder, jaw crusher and vibrating screen based on a certain crushing stage.
  • The mobile cone crusher is equipped with vibrating feeder, CS cone crusher and vibrating screen on the basis of a certain crushing stage.
  • Mobile impact crusher equipment is based on a specific crushing stage, equipped with vibrating feeder, impact crusher and vibrating screen Mobile jaw crusher 80t/h mobile diesel rock crusher


Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

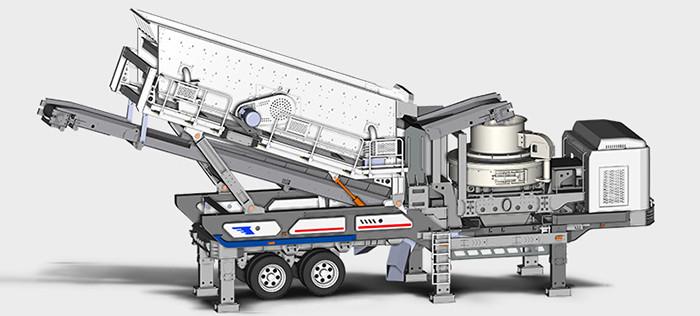

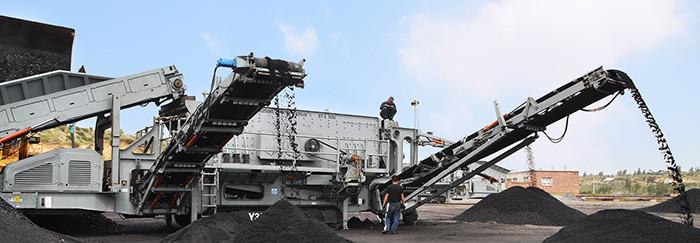

Technical advantages and convenient transportation



  •  The mobile crushing plant is specially designed for road transportation, especially suitable for driving to the inaccessible crushing site, which greatly reduces the installation time compared with the fixed crushing plant.
  •   Wide range of application: according to the requirements of different customers, it can be operated as an independent unit, or it can be used as a secondary crushing equipment for primary, secondary crushing or three-stage crushing equipment for primary, secondary and tertiary crushing operations
  • Belt Conveyors: Belt conveyors can be hydraulically adjusted to meet various requirements.
  • Integrated hydraulic system: The biggest advantage is that when the factory arrives at the quarry, it can be installed and commissioned immediately without additional cranes.
  • Greatly reduce the cost of material transportation: Y series portable crushing station crushes materials on-site, without the need to transport materials for off-site crushing, which greatly reduces the cost of material transportation.



Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

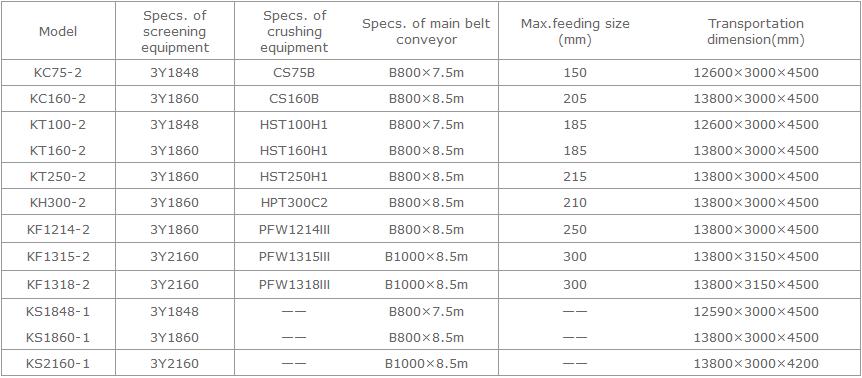

Mobile stone crusher stone crusher parameters



We can supply any of the following models of machines, please contact us for a price.

Get quotes and more info >>>> WhatsApp/WeChat: 86 15803820351



Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

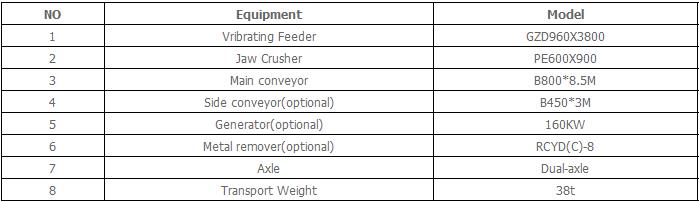

Model LD-PE600x900 LD-PE750x1060 LD-PEW860
feeder GZD-960x3800 GZD-960x3800 GZD-1100x3800
Jaw Crusher PE600x900 PE750x1060 PEW860
main conveyor B800x8.5M B1000x9 meters B1000x9 meters
Main conveyor height (mm) 3200 3500 3600
Side conveyor (optional) B450x3 meters B500x3.5M B500x3.5M
Side conveyor height (mm) 2800 3100 3100
Generator (kW) 180 250 300
Shipping Length(mm) 11800 13500 13500
Transport width(mm) 2900 3200 3200
Transport height (mm) 3660 4120 4150
Gross weight (tons) 40 60 63

Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

Certification



Our machines are patented and CE&ISO certified.



Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

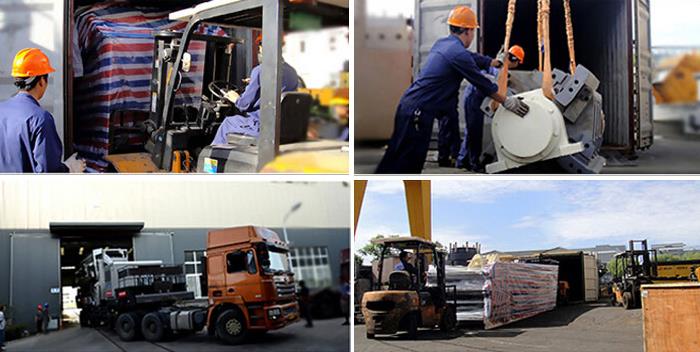

Packaging and Shipping



Packaging Details:

  • Packaging Requirements: Standard Containers
  • Inner packing: PP-Bubble wrapped product
  • Outer packaging: loading container, spare parts in wooden case
  • Storage Requirements: Waterproof, lay flat

transportation:

  • These machines are rust-proof and moisture-proof before leaving the factory.
  • The mainframe is bare, while the small spares and motors are packed in wooden boxes.
  • All machines are in bulk or in containers, details will be negotiated by both parties.

Mobile Jaw Crusher 80t/h Mobile Diesel Crusher

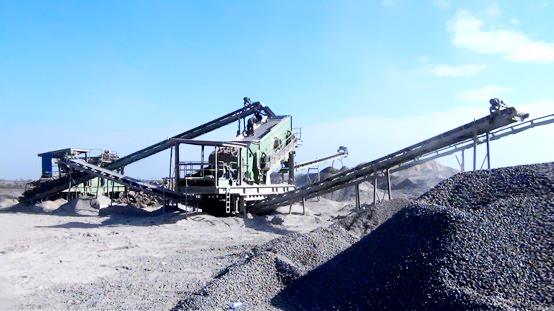

Engineering case



Engineering case

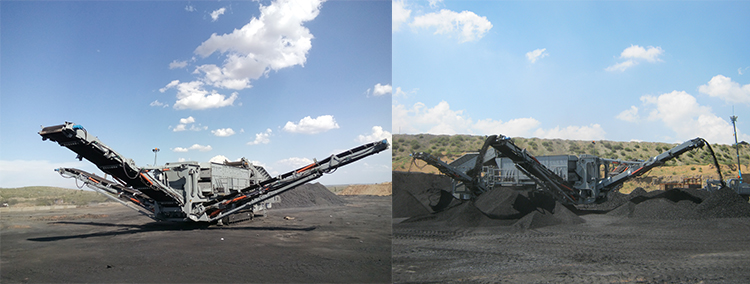

Kenya 100 TPH mobile stone production line:


Material: Basalt

Feed size: 500mm

Output size requirements: 0-5mm, 5-20mm, 20-40mm
Capacity: about 100TPH mobile jaw crusher 80t/h mobile diesel stone crusher







Configuration of mobile crushing station:



Host: Mobile Crusher YF938J69:



Mobile Jaw Crusher 80t/h Mobile Diesel Crusher
