Mining industry 120 tph stone crushing machine modular crusher price

PRODUCT DETAIL
Showroom Location:Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Thailand,Kenya,Argentina,Chile,Colombia,Sri Lanka,South Africa,Kazakhstan,Uzbekistan,Malaysia;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining,Road;
Dimension(L*W*H):2520*1840*2303;Place of Origin:Shanghai, China;
Warranty:1 Year;Maximum feeding size:500mm;
Machinery Test Report:Provided;Application:mining;road;aggregate;concrete;
Product name:modular crusher;Payment Terms:L/C,D/P,T/T,MoneyGram,cash;
Speed (r/min):250;Package Preview:;
Marketing Type:New Product 2020;Motor Type:AC Motor;
Key Selling Points:High Productivity;Capacity(t/h):Max.350t/h;
Core Components:PLC,Pressure vessel,Gear,Motor,Engine,Bearing,Gearbox,Pump;Range of discharge opening:65-160mm;
Model:120 tph stone crusher price;Material:Granite, marble, basalt, limestone;
Supply Ability:30 Sets per Month 120 tph stone crushing machine;Port:Shanghai;
Type:Jaw Crusher;Weight:10 KG;
After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Local Service Location:Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Thailand,Malaysia,Kenya,Chile,Colombia,Sri Lanka,South Africa,Kazakhstan,Nigeria,Uzbekistan;
Packaging Detail:Standard container for 120 tph stone crushing machine;Input Size:0-1020mm;
Condition:New;Spare parts supply:Anytime;
Brand Name:ZENITH;Keyword:stone crushing machine;
Certification:ISO9001:2000;CE;CQC;Color:Grey;
Warranty of core components:1 Year;Video outgoing-inspection:Provided;

Mining industry 120 tph stone crushing machine modular crusher price







ZENITH has helped over 50 Philippine partners with their business in processing river stone, basalt, limestone, vibro sand, copper and gold ore in Luzon, Visayas and Mindanao.


Most of our crushing plants in Philippines are around 100-500t/h. A crushing plant can produce cubic aggregates within 0-5-10-20-31mm simultaneously.
ZENITH has an office in Manila, where our engineers can provide customers nearby a solution within 24 hours.
At present, we are building a spare parts warehouse in Philippines which will cut down costs greatly possibly caused by downtime.



Click to know more about stone crusher price>>>







Product Description







120 tph stone crushing machine modular crusher


As a classic primary crusher with stable performances, PE Jaw Crusher is widely used to crush metallic and non-metallic ores as well as building aggregates or to make artificial sand.



Product Features: Inheritance of century-old classics, simple structure, stable working performances

Input Size: 0-1020mm
Capacity: 45-800TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore





120 tph stone crushing machine modular crusher introduction:



+

Classic Inheritance, Simplicity & Reliability


Since the end of 19th century, jaw crusher has been used in ore crushing and aggregate processing industries for more than a hundred years. ZENITH’s PE Jaw Crusher is developed based on century-old accumulations. So, performances of PE Jaw Crusher is totally reliable.

"Power Failure" Safety Device Effectively Responds To Overload


When materials which cannot be crushed fall into the jaw crusher and the load of crushing machine exceeds the normal level, the elbow plate designed by ZENITH can realize automatic fracturing and then stop the jaw crusher, thus avoiding the damage of the entire machine and guaranteeing the production safety.

 Shorter Downtime &Longer Service Life - Super-Strong High-Manganese Steel Casting


Allowing for the operating conditions of jaw crushers are relatively severe and the quick-wear parts may be consumed rapidly, ZENITH thought deeply in selecting materials for core parts, and adopted high-quality high-manganese steel casting which is most recognized in the world at present. This casting greatly extends the service life of core parts and effectively avoids too many shutdowns and maintenance tasks.

Precise Processing, Craftsmanship Spirit


Even though the structure of PE Jaw Crusher is relatively simple, all processing procedures require precise processing, for example: only precise machining, heat treatment and flaw inspection can guarantee the eccentric shaft to possess sufficient strength and rigidity; only precise blanking can guarantee the weights and structures of flywheel and grooved wheel to enhance the operating balance of the jaw crusher. For this purpose, ZENITH formulates strict quality inspection procedures and uses advanced machining equipment to deliver perfect jaw crushers.

Various Models To Satisfy More Demands


Through 30 years of development, ZENITH, according to market demands, has developed PE Jaw Crushers with different models, basically meeting all kinds of crushing demands for the production scale.

Sufficient Supply Of Spare Parts, Worry-Free Operation


ZENITH, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.





120 tph stone crushing machine modular crusher working principle:



The PE Jaw Crusher is powered by the motor. Through the motor pulley, the eccentric shaft is driven by the V-belt and the sheave, so that the movable jaw reciprocates along the predetermined tracks to crush materials inside the crushing cavity. Materials, after being processed and reaching the standard, would be discharged from the lower discharge opening.









120 tph stone crushing machine modular crusher photos:







120 tph stone crushing machine modular crusher parameters:



+
Model Feed opening (mm) Maximum feeding size (mm) Range of discharge opening (mm) Capacity (t/h) Speed (r/min) Power (kw) Overall dimension (mm)
PE500×750 500×750 425 50-100 45-100 275 55 1890×1916×1870
PE600×900 600×900 500 65-160 70-120 250 75 2520×1840×2303
PE750×1060 750×1060 630 80-140 130-260 250 90 2620×2302×3110
PE900×1200 900×1200 750 95-165 220-380 200 130 3789×2826×3025
PE1000×1200 1000×1200 850 195-265 230-380 200 130 3889×2826×3025
PE1200×1500 1200×1500 1020 150-300 400-800 220 200 4930×3150×3700

Note:

1.The bulk specific weight is calculated by 1.6t/m³. When the width of the feeding port is above 600mm, it is a large-scale machine while when the width ranges from 300 to 600mm, it is a medium-sized machine.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that ZENITH may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, Z keeps the right to explain all data involved in this website.

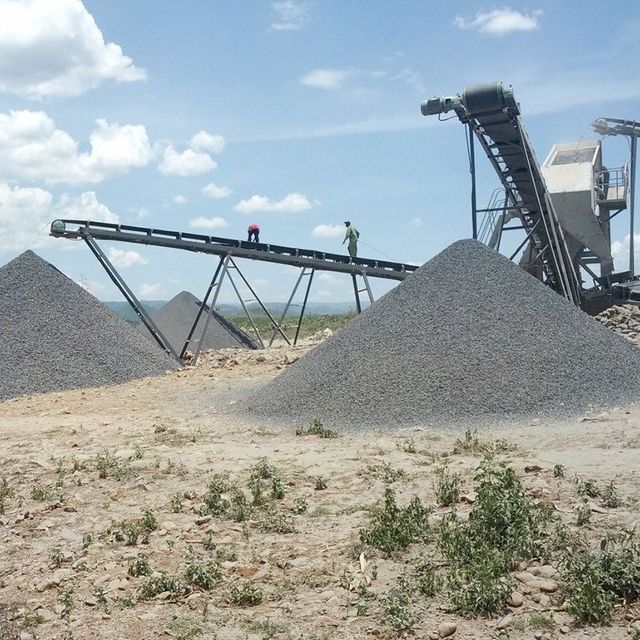

Customer Case

Project Background:

Raw Material: Kenya Phonolite

Location:Isiolo

Capacity: 100-120TPH (8 hours per day)

Input sizes: 0-500mm

Final output sizes: 0-6mm, 6-10mm, 10-14mm, 14-20mm.

Installation Time: Jun, 2016

Foundation Type: Steel Structure Foundation



Customer Feedback:

“My friend introduced me to ZENITH. With their professional advice, I start to prepare the land, license and look for partner. I place the order even without visiting their China factory as they have local office here and a lot of customers in Kenya. Against the inspection opportunity, I visited their headquarters and factory in Shanghai and was quite impressed on their strength. I am very happy I choose the right company to work together and I catch the early developing train in my hometown.’’



Our Service
+

Pre-sales Service:

The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.



After-sales Service:

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of Zenith, they are now strategically located home and abroad, working for our customers.

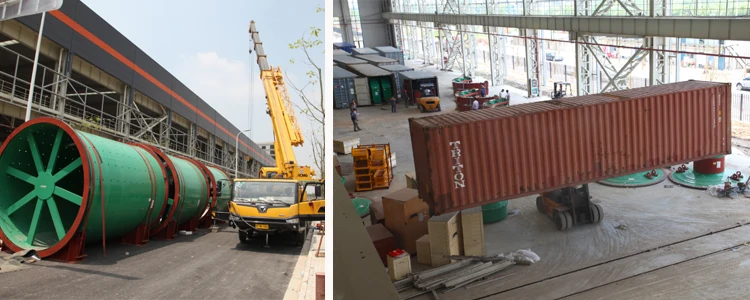

Packaging & Shipping



Ways of Packing:

1.Sand blasting, coat with high quality paint;

2.Product wrap by PP-Bubble

3.Load container, Spear Parts in wooden case.







Transportation:



1. By sea Freight;

2. MSK/MSC/APL/EMC/WANHAI/KLINE

3. We will remind you before boat arrival
