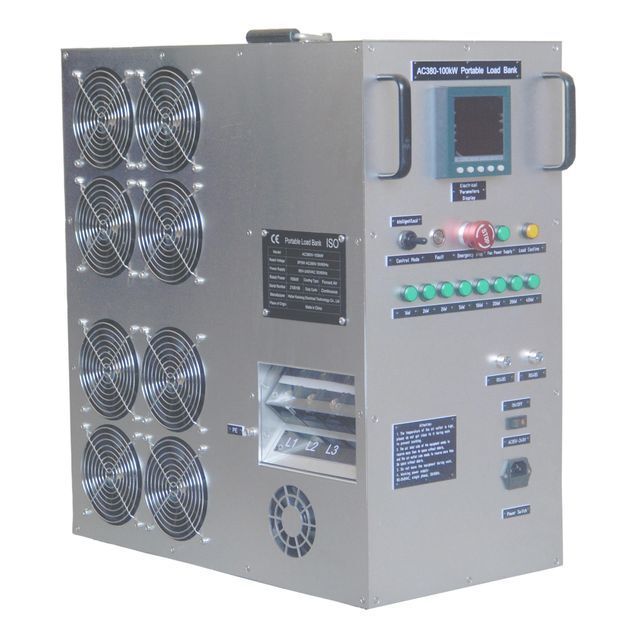

100KW Portable Load Bank For UPS Testing
- $2500.00 /set
- 1 set
- Hebei Kaixiang Electrical Technology Co., Ltd
- Hebei, China
- Mr Bruce Lee
Supply Ability: | 15 Sets per Month; | Port: | Xingang,Tianjin; |
Customized support: | OEM,ODM,OBM; | Packaging Detail: | Wooden Case; |
Weight: | 35kg; | Rated Voltage: | 400V 3phase 50HZ/60HZ; |
Cooling Type: | Horizontal inlet air and horizontal outlet air; | Payment Terms: | L/C,Western Union,T/T; |
Use: | Generator,UPS,battery; | Cooling: | Forced air cooling by industrial fan, low noise; |
Min Load Step: | 1KW; | Place of Origin: | Hebei, China; |
Load Steps: | 1,2,2,5,10,20,20,40kW; | Warranty: | 1 year; |
Dimension: | 540mm*292mm*604mm; | Power: | Electronic; |
Model Number: | AC400-100KW; | Rated Load Power: | 100KW; |
Load Tolerance: | ±1%; | Brand Name: | Triumph Load; |
Compact and Lightweight design that is ideal for moving from job site to job site or within your facility.
Introduction
It offers the most robust, high-capacity designs in the industry. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. It is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.
Main features
1. Multiple control mode: (1) manual panel control (2) remote control (3)software control
2. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc.
3. Multiple protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
4. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.
5. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
6. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
7. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
8. Integrated & modularization design: compact structure, easy to installation, maintenance and transportation.
9. Software control: it can test and display voltage, current, frequency, power factor, active power, reactive power, apparent power etc, the test result can be store & print and form all kinds of curve, chart and test report.
Technical Paramters
AC400-100kW Portable Load Bank |
|
Rating Voltage/Frequency |
400VAC 3 phase 4 wire, 50HZ/60HZ Compatible voltage: 415VAC 3 phase 4 wire, 50HZ/60HZ |
Rated Power |
Resistive load: 100kW |
Load Step |
1,2,2,5,10,20,20,40kW, min step load: 1kW |
PF(Power Factor) |
1 |
Load Tolerance |
±1% |
Display Precision |
0.5 class |
Control Power |
External 85~240VAC/50~60Hz/1kW |
Wire Connection |
Load power supply input——Copper bar (star coupling “Y”) Control power supply input——3core power plug |
Insulation |
F |
Duty cycle |
Continuous |
Transportation |
Hoisting, there are lifting lugs on top |
Dimension |
About 540mm×292mm×604mm |
Weight |
About 35kgs |
Operating Environment Parameter |
|
Workplace |
Indoor |
Ambient Temperature |
-20℃~+50℃ |
Relative Humidity |
≤95% |
Altitude |
≤2500 meter |
Atmospheric Pressure |
86~106kPa |
Brands of Main Components |
|
Contactor |
Schneider |
Fuse |
Miro |
PLC |
Siemens |
Data processing software |
Kaixiang(self-developed) |
Alloy Resistance |
Kaixiang(self-developed) |
The application of load bank
A load bank is an electrical apparatus used to verify the performance of an electrical power source. The most common application for the equipment is to provide an exercise "load" for standby emergency generators. These emergency generators are typically installed at hospitals, hotels, office buildings, skyscrapers, water treatment facilities, data centers, large retail facilities, and other such sites. The load banks provide a precise and stable electrical load for the generators. The electrical load created by load banks allow verification of the performance of the generator on a scheduled maintenance interval. Many other applications for load banks exist other than standby generator testing. The generator manufacturers require load banks for research and design programs as well as production testing. The military utilizes load banks in various applications such as testing of power supplies and generators for aircraft, frequency convertors, submarines, and missile defense systems. Computer and network Uninterruptible Power Supplies (UPS) also require load bank testing of both the inverter and battery inputs.

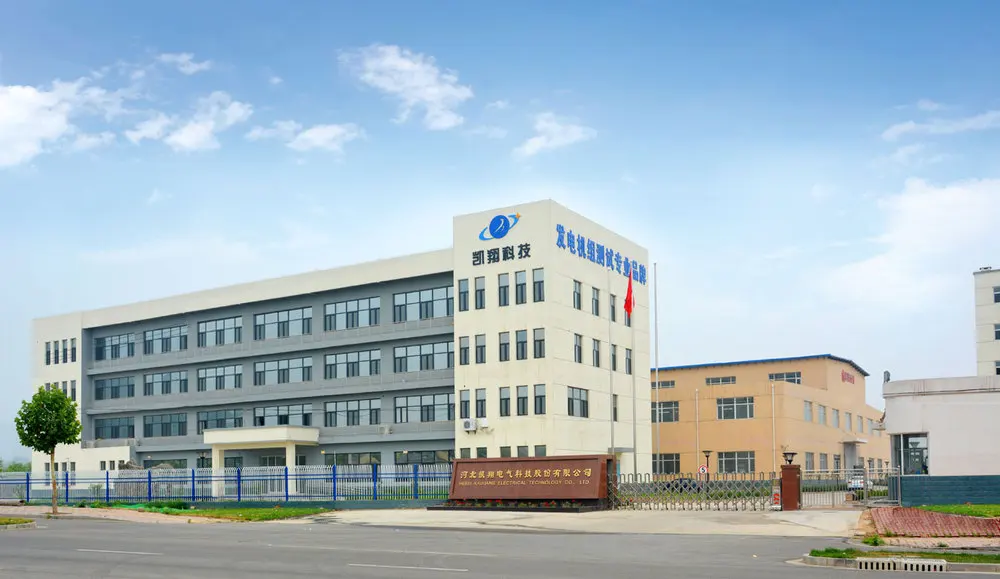

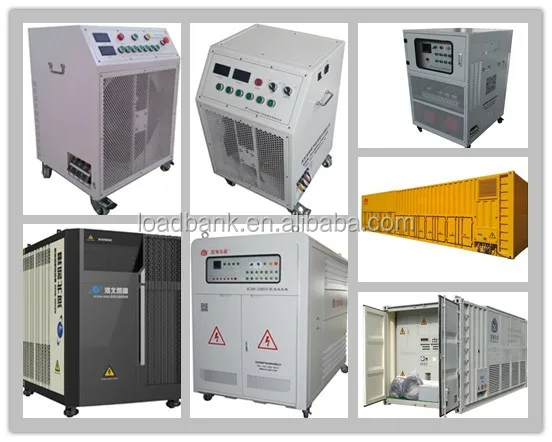

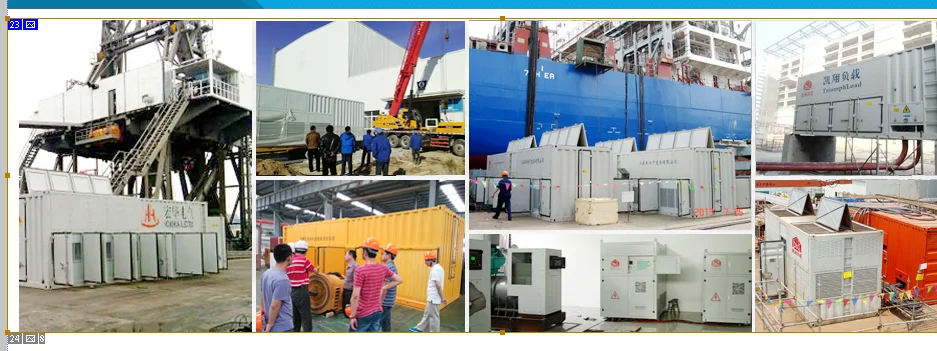

Hebei Kaixiang Electrical Technology Co., Ltd is a leader in emergency power supply test & maintenance industry. Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the largest intelligent power supply testing equipment R & D centre in China. We offer one-stop solutions to generator set & battery & UPS power manufacturers. Our products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway, war industry etc filed. We are strategy partner of many famous company, such as Cummins, Caterpillar, Kohler, Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of our products have been exported to Singapore, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Angola etc. Through years of development, “Triumph Load” already first brand in power supply detection industry in China.
1. Professional technical team with more than 20 years design experience.
2. Customized technical solutions meet customer’s individual requirements.
3. Skilled workman insure the reliable assembly technology.
4. Strict inspection procedures throughout the whole production flow.
5. Prompt delivery & custom clearance make sure the customers receive the goods on time.
6. Perfect after sales service create good user experience.
7. Reliable quality & competitive price help customers to maximize profits.
8. Timely feedback save valued time for the customer.
9. Humanized management system build homelike work atmosphere.
10. Continuous devote to public welfare undertakings strive for harmonious society.
