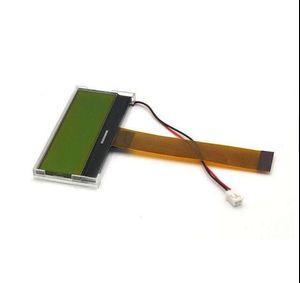

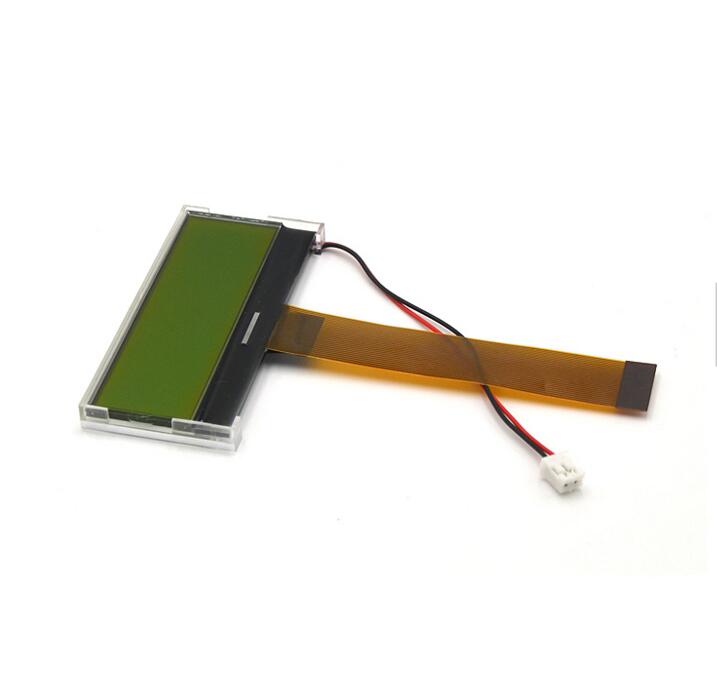

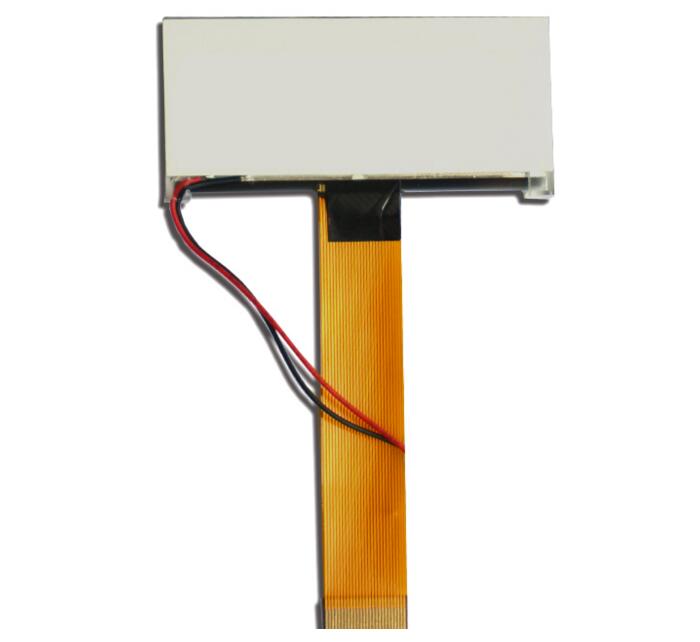

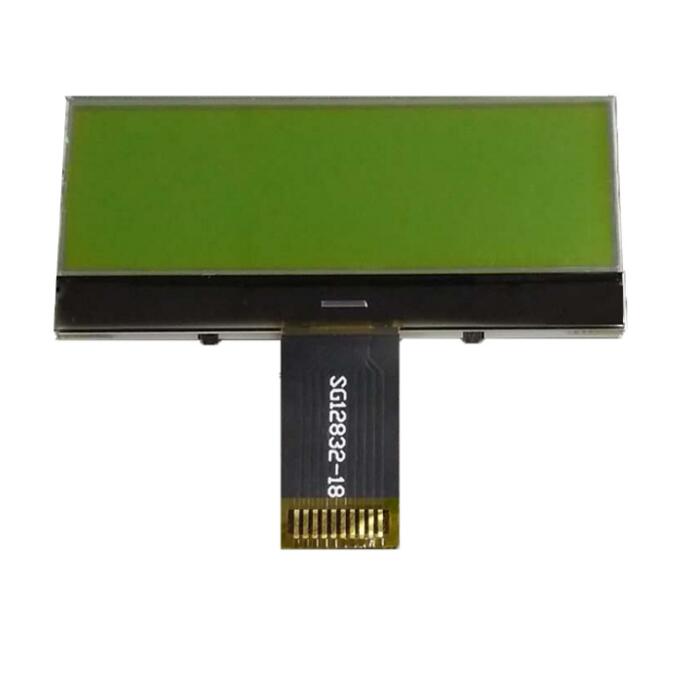

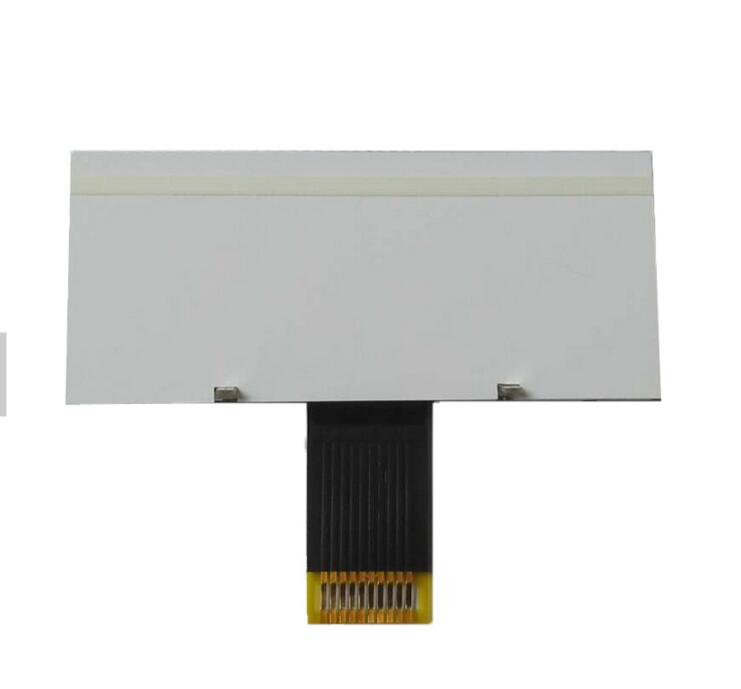

128x32 COG FSTN transflective front view LCD module with ST7567 SPI MCU interface white LED backlight
- $2.50 /piece
- 1 piece
- Dongguan Chang'an Changyou Electronic Factory
- Guangdong, China
- Mr Bill Tang
PRODUCT DETAIL
| Place of origin: | Guangdong, China | Packaging details: | 1. There is an anti-static bag inside, a foam or plastic bag and a box outside; 2. Packed according to customer requirements. |
| port: | Shenzhen, Hong Kong | model: | EG12832-G16BSW |
| LCD screen type: | 128x32 COG LCD display | Package preview: | |
| payment terms: | T/T, Western Union, MoneyGram, Alibaba Trade Assurance, PayPal | solve: | 128x32 |
| brand: | everton | Driver chip: | ST7567 |
| Supply capacity: | 10,000 pieces per day |
Product Description
| Item name | 128x32 STN FSTN transflective front COG gray blue LCD module with ST7567 parallel and series SPI interface |
| color | 262K colors |
| Pixel | monochrome |
| Contrast | 500:1 |
| brightness | White, yellow-green backlight |

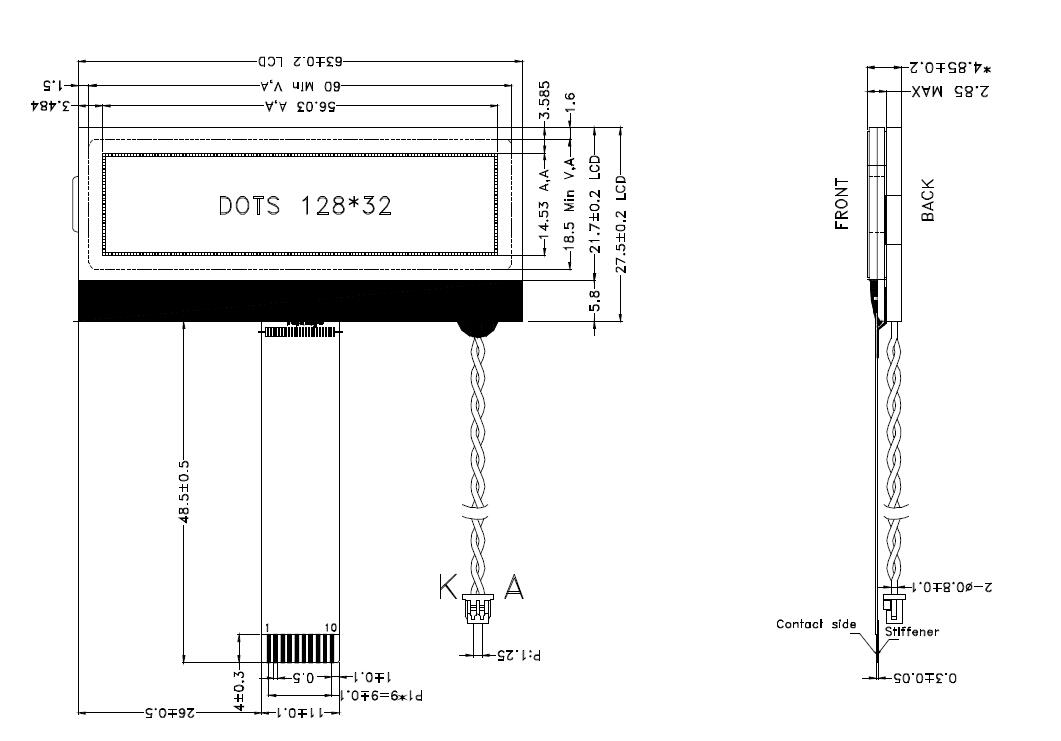

| Dimensions | 63.0(width)X27.5(height)X4.85(thickness)mm |
| viewing area | 60.0(width)X18.5(height)mm |
| Activity area | 56.03(width)X14.53(height)mm |
| solve | 128x32 |
| point | 0.424*0.407mm |
| asphalt | 1.0 mm |
| Drive supply voltage | 3.3V |
| Viewing angle | 6:00 |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -30℃~+80℃ |
| display mode | monochrome |
| touch panel | Resistive touch screen or capacitive touch screen |
| Soft board length | FPC connector type |
| Response time | 100 milliseconds |
| I see | ST7567 |
| integrated circuit packaging | center of gravity |
+
| main application | |
| Telecommunications equipment | Telephones, walkie-talkies, watches, radios, etc. |
| household appliances | Washing machines, refrigerators, home integrators, etc. |
| industrial control | Coaxial CNC machine tools |
| Instrumentation | Testers, medical instruments |
| In-vehicle digitalization | MP3, MP4, car air conditioner |
| mining | Mining lamp charger, gas tester |
| ocean | Salinity tester |
According to customers' various requirements, TFT LCD screen, LCD panel, LCD monitor, LCD screen, FSTN and STN LCD display, industrial LCD screen, we can match all accessories, including driver board, LED backlight and LVDS cable.
ODM/OEM acceptable
Offers multiple LCD display modes with different backlight colors and temperature ranges
Product Range
1) TN, STN, FSTN LCD panel/module
2) Customized LCD panel/module
3)Small (1.5-inch-7-inch) TFT LCD screen
Packaging and shipping

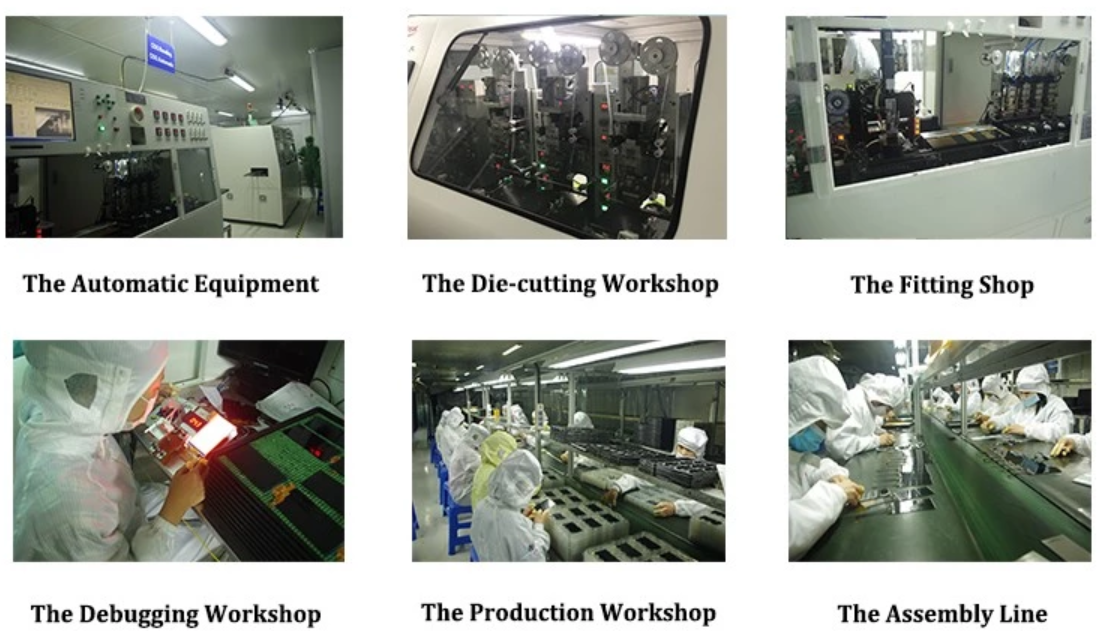

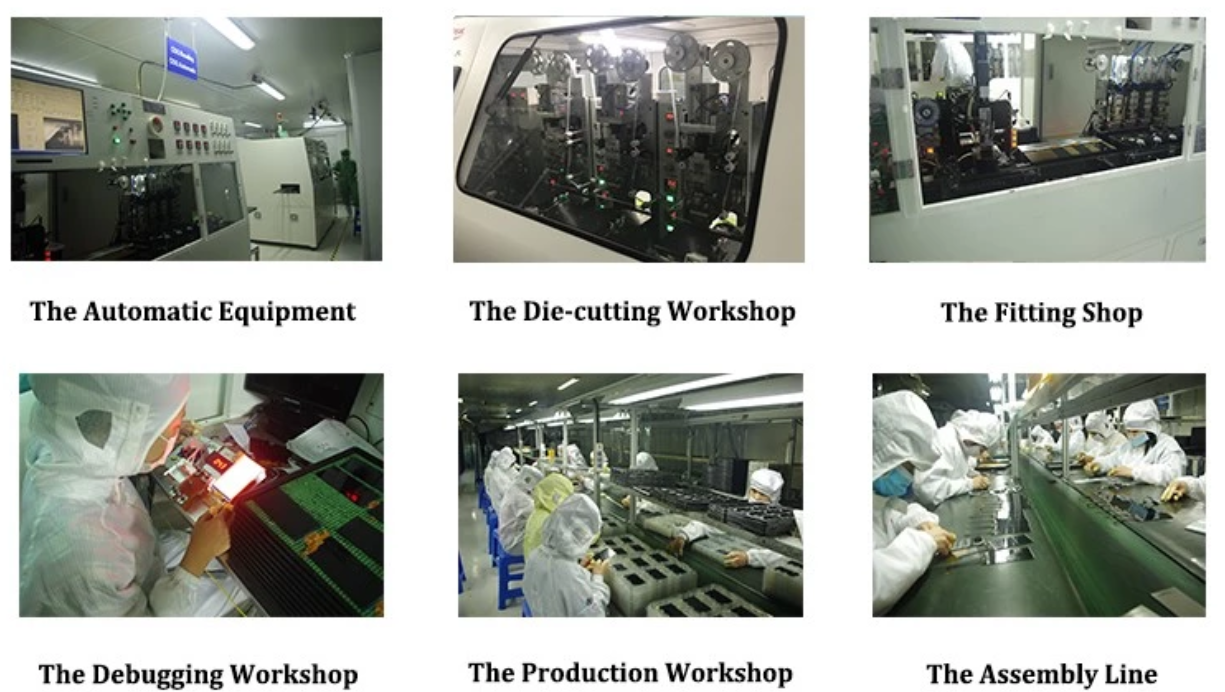

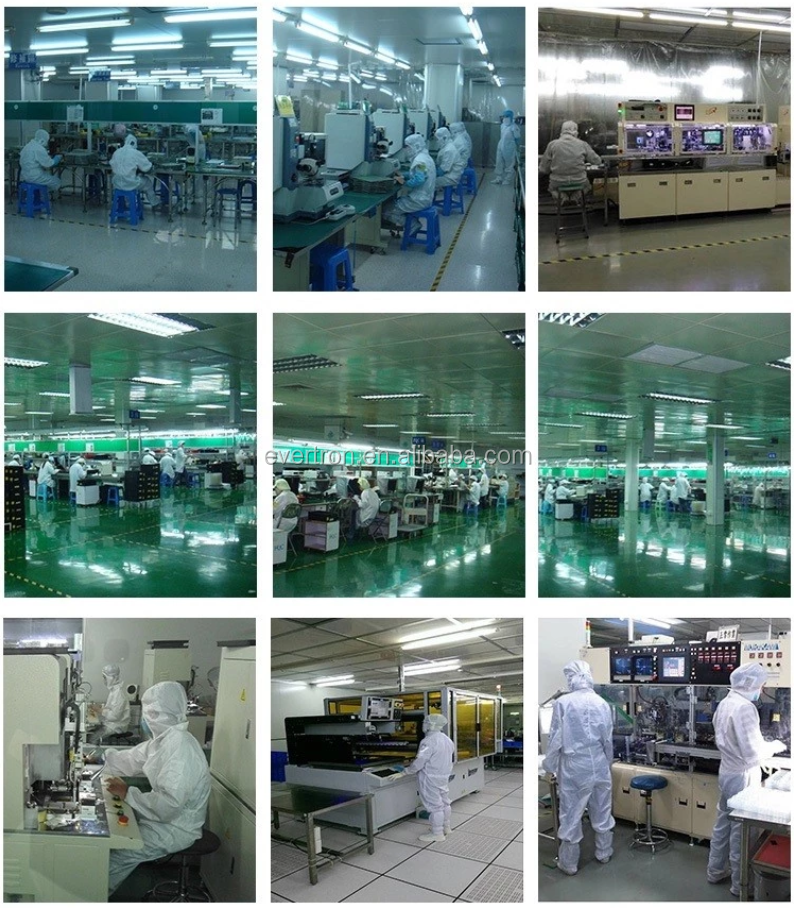

Production Process
