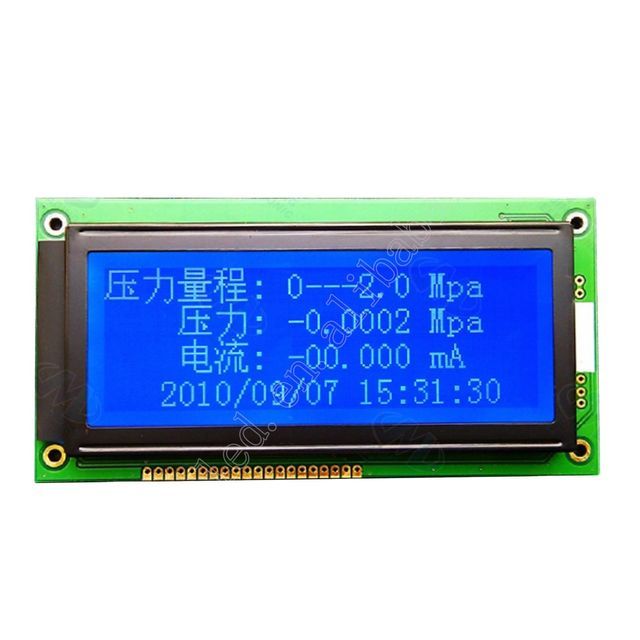

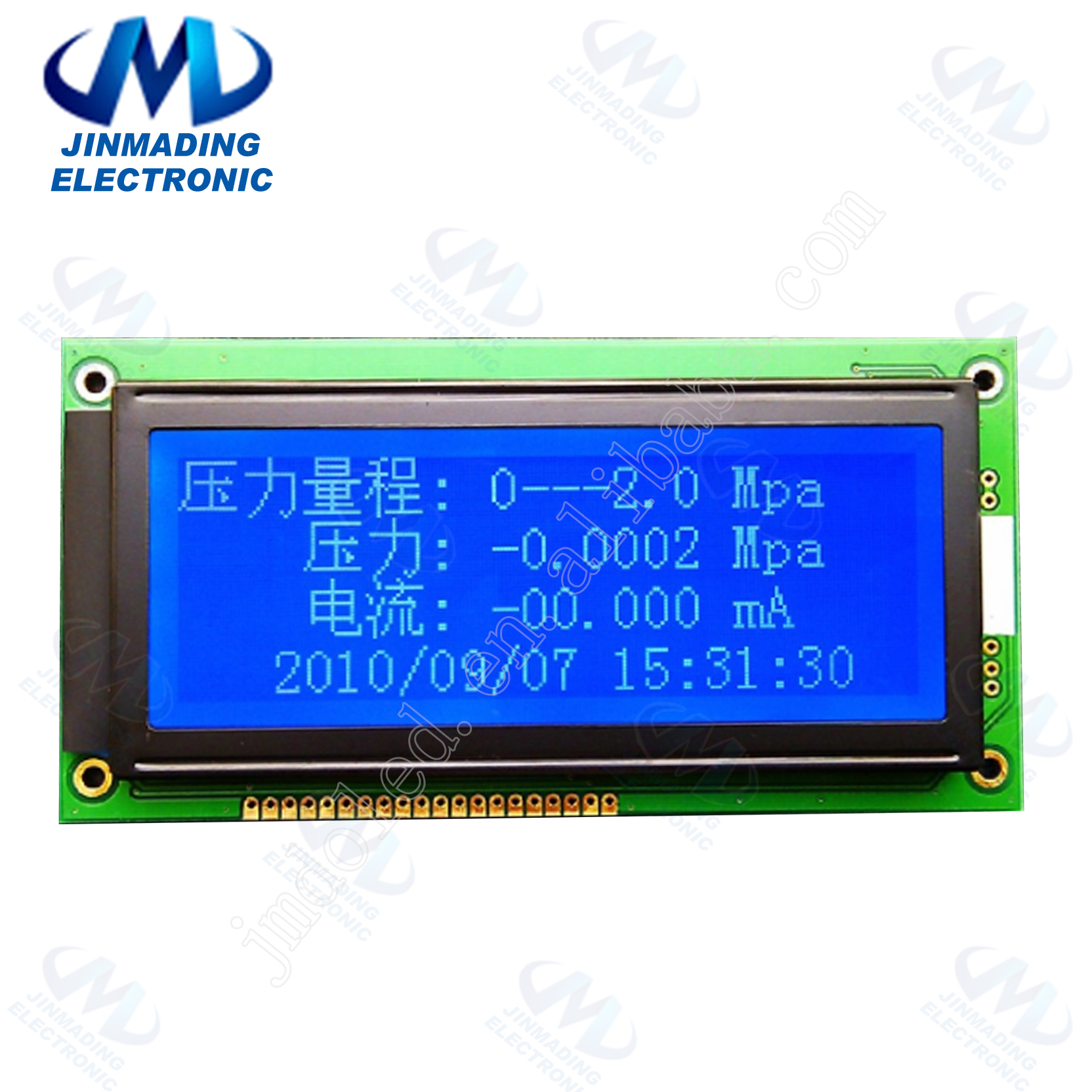

JMD 19264 192X64 LCD module 5v blue WH19264A TM19264 LM19264K LG192642 ks0107 19264 graphic LCD

PRODUCT DETAIL
type:LCD MonitorOrigin:Guangdong, China
LCD Display Type:White characters with blue backlightDriver chip:KS0107

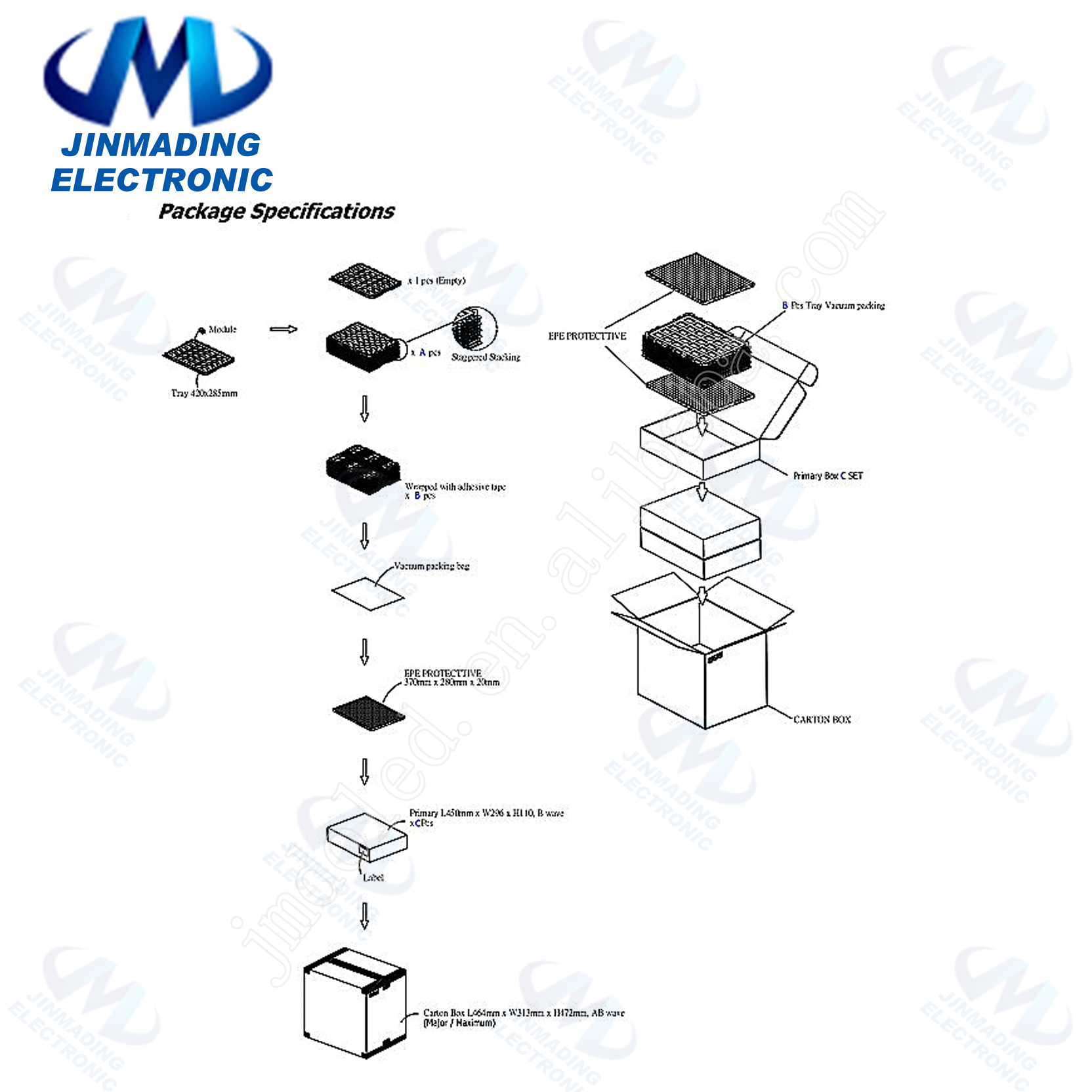

Sales unit:single productPackaging Details:Anti-static bag + bubble bag + carton
Single package size:9.5X7.3X1.4 cmGross weight per piece:0.075 kg
brand:JMD

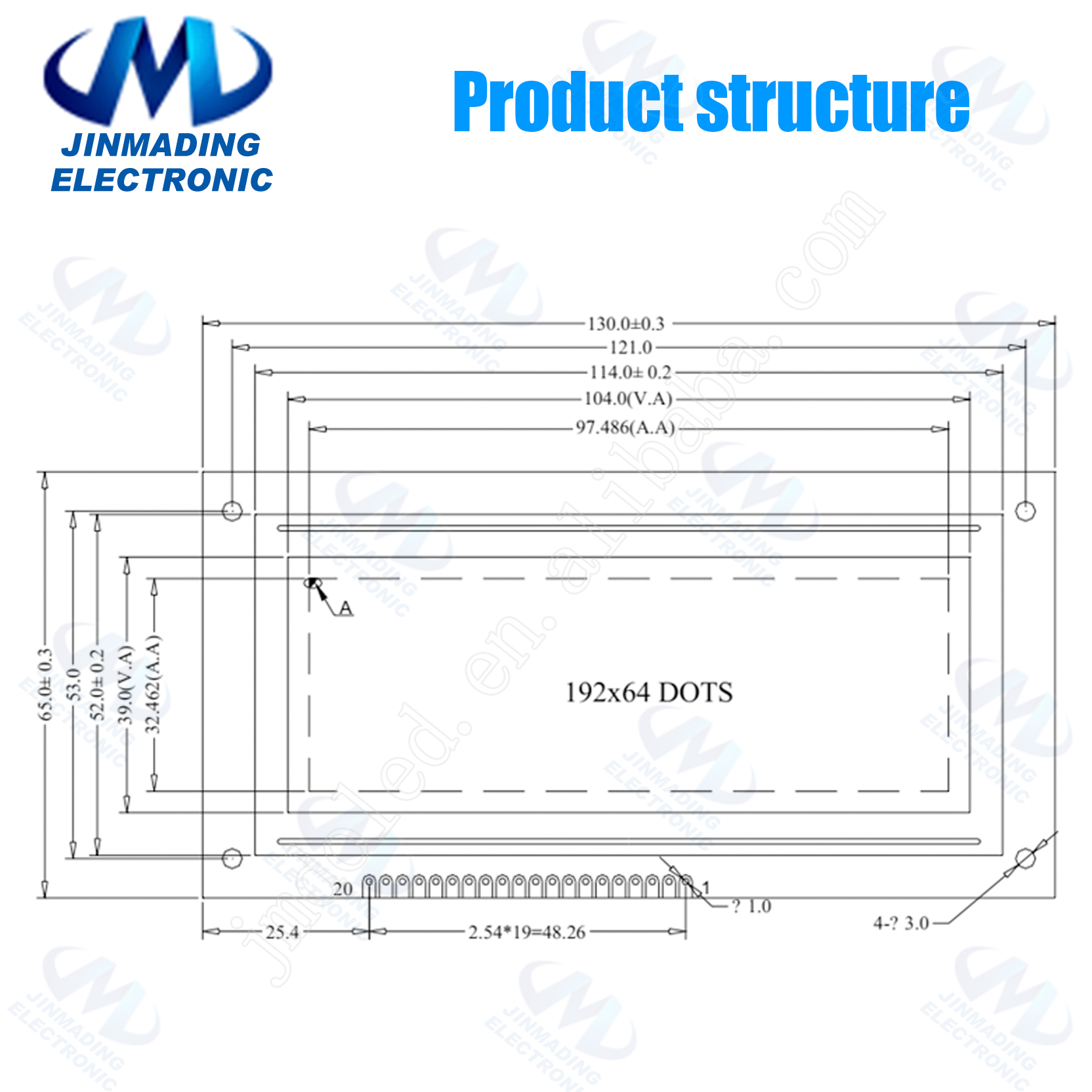

Module size: 130*65*9/13.5
Horizon size: 104*39
Points: 192*64
Point size: 0.45 *0.45
Dot pitch: 0.50 * 0.50
LED backlight:
LCD type and color: STN yellow-green mode, blue mode,
Six aspects:
Display type: positive, negative display
Control chip and package: KS0107, COB
Working temperature: - 20 ~ 70°C
Storage temperature: - 30 ~ 80 degrees Celsius





The controller is mainly composed of instruction register IR, data register DR, busy flag BF, address counter AC, display buffer DDRAM, character generator CGROM, user-defined character generator CGRAM and timing generation circuit.

Product parameters:

The best working voltage of the module is: 3-5V;

Working temperature: 0℃~50℃
