Graphic LCD Display 240X128 240*128 COG FSTN COG LCD Screen Module 5V 12 o'clock -20 to +70 degrees -30 to +80 degrees Crystal Oscillator
- $1.50 /piece
- 1 piece
- Crystal-Run Microelectronics Co., Ltd.
- Guangdong, China
- Mr james cheng
| Package preview: | port: | Shenzhen | |
| payment terms: | L/C, Western Union, T/T | Supply capacity: | 10000 pieces per month |
| Operating Voltage: | 5V | brand: | Crystal Run |
| View directions: | 12 o clock | Drive mode: | 1/64 duty cycle, 1/7 bias |
| Storage temperature: | -30 to +80 degrees | Types of: | COG, FSTN/CSTN |
| place of origin; place of origin: | China | Operating temperature: | -20 to +70 degrees |
| LCD Monitor: | STN, blue, positive, 16 pins | Display size: | 65.96x81.2x6mm |
| Packaging Details: | Export standard packaging: 390x340x295mm | LCD module: | Center of gravity 240x128 |

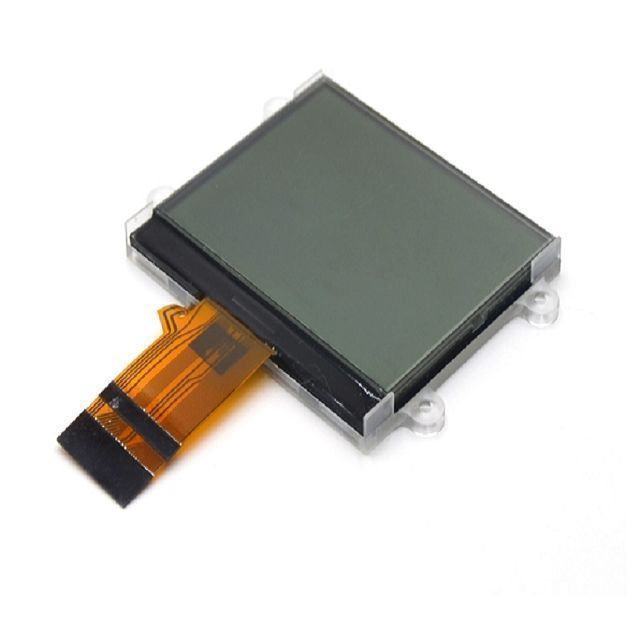

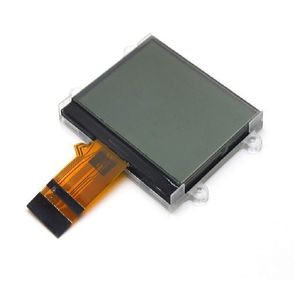

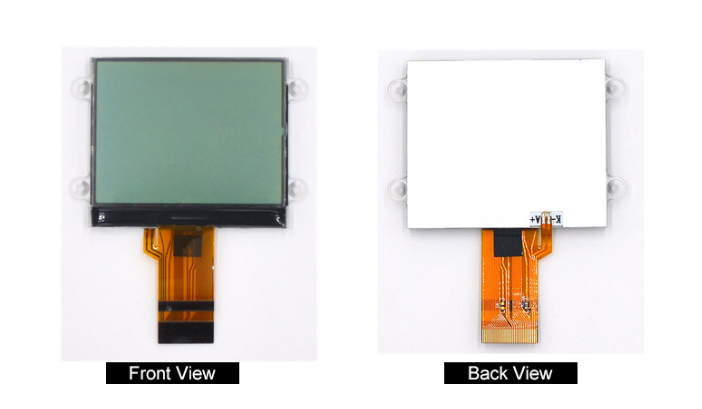

Graphic LCD display 240X128 240*128 COG
product information:
1.1 Features:
| thing | standard value |
| display type |
FSTN 240x128 COG LCD Module |
| driver condition | STN, negative electrode (blue), transmission |
| viewing direction | 6 o'clock |
| Backlight type | margin |
| interface | 8-bit MPU interface |
| Diver IC |
ST7549 |
| Types of | COB&COG |
1.2 Mechanical Specifications
| thing | standard value | to unite |
| Dimensions |
65.96x81.2x6mm |
mm |
| viewing area |
49.6x38.5mm |
mm |
| dot size | 0.56(width)*0.61(height) | mm |
| pitch | 0.6(width)*0.7(height) | mm |
| character size |
4.10×6.59 |
mm |
| Operating Voltage | 0-5.5 | V |
| Operating temperature | -20-70° | Celsius |
| Storage temperature | -30-80 | Celsius |

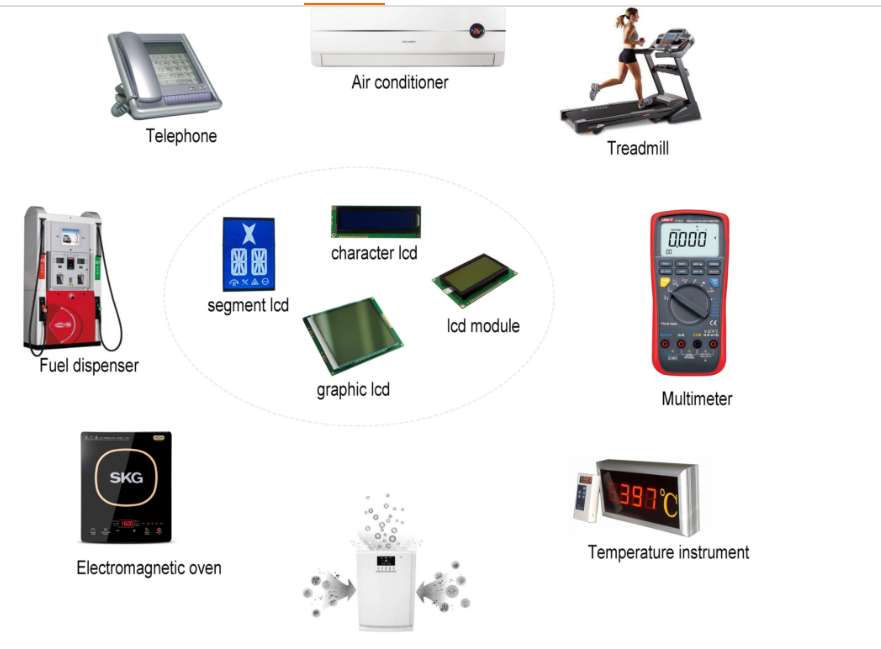

application

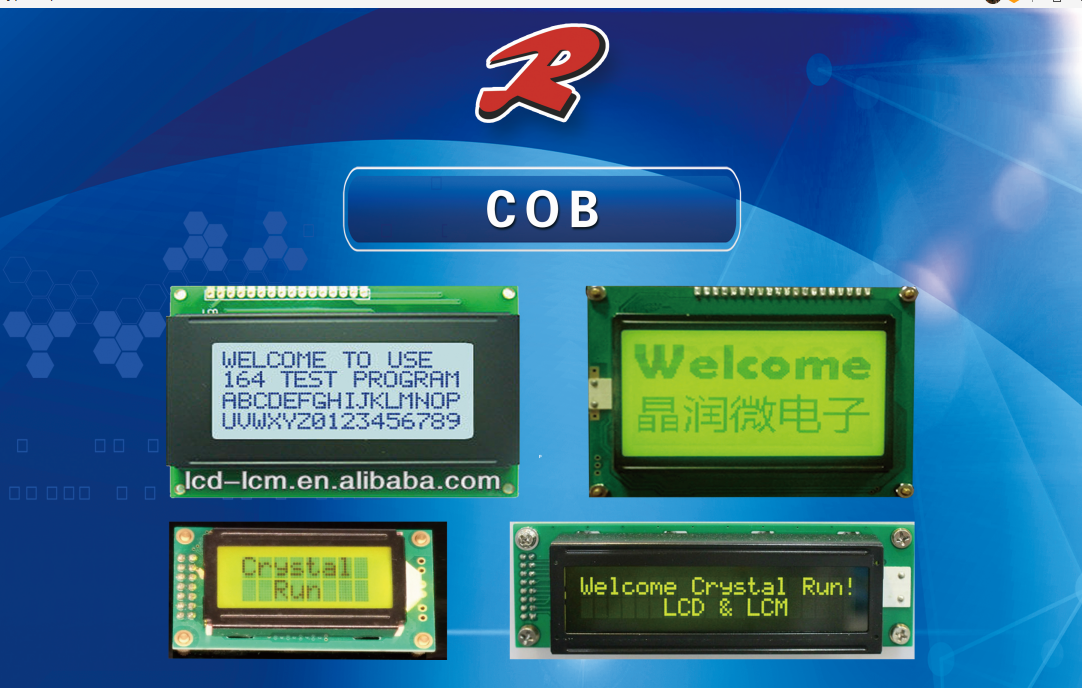

Related Products:
Why choose us:
1. ISO9001 certification, factory direct supply
2. Comply with ROHS, lead-free, meet Reach standard
3. Small order will be accepted.
4. Guarantee the delivery date of mass production.
5. We can provide technical services even if customers do not cooperate with us.
5. There are quality problems in mass production and can be returned. 6. Experience in cooperating with well-known brands such as Meadia, HP, SAKURA JAPAN, TTI, GREEE, TOPBRAND, etc.
Our cooperative customers:
about Us:
1.1 Production capacity:
The annual production capacity is 1.2 million pairs of LCD (14*16"), 800,000 pieces of LCM, and 600,000 pieces of backlight. LCD products are divided into TN, HTN, STN, and FSTN. LCM products are divided into COG and COB.

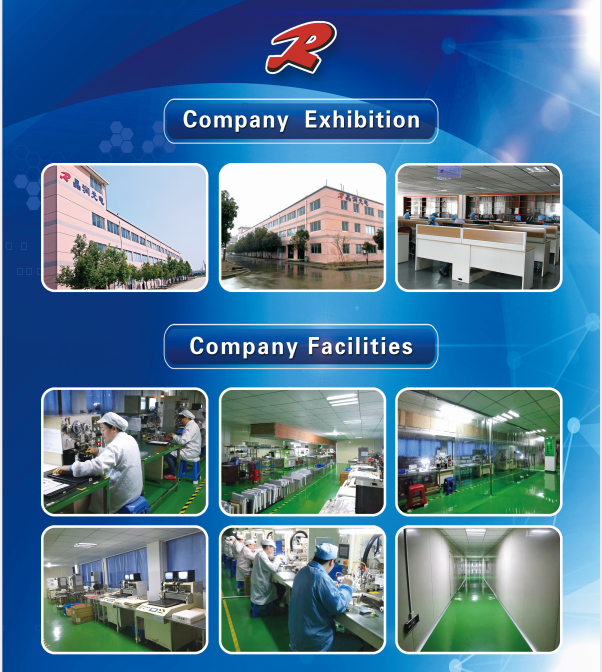

1.2 Production line:

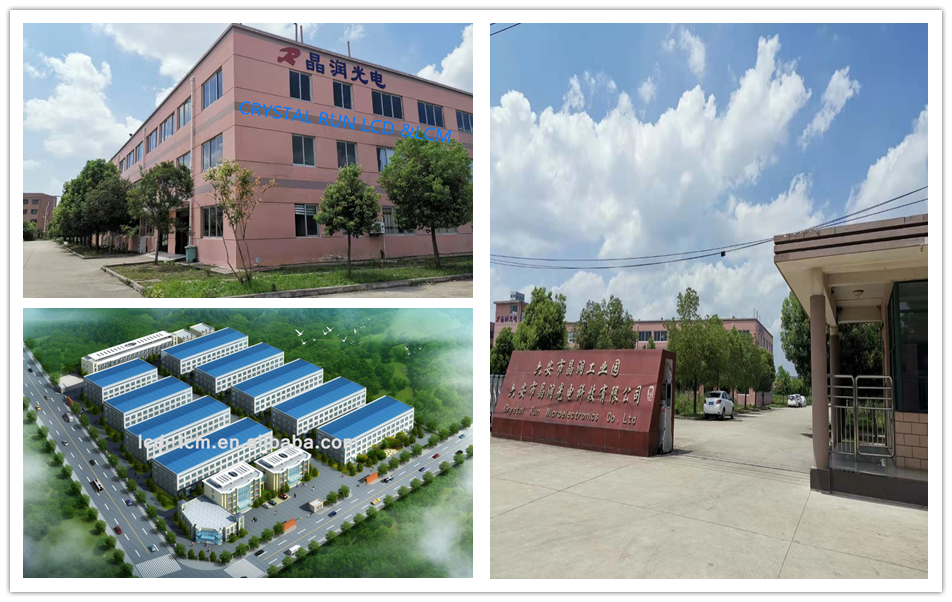

1.3 Plant and office area:
Excellent high-quality talents, advanced technology and strong research and development capabilities The company has passed IS09001, IS014001 certification, all products are produced in accordance with the requirements of the EU ROHS directive, with high-quality products, reasonable prices, and sincere service attitude. Our products enjoy a high reputation in China and cooperate with well-known domestic brands. In foreign markets, our products have been exported to Europe, Africa, South Asia and other regions and countries.
Packaging and Shipping:
Certificate:
HKTDC Exhibition:
We can customize any LCD display for you according to your requirements and drawings :)
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer, specialized in producing TN, HTN, FSTN, STN monochrome LCD, LED backlight, LCD modules in Shenzhen for more than 12 years. Our advanced complete set of equipment ensures good quality and competitive price!
2. Q: How can I get a sample?
A: Send inquiry→Quotation→Confirm quotation and pay mold fee→Provide drawing→Confirm drawing→Make mold and sample→Sample finished→Pay by freight or by sea
3. Q: How long can I expect to get the samples?
A: Contour drawing: 3-5 days Proofing time: 10-15 working days
4.Q: Will you provide free samples?
A: Yes, we usually provide 5-8 pieces of free samples, you only need to pay the mold fee.
5.Q: Can you design the LCD monitor according to our demand?
A: Of course you can. We will give you the best mold fee.
6. Q: How to place an order?
A: If you confirm the sample is ok, please send us your purchase order, then we will send you the order invoice. We need the following information about your order.
1) Product Information - Quantity
2) Shipping information-company name, detailed address, telephone number
3) The contact information of the forwarder, if you have one in China.
7.Q: How long does it take for mass production?
A: About 35 working days. It depends on different order quantities.
contact us:
Jingrun Microelectronics Co., Ltd.
Evelyn Cho | Sales Manager
Tel: 0086-0755-29087780 | Mobile: 0086-13824346775 (wechat/whatsApp)
Fax: 0086-0755-29087769
Address: Block 410, Runfengyuan Building, No. 5175, Area 74, Yiyuan Road, Xin'an Street, Baoan District, Shenzhen
Customization of common LCD panel specifications:
1. Any figures, some graphics, icons can be designed by our engineers, and provide OEM and ODM services.
2. LCD type: TN, HTN, STN, FSTN
3. Polarization mode: reflective, transflective and transmissive
4. Connector: pin, heat seal, zebra
5. Display mode: positive, negative
6. Connector: pin type, heat seal, zebra
7. Glass thickness: 1.1mm, 0.7m
