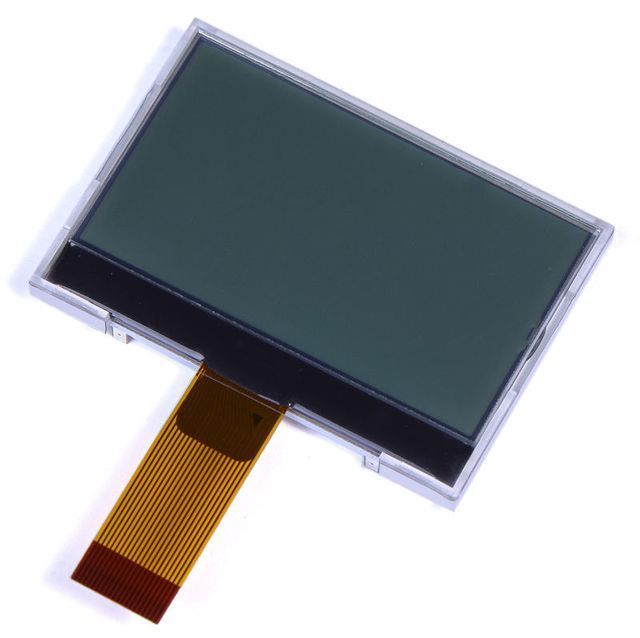

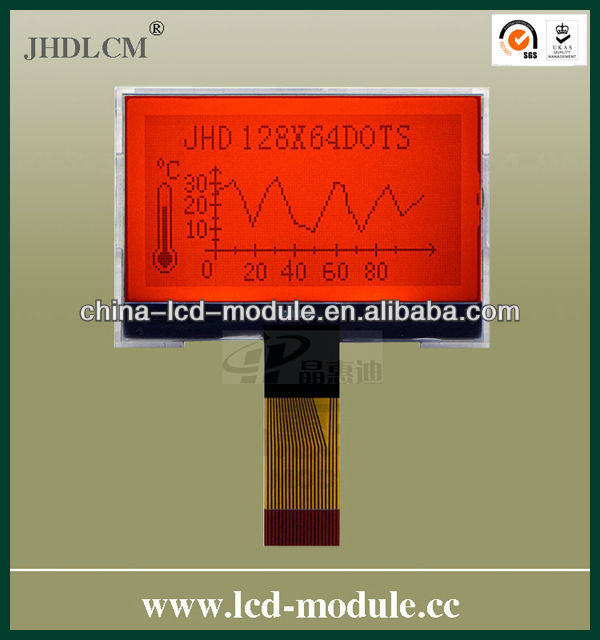

graphic lcd 128X64 orange with small display JHD12864-G126BTC-G
- $1.00 /piece
- 1 piece
- Shenzhen JHDLCM Electronics Co., Ltd.
- Guangdong, China
- Ms Alice Wang
| Back Light: | orange; | LCD Type: | graphic lcd 128X64 orange with small display; |
| Port: | Shenzhen Yantian Port; | Brand Name: | JHDLCM; |
| Packaging Detail: | Packaging: Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.; | Model Number: | JHD12864-G126BTC-G,JHD12864-G126BTC-G; |
| Drive Power Supply Voltage: | 3.0V/3.3V; | Type: | FSTN/CSTN; |
| Active Area: | 40.93(W)X 24.93(H)mm; | Supply Ability: | 500000 Pieces per Month; |
| Interface: | serial, 20PIN; | Resolution: | 128X64; |
| Package Preview: | ; | Place of Origin: | Guangdong, China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash; | Display Size: | 2.0; |
| Color: | gray with black character; | Drive Type: | 1/64 DUTY, 1/9 BIAS; |
graphic lcd 128X64 orange with small display JHD12864-G126BTC-G
| Main Parameters | |
| Item | graphic lcd 128X64 orange with small display |
| Model name | JHD12864-G126BTC-G |
| Color | gray with black character |
| Pixel | 8192 |
| Resolution | 128*64 |
| Contrast Ratio | 300:1 |
| Brightness | orange BL |
| Outline Dimension | 51.70(W)X36.20(H)X4.00(T)mm |
| Viewing Area | 47.10(W)X 26.50(H)mm |
| Active Area | 44.78(W)X 22.36(H)mm |
| Resolution | 128*64 |
| Dots | 128*64 |
| Pitch | 0.23mm |
| Drive Power Supply Voltage | 3.0V/3.3V |
| Viewing Angle | 6.00 o'clock |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | FSTN,positive, gray with black character |
| FPC Length | 13.0mm |
| Response Time | 100ms |
| IC | ST7565R |
| IC Packaging | COG |
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.
| Main Application | |
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD

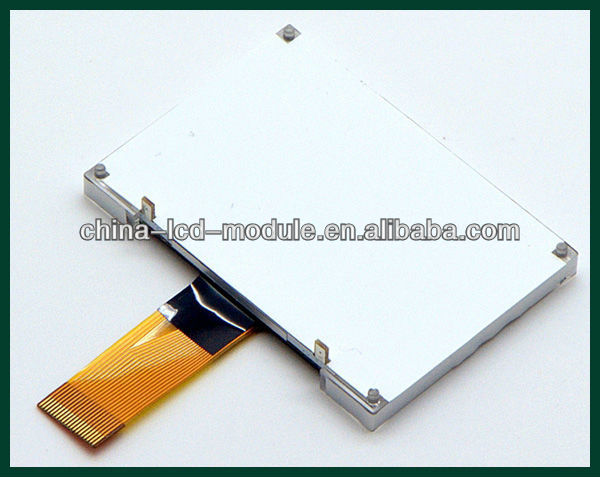

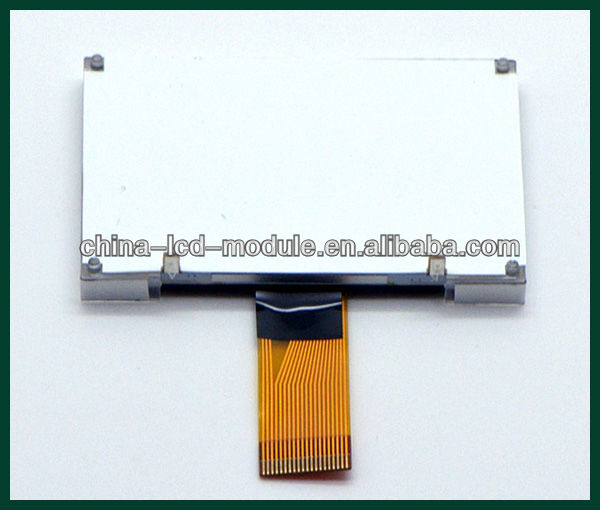

Product Showing:

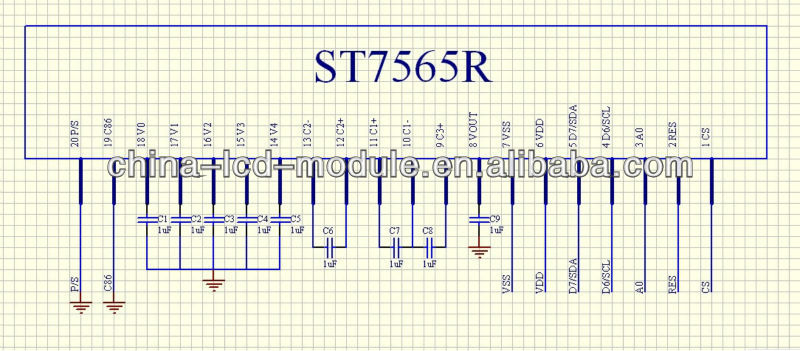

FPC Schematic Diagram(SCH):
Interface Table:
| 20 | P/S |
| 19 | C86 |
| 18 | V0 |
| 17 | V1 |
| 16 | V2 |
| 15 | V3 |
| 14 | V4 |
| 13 | CAP2- |
| 12 | CAP2+ |
| 11 | CAP1+ |
| 10 | CAP1- |
| 9 | CAP3+ |
| 8 | VOUT |
| 7 | VSS |
| 6 | VDD |
| 5 | SDA |
| 4 | SCL |
| 3 | A0 |
| 2 | RST |
| 1 | CS |
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

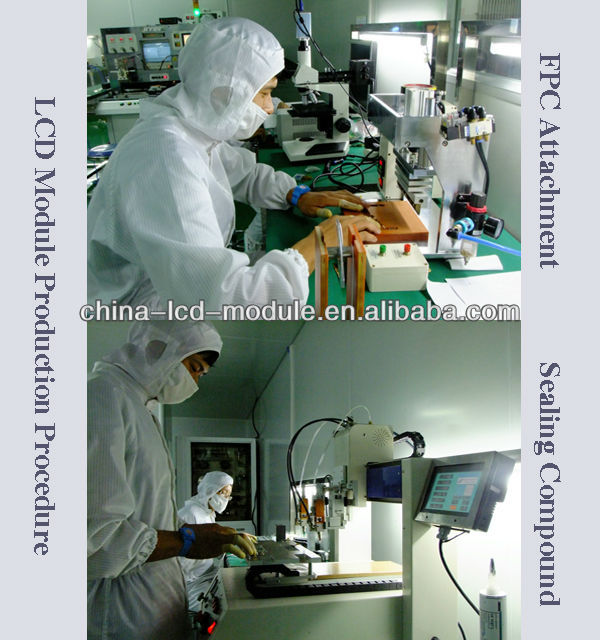

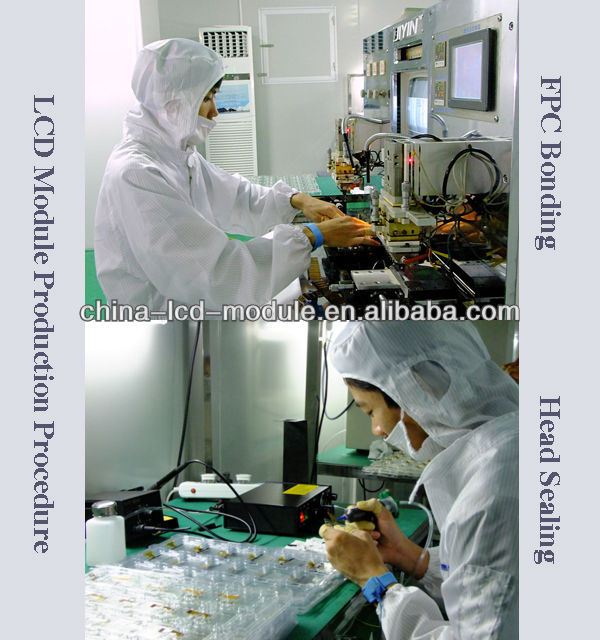

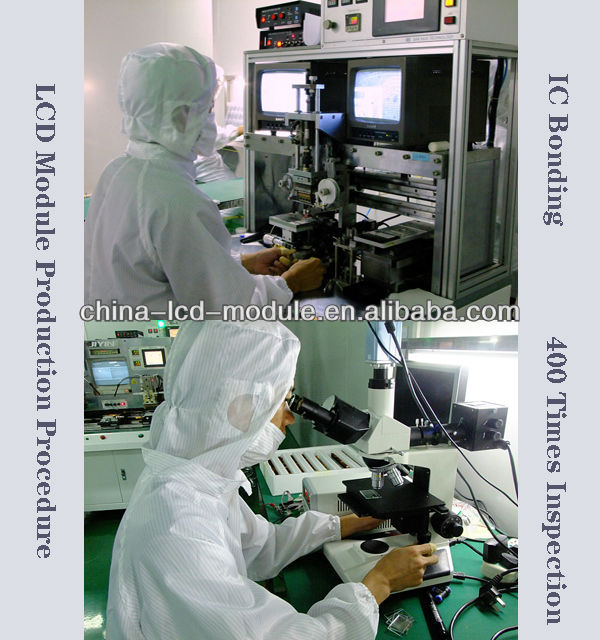

graphic lcd 128X64 orange with small display JHD12864-G126BTC-G Production Procedures in Our Plant:
