200L Green Technology Bed Low Cost Plastic Pyrolysis Reactor
- $10000.00 /set
- 1 set
- Weihai Borui Chemical Machinery Co., Ltd.
- Shandong, China
- Ms Sandra Chang
PRODUCT DETAIL
| minute. Order: | 1 set | Video outbound inspection: | Yes |
| temperature: | 0°C to 700°C | Warranty: | 1 year |
| weight: | 500 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| heating method: | electric heater, jacket heating, steam heating, | Supply capacity: | 100 sets per month according to the capacity of the reactor |
| port: | Qingdao | Core components: | PLC, bearings, gearboxes, motors, pressure vessels, gears |
| Core component warranty: | 1 year | type: | Reactor |
| category: | Reactor | Main selling points: | long lasting |
| Marketing Type: | 2020 New Products | pressure: | -0.1MPa to 60MPa |
| Automatic level: | semi-automatic | lie in: | Weihai City, Shandong Province, China |
| Product Certificate: | International standard, CE | factory: | OEM, OEM |
| Applicable industries: | Building material stores, manufacturing plants, food and beverage plants, farms, retail, construction, energy and mining | Showroom location: | not any |
| Packaging Details: | Container Standard Packing 200L Green Technology Bed Low Cost Plastic Pyrolysis Reactor | product name: | 200L Green Technology Bed Low Cost Plastic Pyrolysis Reactor |
| Material: | Stainless Steel, Hastelloy, Titanium, Nickel, Inconel, Tantalum | Mechanical test report: | if |
| Health status: | new | capacity: | 100ml～70m3 |
| strength: | custom made | Dimensions (L*W*H): | custom made |
| Voltage: | 220V/380V | brand: | Borui |
| Origin: | Shandong Province, China |
Product Description
Our pressure reactors are widely used in petroleum, chemical, pharmaceutical, dyestuff, mining and environmental protection, scientific research institutes, colleges and universities (chemical industry, polymer, material engineering, organic and inorganic chemical industry) and other industrial enterprises. Pressure range 0.1-50MPa, volume range 0.1L-50,000L.
The reactor material can be stainless steel, titanium, nickel, Hastelloy, Monel, Inconel and other special materials...etc.
The reactor material can be stainless steel, titanium, nickel, Hastelloy, Monel, Inconel and other special materials...etc.
200L Green Technology Bed Low Cost Plastic Pyrolysis Reactor
Specification
No. | Name | scope | ||||
1 | capacity | 50L-50000L | ||||
2 | Material | Stainless Steel SUS304, SS316L, Titanium, Nickel, Zirconium, Hastelloy C-276, C22, B2, B3, Inconel 600, Inconel 625, Monel, Tantalum, cladding plate, etc. | ||||
3 | design pressure | -0.01MPa～50MPa | ||||
4 | set tempreture | -200°C - 800°C | ||||
5 | Stirrer speed | 0-750 rpm | ||||
6 | Motor Power | 500W～125KW | ||||
7 | Sealing method | Magnetic seal, mechanical seal | ||||
8 | heating method | Electric heating, jacket circulation heat transfer oil or steam, far infrared heating | ||||
9 | Blender Options | Anchor, impeller, turbine, paddle, propeller, high speed disperser...etc. | ||||
10 | others | Heat exchangers/condensers, raw material feed tanks, receiving tanks, vacuum systems, heating systems, cooling systems, platforms, Valves...etc as options. | ||||
200L Green Technology Bed Low Cost Plastic Pyrolysis Reactor
Installation Notes

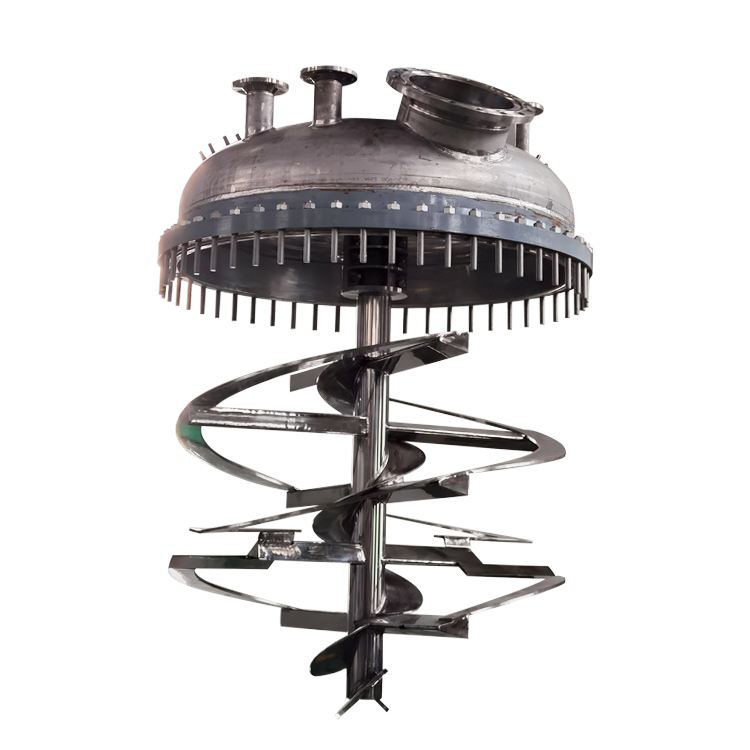

This mixer is especially suitable for high viscosity products, solid products and powder products. The middle screw conveys the chemicals in the middle to the top and spreads to the sides, and the ribbon lifts the chemicals from the bottom to the top and mixes the chemicals on the sides.
Ribbon + screw has a better mixing effect.
The ribbon also has a scraper function.
blender

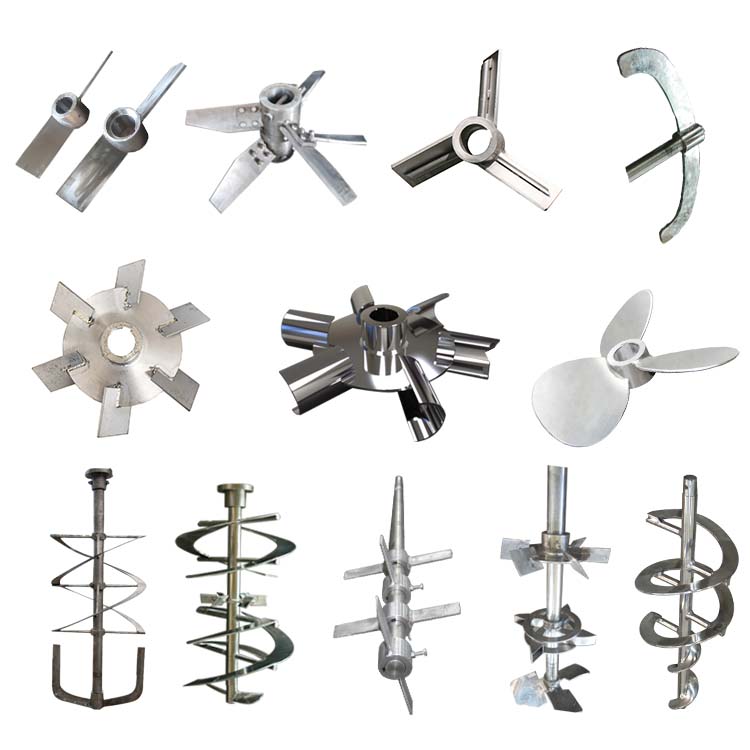

We can design the agitator or agitator according to the process, and we can also design the agitator according to the customer's requirements, agitators such as impellers, propellers, anchors, turbines, hydrogen agitators, helixes, ribbons, paddles, etc.
heating and cooling methods
