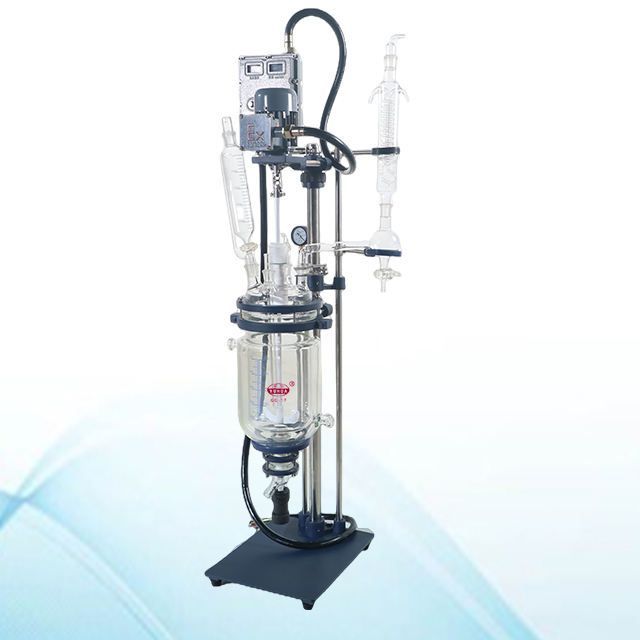

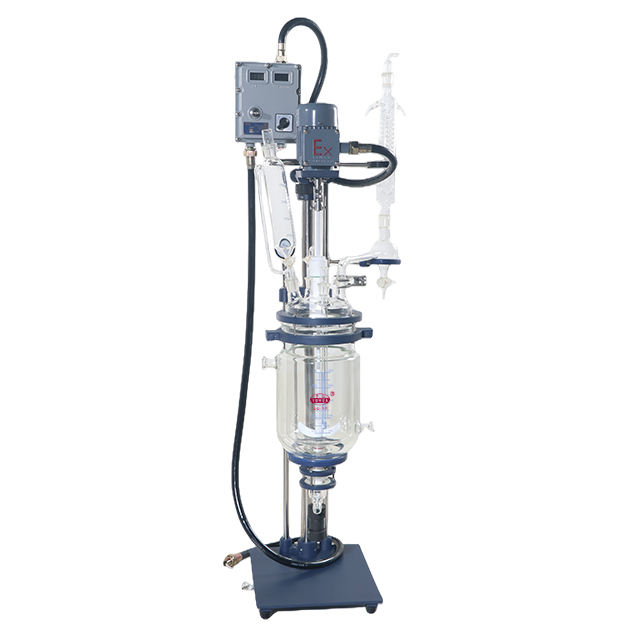

YUHUA Explosion Proof Industrial Chemicals 1L 2L 3L 5L 10L Mini Laboratory Glass Reactor Bioreactor Jacketed Crystallization Reactor
- $651.00 / 1 - 9 pieces
$455.00 / >=10 pieces - 1 piece
- Gongyi Yuhua Instrument Co., Ltd.
- Henan, China
- Ms Melody Ma
PRODUCT DETAIL
| Package preview: | Video outbound inspection: | if | |
| strength: | 125W | Showroom location: | Canada, United Kingdom, United States, Russia, Spain, Thailand, South Korea, Colombia |
| port: | Shanghai | type: | Reactor |
| Warranty: | 1 year | Type of machine: | chemical batch reactor |
| Stirrer: | impeller | Function: | reaction process |
| Mechanical test report: | if | Supply capacity: | 100 boxes per week |
| brand: | Yuhua | Glass material: | Borosilicate Glass 3.3 (GG-17) |
| application: | Chemical Testing Research | Origin: | Henan, China |
| Material: | SUS304 | Reaction flask: | 1~10L |
| Packaging Details: | wooden box | Automatic level: | automatic |
| Main selling points: | High security level | Voltage: | 220V |
| Marketing Type: | normal product | product name: | Laboratory Glass Reactor |
| capacity: | 1-10 liters | weight: | 45 |
| structure: | horizontal rotation | Core component warranty: | 1 year |
| feature: | laboratory | Core components: | PLC, bearings, gearboxes, motors, pressure vessels, gears |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Health status: | new |
| Applicable industries: | Construction Engineering, Energy and Mining |
Product Description
YUHUA Explosion Proof Industrial Chemicals 1L 2L 3L 5L Mini Laboratory Glass Reactor Jacketed Bioreactor
This series of reactors can carry out vacuum stirring reaction; the jacket layer can be connected to a heat source (refrigerated liquid, water, hot oil) for circulating heating or cooling, and can control the evaporation and reflux of the reaction solution. Widely used in chemical industry,
Excellent chemical, biopharmaceutical and other industries.
figure
1.wide temperature range
The reaction kettle container is made of GG17 high borosilicate glass, which can ensure the safety of the reaction between
-80°C and 250°C
The reaction kettle container is made of GG17 high borosilicate glass, which can ensure the safety of the reaction between
-80°C and 250°C
2.Efficient motor
Frequency conversion motor, stable and reliable operation; stable operation, continuous operation without heat, low noise.3.frame details
High quality condenser and funnel are resistant to strong acids.
Stirring blades are corrosion resistant;
High quality condenser and funnel are resistant to strong acids.
Stirring blades are corrosion resistant;
4.Advanced frequency control panel.
Frequency conversion controller, internal components are protected by vacuum coating, corrosion-resistant, optional full explosion-proof, safe and reliable.
5.PTFE component seal
The special design can maintain the best vacuum degree (about -0.098mpa) of similar products in the market, and the discharge valve can release concentrated liquid and trace solid substances, which is leading in China.
6.All-round 360-degree discharge
After the reaction is over, the heat transfer medium can be completely eliminated without generating moisture.
Technical Parameters
Model | 1 Litre | 2 liters | 3 liters | 5 liters |
stirring power | 90W 1/3 | 90W 1/3 | 120W/1/3 | 120W1/3 |
Voltage | 220V/110V | 220V/110V | 220V/110V | 220V/110V |
speed | 0-600 rpm | 0-600 rpm | 0-600 rpm | 0-650 rpm |

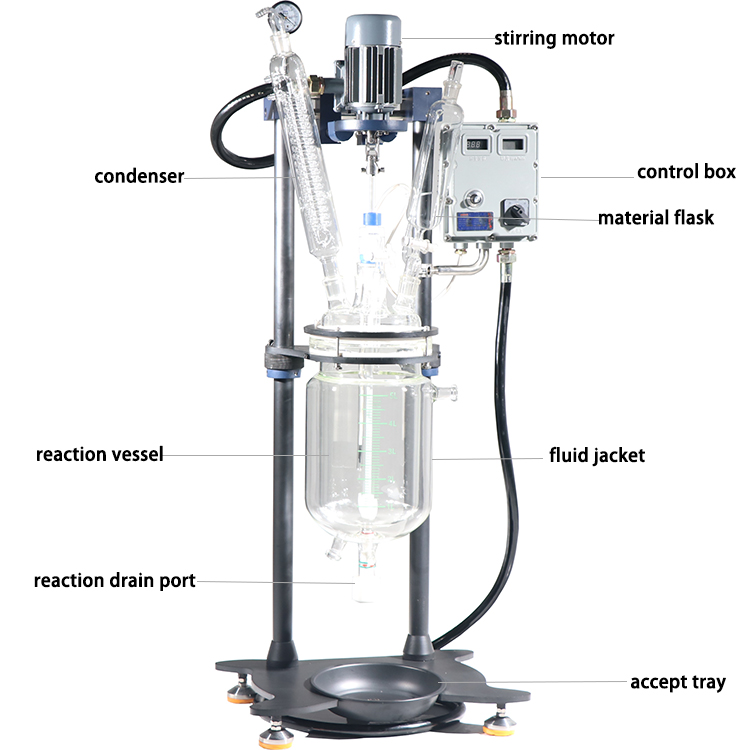

detailed image

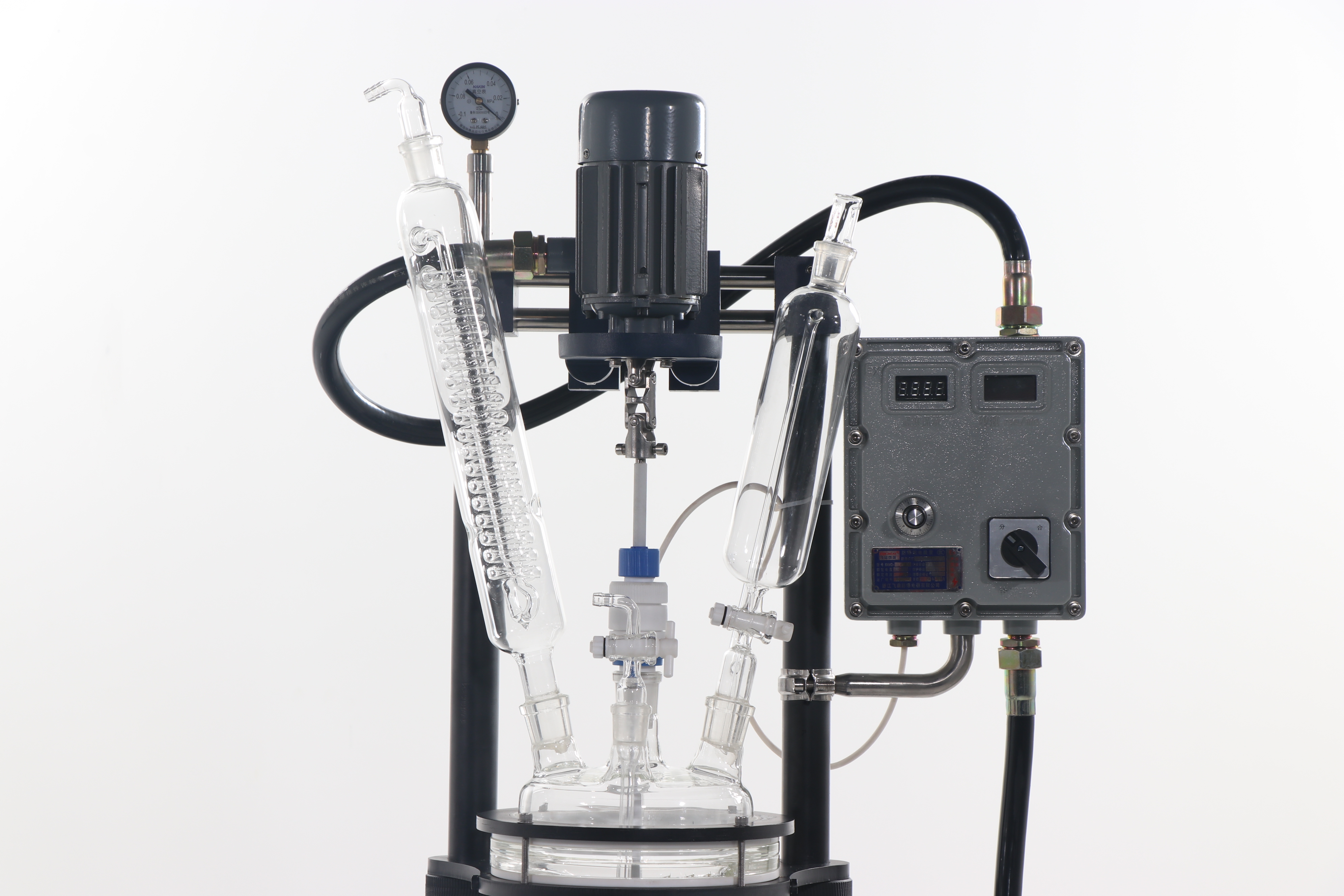

gear motor
Smooth operation, large torque, automatic booster, no spark, explosion-proof optional.

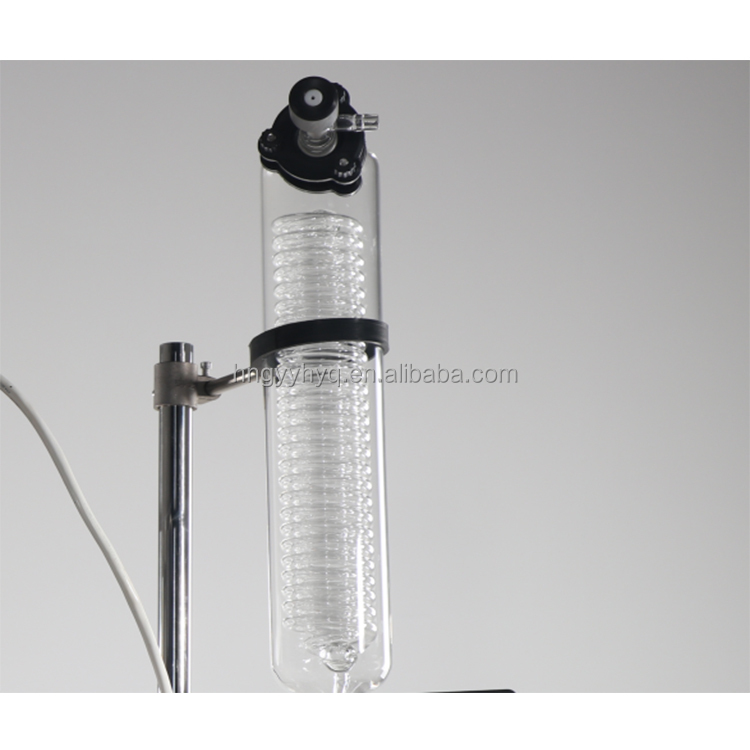

condenser
Rapid feeding, no residue, acid and alkali resistance, temperature range: -100°C-400°C.
kettle lid
Easy to clean, disassemble and install. PT100 temperature probe.
double layer glass body
borosilicate glass,304 stainless steel frame.

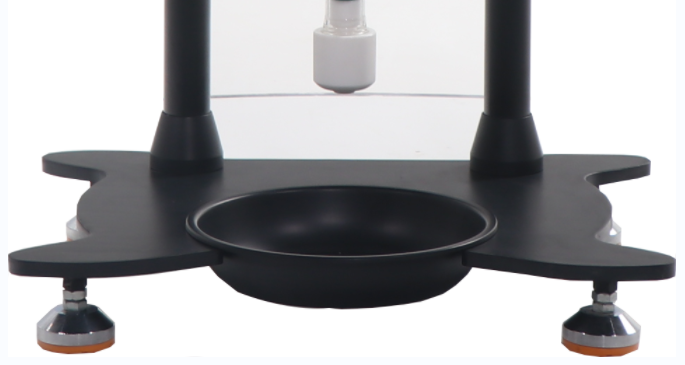

receiving tray
The discharge valve can discharge liquid materials, and the base is equipped with a material receiving tray for convenient material receiving.
