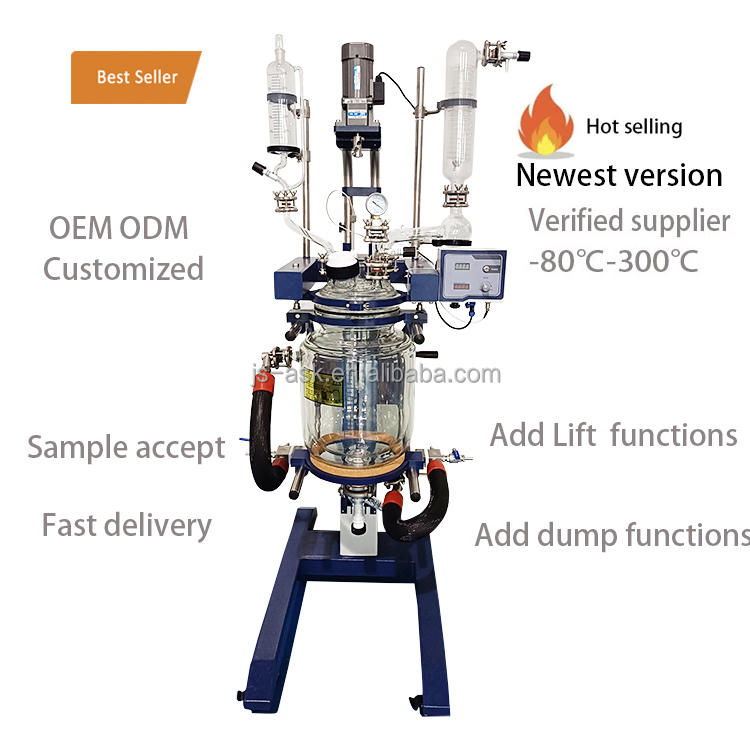

ASK latest style 5L 10L 20L 50L 100L chemical reactor laminated glass 20 liter glass stirring reactor for oil dye industry
- $4500.00 / 1 - 4 sets
$4000.00 / 5 - 9 sets
$3000.00 / 10 - 99 sets
$500.00 / >=100 sets - 1 set
- Aishengke (Jiangsu) Chemical Technology Co., Ltd.
- Jiangsu, China
- Ms Group ASK
PRODUCT DETAIL
| Marketing Type: | New Products 2020 | Health status: | new |
| Package preview: | Heating type: | heating temperature control module | |
| After-sales service: | Online video: installation and use, precautions, troubleshooting | type: | Reactor |
| brand: | ask | Constant pressure addition funnel volume: | 3-5L |
| Applicable industries: | Manufacturing plants, machinery repair shops, food and beverage plants, construction, energy and mining, other | Glass material: | Borosilicate Glass 3.3 (GG-17) |
| product name: | The latest version of glass reactor | Main selling points: | competitive price |
| Core components: | Motor Controller | Core component warranty: | 1 year |
| Mechanical test report: | if | Supply capacity: | 100 sets per month |
| Origin: | Jiangsu, China | Pay: | T/T or Ali Trade Assurance |
| port: | Shanghai Yiwu Ningbo | heating method: | Electric heating |
| Material: | 304 stainless steel | delivery time: | 20-30 days |
| Dimensions (L*W*H): | 80*71*260cm | Packaging Details: | wooden box |
| Warranty: | 1 year | Voltage: | 220V/240V 50/60Hz |
| strength: | 120W/180W/200W | capacity: | 5L 10L 20L 30L 50L 100L |
| payment terms: | Western Union, T/T, MoneyGram | Automatic level: | semi-automatic |
| weight: | 120 | Video shipment inspection: | if |
| Showroom location: | not any | Collect cans: | 5-20L |

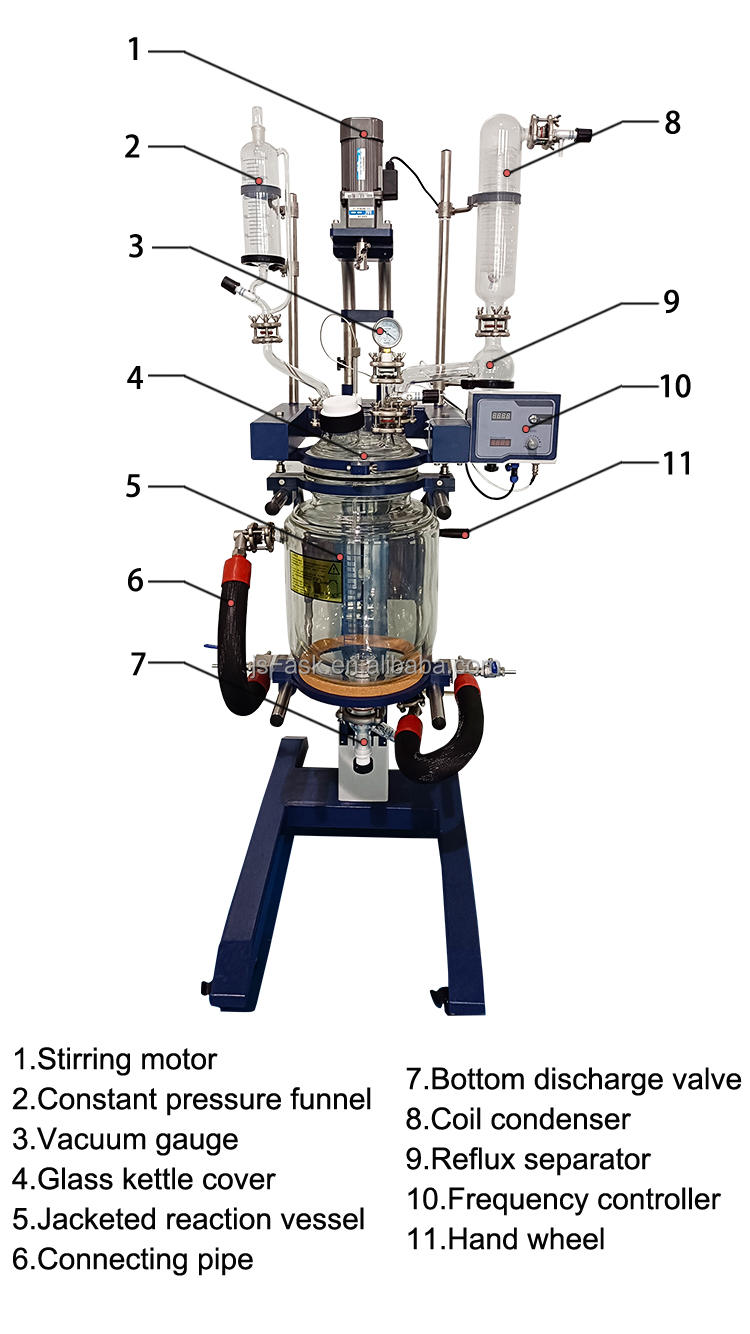

Product Description

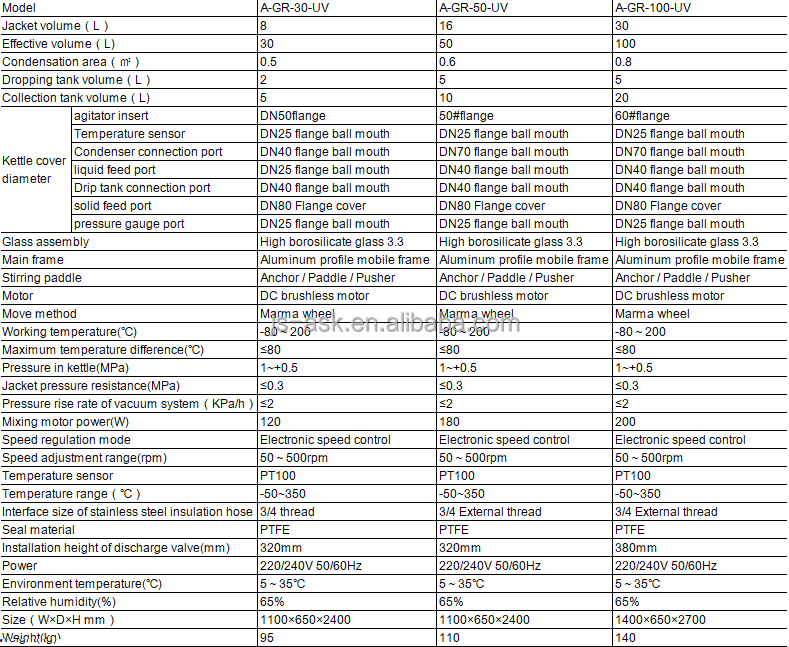

product name | Glass Reactor Unrated Version | |
Reactor volume | 5L 10L 20L 30L 50L 100L 150L | |
Constant pressure addition funnel volume | 3-5L | |
Receive cans | 5-20L | |
inflation valve | DN25 flange ball port | |
Inlet | DN25 flange ball port | |
Solid feed port | DN80 flange cover | |
Bottom valve | DN50 | |
pressure gauge | -0.1~0.1Mpa | |
High torque high speed stirrer | Spindle motor | |
Motor Power | Mechanical seal graphite/PTFE | |
Maximum speed | Stainless steel stirring shaft (spraying polytetrafluoroethylene on the outer surface), polytetrafluoroethylene anchor stirring blade | |
thermometer tube | PT100 temperature sensor | |

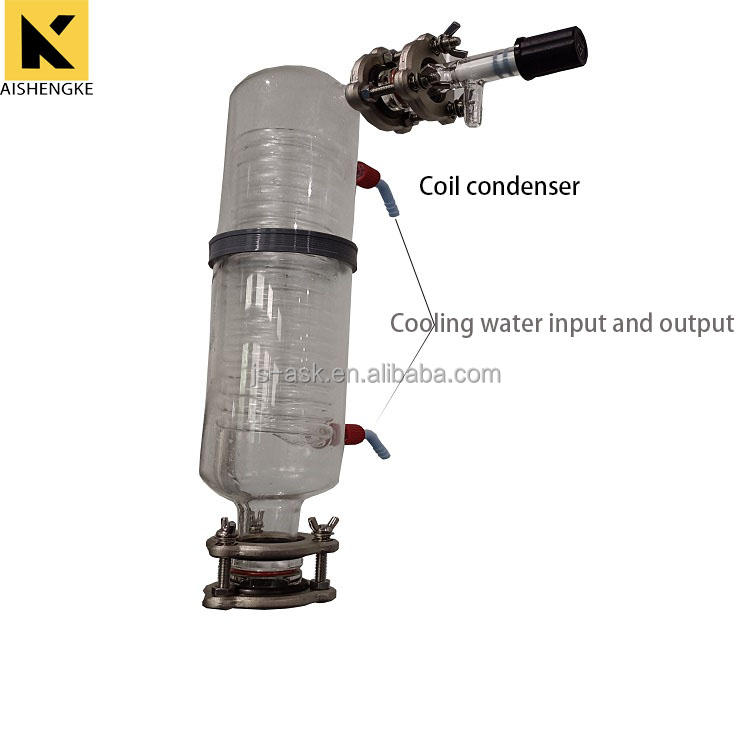

condenser cooling zone | 0.6㎡ | |
condenser structure | vertical or horizontal | |
Distillation Reflux/Split Head | custom | |
stirring speed | 0～600rpm | |
Stirring force | 120/180/200W | |
power supply | 220V/240V 50/60Hz | |
External circulation heating unit | -80℃~250℃ | |
External circulation refrigeration unit | -25℃~30℃ | |
Supporting vacuum pump | -0.098mpa | |
I wish you a happy purchase! Please click>>Contact us | ||
product description:
The glass reactor can be placed in the inner layer of the glass reactor for stirring reaction, the interlayer is circulated by the cold and heat source, and the glass reactor interlayer can provide high temperature reaction (the highest temperature can reach 300°C; up to -80°C); the glass reactor can be pumped Vacuum for negative pressure reaction. Its unique design makes testing safer and more convenient.
Working Standards:
The glass reactor mainly utilizes the characteristics of its double-layer glass. We can place the reaction substance (also known as the reaction solvent) in the interlayer. By stirring the reaction under normal pressure or negative pressure, the glass reactor can pass through the double-layer reaction. A constant temperature (high or low temperature) hot solution or cooling liquid is passed into the interlayer of the kettle to heat or cool the materials in the kettle at a constant temperature and provide stirring. In this way, the medium in the interlayer of the glass reactor (such as: refrigerated liquid, heating water or heating oil, etc.) is heated or cooled by stirring to perform a circular reaction. It is widely used as an ideal equipment for the synthesis experiment of modern biochemical new materials.
feature:

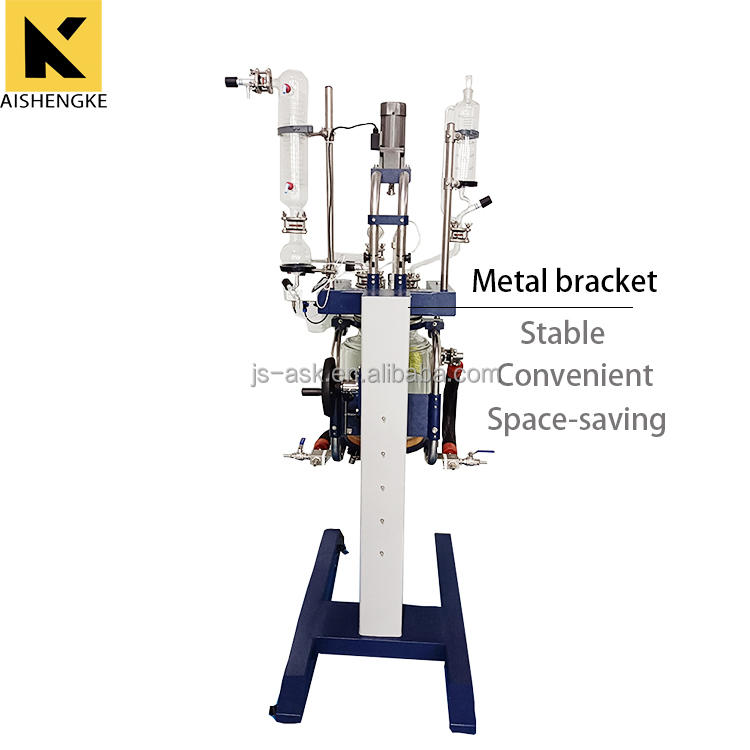

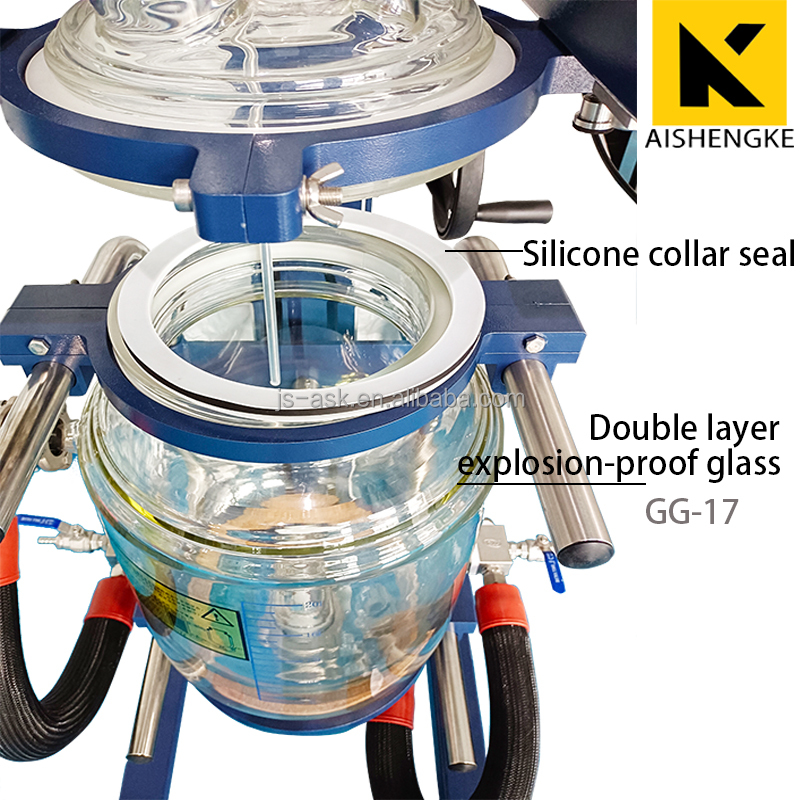

The interlayer of the glass reactor can be fed with different hot and cold circulating liquids (hot water/hot oil/refrigerated liquid). In a closed glass container, the reactants are stirred and reflected under normal pressure or negative pressure, and the fully transparent reaction process is clear at a glance. It is an ideal experimental pilot equipment for modern biopharmaceuticals, fine chemicals, and new material synthesis. 1. The new high borosilicate glass (GG-17) is used in reaction experiment equipment with physical and chemical properties. 2. The equipment of this product is unique. The whole machine is a stainless steel frame structure (the three-way and four-way connection parts are delicately connected), and the structure is compact, firm, non-deformable, and easy to move. 3. The unique frequency conversion speed regulation allows you to achieve high and low speeds in actual use, ideal and accurate, and a full explosion-proof system is optional. 4. The kettle cavity and jacket are designed without dead ends, and the kettle cover is specially designed for solid feeding, which is more convenient for cleaning without disassembly. The bottom material is specially designed for users, and it is more ideal to release concentrated liquid and trace solid liquid materials. 5. After the reaction is completed, the heating (cooling) solution in the interlayer of the reactor can be completely removed without liquid accumulation. 6. The whole machine is scientific and ideal, beautiful and practical, leading the domestic counterparts.
technology:

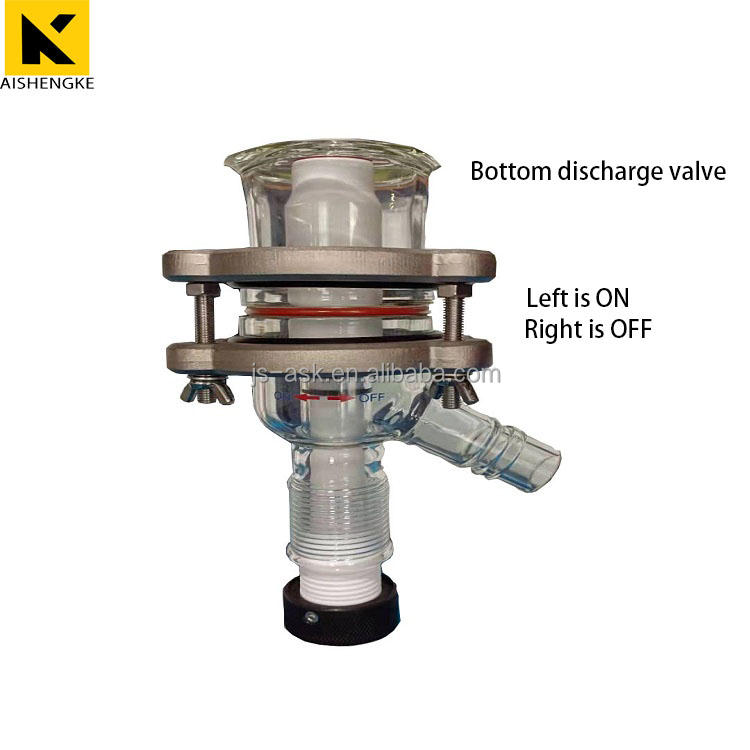

1. Because the material used in the glass reactor (GG17 high borosilicate glass) has excellent material and chemical properties. During the mixing process of frequency conversion speed regulation, the operation will be relatively stable, and no sparks will be generated even if the torque is large. 2. In addition, the components are sealed with PTFE, which can maintain a good vacuum degree (generally around -0.095mpa) among similar products in the market, and maintain high-precision sealing under working conditions. There is also a chip collection chute. 3. Alloy steel mechanical seal, PTFE connection port, maintain high-precision sealing under working conditions. 4. The Pt100 sensor probe has high temperature measurement accuracy and small error, which effectively improves work efficiency. 5. The PTFE discharge valve has a movable interface, and the discharge is thorough and fast. 6. After the reaction is completed, the cooled or heated solution in the interlayer of the glass reactor can be completely drained without liquid accumulation. 7. The overall stainless steel column mobile frame structure, five reaction kettle covers, a full set of glass for reflux, liquid addition, and temperature measurement. 8. Large torque and no noise. Adopt Japanese technology AC gear motor 9, glass reactor with double PTFE stirring paddles, suitable for stirring and mixing of low-viscosity to high-viscosity liquids.
Maintenance Instructions:
1. Check the instrument carefully before use, whether the glass bottle is damaged, whether the interface is consistent, and handle with care. 2. Wipe each interface with a soft cloth (it can be replaced by a napkin), and then apply a little vacuum grease. (Be sure to cover with vacuum grease after use to prevent lime sand from entering.) 3. The joints of the glass reactor should not be tightened too tightly, and should be loosened regularly to avoid loose joints caused by long-term locking. was killed. 4. Turn on the power switch first, let the machine run from slow to fast. When the machine stops, keep the machine stopped, and then turn off the switch. 5. The PTFE switches everywhere should not be screwed too tightly, otherwise the glass will be easily damaged. 6. After each use, all kinds of oil stains, stains and solvent residues remaining on the surface of the machine must be wiped off with a soft cloth to keep it clean. 7. Unscrew each PTFE switch after shutdown, if it is still in working condition for a long time, the PTFE piston will be deformed. 8. Regularly clean the sealing ring. The method is: remove the sealing ring, check whether there is dirt on the shaft, wipe it clean with a soft cloth, then apply a little vacuum grease, and then reinstall it to keep the shaft and the sealing ring smooth. 9. The electrical parts are not allowed to enter the water, and it is strictly forbidden to be damp. 10. Genuine accessories must be purchased from the original factory. Random use of other parts will cause fatal damage to the machine. 11. When performing any maintenance or inspection on the glass reactor, be sure to cut off the power supply and water source first.
Precautions:
1. All glass parts should be cleaned before installation. 2. A small amount of vacuum silicone grease should be applied to each standard port, ball mill port and sealing surface to increase air tightness. 3. Before installation, use, maintenance and inspection, be sure to read all the contents of this manual carefully and use it correctly. 4. The power supply voltage must be consistent with the voltage specified by the instrument. 5. No-load operation is not suitable for high-speed operation. 6. The life of the electrical box is greatly affected by the surrounding temperature and humidity. Keep the governor and motor dry. 7. Install the reactor equipment first, and then operate the equipment by professional operators.
