2022 New Design High Rejection Low Insertion Loss VSWR 868MHz Cavity Filter 868Mhz for Helium LoRaWan Network
- $65.00 / 5 - 49 pieces
$63.00 / 50 - 499 pieces
$60.00 / >=500 pieces - 5 pieces
- Shenzhen New Shining Technology Co., Ltd.
- Guangdong, China
- Mr Dawei Jiang
PRODUCT DETAIL
| Frequency - Action: | 863~870MHz | model: | RF-CF-868 |
| Cross reference: | - | Configuration: | - |
| finishing: | Surface painted black | type: | Cavity filter |
| Standing wave ratio: | <1.2 | Supply capacity: | 500 pieces per month |
| Nominal Center Frequency: | 868MHZ | impedance: | 50Ω,50Ω |
| Internal dimensions: | - | brand: | Yuan Yu |
| Temperature Coefficient: | - | Dimensions: | - |
| Packaging Preview: | input resistance: | 50Ω | |
| Packaging Details: | PE bag + carton | Center/Cutoff Frequency: | 868MHz |
| payment terms: | Wire Transfer, Paypal, Credit Card | Number of channels: | - |
| Conversion function: | Bandpass | Connector: | N male - N female |
| length: | - | feature: | - |
| Number of poles: | - | place of origin; place of origin: | Guangdong |
| Out-of-band rejection: | >60dB@0~855Mhz, 880Mhz~3000Mhz | Shell size: | 112*76*40mm |
| technology: | band filter | Insertion Loss: | <1.3db |
| port: | Yantian | Height - Seated (max): | - |
| capacitance: | - |
Product Description

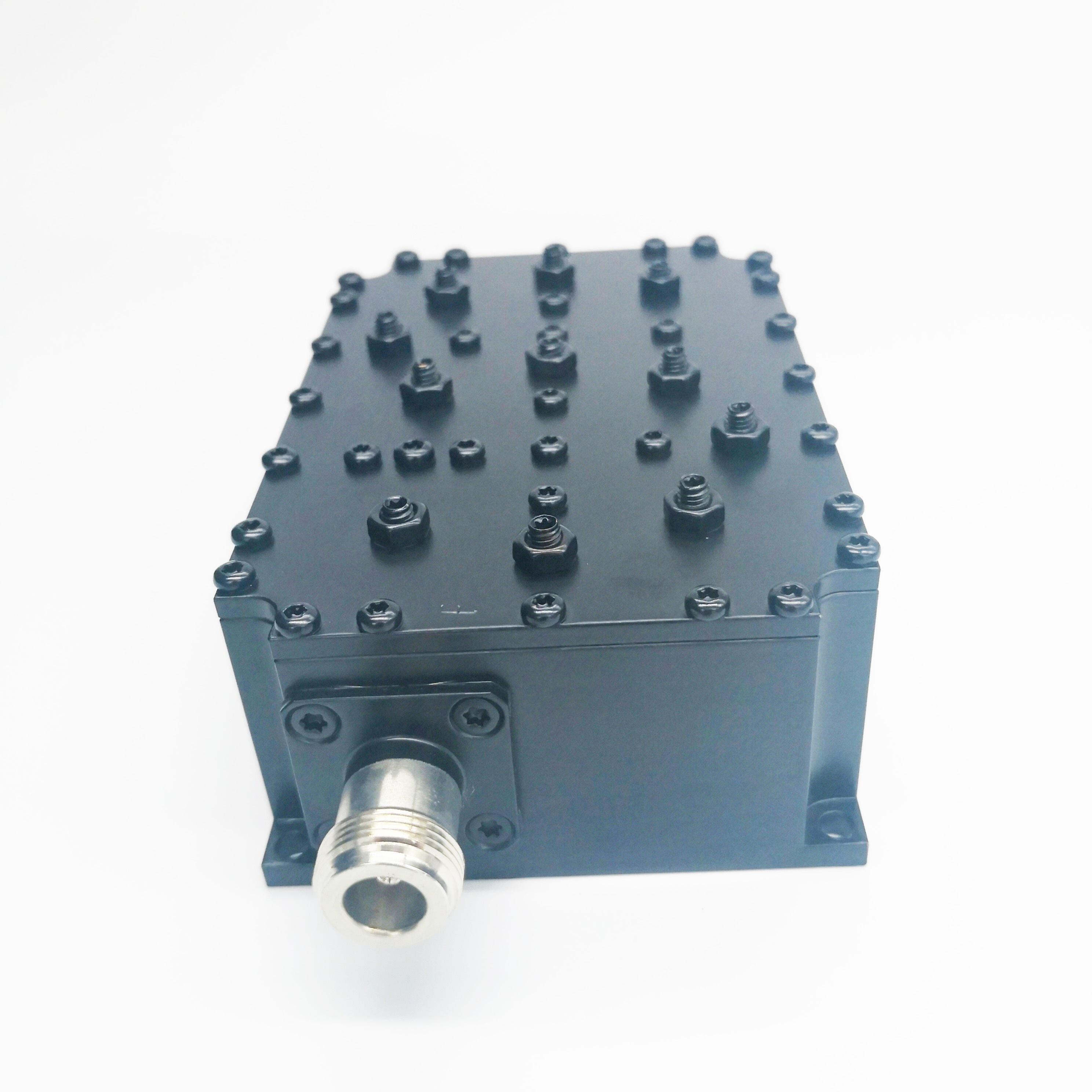

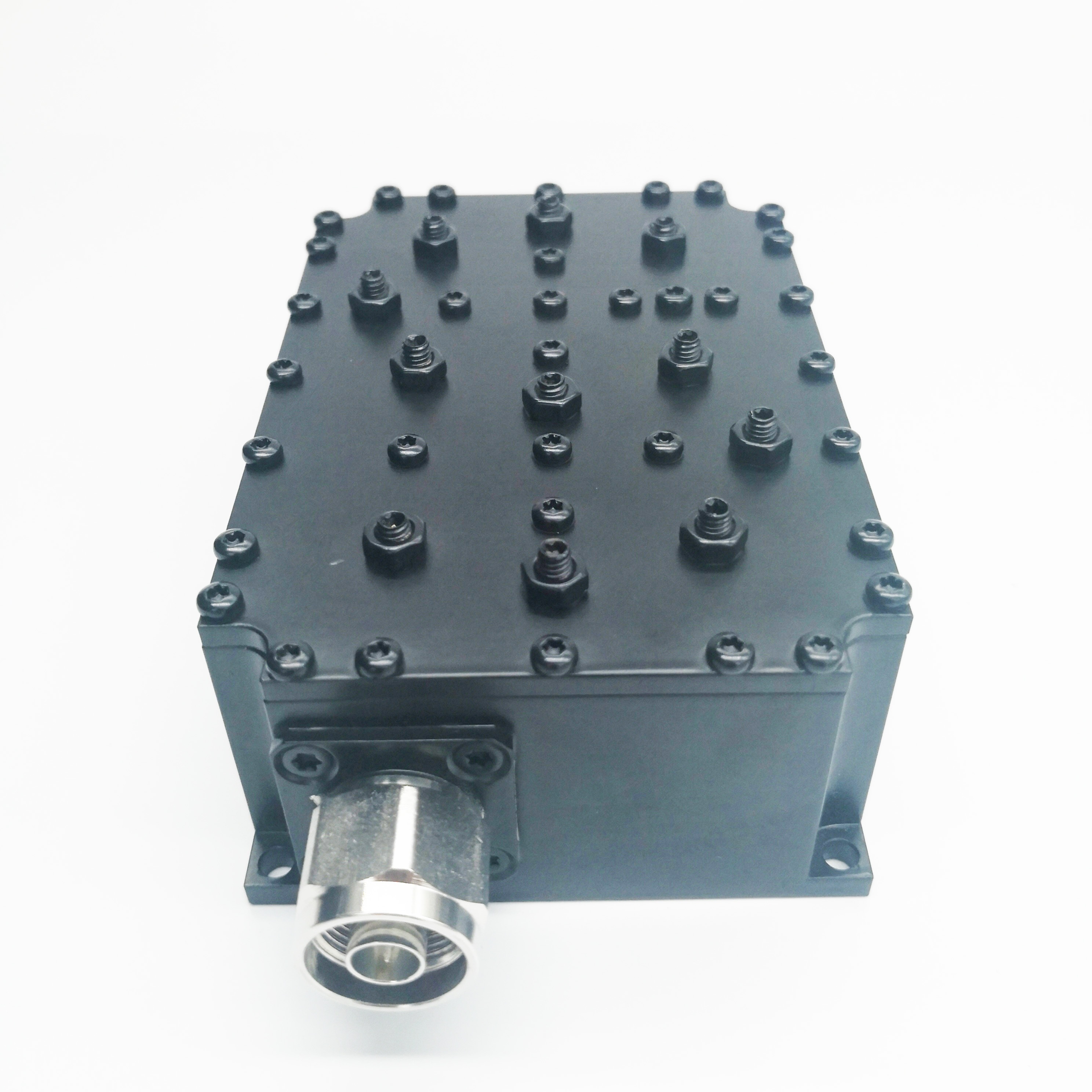

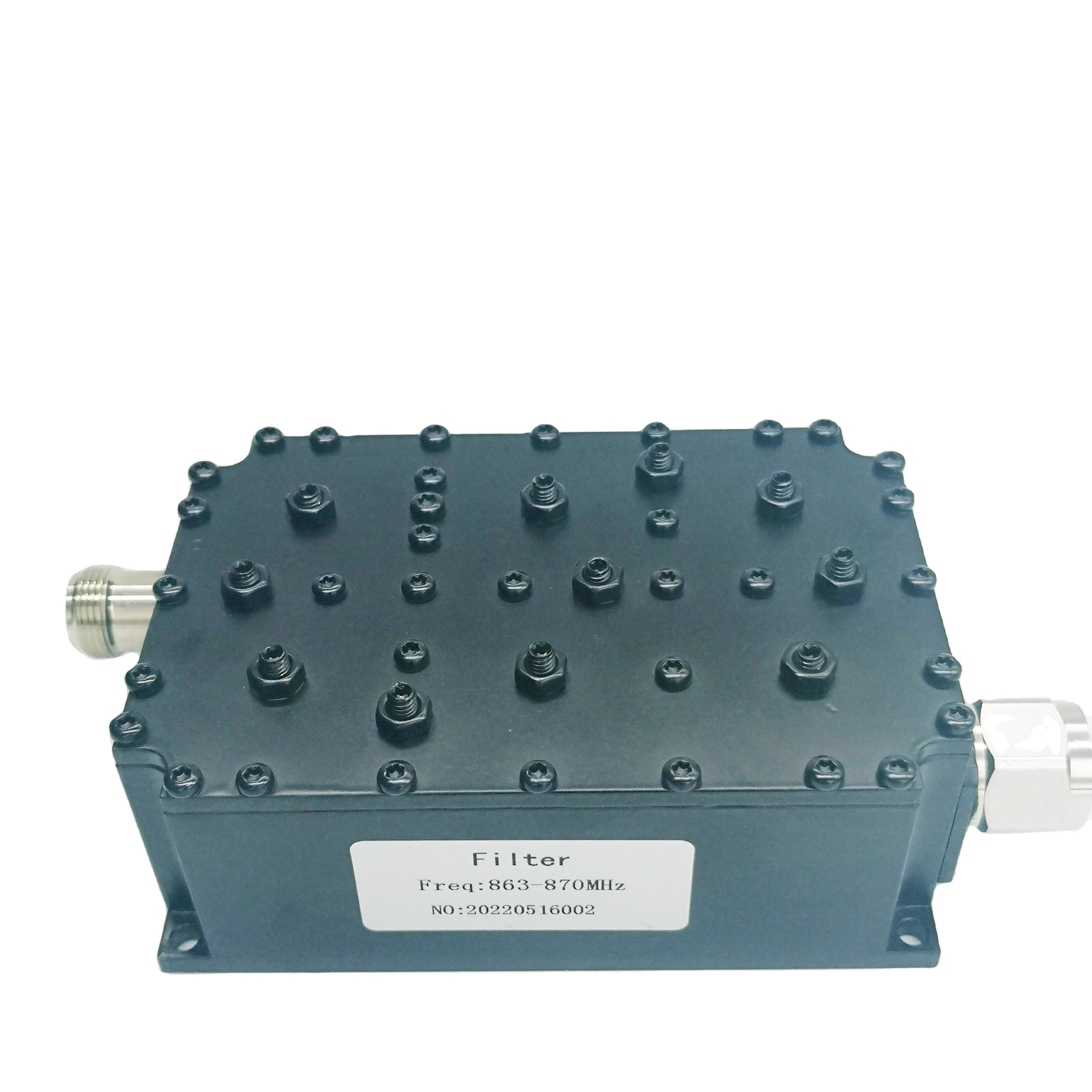

The 868MHz cavity filter operates at 863-870MHz with a bandpass of 7MHz for use in the helium hotspot network.

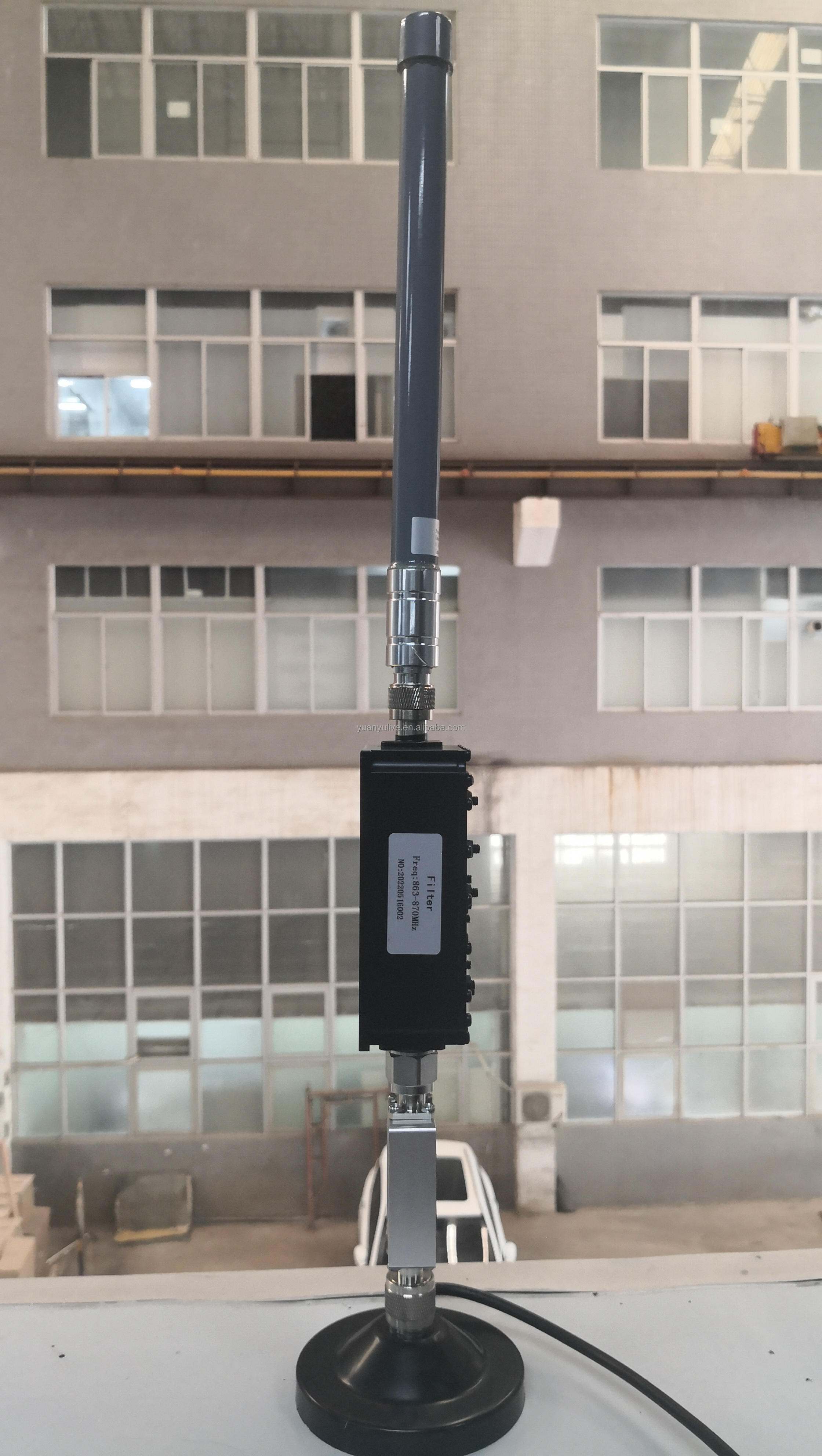

The component features ultra-low insertion loss, VSWR, and optimized 10MHz out-of-band rejection from sidebands. The 868MHz cavity filter features a rugged aluminum construction that can be used indoors or outdoors with appropriate waterproofing measures.

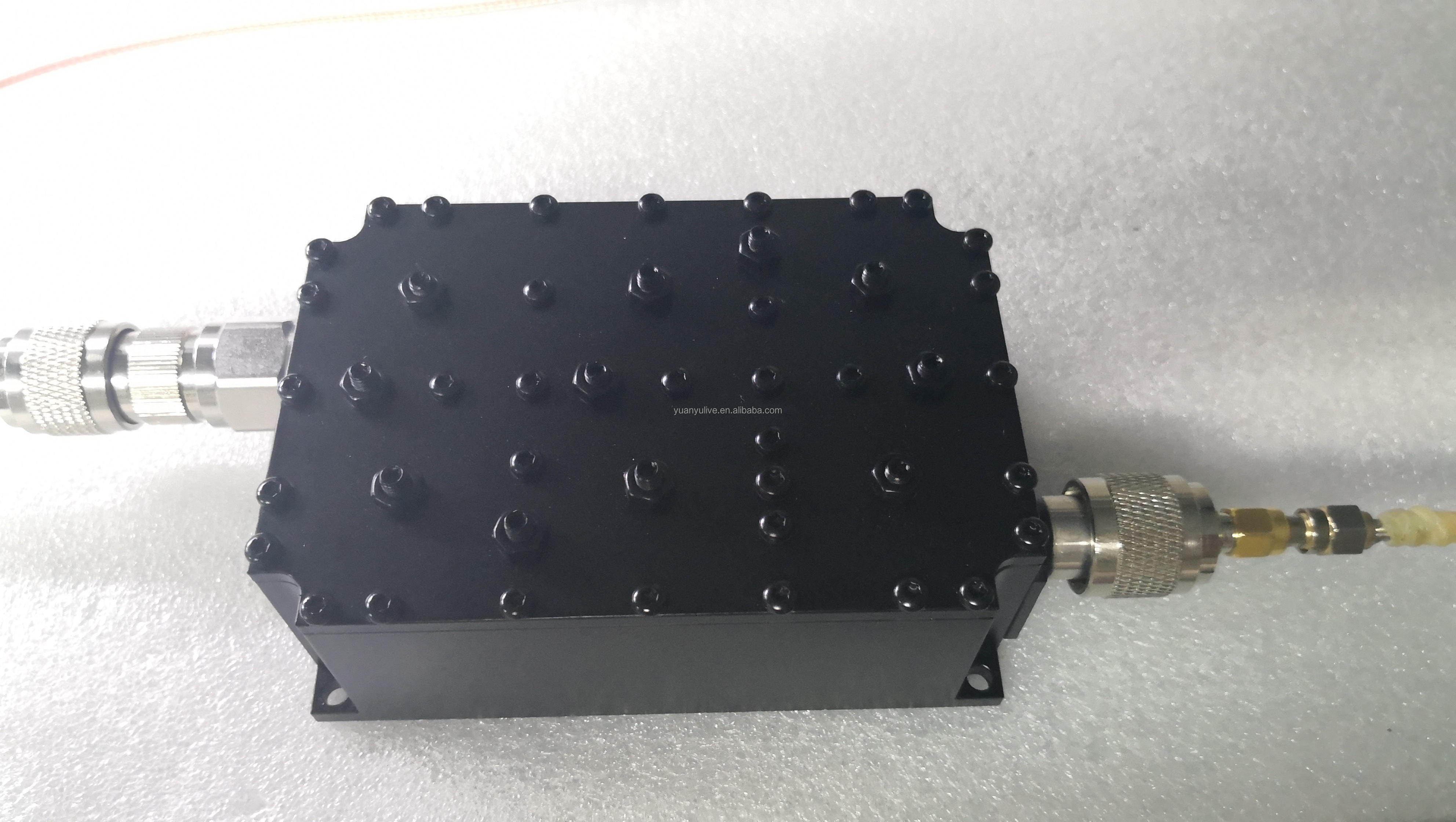

The 868MHz cavity filter features NJK connectors or N to SMA female connectors on both sides. Other connectors can be customized.
The component features ultra-low insertion loss, VSWR, and optimized 10MHz out-of-band rejection from sidebands. The 868MHz cavity filter features a rugged aluminum construction that can be used indoors or outdoors with appropriate waterproofing measures.
The 868MHz cavity filter features NJK connectors or N to SMA female connectors on both sides. Other connectors can be customized.
feature
* Provide surge/surge arrester/surge arrester (DC short circuit)
* 863-870MHz full-band LoRa application
* Reduced interference outside the ISM band and improved RF performance
* Ultra-low insertion loss (nominal 1.0dB)
* Suitable for Helium network and 868MHz LoRa IOT network
* 863-870MHz full-band LoRa application
* Reduced interference outside the ISM band and improved RF performance
* Ultra-low insertion loss (nominal 1.0dB)
* Suitable for Helium network and 868MHz LoRa IOT network

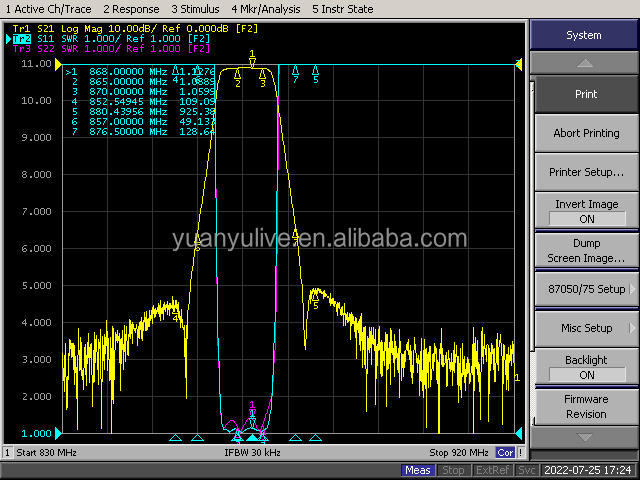

Specification
model | RF-CF-868 |
Operating temperature | -40-80℃ |
place of origin; place of origin | carve up |
out-of-band suppression | >60dB |
Conversion function | Bandpass |
Nominal center frequency | 868MHZ |
Insertion loss | <1.3db |
input resistance | 50Ω |
standing wave ratio | <1.2 |
