NDF8012 868mhz QCC8C Low Loss Economical Surface Acoustic Wave (SAW) Filter, Factory Quotation Competitive Price
- $0.18 / >=10 pieces
- 10 pieces
- Shenzhen Winnsky Electronics Co., Ltd.
- Guangdong, China
- Mr Bryan Huang
| Nominal center frequency: | 868MHz | place of origin; place of origin: | Guangdong, China |
| bandwidth: | 1.2MHz | port: | Shenzhen |
| product name: | Low Loss RF Filters | Package Size: | 5050 saw blade filter 5*5mm |
| 3dB Bandwidth: | 1.2MHz | range of working temperature: | -10℃+60℃ |
| brand: | SAW filter | transportation: | DHL, UPS, Fedex, TNT, EMS, China Post |
| impedance: | 50 ohms | brand: | Winsky |
| Center/cutoff frequency: | 868MHz | input resistance: | 50 ohms |
| Supply capacity: | 1,000,000 pieces per month | Packaging Details: | Anti-static bag (NDF8012 868mhz QCC8C low-loss economical surface acoustic wave (SAW) filter) |
| application: | Wireless communication, Lora | payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal |
| Operating temperature: | -40~85 degrees Celsius | Dimensions/dimensions: | 5*5mm |
| Filter type: | Bandpass | model: | NDF8012 |
| Types of: | SAW filter | pack: | QCC8C |
| case: | ceramic package | Company Name: | Shenzhen Winsky Electronics |
| Installation type: | surface mount | Convert function: | Bandpass |
| type of packaging: | surface mount | Insertion loss: | 3.5 dB |
| Warranty: | 1 year | Storage temperature range: | -40℃+85℃ |
| application: | receiver | frequency: | 868MHz |
NDF8012 868mhz QCC8C Low Loss Economical Surface Acoustic Wave (SAW) Filter

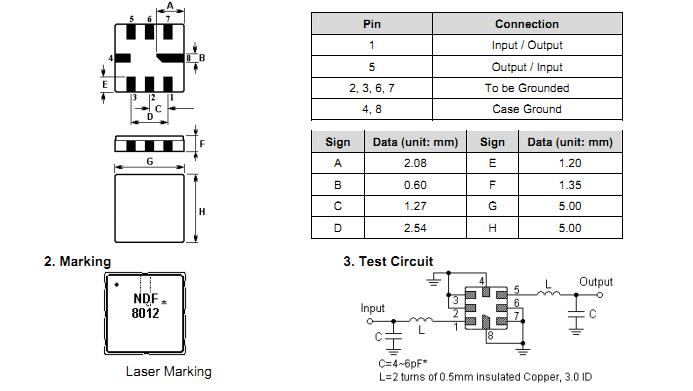

SAW filter NDF8012 package size

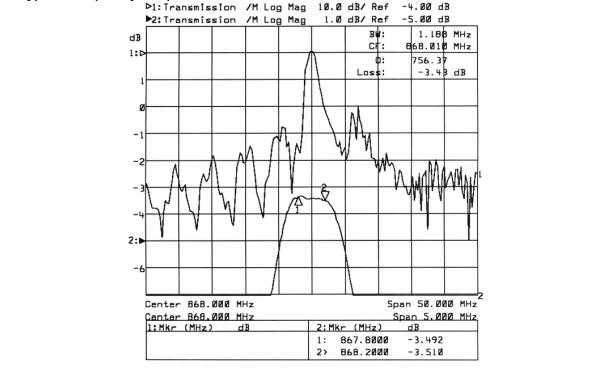

Typical Frequency Response

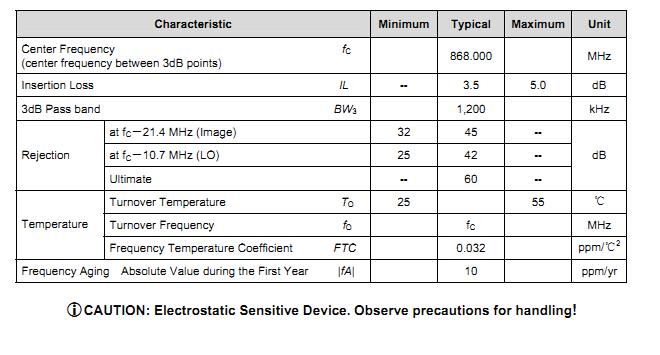

Electronic characteristics
Established in 2007, Winnsky focuses on R&D/production/sales of RF and microwave frequency components, PIR sensors and modules.
The company is located in Shenzhen, only 20 minutes' drive from Shenzhen Bao'an International Airport. Our main products are SAW filter/SAW resonator/SAW duplexer series; DIP/Microstrip/SMD/Coaxial/Dual/Waveguide/Broadband/Low IMD/High Power circulator and isolator; dielectric material series filter and resonator; PIR sensor and module series; microwave and millimeter wave module series products.

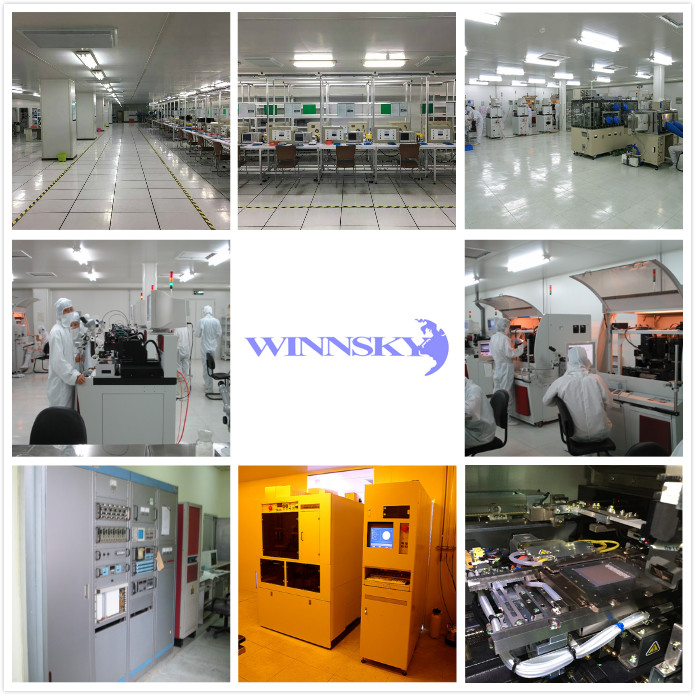

R&D/production bases have been established in Nanjing and Shenzhen respectively. More than 100 master/doctorate R&D personnel graduated from 985/211 University. The factory covers an area of 30,000 square meters, with a construction area of 1,000 square meters and has passed ISO9001/TS16949 certification.
With the business philosophy of "professional, focused, innovative, and leading", we provide all-round services from design/application/production/logistics, and our products are exported to Japan, South Korea, Brazil, Russia, Taiwan, etc. World-renowned companies such as ZTE/Great Wall Motor/Geely Automobile/Honda/Nissan have established long-term cooperative relationships.
