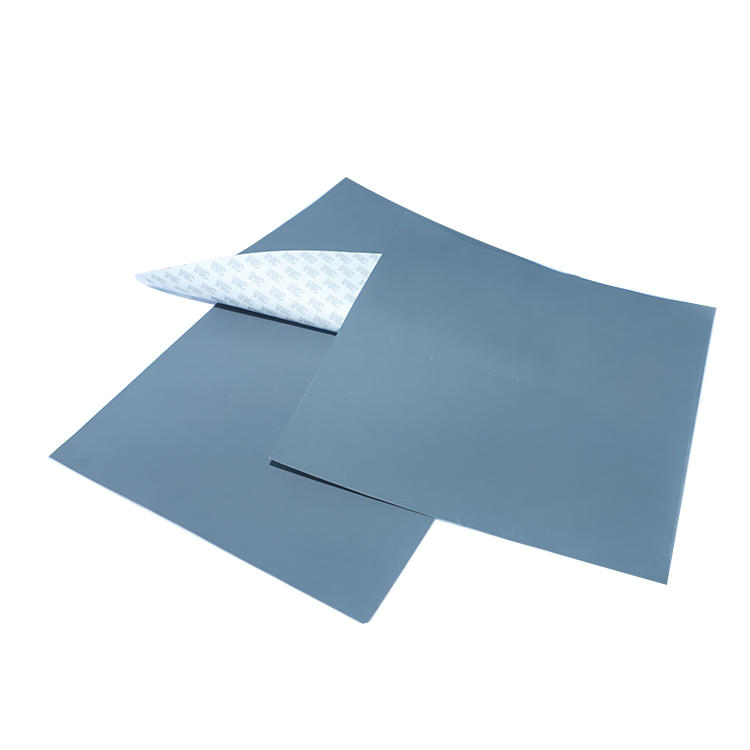

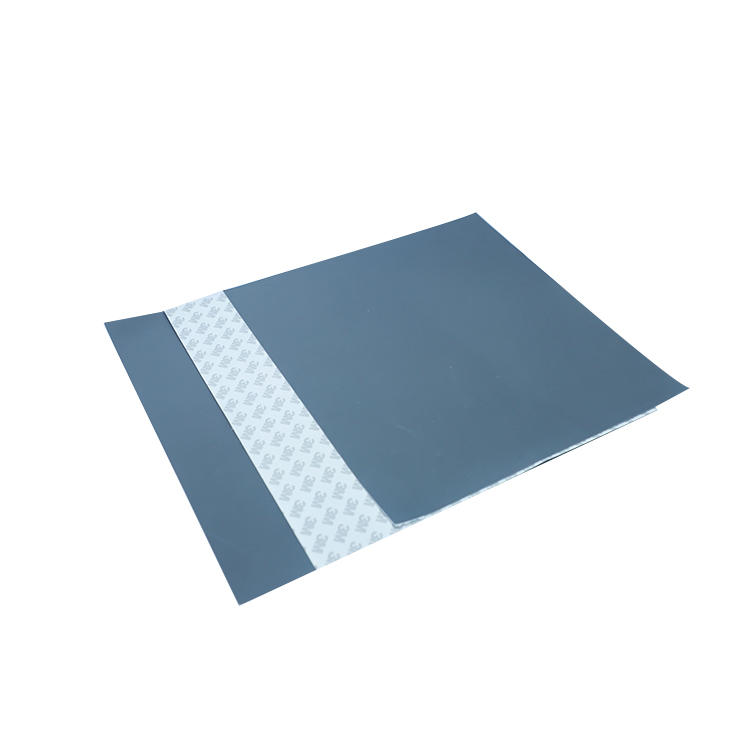

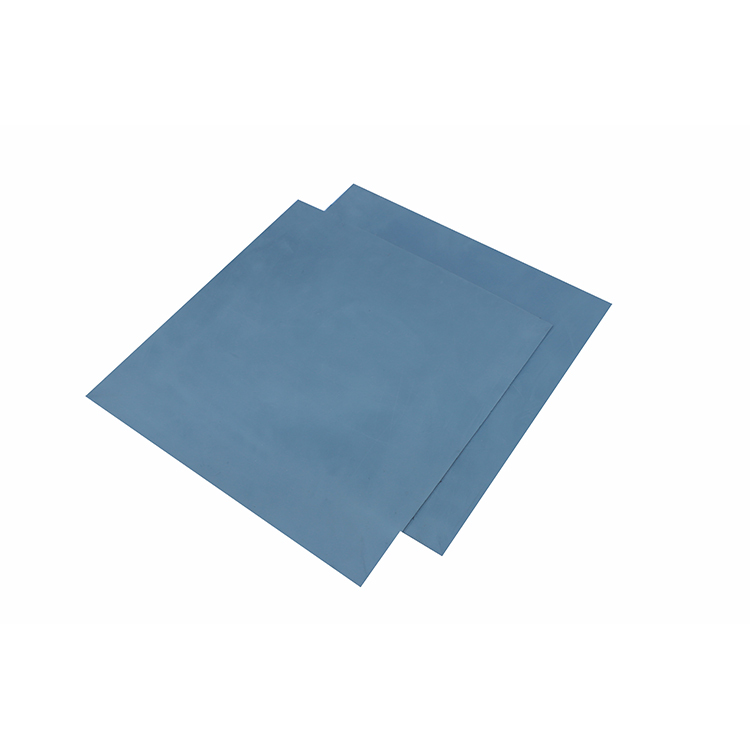

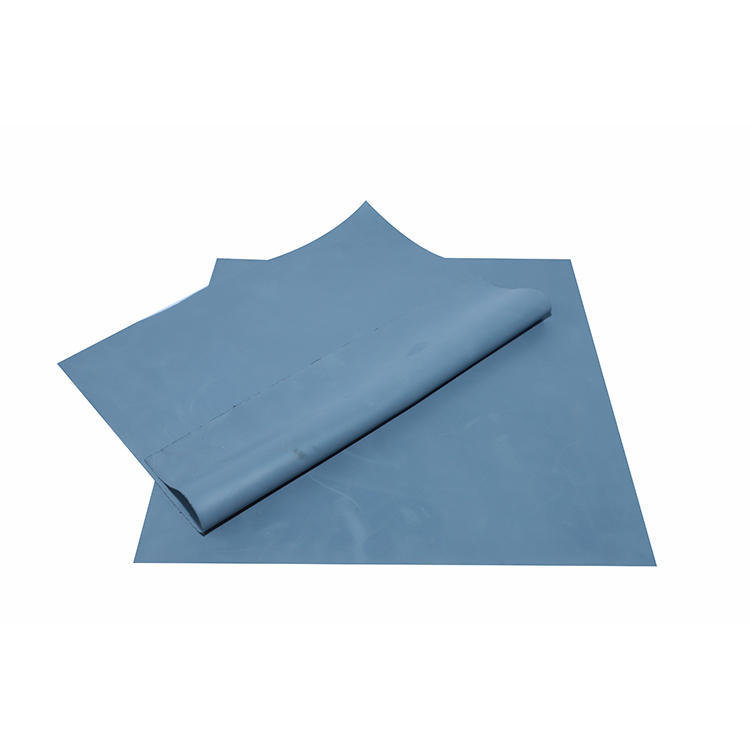

Silicone rubber 3mm electromagnetic wave absorbing material RF absorbing filter
- $11.40 /piece
- 1 piece
- Jiangsu Crystal River Electronic Technology Co., Ltd.
- Jiangsu, China
- Ms Kasy Xu
PRODUCT DETAIL
| brand: | Jinghe | Resistance - Channel (Ohms): | 50 |
| expiration of pay: | wire transfer | Height - seated (maximum): | 3mm |
| shape: | square | product name: | Electromagnetic Shielding Materials Microwave Absorbing Materials |
| place of origin; place of origin: | China | Insertion loss: | electromagnetic interference |
| Package preview: | Payment/Payment: | 202104160106 | |
| Cross reference: | China Resources RFSR-103 | high: | 6mm |
| Certification: | ISO9001 | model: | China Resources RFSR-102 |
| input resistance: | 50 | 3dB Bandwidth: | 17 |
| Nominal center frequency: | 6-12GHz | pack: | Carton |
| trademark: | Jinghe | payment terms: | L/C, D/P, D/P, T/T, MoneyGram |
| brand: | Elastic rubber absorbing material | Types of: | EMI filter |
| Function: | electromagnetic absorption | size: | 200mm*200mm |
| Frequency - Operation: | 8-12GHz | Filter type: | power supply, signal line |
| Installation type: | surface mount | delivery time: | within 15 days |
| impedance: | 50 ohms | Convert function: | Bandpass |
| Supply capacity: | 10000 square meters per month | port: | Qingdao Port Lianyungang Port Shanghai Port |
| Material: | flat wave absorbing material | Center/cutoff frequency: | 6-12GHz |
| Packaging Details: | We put it in an airtight film bag and put it in a carton. |
Product Description
The RFFR-200 series is made of soft polyurethane or silicone rubber foam. The material has the characteristics of high loss, low density and good flexibility. Compared with rubber absorbing materials, it has excellent compression characteristics and lower application cost. The material lowers Q through insertion loss in RF amplifiers, oscillators, microwave equipment enclosures and antenna isolation cavities. It bonds safely to itself or to other materials such as metal, wood and common plastic compounds.
Specification
typical value | Test Methods | unit | China Resources RFSR-101 | China Resources RFSR-102 | China Resources RFSR-103 |
Elastic type | / | / | Silicone Rubber | Silicone Rubber | Silicone Rubber |
packing type | / | / | Carbonyl iron powder | Mixed absorbent | Mixed absorbent |
Closer | vision test | / | grey | dark gray | dark gray |
thickness | / | mm | 1.0~3..0 | 1.0~3.0 | 0.3~5.0 |
Effective frequency range | / | gigahertz | 2.0~6.0 | 6.0~12.0 | 12~18 years old |
Operating temperature | / | ℃ | -45~150 | -45~150 | -45~150 |
Thermal Conductivity @ Uncured | ASTM D5470 | W/(m`K) | 1.5 | 1.3 | 0.8 |
Flammability Rating | UL94 | / | V0 | V0 | V0 |
Adhesive method | / | / | PSA | PSA | PSA |
