Filter 5-694 Mhz CATV de Paso Bajo 4G CATV Filter LTE Low Pass
- $0.50 / >=100 pieces
- 100 pieces
- Hangzhou Daytai Network Technologies Co., Ltd.
- Zhejiang, China
- Mr Amani DENG
PRODUCT DETAIL
| weight: | 33 grams | DC power through: | 30V/1A |
| model: | DT-LTE-LPF-694MHz | port: | Shanghai/Ningbo |
| Components: | All SMD parts | F connector type: | male to female |
| Packaging Preview: | Supply capacity: | 120000 pieces/month | |
| payment terms: | D/P,T/T,Western Union,Paypal | Packaging Details: | 100/box |
| place of origin; place of origin: | Zhejiang, China | aspect: | 20.5x58(L)mm |
| Conversion function: | Lowpass | impedance: | 75 ohms |
| Subband Suppression: | -45 dB minimum | Name: | 4G LTE LFP |
| Applies to: | cable TV system | brand: | Datai |
detailed image
Product Description

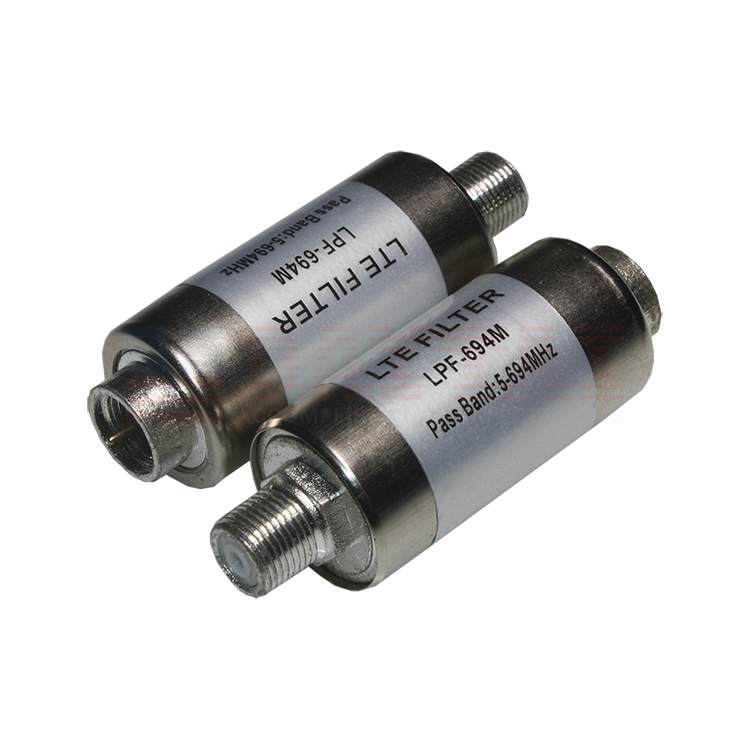

5-694Mhz CATV Filtro de Paso Bajo 4G CATV Low Pass LTE Filter
4G LTE filter, LTE-LPF-5-694M low-pass filter, passband 5-694MHz, rejection band: 714-1000MHz, F male to F female connector, suitable for indoor or outdoor waterproof optional.
scope | bandwidth | Specification | ||

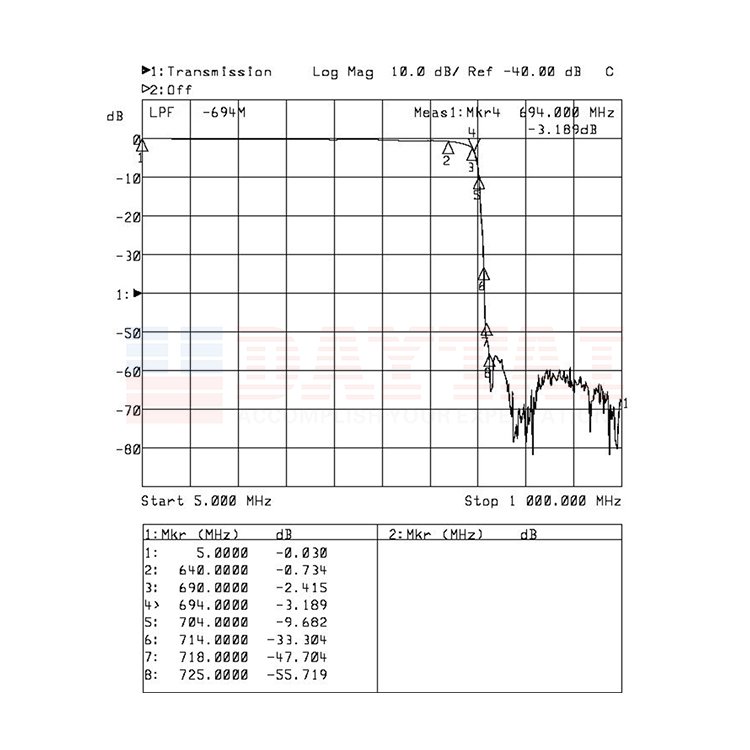

Insertion loss | 5-640MHz | 0.5dB (typ)/1.0dB (max) | ||
640-690MHz | 1.0dB (typ.)/2.5dB (max.) | |||
690-694MHz | 2.5dB (typ)/3.5dB (max) | |||

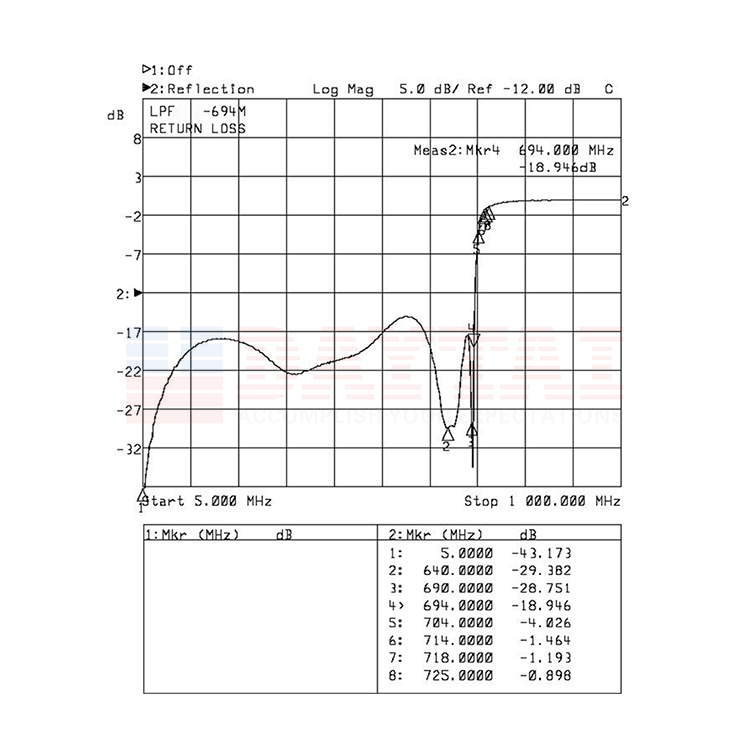

return loss | 5-40MHz | 20dB(typ.)/18(min) | ||
40-694MHz | 16dB(typ.)/14(min) | |||
Suppression Band Loss | 714-718MHz | 35dB (typ.)/30dB (min.) | ||
718-725MHz | 45dB (typ.)/40dB (min.) | |||
725-1000MHz | 55dB (typ.)/50dB (min.) | |||
DC power on | 30V/1A | |||
impedance | 75 ohms | |||
F connector type | Male to Female (3/8inch-32UNEF) | |||
aspect | 20.5(Φ)×58(L)mm | |||
weight | 33 grams | |||
★Order information | ||||
DT-LTE-LPF-600M | 5-600MHz | |||
DT-LTE-LPF-650M | 5-650MHz | |||
DT-LTE-LPF-670M | 5-670MHz | |||
DT-LTE-LPF-694M | 5-694MHz | |||
DT-LTE-LPF-698M | 5-698MHz | |||
DT-LTE-LPF-710M | 5-710MHz | |||
DT-LTE-LPF-750M | 5-750MHz | |||
DT-LTE-LPF-740M | 5-774MHz | |||
DT-LTE-LPF-790M | 5-790MHz | |||
DT-LTE-LPF-1002M | 5-1002MHz | |||
