30 m3/h mobile and compact, the most economical concrete plant on the market!
- $1000.00 /unit
- 1 unit
- CONSTMACH MAKINA ITHALAT IHRACAT LIMITED SIRKETI
- Ankara, Turkey
- Mr Emre Cinar
PRODUCT DETAIL
| Warranty: | 2 years | payment terms: | letter of credit, wire transfer |
| Core Components Warranty: | 2 years | Control cabinet: | Insulation |
| port: | from any Turkish port | Supply capacity: | 4 units per month |
| Control Type: | Fully automatic | Power Type: | electrical |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Applicable industries: | Building Materials Stores, Manufacturing Plants, Construction Engineering, Energy & Mining |
| Warranty: | 2 years | Mixer Type: | Planetary/Single Shaft/Disc |
| Mechanical test report: | if | Packaging Details: | Fully packaged to avoid any physical-aesthetic damage during loading-transporting and unloading. |
| Marketing Type: | New Products 2020 | capacity: | 30 m3/h |
| Local service location: | Turkey, France, Peru, Spain, Morocco, Chile, Romania | Packaging Preview: | |
| brand: | Constermach | After-sales service provided: | Video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support |
| place of origin; place of origin: | Izmir, Turkey | Type of machine: | batching machine |
| Dimensions (L*W*H): | 8 x 2,2 x 2,2 | Showroom location: | Turkey, France, Spain |
| Video external inspection: | if | Certification: | CE, ISO |
| Air compressor: | present | Health status: | new |
| strength: | 55 kW | Coating Thickness: | 150 microns |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | weight: | 8 tons |
Product Description

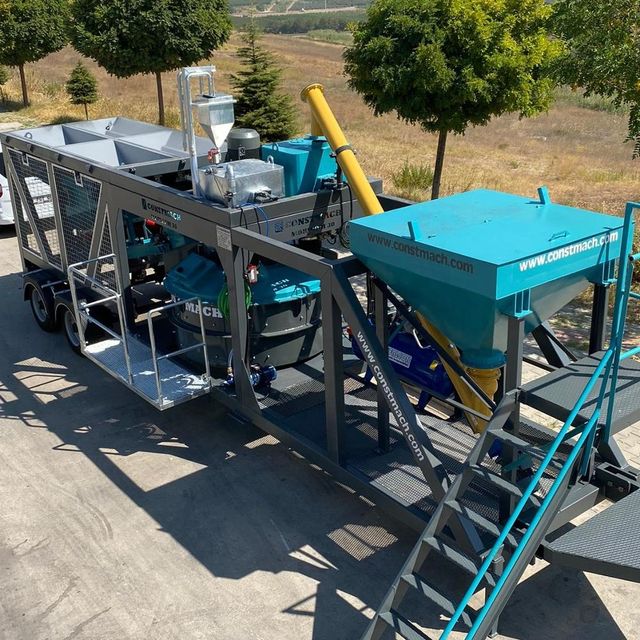

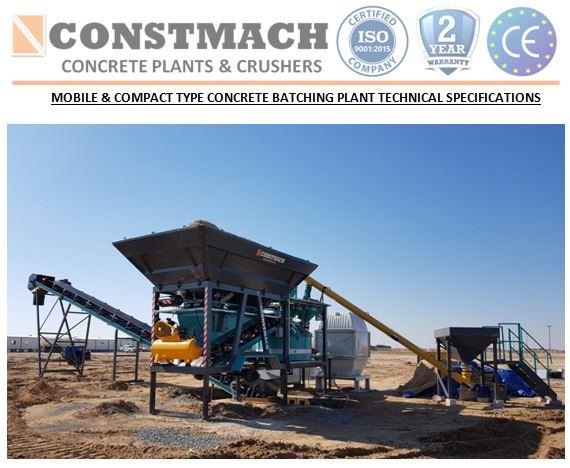

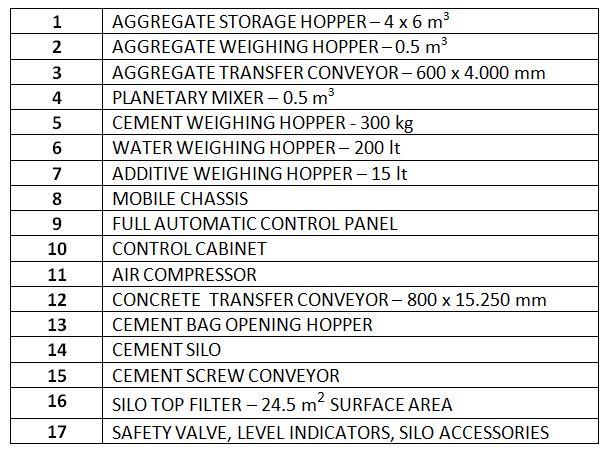

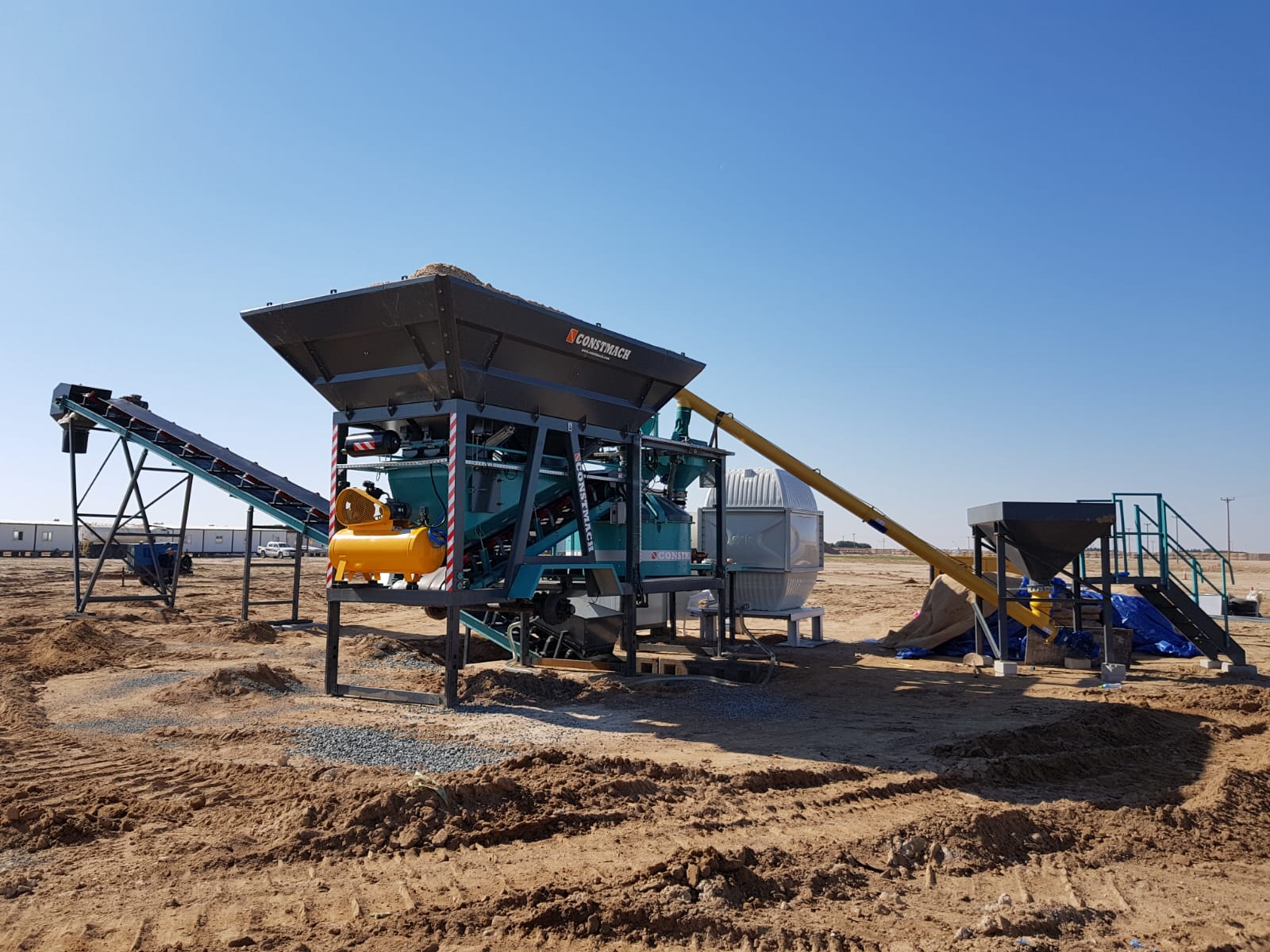

Technical Specifications of Mobile and Compact Concrete Batching Plants

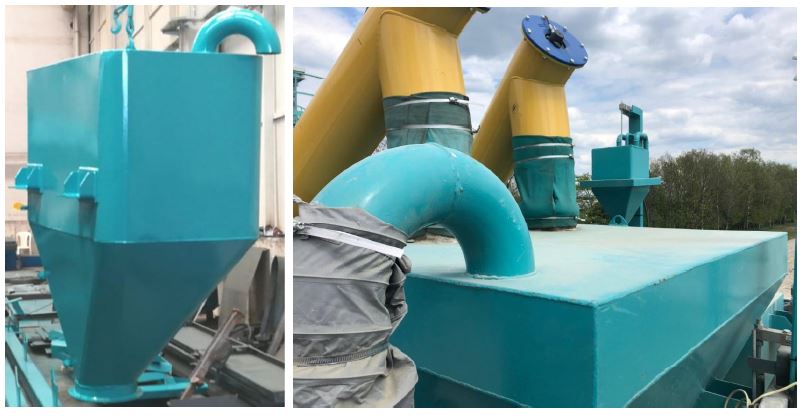

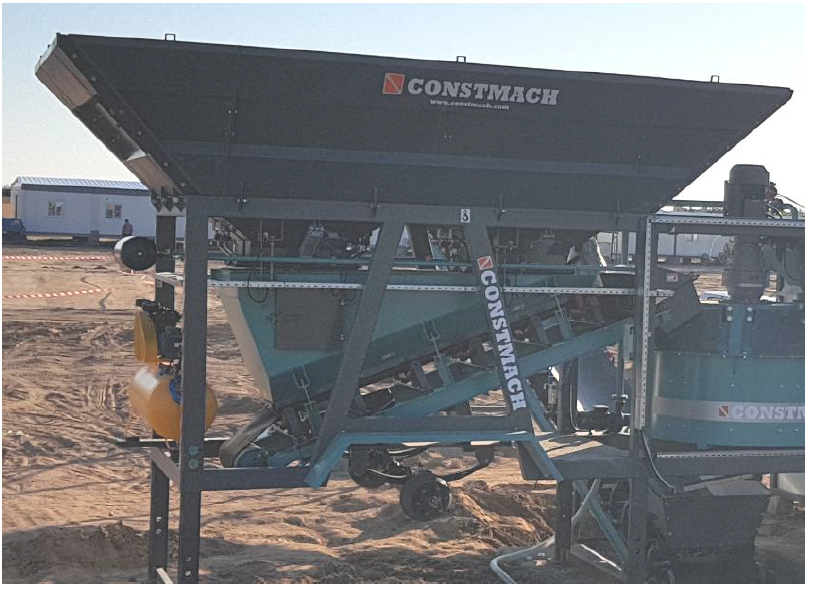

1- Polymer hopper:
Volume: 24 m3
Number of compartments: 4 x 6 m3
Body material: St 37 – 5-6 mm, bent plate. Number of discharge doors: 4
Discharge door control: electro-pneumatic

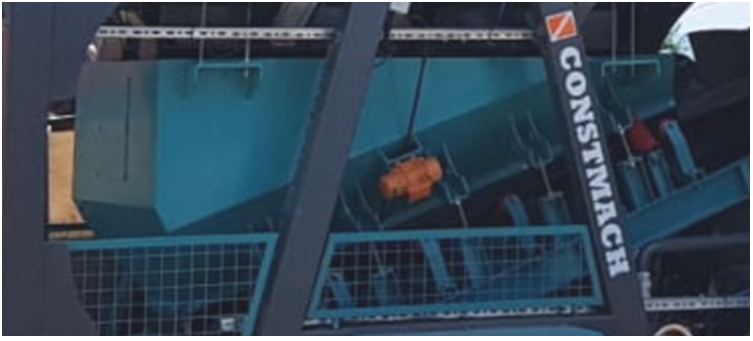

Gate cylinder: 800 x 300 mm, brand: Rexroth. The body is reinforced to prevent deformation. Sand chamber vibrators: 2 pcs, 0.37 kW vibrator brand: OLI (origin: Italy), model: MVE 300/3 Air accumulators are present. There are service platforms on both sides.
Number of compartments: 4 x 6 m3
Body material: St 37 – 5-6 mm, bent plate. Number of discharge doors: 4
Discharge door control: electro-pneumatic
Gate cylinder: 800 x 300 mm, brand: Rexroth. The body is reinforced to prevent deformation. Sand chamber vibrators: 2 pcs, 0.37 kW vibrator brand: OLI (origin: Italy), model: MVE 300/3 Air accumulators are present. There are service platforms on both sides.
- 2 - Polymer Hopper:
Weighing capacity: 0.5 m3
Body material: St 37 – 5 mm sheet metal
Vibrator: 1, 0.37 kW,
Vibrator brand: OLI (origin: Italy), model: MVE 300/3. Equipped with load cells: 4, 2.000 kg/each, brand: ESIT
Body material: St 37 – 5 mm sheet metal
Vibrator: 1, 0.37 kW,
Vibrator brand: OLI (origin: Italy), model: MVE 300/3. Equipped with load cells: 4, 2.000 kg/each, brand: ESIT

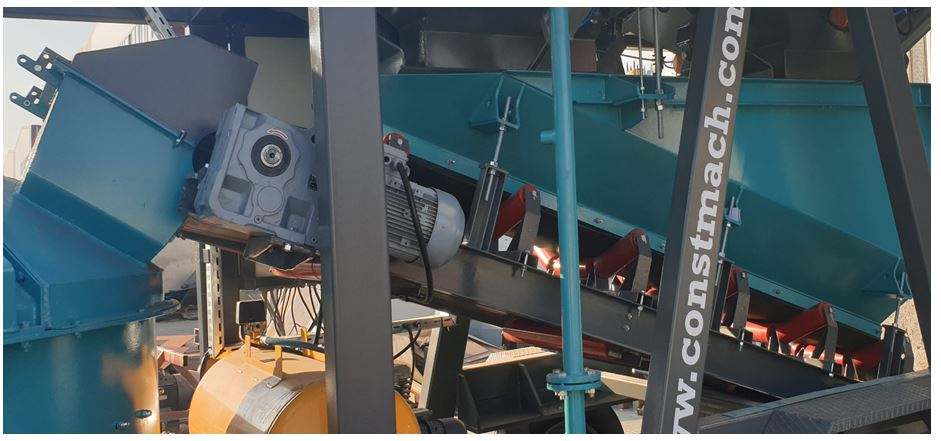

- 3- Aggregate Weighing and Transfer Conveyor:
Conveyor dimensions: 600 x 4.000 mm
Chassis material: NPU 140mm steel C-profile. Electric motor: 5.5 kW, 1450 rpm, EMTAŞ brand. Gearbox brand: DISSAN, heavy duty type. Bearings: FAG or SKF brand. Use heavy duty housings. Belt Rubber: Quality EP 125, Layers: 4, Belt Rubber Thickness: 10mm
Belt rubber brand: DERBY
There is an emergency stop button.
Drive drum: Ø320mm, 5mm thick. The drive drum is covered with rubber.
Chassis material: NPU 140mm steel C-profile. Electric motor: 5.5 kW, 1450 rpm, EMTAŞ brand. Gearbox brand: DISSAN, heavy duty type. Bearings: FAG or SKF brand. Use heavy duty housings. Belt Rubber: Quality EP 125, Layers: 4, Belt Rubber Thickness: 10mm
Belt rubber brand: DERBY
There is an emergency stop button.
Drive drum: Ø320mm, 5mm thick. The drive drum is covered with rubber.

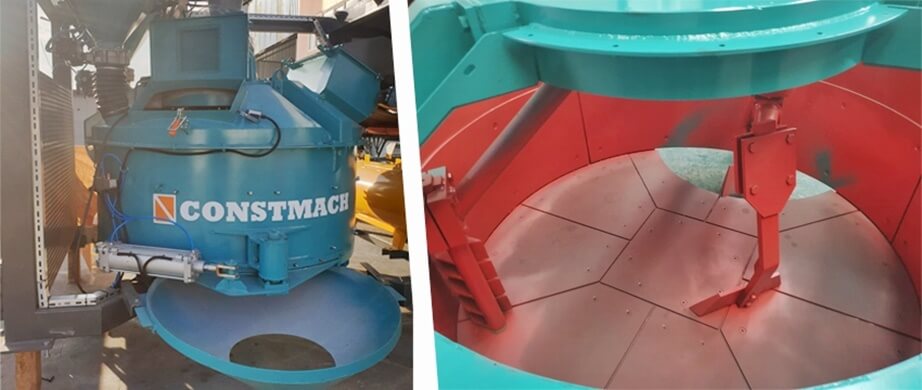

- 4- Mixer: Planetary Mixer 750/500
Dry capacity: 750 liters
Compacted concrete capacity: 500 liters
Blender motor: 18.5 kW, 1450 rpm (GAMAK or equivalent - Turkey), efficiency class: IE3. Gearbox: Heavy duty type, (PGR brand - Turkey). Wear resistant HARDOX 450 plates (SSAB - Sweden) or XAR 500 (Germany) for bottom and side liners and mixing arms, thickness 15 mm, min. hardness 450 HBW; stirring and scraper in NI-HARD cast iron, hardness: 700 HBW.
Compacted concrete capacity: 500 liters
Blender motor: 18.5 kW, 1450 rpm (GAMAK or equivalent - Turkey), efficiency class: IE3. Gearbox: Heavy duty type, (PGR brand - Turkey). Wear resistant HARDOX 450 plates (SSAB - Sweden) or XAR 500 (Germany) for bottom and side liners and mixing arms, thickness 15 mm, min. hardness 450 HBW; stirring and scraper in NI-HARD cast iron, hardness: 700 HBW.
- 5- Cement weighing hopper
Weighing capacity: 300 kg Hopper material: St 37 – 4 mm Cement is discharged through a butterfly valve with pneumatic actuator control. (WAM or OZB brand) The connection to the mixer is done with a flexible hose. Equipped with load cells, 3 pieces of 1000 kg each. (Brand: ESIT) Vibrator: 1 pcs, 0.18 kW, (Brand: OLI - ITALY), Model: 200/3

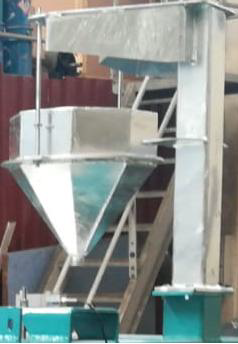

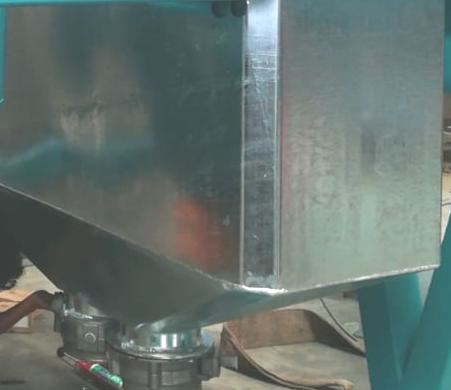

- 6- Water weighing hopper: hot dip galvanized
Weighing capacity: 200 liters Hopper material: St 37 – 4 mm Water is drained through a butterfly valve with pneumatic actuator control. (WAM or OZB brand) with load cell, 3 pcs, 1000kg/pc. (Brand: ESIT)
- 7-Additive weighing hopper: hot-dip galvanizing
Weighing capacity: 20 liters Hopper material: St 37 – 4 mm Water is drained through a butterfly valve with pneumatic actuator control. (WAM or OZB brand) with load cell, 1 pc, 100 kg. (Brand: ESIT)

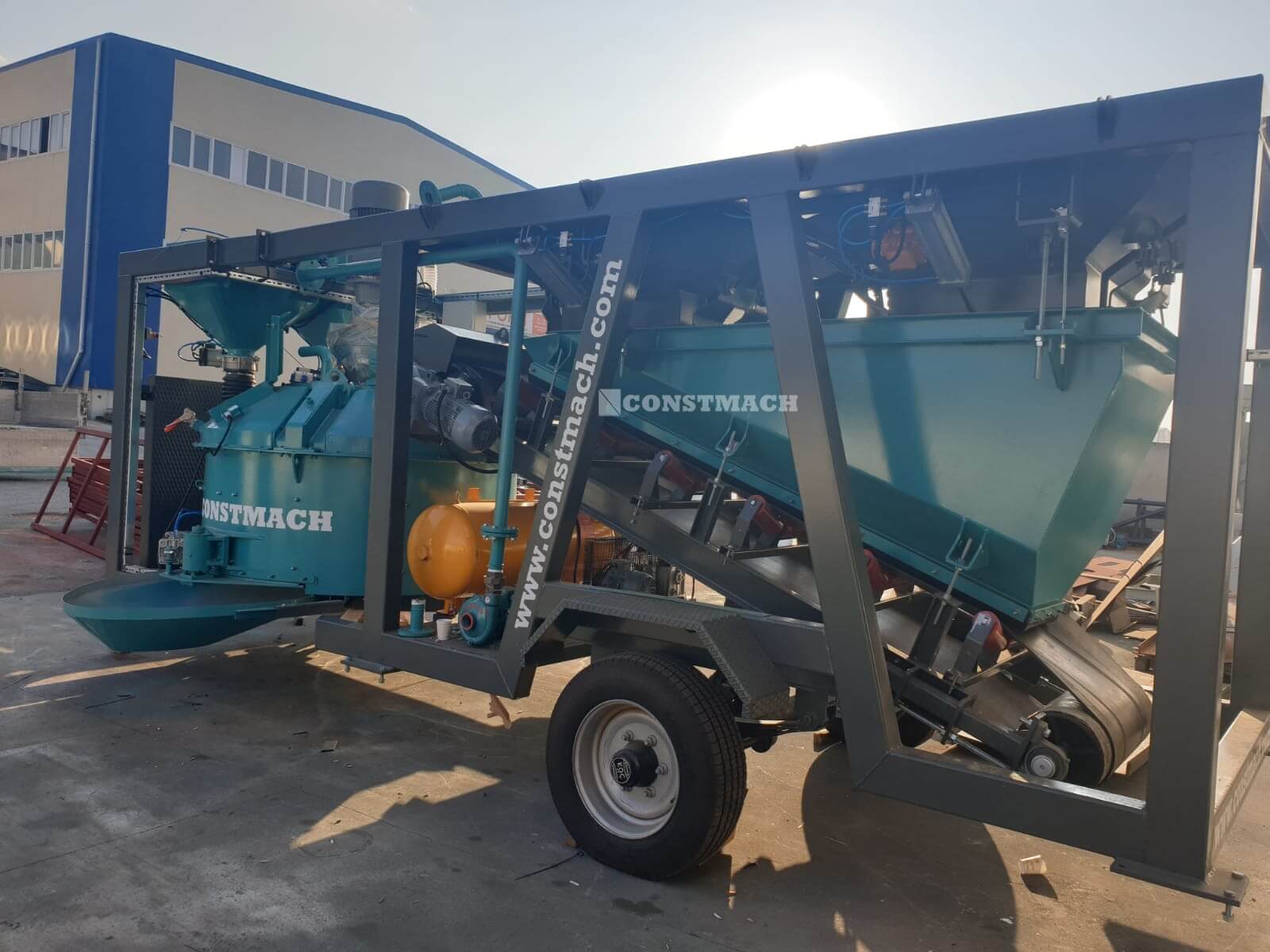

- 8- Mobile chassis
Chassis material: 100 x 150 x 5 mm steel profiles Walking platform, handrails and ladders are galvanized All mixers and weigh hoppers are ready for use and CE compliant. The chassis has 1 axle and 2 tires.
- 9- Automation System:

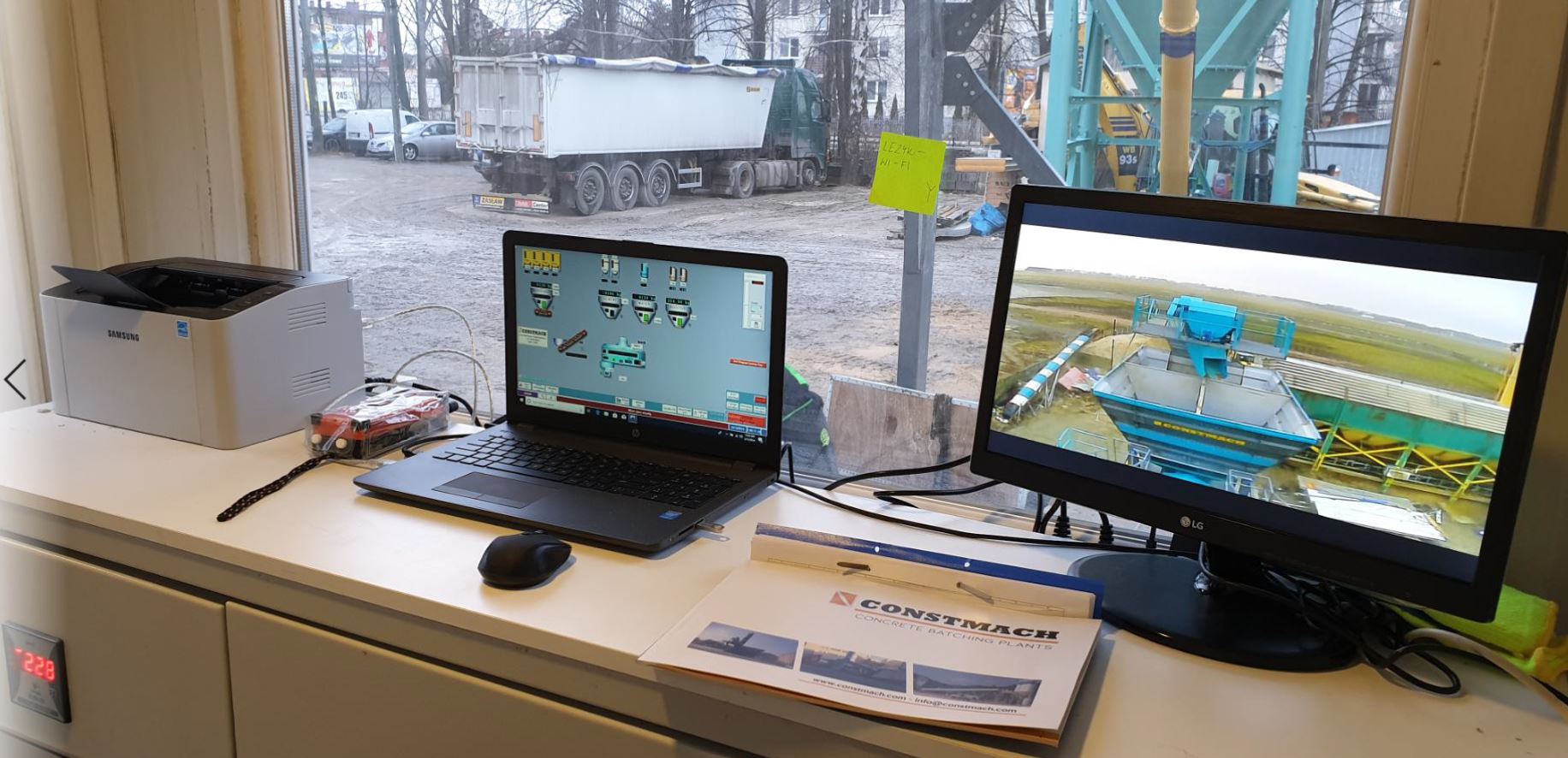

The plant is fully automated and the system is controlled on a PC.
The automated system includes:
* Power panel and control panel
* PLC (SIEMENS or SCHNEIDIER brand)
* software
* Computer, screen and plotter
* Electronic components are SIEMENS and SCHNEIDER brands.

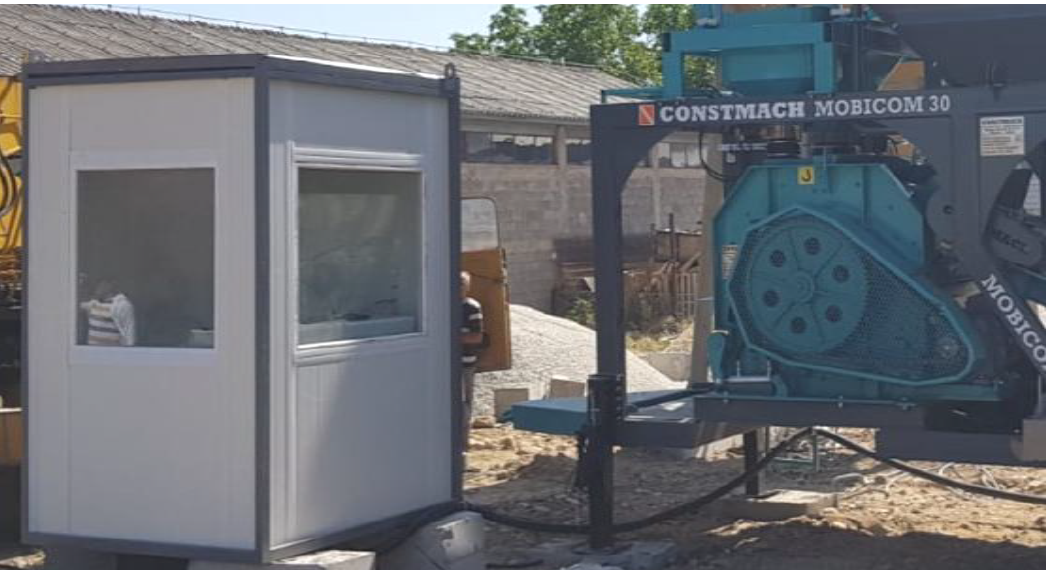

- 10- Control cabinet:
Dimensions: 2.000 x 1.600 x 2.200 mm Walls are made of 40 mm insulating sandwich panels.
- 11 - Air Compressor:
Compressed air volume: 200 liters Brand: TAMSAN, Origin: Turkey
Type: Piston compressor with drive
Body: GG-26 casting
Motor power: 3kw
Maximum air pressure: 8 bar

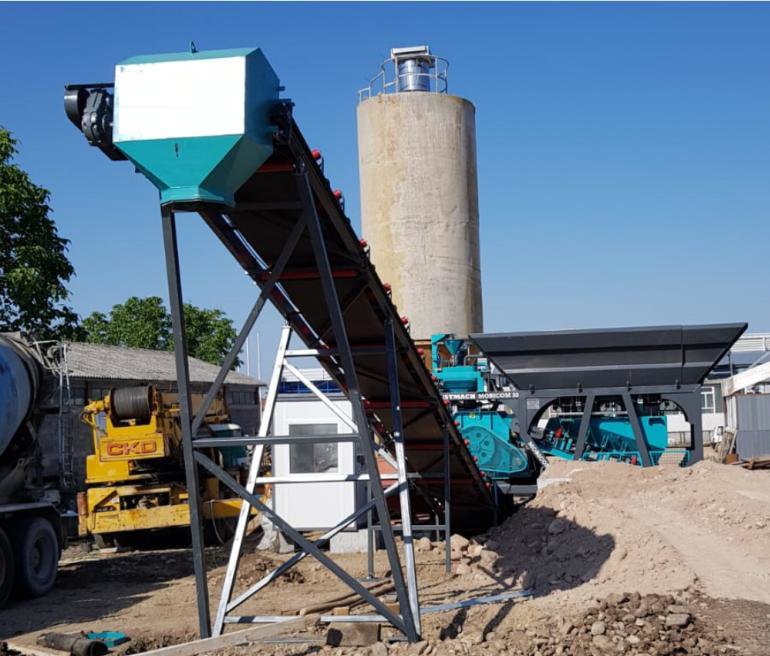

- 12- Concrete Conveyor:
Conveyor Dimensions: 800 x 15.250 mm
Chassis Material: Curved Sheet Metal – 4mm
Electric Motor: 11 kW, 1450 rpm, GAMAK Brand Gearbox Brand: POLAT, Heavy Duty Bearing: Use FAG or SKF Brand Heavy Duty Bearing Box. Belt Rubber: Quality EP 125, Layers: 4,
Belt rubber thickness: 10 mm
Belt rubber brand: BANTSAN
Includes emergency stop button.
Drive drum: Ø273mm, 5mm thick. The drive drum is covered with rubber.
- 13- Cement bag opening hopper: optional
Capacity: 1 m3Body sheet and thickness: St 37 – 4-5mm with ladders, platforms and handrails. An open bag grill with sharp edges is located on top of the hopper.
- 14- Cement silo: optional
Type: Welded or Bolted Capacity: 50 tons (other options are possible) Cone Material and Thickness: St 37 - 6 mm
Body material and thickness: St 37 – 4-5-6 mm Roof material and thickness: St 37 – 4- mm Charging tube: Ø 114 mm
There are deck ladders from bottom to top. The silo roof is surrounded by handrails according to CE standard. The body is reinforced with NPU steel profiles. The silo legs are long enough that there is no need to build concrete legs. The silo is equipped with an air system for filters and air nozzles.
- 15- Screw conveyor:
Screw conveyors of the same size have open bag hoppers or cement silos.
Dimensions: Ø 219 x 5.500 mm
Motor: 9kw
Brand: WAM or OZB
- 16- Silo top filter: optional silo
Surface area: 18 m2
There are 3 solenoid valves with pneumatic cleaning.
Air consumption 4,5 Nmc/h
Brand: WAM or OZB
- 17- Safety Valves, Level Indicators, Silo Accessories
There is a pressure relief valve at the top of the silo.
There are level indicators for controlling the cement level in the silo: 2 for maximum and minimum level.
The silo discharge port has a butter fly valve with a manual lever.
There are air nozzles with air fittings.
Silo accessories brand: WAM or OZBdetailed image
