Premium FASTMIX 80MB mobile concrete batching plant for sale

PRODUCT DETAIL
Core Components Warranty:Please contact us.Core components:Please contact us.
Local service location:Moroccopayment terms:L/C,D/A,D/P,T/T
Power Type:electricalSupply capacity:100 sets per month
Applicable industries:Manufacturing, Construction, Energy & MiningHealth status:new
Mechanical test report:Please contact us.Video external inspection:Please contact us.
Showroom location:MoroccoWarranty:1 year
After Warranty Service:On-site maintenance and repair servicesport:Casablanca
After-sales service provided:On-site installation, commissioning and trainingbrand:quick mix
Marketing Type:Please contact us.Type of machine:production line
place of origin; place of origin:Morocco
main information



fast mix move

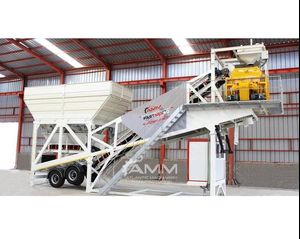

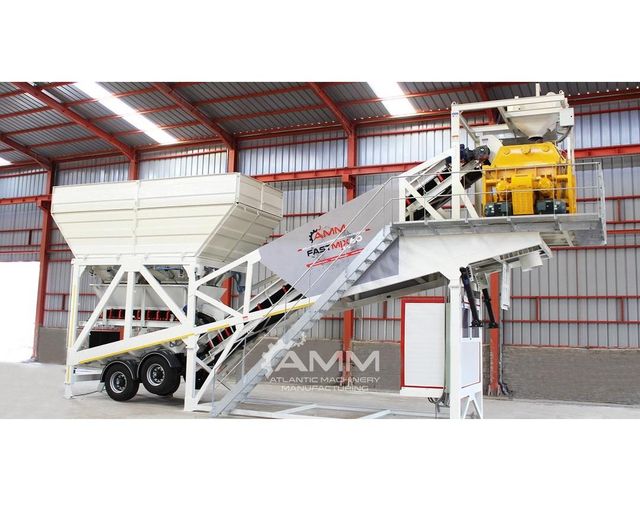

The FASTMIX mobile concrete batching plant is a reliable and cost-effective plant characterized by easy transport, fast installation and low operating costs.
They are convenient for customers looking for quick solutions compared to stationary concrete plants, and are also suitable for ready-mix concrete suppliers and various construction sites. These concrete plants are best for construction projects that require mass production of concrete. As with all other concrete equipment in the FASTMIX range, the strength and reliability of the product are guaranteed. In addition to the special control over the construction process, these concrete plants are easy to maintain to guarantee long-term service.
They are all equipped with twin shaft, planetary or turbine mixers, suitable for the required flow rate, providing fast mixing, homogeneous and high quality concrete production.
Our FASTMIX Mobile concrete plant produces compacted concrete at capacities ranging from 35 to 100 cubic meters per hour. The storage and weighing system consists of four cross hoppers. Pellets are conveyed using a herringbone belt conveyor. The cement silo is provided by a waterproof silo, equipped with dust filter, safety valve, liquid level indicator, aeration nozzle, etc.
The capacity and number of silos vary from plant to plant, and cement transport is provided by screw conveyors. All equipment required for operation
Our FASTMIX mobile concrete equipment is pre-installed and pre-wired, including air compressors, cement, water and admixture pumps.
FASTMIX Mobile Advantages:
- Quick installation.
- High mobility.
- In line with international standards.
- Reduced transportation and operating costs
- Resist the most extreme climatic conditions
- FASTMIX modules save production time, installation and maintenance costs and energy consumption.

Specification



Model   Quick Mix 80MB
maximum production capacity m3/hour 80
Fresh concrete volume cubic meter 1,5
Filling capacity large 2250
Vibrated concrete capacity large 1500
Vibrated concrete capacity cubic meter 50
volume of each hopper cubic meter 4×12,5 m³
Weighing bucket size mm 3500x1750x2400
power transmission belt kilowatt 15
Power board size mm 1000×11000
Cement scale capacity Kilogram 1000
Capacity switched to secondary large 50
Scale capacity large 500
Blender Type double knife
Air conditioning control cabin mm 2400x2400x1750
Air compressor large 500
Auxiliary pump kilowatt 0.75
mixer motor power kilowatt 2×37
Diameter of screw conveyor o 273
gross weight Ton 26
transportation   Kamien repents
Electronic equipment   Schneider/Siemens
automation   AMM
