Factory price 75m3/h prefab dry portable ready mobile small concrete batching plant for sale
- $26920.00 /unit
- 1 unit
- Zhengzhou Pioneer Machinery Co., Ltd.
- Henan, China
- Ms Ting Li
PRODUCT DETAIL
After Warranty Service: | Video technical support, online support, on-site maintenance and repair services | port: | Qingdao Port |
Warranty: | 12 months, 1 year | brand: | pioneer |
Health status: | new | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Packaging Details: | Standard export packaging | Type of machine: | batching machine |
Local service location: | Mexico, Spain | place of origin; place of origin: | Henan, China |
weight: | 8500kg | Core components: | PLC, engine, motor |
Showroom location: | Mexico, Spain | Mechanical test report: | if |
After-sales service provided: | Provide overseas service centers, video technical support, on-site maintenance and repair services, online support | Marketing Type: | New Products 2020 |
strength: | 66.9KW | Video external inspection: | if |
Core Components Warranty: | 1 year | Certification: | International Organization for Standardization |
Power Type: | electrical | color: | On customer request |
Supply capacity: | 100 sets per month | Applicable industries: | factory, construction |
Product Description

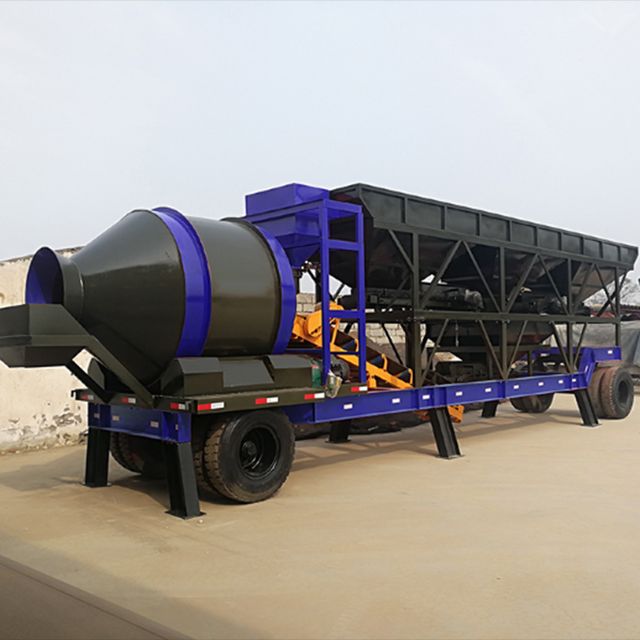

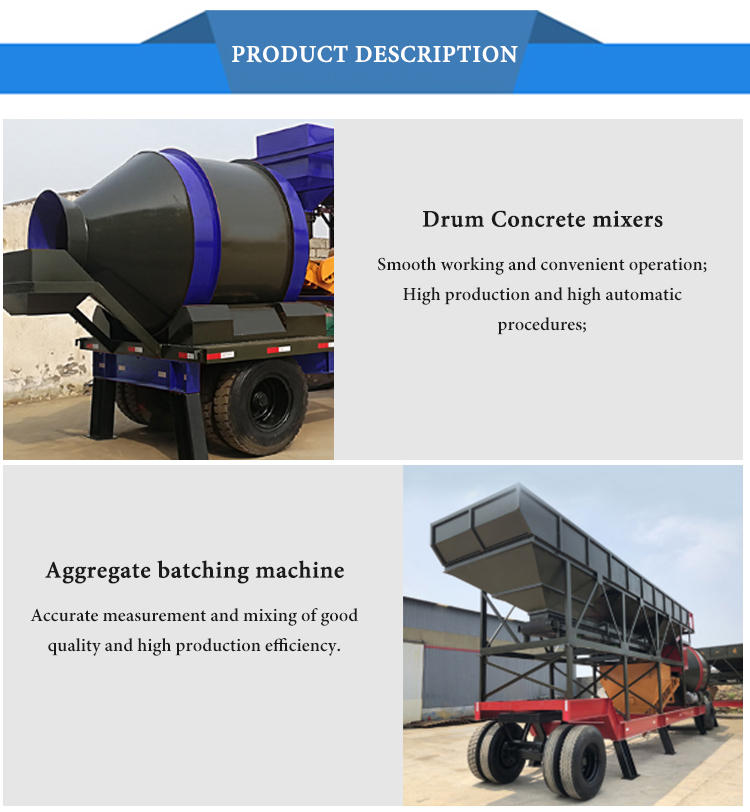

brief introduction:The mobile drum mixing plant is a new type of concrete mixing plant with low cost and easy installation. Aggregate batching and conveying are automated and accurate; the quality of concrete mixing can be observed, the drum rotates clockwise for mixing and counterclockwise for discharging; the chassis of the whole plant is easy to move, and does not need to be disassembled; Compared with the twin-shaft concrete batching plant, this concrete batching plant is cheaper and saves the transportation cost.
feature:1. Overall layout: easy installation and operation 2. Traction mode: easy to move, can be towed anywhere. 3. Structural features: Unique water supply line, automatic water supply system, reduce water supply time and improve production efficiency by 20%. 4. Complete functions: unique ratio storage, blanking self-replenishment, over-standard alarm, online formula modification, etc.
Product parameters
Specification | ||||||||||||||
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1000-3 | JZM1500-2 | JZM1500-3 | ||||||||
theoretical ability | 25 cubic meters/hour | 35 cubic meters/hour | 50 cubic meters/hour | 50 cubic meters/hour | 75 cubic meters per hour | 75 cubic meters per hour | ||||||||
discharge height | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm | ||||||||
total power | 44kW | 50kW | 58.9kW | 58.9kW | 66.9kW | 66.9kW | ||||||||
8 X 2.2m X 3.8m | 8m X 2.2m X 3.8m | 10m X 2.3m X4.2m | 13.5m X 2.3m X 4.2m | 12m X 2.3m X 4.2m | 14.5m X 3.9m X 4.2m | |||||||||
Hybrid system | mixer model | JZM500 | JZM750 | JZM1000 | JZM1000 | JZM1500 | JZM1500 | |||||||
Stirring motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*11kw | 2*15kw | 2*15kw | ||||||||
Discharge amount | 500L | 750L | 1000L | 1000L | 1500L | 1500L | ||||||||
Aggregation system | Dispenser model | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1200-3 | PLD1600-2 | PLD1600-3 | |||||||
Aggregate bin volume | 5m³×2 | 6m³×2 | 7m³×2 | 7m³×3 | 8m³×2 | 8m³×3 | ||||||||
maximum. Aggregate diameter | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | ||||||||
Measurement system | Cement weighing bucket | 500KG | 500KG | 560KG | 560KG | 900KG | 900KG | |||||||
water weighing stand | 220KG | 220KG | 220KG | 220KG | 330KG | 330KG | ||||||||
Additive Weighing Support | 30KG | 30KG | 30KG | 30KG | 40KG | 40KG | ||||||||
trailer speed | 40-60 km/h | 40-60 km/h | 40-60 km/h | 40-60 km/h | 40-60 km/h | 40-60 km/h | ||||||||
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T | 50/100T | 50/100T |

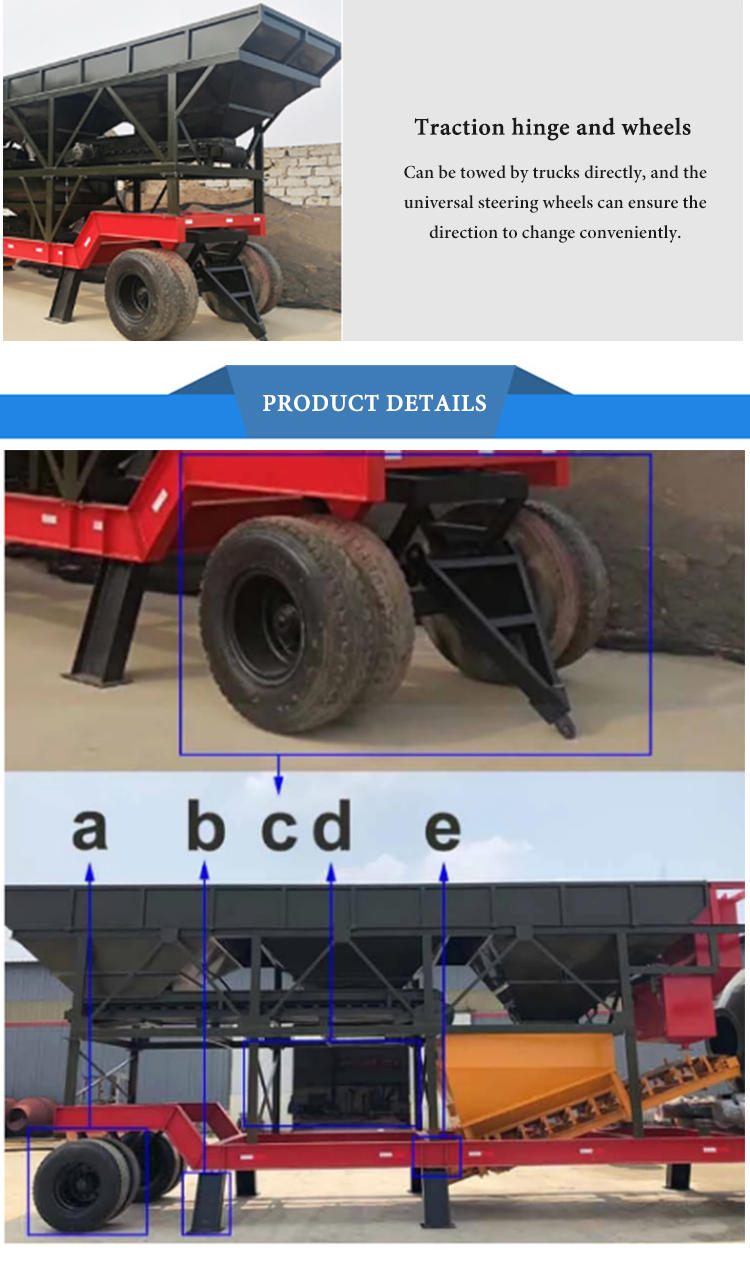

a: Double tires:Strong pressure bearing capacity, high stability and non-slip.b: Supporting legs:Quick disassembly and assembly, stabilize the machine during operation, protect the tires and prolong the service life.c: Universal steering tire:It can be directly towed by a truck to ensure convenient reversing.d: Storage hopper base:Moving forward from the middle produces two benefits: 1. The remaining space can be used for generators, control cabinets, water tanks, tool boxes, etc. 2. Shorten the length of the feeding belt and the feeding time, and improve the work efficiency.e: Support Steel:Increase the carrying capacity of the chassis and prolong the use time.

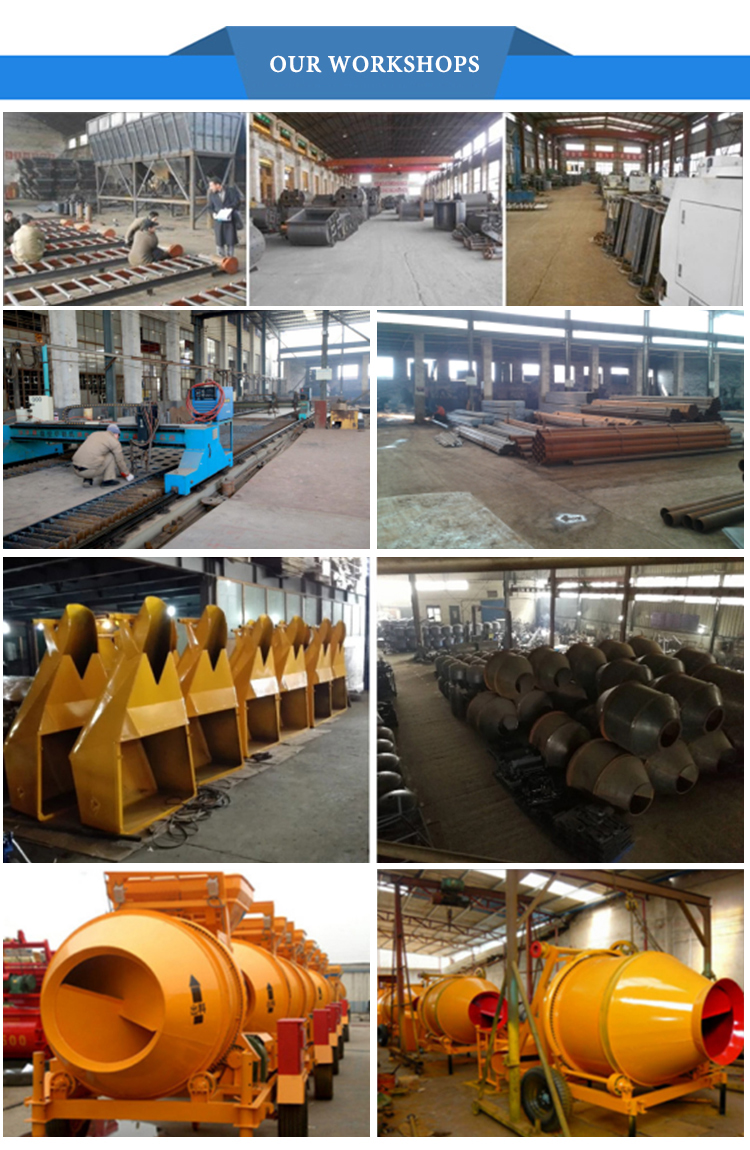

our workshop
